Parker 氣動傳感器接頭 - Parker Pneumatic Sensor Fittings
Parker Fittings接頭 - Push to Connect Fittings

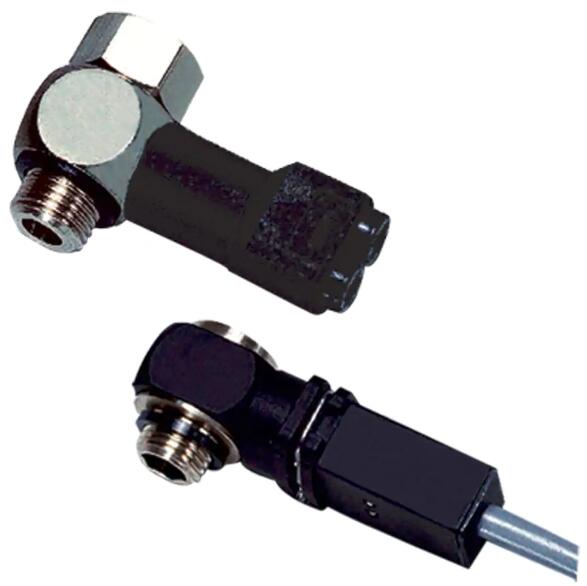

氣動傳感器接頭- Parker 氣動傳感器接頭具有獨特的傳感器，可檢測氣缸到達其行程末端時的壓降。當壓力下降到背壓閾值以下時，它們會產生氣動或電動輸出信號。派克氣動傳感接頭可以在氣缸行進至末端，缸內背壓即將消失時做動，輸出氣/電壓或電子信號，以作為其他控制之用。The parker pneumatic sensor fittings has a unique sensor that detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop below their back pressure threshold. The parker pneumatic sensor fittings has a unique sensor that detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

Pneumatic Sensor Fittings

Features/Benefits:
特征/優勢：

- 使用方便

- 適合不同回路的變化：可替代位移傳感器

- 帶氣壓輸出訊號

- 安裝在氣動回路中
- 2種安裝方式：
- 提供長期壓力(P1)：當達到背壓值時，輸出氣壓信號
- 背壓來自對面的控制閥-氣缸回路：由于輸出壓力訊號由(P1)決定，因此在行程過程中不會出現意外的氣壓信號(S)輸出

- 帶電子輸出訊號

- 結合了電子和氣動的技術
- 僅與不間斷電源安裝到一起(BU)
- 當達到背壓值時，使產生電子信號

市場：

- 工廠自動化
- 紡織機械
- 半導體
- 包裝

應用：

- 氣動回路壓降檢測

技術：

- 壓力傳感器
- 電力傳感器
- 氣動傳感器
- 氣動回路安裝
- 壓力調節器
- 氣動系統
- 氣動接頭

技術參數：

- 流體：壓縮空氣
- 材料：黃銅，工程塑料，丁腈橡膠，不含硅成分
- 壓力范圍： 3至8 bar
- 溫度范圍： -15°C 至 +60°C
- 背壓： 0.85至1 ba
- 切換時間：7818型: 3ms

符合規范：

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

產品類型：

- 氣動傳感接頭，BSPP和公制外螺紋
- 氣動傳感接頭，BSPP內/外螺紋
- 電/氣傳感接頭，BSPP和公制內/外螺紋

- Easy-to-Use

- Suited to changes of series: no adjustment to position detectors is necessary

- With Pneumatic Output

- Totally pneumatic installation
- 2 possible installations:
Supplied with permanent pressure (P1): produces a pneumatic signal when the back pressure threshold is reached
Supplied from the control valve-cylinder circuit on the opposite side: no unexpected pneumatic signal (S) can appear during pressurisation due to the actuating pressure which supplies the sensor fitting (P1)

- With Electrical Output

- Combined electrical and pneumatic installation
- Installation with continuous electrical supply only (BU)
- Guarantees an electrical signal when the back pressure threshold is reached

Markets:

- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging

Application:

- Pneumatic Circuits Pressure Drop Detection


Technologies:

- Pressure sensor
- Electric sensor
- Pneumatic sensors
- Pneumatic installation
- Pressure regulator
- Pneumatic system
- Pneumatic fittings

Technical Characteristics:

- Fluids: Compressed air
- Materials: brass, technical polymer, NBR, silicone free
- Pressure: 3 to 8 bar
- Temperature: -15°C to +60°C
- Back pressure: 0.85 to 1 bar
- Switching time: Model 7818: 3ms

Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

Product Types:

- Pneumatic Sensor Fitting, Male BSPP and Metric Thread
- Pneumatic Sensor, Male/Female BSPP Thread
- Pneumatic/Electric Sensor, Male/Female BSPP and Metric Thread

Technical Specifications

Pneumatic Sensor Fittings 型號
