Pneumatic Pressure Reducers
Parker Legris pressure reducers are designed to set the pressure of a compressed air circuit to a determined value.They therefore enable energy saving by limiting the cylinder pressure.
Parker Legris pressure reducers are designed to set the maximum pressure delivered to pneumatic equipments. They therefore enable energy saving by limiting the cylinder pressure and allow improve cost management.
Features/Benefits:
- Design & Performance
- Optimisation of the pressure at the minimum values required to provide final force and energy consumption
- Manual adjustment protected by a plug
- Visual indication of the differential pressure by colour code
- Two Models Available

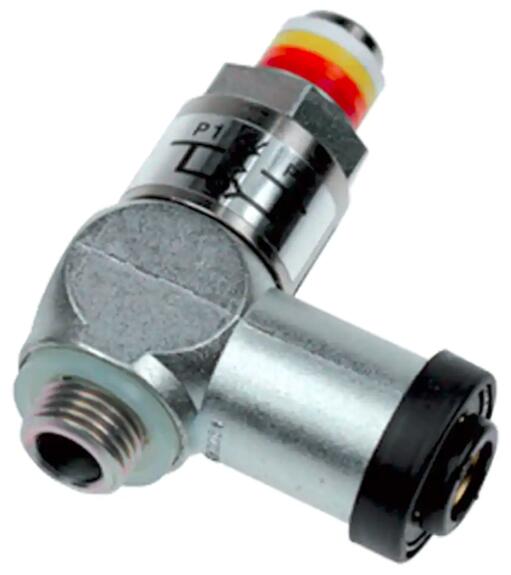

- Banjo: fitted directly on the control valve or terminal block
- In-line: fitted in the pipework, between the control valve and cylinder
Markets:
- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging
Application:
- Pneumatic Circuits Pressure Control
Technologies:
- Pressure regulator
- Pneumatic system
- Air pressure regulator
- Pressure regulating valve
- Pneumatic fittings
Technical Characteristics:
- Fluids: Compressed air
- Materials: nickel-plated brass, technical polymer, NBR, zamak, shot-plated brass, silicone free
- Pressure: 1 to 8 bar
- Temperature: -15°C to +60°C
Regulations:
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)
Product Types:
- Banjo Pressure Reducer, Male BSPP Thread
- Banjo Pressure Reducer, Male/Female BSPP Thread
- In-Line Tube-to-Tube Pressure Reducer
- In-Line Pressure Reducer, Female BSPP Thread
- Sealing Plug for Pressure Reducer
- Manual Ratchet Control for Pressure Reducer
Technical Specifications
| Application: |
Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various |
| Minimum Operating Temperature: |
-15 °C, 5 °F |
| Maximum Operating Pressure: |
8 bar, 116 psi, 0,8 MPa |
| Maximum Operating Temperature: |
140 °F, 60 °C |
| Tube Outside Diameter: |
6 to 10 mm |
| Specifications Met: |
DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED) |
| Materials of Construction: |
Nickel Plated Brass, Rubber, Technical Polymer |
| Connection Type: |
Push-to-Connect, Push-to-Connect/Thread |
| Shape: |
Straight, 90° |
| O-Ring Material: |
NBR |
| Quantity per Box: |
1 |
| Weight: |
0,137 to 0651 kg |
| Media: |
Compressed air |
Pneumatic Pressure Reducers 型號(hào)
| Part |
Shape |
Body Material |
Gripping Ring |
Connection 1 Thread Style |
Connection 1 Thread Size (metric) |
Connection 2 Tube O.D. (mm) |
| 7316 06 00 |
In-line pressure reducer |
NICKEL PLATED BRASS |
STAINLESS STEEL |
na |
na |
6 |
| 7316 08 00 |
In-line pressure reducer |
NICKEL PLATED BRASS |
STAINLESS STEEL |
na |
na |
8 |
| 7316 10 00 |
In-line pressure reducer |
NICKEL PLATED BRASS |
STAINLESS STEEL |
na |
na |
10 |
| 7318 06 13 |
Banjo pressure reducer |
ZAMAK |
STAINLESS STEEL |
BSPP |
G1/4 |
6 |
| 7318 08 13 |
Banjo pressure reducer |
ZAMAK |
STAINLESS STEEL |
BSPP |
G1/4 |
8 |
| 7318 10 13 |
Banjo pressure reducer |
ZAMAK |
STAINLESS STEEL |
BSPP |
G1/4 |
10 |
| 7318 10 17 |
Banjo pressure reducer |
ZAMAK |
STAINLESS STEEL |
BSPP |
G3/8 |
10 |
| 7416 10 10 |
In-line pressure reducer female |
NICKEL PLATED BRASS |
na |
BSPP |
G1/8 |
na |
| 7416 13 13 |
In-line pressure reducer female |
NICKEL PLATED BRASS |
na |
BSPP |
G1/4 |
na |
| 7416 17 17 |
In-line pressure reducer female |
NICKEL PLATED BRASS |
na |
BSPP |
G3/8 |
na |
| 7471 10 10 |
Banjo pressure reducer female |
ZAMAK |
na |
BSPP |
G1/8 |
na |
| 7471 13 13 |
Banjo pressure reducer female |
ZAMAK |
na |
BSPP |
G1/4 |
na |
| 7471 17 17 |
Banjo pressure reducer female |
ZAMAK |
na |
BSPP |
G3/8 |
na |
|
