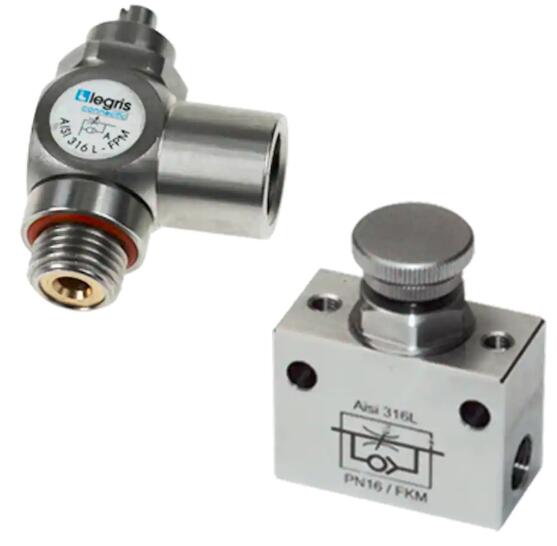

派克不銹鋼氣動調速節流閥
parker Pneumatic Flow Control Regulators in Stainless Steel

不銹鋼調速節流閥是在需要高機械強度或者高化學腐蝕性的應用環境中，可以用來調節氣缸活塞桿的速度以及氣體的流速。不銹鋼調速節流閥是在需要高機械強度或者高化學腐蝕性的應用環境中，可以用來調節氣缸活塞桿的速度以及氣體的流速。這些調節閥適合于食品飲料的應用，他們能夠運送流體，并且不會給系統帶來污染。該節流閥的設計優化，平滑的外表面便于清潔。

Stainless steel flow control regulators are used to regulate the speed of a cylinder rod as well as gas flow in environments with high mechanical or chemical constraints. Stainless steel flow control regulators are used to regulate the speed of a cylinder rod as well as gas flow in environments with high mechanical or chemical constraints. Those regulators are suitable for food environment as they ensure no contamination of conveyed fluids. The design is optimised by using smooth external surfaces in order to facilitate your cleaning processes.

特征/優勢：

- 堅固耐用

- 適用于腐蝕性環境
- 非常好的機械和化學耐受性
- 生產環節完整防泄漏檢測
- 不污染輸送的流體

- 優化結構設計

- 平滑的外表面便于清潔
- 適用于食品級環境
- 精密、正確、方便的調節

市場：

- 工廠自動化
- 汽車裝配生產
- 食品以及飲料
- 半導體
- 紡織機械
- 包裝機械
- 軌道交通

應用：

- 氣缸控制
- 低壓空氣流量調節
- 適用于腐蝕性強的環境

技術：

- 調速閥
- 碳鋼調速閥
- 雙向調速閥
- 單向調速閥
- 出口方向可調
- 氣動流量控制

技術參數：

- 流體：壓縮空氣
7822： 流體兼容性取決于密封材料是FKM還是PTFE
- 接頭材料： 316L不銹鋼， FKM
- 壓力范圍：
7810-7812： 真空至10 bar
7820： 真空至16 bar
7822： 真空至 40 bar
- 溫度范圍：
7810-7812： 0°C 至 +70°C
7820-7822： -15°C 至 +120°C

符合規范：

- DI： 2002/95/EC (RoHS)
- RG： 1907/2006 (REACH)
- DI： 97/23/EC (PED)
- RG：外部材質： 21CFR (FDA)
- RG： 外部材質： 1935/2004/EC

產品類型：

- 排氣型調速閥，BSPP和公制內/外螺紋
- 雙向節流型調速閥，BSPP和公制內/外螺紋
- 管對管單向調速閥，BSPP內螺紋
- 雙向管對管調速閥，BSPP內螺紋

Features/Benefits:

- Robust

- Suitable for corrosive environments
- Excellent mechanical and chemical resistance
- 100% leak-tested in production
- No contamination of conveyed fluids

- Optimised Design

- Smooth external surfaces to facilitate cleaning
- Fully compatible with food environments
- Accurate and easy adjustment

Markets:

- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery
- Rail

Applications:

- Pneumatic Cylinder Control
- Low Pressure Compressed Air Flow Regulation
- Suitable for Corrosive Environment

Technologies:

- Regulator
- Steel regulator
- Bi-directional regulator
- Uni-directional regulator
- Swivel outlet
- Pneumatic controls

Technical Characteristics:

- Fluids: Compressed Air
7822: all compatible fluids depending on whether FKM or PTFE seals are used
- Materials: 316L stainless steel, FKM
- Pressure:
7810-7812: Vacuum to 10 bar
7820: Vacuum to 16 bar
7822: Vacuum to 40 bar
- Temperature:
7810-7812: 0°C to +70°C
7820-7822: -15°C to +120°C

Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)
- RG: External Components: 21CFR (FDA)
- RG: External Components: 1935/2004/EC

Product Types:

- Flow Regulator Exhaust, Male/Female BSPP and Metric Thread
- Bi-Directional Flow Regulator, Male/Female BSPP and Metric Thread
- In-Line One-Way Flow Regulator, Female BSPP Thread
- Bi-Directional In-Line Flow Regulator, Female BSPP Thread

Technical Specifications

技術規格：

• 連接1螺紋尺寸（公制）： G1/8
• 連接1螺紋形式： BSPP

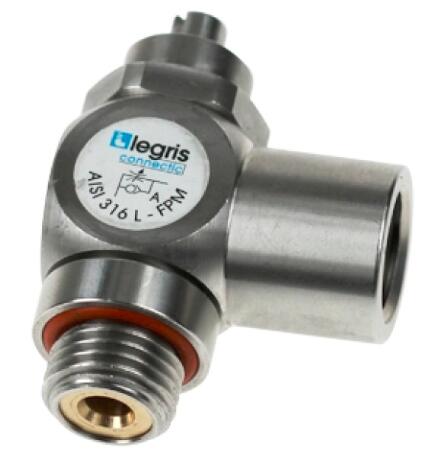

• 形狀： Flow regulator stainless steel banjo female exhaust
• 閥體材料： 316L不銹鋼
• 把手類型： na
• O 型圈材料： 氟橡膠
• 直徑： na
• 最大運行壓力： 10 barg
• 最低運行溫度： 0 °C
• 最高運行溫度： 70 °C
• 數量/箱： 2
• 重量： 0.04 kg
• 應用： “機器人，自動化過程，氣動，半導體，紡織業，水處理，飲料機”
• 介質： “LF3000, LIQUIfit”
• 符合規格： ROHS, REACH, FDA Regl. N° 1935/2004

Pneumatic Flow Control Regulators in Stainless Steel 型號
