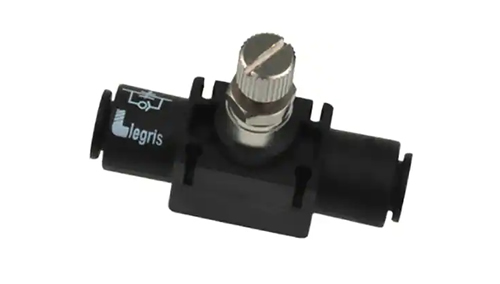

Parker Legris 流量控制調節器 - Parker Legris flow control regulators
Parker Legris Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass

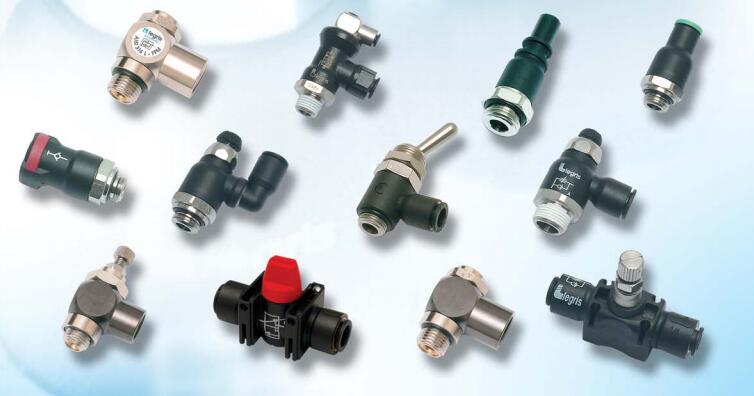

Parker Fittings接頭 - Push to Connect Fittings

Parker Legris 流量控制調節器提供精確的調節、準確性和緊湊性，為所有應用提供解決方案。這些流量控制調節器可提供聚合物、鍍鎳黃銅或鋁體、外部或嵌入式調節螺釘。通過允許比標準調節器更高的最大流量和精確調整，該系列產品可幫助您準確地提高生產率和性能。Parker Legris 流量控制調節器采用聚合物、鍍鎳黃銅或鋁制主體、外部或嵌入式調節螺釘，提供精確調節、準確性和緊湊性，為所有應用提供解決方案。

Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass

Parker Legris flow control regulators with polymer, nickel-plated brass or aluminium bodies,external or recessed adjustment screws, offer precise adjustment, accuracy and compactness providing the solution for all applications. Parker Legris flow control regulators offer precise adjustment, accuracy and compactness providing the solution for all applications. Those flow control regulators are available with polymer, nickel-plated brass or aluminium bodies, external or recessed adjustment screws. By allowing a higher maximum flow than standards regulators and precise adjustement, this range of products helps you improve your productivity and performance with accuracy.

特性/優點：

- 提高生產率

- 比標準調節器更高的最大流量
- 全流量且壓降最小（7060 型）
- 氣缸桿速度的最佳控制
- 生產中 100% 泄漏測試
- 日期編碼以保證質量和可追溯性
- 減少壓縮空氣和能源消耗

- 精度和性能

- 精確調節以實現從初始到最大開度的精確流量調節
- 恒定的缸桿位移速度
- 流量的長期穩定性
- 減輕重量（聚合物版本）
- 機械強度和耐腐蝕性鍍鎳黃銅版本

- 符合人體工程學和大范圍

- 外部調節螺釘：無需工具即可輕松調節且可鎖定
- 嵌入式調節螺釘：更緊湊并保護調節機構
- 單向：排氣或進氣
- 雙向：調節空氣雙向流動
- 360° 定位
- 應要求提供 NPT 版本

市場：

- 工廠自動化
- 車輛裝配設施
- 食品和飲料
- 半導體
- 服裝
- 包裝機械
- 軌道

應用：

- 氣動缸控制
- 低壓壓縮空氣流量調節

技術：

- 流量控制
- 雙向調節器
- 單向調節器
- 氣動控制
- 旋轉出口

技術特性：

- 流體：壓縮空氣。其他流體：聯系我們
- 材料：鍍鎳黃銅、工業聚合物、不銹鋼、NBR
- 壓力：真空至 10 bar
- 溫度：0°C 至 +70°C

規定：

- DI：2002/95/EC (RoHS)
- RG：1907/2006 (REACH)
- DI：97/23/EC (PED)

產品類型：

- 流量調節器，帶嵌入式調節螺釘排氣/供應，外螺紋 BSPP 和公制螺紋
- 雙向流量調節器，帶嵌入式調節螺釘，外螺紋 BSPP 和公制螺紋
- 緊湊型流量調節器排氣/供給，外螺紋 BSPP / BSPT
- 雙向緊湊型流量調節器，外螺紋 BSPP / BSPT
- 微型流量調節器排氣，外螺紋 BSPP和公制螺紋 / BSPT
- 微型流量調節器供應，外螺紋 BSPP 和公制螺紋 / BSPT
- 雙向微型流量調節器，外螺紋 BSPP 和公制螺紋
- 緊湊型流量調節器旋轉出口排氣/供應，外螺紋 BSPP / BSPT
- 緊湊型流量調節器旋轉出口排氣，外螺紋 BSPT
- 微型旋轉出口流量調節器排氣/供應，外螺紋 BSPP 和公制螺紋/BSPT
- 直列式單向流量調節器
- 雙向直列式流量調節器
- 面板安裝直插式單向流量調節器
- 直插式單向流量調節器，BSPP 內螺紋
- 連接夾
- 直型流量調節器排氣，BSPP 外螺紋
- 緊湊型插入式流量調節器，排氣/供應
- 微型插入式流量調節器，排氣/供應
- 流量調節器，排氣，外螺紋 BSPP 和公制螺紋
- 流量調節器，排氣，外螺紋/內螺紋 BSPP 和公制螺紋
- 帶黃銅壓縮接頭的流量調節器，排氣，外螺紋 BSPP
- 緊湊型流量調節器，排氣/供給，BSPP 外螺紋
- 緊湊型流量調節器，BSPP 外螺紋
- 微型流量調節器排氣，BSPP 外螺紋和公制螺紋
- 緊湊型流量調節器排氣/供給，外螺紋/母 BSPP 螺紋
- 微型流量調節器排氣，外螺紋/內螺紋 BSPP 和公制螺紋
- 流量調節器排氣，帶黃銅壓縮接頭，外螺紋 BSPP
- 面板安裝式直列流量調節器，內螺紋 BSPP 和公制螺紋

Features/Benefits:

- Improved Productivity

- Higher maximum flow than standard regulators
- Full flow with minimum pressure drop (model 7060)
- Optimal control of the cylinder rod speed
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- Reduce compressed air and energy consumption

- Accuracy & Performance

- Precise adjustment for accurate flow regulation from initial to maximum opening
- Constant cylinder rod displacement speed
- Long-term stability of flow
- Reduced weight (polymer version)
- Mechanical strength and corrosion resistance with nickel-plated brass version

- Ergonomics & Large Range

- External adjustment screw: easy to adjust without tooling and lockable
- Recessed adjustment screw: more compact and protects the adjustment mechanism
- Uni-directional: exhaust or inlet
- Bi-directional: adjustment of air flow in both directions
- 360° positioning
- NPT version on request

Markets:

- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery
- Rail

Applications:

- Pneumatic Cylinder Control
- Low Pressure Compressed Air Flow Regulation

Technologies:

- Flow control
- Bi-directional regulator
- Uni-directional regulator
- Pneumatic controls
- Swivel Outlet

Technical Characteristics:

- Fluids: Compressed Air. Other fluids: contact us
- Materials: Nickel-plated brass, technical polymer, stainless steel, NBR
- Pressure: Vacuum to 10 bar
- Temperature: 0°C to +70°C

Regulations:

- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)

Product Types:

- Flow Regulator with Recessed Adjustment Screw Exhaust / Supply, Male BSPP and Metric Thread
- Bi-Directional Flow Regulator with Recessed Adjustment Screw, Male BSPP and Metric Thread
- Compact Flow Regulator Exhaust / Supply, Male BSPP / BSPT Thread
- Bi-Directional Compact Flow Regulator, Male BSPP / BSPT Thread
- Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread / BSPT
- Miniature Flow Regulator Supply, Male BSPP and Metric Thread / BSPT
- Bi-Directional Miniature Flow Regulator, Male BSPP and Metric Thread
- Compact Flow Regulator Swivel Outlet Exhaust / Supply, Male BSPP / BSPT Thread
- Compact Flow Regulator Swivel Outlet Exhaust, Male BSPT Thread
- Miniature Swivel Outlet Flow Regulator Exhaust / Supply, Male BSPP and Metric Thread / BSPT
- In-Line One-Way Flow Regulator
- Bi-Directional In-Line Flow Regulator
- Panel-Mountable In-Line One-Way Flow Regulator
- In-Line One-Way Flow Regulator, Female BSPP Thread
- Joining Clips
- Straight Flow Regulator Exhaust, Male BSPP Thread
- Compact Plug-In Flow Regulator, Exhaust / Supply
- Miniature Plug-In Flow Regulator, Exhaust / Supply
- Flow Regulator, Exhaust, Male BSPP and Metric Thread
- Flow Regulator, Exhaust, Male/Female BSPP and Metric Thread
- Flow Regulator with Brass Compression Fitting, Exhaust, Male BSPP Thread
- Compact Flow Regulator, Exhaust / Supply, Male BSPP Thread
- Compact Flow Regulator, Male BSPP Thread
- Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread
- Compact Flow Regulator Exhaust / Supply, Male/Female BSPP Thread
- Miniature Flow Regulator Exhaust, Male/Female BSPP and Metric Thread
- Flow Regulator Exhaust, with Brass Compression Fitting, Male BSPP Thread
- Panel-Mountable In-Line Flow Regulator, Female BSPP and Metric Thread

Technical Specifications

技術規格

• 連接 1 螺紋尺寸（公制）： G1/4
• 抓環： 不銹鋼
• 連接 1 螺紋樣式： BSPP
• 連接 2 管外徑 (mm)： 10
• 連接 2 管外徑（英寸）： 吶
• 機身材質： 技術聚合物
• 產品類別： 具有外部調節功能的緊湊型調節器
• 形狀： 流量調節器緊湊型班卓琴供應
• 螺母材料： 吶
• O形圈材料： 丁腈橡膠
• 袖子材質： 吶
• 涂層： 吶
• 螺紋密封膠材料： 吶
• 最大工作壓力： 10 巴
• 最低工作溫度： 0℃
• 最高工作溫度： 70℃
• 每箱數量： 5
• 重量： 0.053公斤
• 應用： 氣動、機器人、半導體、紡織、汽車工藝、包裝
• 媒體： 壓縮空氣、其他流體：聯系我們

Pneumatic Flow Control Regulators in Polymer or Nickel-Plated Brass 型號
