• 全黃銅解決方案消除了對腐蝕的擔憂
• 設計有更少的潛在泄漏點
• 更小的包絡允許更緊密的路由
• 將每個連接的組裝時間減少多達 60 秒
• 系統比傳統的先導管線軟管組件輕 60%

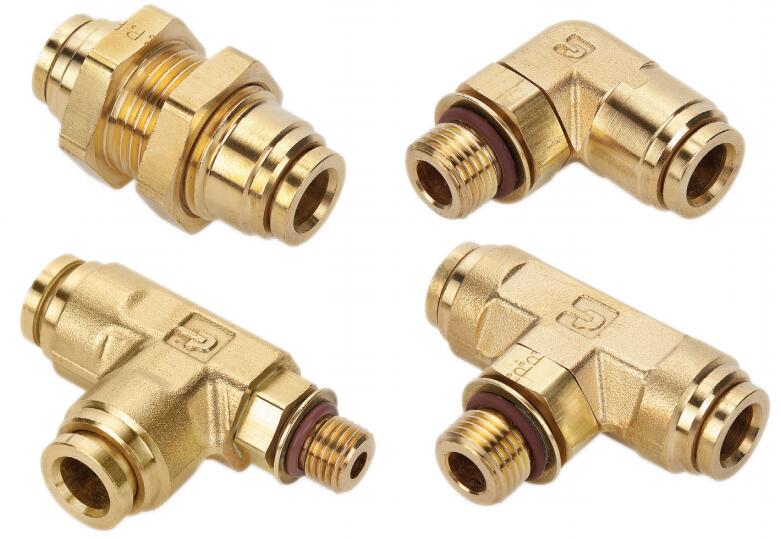

PMH push-to-connect hydraulic fittings are designed to speed up assembly, especially in difficult to reach areas such as hydraulic joystick ports. Parker PMH hydraulic fittings are an ideal solution and include excellent corrosion resistance, a compact envelope, fewer potential leak points and are lightweight. This push to connect hydraulic fitting is designed to speed up assembly, especially in difficult to reach areas such as hydraulic joystick ports. PMH low pressure hydraulic fittings, partnered with XDT tubing from Parflex Division, are for use with low pressure hydraulics (<435 psi) in the Industrial and Mobile Hydraulic Markets. The all brass construction can eliminate corrosion, extending the life of the equipment. PMH hydraulic fittings have been engineered with fewer potential leak points which reduce future warranty costs. PMH fittings offer a smaller envelop, allowing for tighter routings and reducing the complexity of the assembly process. With the PMH push-to-connect fittings system, an assembler simply needs to push the tubing into the pre-installed adapter. PMH low pressure fittings significantly reduce assembly time by 60 seconds per connection. Along with accelerating the assembly, the PMH/XDT system is 60% lighter than traditional pilot line hose assemblies, reducing annual shipping costs and vehicle weight.

市場：
- 工業
- 移動式液壓

特性/優點：
- 黃銅主體和夾頭
- 丁腈橡膠 O 型圈
- 耐腐蝕
- 重量比標準液壓接頭輕 60%
- 每個連接減少 60 秒的組裝時間
- 緊湊，允許更緊密的布線

應用：
- 試驗線
- 液壓操縱桿
- 外殼泄油
