Parker Quick Couplings

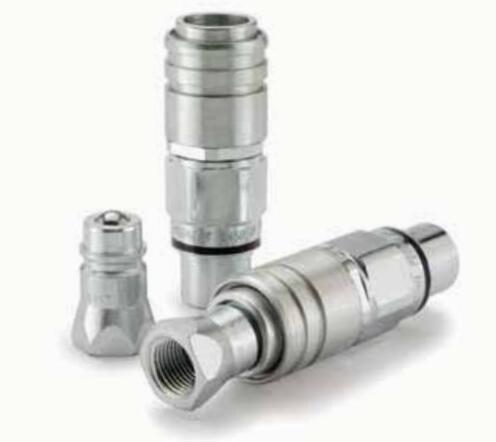

Rigid Mount, Connect Under Pressure, 1/2” Pioneer Agricultural Quick Couplings, ISO 5675, 3000 psi, - 8450 Series Couplers

Pioneer rigid mount, connect under pressure quick couplers are used across a spectrum of agricultural hydraulic applications where fluid lines require fast and easy connection while either or both the coupler and nipple are under pressure.

Pioneer 8450 Series agricultural Couplers (hydraulic) 3000 psi, will connect under pressure with 8010 Series Nipples (ISO 5675 Pioneer universal male tips) while either or both the coupler and nipple are under system pressure.

8450 Series push to connect couplings have poppet valves and a push-pull sleeve design to act as a breakaway when rigidly mounted or held in a 5006-4 clamp. Coupler port ends are 7/8 - 14 ORB threads, male or female, to allow direct mounting to a control valve or rigid tubing.

Rigid Mount, Connect Under Pressure, 1/2” Pioneer Agricultural Quick Couplings, ISO 5675, 3000 psi, - 8450 Series Couplers

Technical Characteristics:
- Size: 1/2"
- Materials: Steel
- Port Ends: Male ORB, Female ORB
- Seal Options: Nitrile

Markets:
- Agriculture

Features/Benefits:
- Globally connects with Pioneer male tips (8010 Series) or any other nipples conforming to ISO 5675
- Straight thread ORB fitting allows direct mounting to a control valve or rigid tubing
- Connect under system pressure on the coupler side and/or on the nipple side
- One handed push to connect operation when the coupler is clamp or rigid mounted
- Outer housing keeps dust and dirt away from the sleeve mechanism
- Compatible with 5006-4 breakaway clamp

Applications:
- Tractors
- Mid-sized agricultural equipment
- Agricultural attachments requiring breakaway

Technical Specifications

Rigid Mount, Connect Under Pressure, 1/2” Pioneer Agricultural Quick Couplings, ISO 5675, 3000 psi, - 8450 Series Couplers 型號
