Parker Quick Couplings and Accessories
Parker Quick Couplings

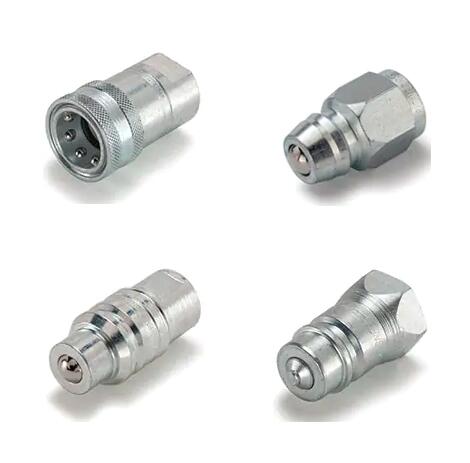

Agricultural Quick Coupling Interchange to OEM Brand Tractor Connections - Pioneer OEM Interchange Couplers and Male Tips
Pioneer agricultural OEM quick coupling interchange products provide aftermarket couplers and nipples to connect with specific OEM style tractor and implement connectors. Wide selection of interchange styles.
Pioneer agricultural products provide the most reliable and exacting aftermarket OEM interchanges in the industry. Couplers and nipples connect with specific OEM brand quick coupling styles. Agricultural male tip and female body interchange styles include: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson.
Agricultural Quick Coupling Interchange to OEM Brand Tractor Connections - Pioneer OEM Interchange Couplers and Male Tips
Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Interchange Styles: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson
Markets:
- Agriculture
- Aftermarket replacement, maintenance and repair
Features/Benefits:
- Wide range of coupling styles to interchange with major farm equipment brand implement male tips and female coupler bodies
- Male tips have hardened locking ball grooves to resist wear and provide protection from Brinelling
- Positive valve stop prevents flow checking for smooth performance
Applications:
- Tractor attachments / implements
- Agricultural farm equipment
- Hydraulic Loaders
- Ag/mobile attachments
Technical Specifications
| Media: |
Hydraulic |
| Maximum Operating Pressure: |
207 bar, 3000 psi |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Materials of Construction: |
Steel |
| Application: |
Hydraulic, Ag Equipment |
| Coupling Half: |
Coupler, Nipple |
| Valve Type: |
Poppet, Ball |
| Vacuum Pressure Rating: |
No |
| Body Size: |
1/2 inch |
| Thread Size: |
Female NPTF, Female ORB |
| Connection Thread Size: |
1/2 (14 NPTF), 3/4 (16 UNF), 7/8 (14 UNF) inch |
| Brand: |
Pioneer |
Agricultural Quick Coupling Interchange to OEM Brand Tractor Connections - Pioneer OEM Interchange Couplers and Male Tips 型號
| Part |
Coupling Half |
Competitor Part Number |
Function |
| 4056-15 |
Coupler - Female Socket |
John Deere (old style) coupler AR47331 and (new style) coupler RE15361 |
Connects with John Deere AR30210 and Pioneer 5060-4 male tips |
| 4056-4 |
Coupler - Female Socket |
John Deere (old style) coupler AR47331 |
Connects with John Deere AR30210 and Pioneer 5060-4 male tips |
| 4057-4 |
Coupler - Female Socket |
International Harvester coupler 544788R1 |
Connects with International Harvester 544787R1 and Pioneer 5070-4 male tips |
| 5060-15 |
Nipple - Male Tip |
John Deere male tip (new style) AR93819 and (old style) AR30210 |
Connects with John Deere AR47331 sleeve type couplers |
| 5060-4 |
Nipple - Male Tip |
John Deere male tip RE-11447 |
Connects with John Deere AR47331 sleeve type couplers |
| 5070-16 |
Nipple - Male Tip |
International Harvester male tip 544787R91 |
Connects with International Harvester 544788R1 and Pioneer 4057-4 couplers |
| 5070-4 |
Nipple - Male Tip |
International Harvester male tip 1272770 |
Connects with International Harvester 544788R1 and Pioneer 4057-4 couplers |
| 5077-16 |
Nipple - Male Tip |
International Harvester male tip 395149R1 |
Connects with International Harvester 395150-R1 (old style) couplers |
| 5077-4 |
Nipple - Male Tip |
International Harvester male tip 395151R1 |
Connects with International Harvester 395150-R1 (old style) couplers |
| 5080-4 |
Nipple - Male Tip |
J I Case (old style) male tip A160884 |
Connects with J I Case A28542 coupler |
| DR10008 |
Nipple - Male Tip |
John Deere male tip AR94522 |
Connects with John Deere couplers manufactured to accept ISO 5675 male tips |
| Pioneer 8010-15 |
Nipple - Male Tip |
Massey Ferguson male tip 1026700M91 |
Compatible with couplers manufactured to accept ISO 5675 male tips |
| Pioneer 8010-15P |
Nipple - Male Tip |
John Deere male tip AR94522 |
Compatible with John Deere couplers manufactured to accept ISO 5675 male tips |
| Pioneer 8010-4 |
Nipple - Male Tip |
Massey Ferguson male tip 242678M91 |
Compatible with couplers manufactured to accept ISO 5675 male tips |
| Pioneer 8010-4P |
Nipple - Male Tip |
Ford male tip D-3NN-B964A |
Compatible with couplers manufactured to accept ISO 5675 male tips |
|
