Parker派克 UHP PFA 螺紋管件（尺寸從 1/8 英寸到 1 英寸）
UHP PFA Threaded Pipe Fittings (sizes from 1/8 inch - 1 inch)
Parker Veriflo PFA Threaded Pipe Fittings
Parker Fittings接頭 Tube Fittings

Parker派克PFA 螺紋管件非常適合超高純度或腐蝕性化學品處理管道應用。該接頭具有高泄漏完整性和極強的耐腐蝕性。它們的尺寸范圍從 1/8 到 1 英寸。Parker Veriflo PFA 螺紋管件具有高泄漏完整性和出色的耐腐蝕性，使其成為超高純度應用和腐蝕性化學品處理線的理想選擇。這些接頭的尺寸范圍從 1/8 英寸到 1 英寸，并提供各種配置以滿足客戶系統的獨特要求，包括彎頭、三通、異徑管、短節、塞子、襯套和聯軸器。這些配件由高純度、半導體級 PFA 材料制成，可確保清潔操作，同時最大限度地減少表面顆粒、總有機碳 (TOC) 和陰離子的產生。只需用手擰緊扳手大約三到四圈，將接頭擰到配合部件上即可實現密封連接。派克 PFA 管件可以適應各種腐蝕性和非腐蝕性過程流體。接頭的溫度和壓力額定值由尺寸決定。1/8 英寸和 3/8 英寸 PFA 接頭適用于工作壓力高達 125 psig 的管道應用。對于可靠性、耐腐蝕性和清潔度至關重要的操作，它們是一種經濟的選擇。PFA Threaded Pipe Fittings are ideally suited for ultra-high purity or corrosive chemical handling piping applications. The fittings offer high leak integrity and extreme resistance to corrosion. They are available in sizes ranging from 1/8 to 1 inch.

Parker Veriflo PFA Threaded Pipe Fittings pfa-pipe-fittings

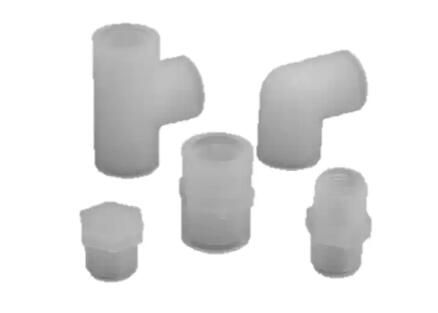

Parker Veriflo PFA Threaded Pipe Fittings offer high leak integrity and exceptional resistance to corrosion, making them ideal for use in ultra-high purity applications and corrosive chemical handling lines. The fittings are available in sizes ranging from 1/8 inch to 1 inch, along with a variety of configurations to meet the unique requirements of customers' systems, including elbows, tees, reducers, nipples, plugs, bushings, and couplings.

The fittings are fabricated from high-purity, semiconductor-grade PFA material, which ensures a clean operation with minimal generation of surface particulates, total organic carbon (TOC) and anions. The leak-tight connection is achieved by simply threading the fitting onto the mating component roughly three to four wrench turns past hand-tight.

Parker PFA pipe fittings can accommodate a wide range of corrosive and non-corrosive process fluids. Temperature and pressure ratings of the fitting are dictated by size. 1/8 inch and 3/8 inch PFA fittings are suitable for use in piping applications with working pressure up to 125 psig. They are an economical choice for operations where reliability, corrosion resistance, and cleanliness are essential.

市場：
- 半導體
- 分析實驗室
- 制藥
- 生物制藥
- 航空航天
- 工業

特性/優勢：
- 半導體級 PFA 主體提供卓越的耐腐蝕性
- 密封可最大限度地減少顆粒產生和過程污染
- 非常適合 UHP 和腐蝕性化學應用
- 尺寸范圍從 1/8 英寸到 1 英寸
- 各種配置降低了系統復雜性、組裝時間和成本
- 最大工作壓力：125 psig（用于 1/8 英寸和 3/ 8 英寸接頭）

應用：
- 腐蝕性和特殊化學品、酸、堿和漿料
- 半導體工具
- 工具連接件
- 閥組箱 (VMB)
- CMP/漿料系統

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Semiconductor-grade PFA body provides exceptional resistance to corrosion
- Leak-tight seal minimizes particle generation and process contamination
- Ideal for UHP and corrosive chemical applications
- Available in sizes ranging from 1/8 inch to 1 inch
- Variety of configurations reduces system complexity, assembly time, and cost
- Maximum working pressure: 125 psig (for 1/8 inch and 3/8 inch fittings)

Applications:
- Corrosive and specialty chemicals, acids, bases, and slurries
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMB)
- CMP/Slurry systems

Technical Specifications

UHP PFA Threaded Pipe Fittings (sizes from 1/8 inch - 1 inch) 型號
