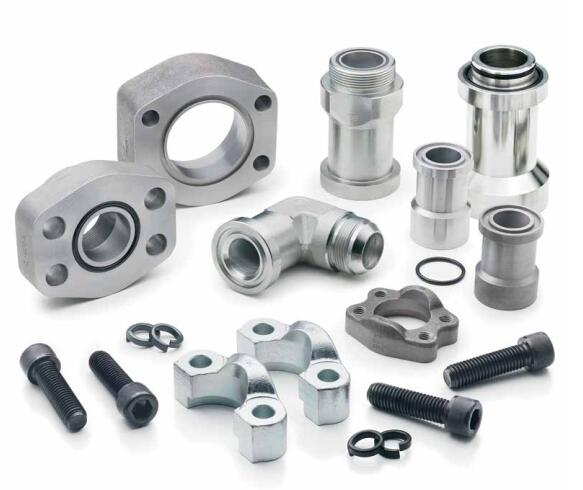

O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters
O 形環面密封，37° 擴口和不擴口代碼 61 和 62 法蘭適配器

派克帶 4 螺栓法蘭連接的法蘭適配器適用于派克的 Seal-Lok O 型環面密封 (ORFS)、Triple-Lok 37° 擴口、Ferulok 英制擴口接頭和承插管焊接，并已在全球范圍內實現驗收。派克帶 4 螺栓法蘭連接的法蘭適配器符合 SAE J518 和 ISO 6162-1 和 -2。這些經過驗證的無泄漏連接適用于 Parker 的 Seal-Lok O 型環面密封 (ORFS)、Triple-Lok 37° 擴口、Ferulok 英制擴口接頭和承插管焊接，并已獲得全球認可。

Parker's flange adapters with 4-bolt flange connections adapt to Parker's Seal-Lok O-ring Face Seal (ORFS), Triple-Lok 37° flare, Ferulok inch flareless fittings, and socket pipe weld, and have achieved world-wide acceptance. Parker's flange adapters with 4-bolt flange connections conform SAE J518 and ISO 6162-1 and -2. These proven leak-free connections adapt to Parker's Seal-Lok O-ring Face Seal (ORFS), Triple-Lok 37° flare, Ferulok inch flareless fittings, and socket pipe weld, and have achieved world-wide acceptance.

O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters

市場：
- 建筑
- 農業
- 石油和天然氣
- 運輸
- 采礦
- 林業

特性/優點：
- 適用于 Parker 的 Seal-Lok O 型環面密封 (ORFS)、Triple-Lok 37° 擴口、Ferulok 英寸擴口接頭和承插管焊接。
- 與同等尺寸的螺紋端口所需的擰緊扭矩相比，所需的擰緊扭矩更低，因此需要更小的扳手和扳手擺動間隙——便于在狹小空間內組裝。
- 提供 13 種配置，可根據要求提供定制設計。
- 使用分裂夾易于拆卸。
- 提供 ” 至 1 ” 尺寸的鋼材質，工作壓力高達 5000 psi。

應用：
- 液壓流體和氣體處理連接

Markets:
- Construction
- Agriculture
- Oil & Gas
- Transportation
- Mining
- Forestry

Features/Benefits:
- Adapts to Parker's Seal-Lok O-ring Face Seal (ORFS), Triple-Lok 37° flare, Ferulok inch flareless fittings, and socket pipe weld.
- Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
- 13 configurations available, with custom designs available on request.
- Ease of disassembly with use of split clamps.
- Available in steel in sizes ” through 1 ” with working pressures up to 5000 psi.

Applications:
- Hydraulic fluid and gas handling connections

Technical Specifications

O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters型號
