Parker Adapters

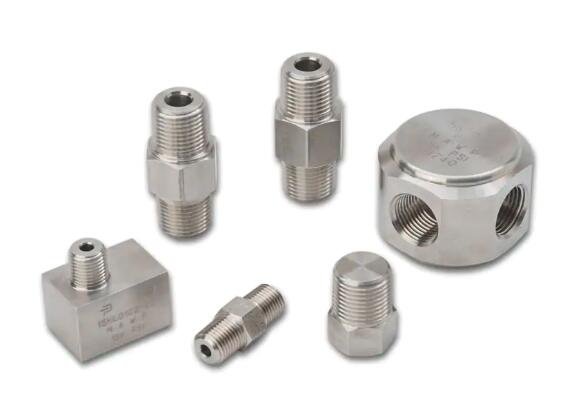

NPT Adapters
Parker's stainless steel NPT adapters have working pressure ratings from 10,000 psi to 15,000 psi, depending on size.
Parker offers a broad range of stainless steel NPT adapters rated from 10,000 psi (1/8" to 1/2" sizes) to 15,000 psi (3/4" and 1" sizes). These adapters are versitile and used in a variety of markets/applications.
NPT Adapters
Features/Benefits:
- Compact size - suitable selection for plumbing in limited or tight space in a compact system
- Highly versitile for end customers and for customer standardization efforts
Typical Markets:
- Waterblast
- Hydraulics
- Oil & Gas
Technical Specifications
| Shape: |
Straight, Cap or Plug |
| Connection 1 Size: |
NPT Male or Female, Medium Pressure Male or Female, High Pressure Male or Female, Type "M" Male |
| Connection 2 Size: |
NPT Male or Female, Medium Pressure Male, High Pressure Male, JIC Male, BSP Male |
| Connection 1 Thread Size: |
1/16 - 27 NPT to 1 - 11-1/2 NPT,
7/16" - 20 UNF to 1-3/8" - 12 UNF,
3/4" - 14 NPSM, 1" - 14 UNS LH inch |
| Connection 2 Thread Size: |
1/16 - 27 NPT to 1 - 11-1/2 NPT,
7/16 - 20 UNF to 1-5/16 - 12 UNF,
3/4 - 14 NPSM, 1 - 14 UNS LH,
G 3/8 - 19 to G 1/2 - 14 inch |
| Materials of Construction: |
Stainless Steel |
| Overall Length: |
0.68 to 4.37 inch, 0.68 to 4.37 mm |
| Hex Size: |
0.375 to 2.75 inch, 9.525 to 69.85 mm |
| Maximum Operating Pressure: |
7,000 to 15,000 psi, 48 to 103 MPa |
| Width: |
1.68, 1.89, 2.15, 2.88, 1.85, 3.83, 1.7, 1.9, 2.70, 3.63, 1.60, 1.80, 2.05, n/a inch, 42.67, 48.01, 54.61, 73.15, 46.99, 97.28, 43.18, 48.26, 68.58, 92.20, 40.64, 45.72, 52.07, n/a mm |
| Height: |
1.68, 1.89, 2.15, 2.88, 1.85, 3.83, 1.7, 1.9, 2.7, 3.63, 1.6, 1.8, 2.05, n/a inch, 42.67, 48.01, 54.61, 73.15, 46.99, 97.28, 43.18, 48.26, 68.58, 92.20, 40.64, 45.72, 52.07, n/a mm |
NPT Adapters型號
| Part |
Shape |
Connection 1 Style |
Connection 1 Thread Size (inch) |
Connection 2 Style |
Connection 2 Thread Size (inch) |
| 01D9-4-6C |
Straight |
NPT Male |
1/4 - 18 NPT |
BSP Male |
G 3/8 - 19 |
| 01D9-6-6C |
Straight |
NPT Male |
3/8 - 18 NPT |
BSP Male |
G 3/8 - 19 |
| 01D9-8-6C |
Straight |
NPT Male |
1/2 - 14 NPT |
BSP Male |
G 3/8 - 19 |
| 01D9-8-8C |
Straight |
NPT Male |
1/2 - 14 NPT |
BSP Male |
G 1/2 - 14 |
| 02D9-8-8C |
Straight |
NPT Female |
1/2 - 14 NPT |
BSP Male |
G 1/2 - 14 |
| 02Y5-1-9C |
Straight |
NPT Female |
1/16 - 27 NPT |
Medium Pressure Male |
13/16 - 16 UNF |
| 02Y5-12-12C |
Straight |
NPT Female |
3/4 - 14 NPT |
Medium Pressure Male |
3/4 - 14 NPSM |
| 02Y5-12-16C |
Straight |
NPT Female |
3/4 - 14 NPT |
Medium Pressure Male |
1 - 14 UNS LH |
| 02Y5-12-4C |
Straight |
NPT Female |
3/4 - 14 NPT |
Medium Pressure Male |
7/16 - 20 UNF |
| 02Y5-12-6C |
Straight |
NPT Female |
3/4 - 14 NPT |
Medium Pressure Male |
9/16 - 18 UNF |
| 02Y5-12-9C |
Straight |
NPT Female |
3/4 - 14 NPT |
Medium Pressure Male |
13/16 - 16 UNF |
| 02Y5-16-12C |
Straight |
NPT Female |
1-3/8 - 12 UNF |
Medium Pressure Male |
3/4 - 14 NPSM |
| 02Y5-16-16C |
Straight |
NPT Female |
1-3/8 - 12 UNF |
Medium Pressure Male |
1 - 14 UNS LH |
| 02Y5-16-6C |
Straight |
NPT Female |
1-3/8 - 12 UNF |
Medium Pressure Male |
9/16 - 18 UNF |
| 02Y5-16-9C |
Straight |
NPT Female |
1-3/8 - 12 UNF |
Medium Pressure Male |
13/16 - 16 UNF |
| 02Y5-2-12C |
Straight |
NPT Female |
1/8 - 27 NPT |
Medium Pressure Male |
3/4 - 14 NPSM |
| 02Y5-2-16C |
Straight |
NPT Female |
1/8 - 27 NPT |
Medium Pressure Male |
1 - 14 UNF LH |
| 02Y5-2-4C |
Straight |
NPT Female |
1/8 - 27 NPT |
Medium Pressure Male |
7/16 - 20 UNF |
| 02Y5-2-6C |
Straight |
NPT Female |
1/8 - 27 NPT |
Medium Pressure Male |
9/16 - 18 UNF |
| 02Y5-2-9C |
Straight |
NPT Female |
1/8 - 27 NPT |
Medium Pressure Male |
13/16 - 16 UNF |
| 02Y5-4-12C |
Straight |
NPT Female |
1/4 - 18 NPT |
Medium Pressure Male |
3/4 - 14 NPSM |
| 02Y5-4-16C |
Straight |
NPT Female |
1/4 - 18 NPT |
Medium Pressure Male |
1 - 14 UNS LH |
| 02Y5-4-4C |
Straight |
NPT Female |
1/4 - 18 NPT |
Medium Pressure Male |
7/16 - 20 UNF |
| 02Y5-4-6C |
Straight |
NPT Female |
1/4 - 18 NPT |
Medium Pressure Male |
9/16 - 18 UNF |
| 02Y5-4-9C |
Straight |
NPT Female |
1/4 - 18 NPT |
Medium Pressure Male |
13/16 - 16 UNF |
| 02Y5-6-12C |
Straight |
NPT Female |
3/8 - 18 NPT |
Medium Pressure Male |
3/4 - 14 NPSM |
| 02Y5-6-16C |
Straight |
NPT Female |
3/8 - 18 NPT |
Medium Pressure Male |
1 - 14 UNS LH |
| 02Y5-6-4C |
Straight |
NPT Female |
3/8 - 18 NPT |
Medium Pressure Male |
7/16 - 20 UNF |
| 02Y5-6-6C |
Straight |
NPT Female |
3/8 - 18 NPT |
Medium Pressure Male |
9/16 - 18 UNF |
| 02Y5-6-9C |
Straight |
NPT Female |
3/8 - 18 NPT |
Medium Pressure Male |
13/16 - 16 UNF |
| 02Y5-8-12C |
Straight |
NPT Female |
1/2 - 14 NPT |
Medium Pressure Male |
3/4 - 14 NPSM |
| 02Y5-8-16C |
Straight |
NPT Female |
1/2 - 14 NPT |
Medium Pressure Male |
1 - 14 UNS LH |
| 02Y5-8-4C |
Straight |
NPT Female |
1/2 - 14 NPT |
Medium Pressure Male |
7/16 - 20 UNF |
| 02Y5-8-6C |
Straight |
NPT Female |
1/2 - 14 NPT |
Medium Pressure Male |
9/16 - 18 UNF |
| 02Y5-8-9C |
Straight |
NPT Female |
1/2 - 14 NPT |
Medium Pressure Male |
13/16 - 16 UNF |
| 02Y6-1-6C |
Straight |
NPT Female |
1/16 - 27 NPT |
High Pressure Male |
3/4 - 16 UNF |
| 02Y6-12-6C |
Straight |
NPT Female |
3/4 - 14 NPT |
High Pressure Male |
3/4 - 16 UNF |
| 02Y6-12-9C |
Straight |
NPT Female |
3/4 - 14 NPT |
High Pressure Male |
1-1/8 - 12 UNF |
| 02Y6-16-9C |
Straight |
NPT Female |
1 - 11-1/2 NPT |
High Pressure Male |
1-1/8 - 12 UNF |
| 02Y6-2-4C |
Straight |
NPT Female |
1/8 - 27 NPT |
High Pressure Male |
9/16 - 18 UNF |
| 02Y6-2-6C |
Straight |
NPT Female |
1/8 - 27 NPT |
High Pressure Male |
3/4 - 16 UNF |
| 02Y6-2-9C |
Straight |
NPT Female |
1/8 - 27 NPT |
High Pressure Male |
1-1/8 - 12 UNF |
| 02Y6-4-4C |
Straight |
NPT Female |
1/4 - 18 NPT |
High Pressure Male |
9/16 - 18 UNF |
| 02Y6-4-6C |
Straight |
NPT Female |
1/4 - 18 NPT |
High Pressure Male |
3/4 - 16 UNF |
| 02Y6-4-9C |
Straight |
NPT Female |
1/4 - 18 NPT |
High Pressure Male |
1-1/8 - 12 UNF |
| 02Y6-6-4C |
Straight |
NPT Female |
3/8 - 18 NPT |
High Pressure Male |
9/16 - 18 UNF |
| 02Y6-6-6C |
Straight |
NPT Female |
3/8 - 18 NPT |
High Pressure Male |
3/4 - 16 UNF |
| 02Y6-6-9C |
Straight |
NPT Female |
3/8 - 18 NPT |
High Pressure Male |
1-1/8 - 12 UNF |
| 02Y6-8-4C |
Straight |
NPT Female |
1/2 - 14 NPT |
High Pressure Male |
9/16 - 18 UNF |
| 02Y6-8-6C |
Straight |
NPT Female |
1/2 - 14 NPT |
High Pressure Male |
3/4 - 16 UNF |
| 02Y6-8-9C |
Straight |
NPT Female |
1/2 - 14 NPT |
High Pressure Male |
1-1/8 - 12 UNF |
| 10K0101-12-12C |
Straight |
NPT Male |
3/4 - 14 NPT |
NPT Male |
3/4 - 14 NPT |
| 10K0101-12-4C |
Straight |
NPT Male |
3/4 - 14 NPT |
NPT Male |
1/4 - 18 NPT |
| 10K0101-12-6C |
Straight |
NPT Male |
3/4 - 14 NPT |
NPT Male |
3/8 - 18 NPT |
| 10K0101-16-12C |
Straight |
NPT Male |
1 - 11-1/2 NPT |
NPT Male |
3/4 - 14 NPT |
| 10K0101-16-16C |
Straight |
NPT Male |
1 - 11-1/2 NPT |
NPT Male |
1 - 11-1/2 NPT |
| 10K0101-16-4C |
Straight |
NPT Male |
1 - 11-1/2 NPT |
NPT Male |
1/4 - 18 NPT |
| 10K0101-16-6C |
Straight |
NPT Male |
1 - 11-1/2 NPT |
NPT Male |
3/8 - 18 NPT |
| 10K0201-12-12C |
Straight |
NPT Male |
3/4 - 14 NPT |
NPT Female |
3/4 - 14 NPT |
| 10K0201-12-16C |
Straight |
NPT Male |
3/4 - 14 NPT |
NPT Female |
1 - 11-1/2 NPT |
| 10K0201-12-6C |
Straight |
NPT Male |
3/4 - 14 NPT |
NPT Female |
3/8 - 18 NPT |
| 10K0201-16-6C |
Straight |
NPT Male |
1 - 11-1/2 NPT |
NPT Female |
3/8 - 18 NPT |
| 10K0201-16-8C |
Straight |
NPT Male |
1 - 11-1/2 NPT |
NPT Female |
1/2 - 14 NPT |
| 10K0201-4-12C |
Straight |
NPT Male |
1/4 - 18 NPT |
NPT Female |
3/4 - 14 NPT |
| 10K0201-6-12C |
Straight |
NPT Male |
3/8 - 18 NPT |
NPT Female |
3/4 - 14 NPT |
| 10K0201-6-16C |
Straight |
NPT Male |
3/8 - 18 NPT |
NPT Female |
1 - 11-1/2 NPT |
| 10K0202-12-12C |
Straight |
NPT Female |
3/4 - 14 NPT |
NPT Female |
3/4 - 14 NPT |
| 10K0202-12-16C |
Straight |
NPT Female |
3/4 - 14 NPT |
NPT Female |
1 - 11-1/2 NPT |
| 10K0202-12-4C |
Straight |
NPT Female |
3/4 - 14 NPT |
NPT Female |
1/4 - 18 NPT |
| 10K0202-12-6C |
Straight |
NPT Female |
3/4 - 14 NPT |
NPT Female |
3/8 - 18 NPT |
| 10K0202-16-16C |
Straight |
NPT Female |
1 - 11-1/2 NPT |
NPT Female |
1 - 11-1/2 NPT |
| 10K0203-16-16C |
Straight |
NPT Female |
1 - 11-1/2 NPT |
JIC Male |
1-5/16 - 12 UNF |
| 10K0203-4-6C |
Straight |
NPT Female |
1/4 - 18 NPT |
JIC Male |
9/16 - 18 UNF |
| 10K0203-4-8C |
Straight |
NPT Female |
1/4 - 18 NPT |
JIC Male |
3/4 - 16 UNF |
| 10K0203-6-4C |
Straight |
NPT Female |
3/8 - 18 NPT |
JIC Male |
7/16 - 20 UNF |
| 10K0203-6-6C |
Straight |
NPT Female |
3/8 - 18 NPT |
JIC Male |
9/16 - 18 UNF |
| 10K0203-6-8C |
Straight |
NPT Female |
3/8 - 18 NPT |
JIC Male |
3/4 - 16 UNF |
| 10K0203-8-4C |
Straight |
NPT Female |
1/2 - 14 NPT |
JIC Male |
7/16 - 20 UNF |
| 10K0203-8-6C |
Straight |
NPT Female |
1/2 - 14 NPT |
JIC Male |
9/16 - 18 UNF |
| 10K0203-8-8C |
Straight |
NPT Female |
1/2 - 14 NPT |
JIC Male |
3/4 - 16 UNF |
| 10KL02-12C |
90 D. Elbow |
NPT |
3/4 - 14 NPT |
NPT |
n/a |
| 10KL02-16C |
90 D. Elbow |
NPT |
1 - 11-1/2 NPT |
NPT |
n/a |
| 10KT02-12C |
Tee |
NPT |
3/4 - 14 NPT |
NPT |
n/a |
| 10KT02-16C |
Tee |
NPT |
1 - 11-1/2 NPT |
NPT |
n/a |
| 10KX02-12C |
Cross |
NPT |
3/4 - 14 NPT |
NPT |
n/a |
| 10KX02-16C |
Cross |
NPT |
1 - 11-1/2 NPT |
NPT |
n/a |
| 15K0101-1-1C |
Straight |
NPT Male |
1/16 - 27 NPT |
NPT Male |
1/16 - 27 NPT |
| 15K0101-2-1C |
Straight |
NPT Male |
1/8 - 27 NPT |
NPT Male |
1/16 - 27 NPT |
| 15K0101-2-2C |
Straight |
NPT Male |
1/8 - 27 NPT |
NPT Male |
1/8 - 27 NPT |
| 15K0101-2-4C |
Straight |
NPT Male |
1/8 - 27 NPT |
NPT Male |
1/4 - 18 NPT |
| 15K0101-4-4C |
Straight |
NPT Male |
1/4 - 18 NPT |
NPT Male |
1/4 - 18 NPT |
| 15K0101-6-6C |
Straight |
NPT Male |
3/8 - 18 NPT |
NPT Male |
3/8 - 18 NPT |
| 15K0101-6-8C |
Straight |
NPT Male |
3/8 - 18 NPT |
NPT Male |
1/2 - 14 NPT |
| 15K0101-8-8C |
Straight |
NPT Male |
1/2 - 14 NPT |
NPT Male |
1/2 - 14 NPT |
| 15K0201-1-4C |
Straight |
NPT Male |
1/16 - 27 NPT |
NPT Female |
1/4 - 18 NPT |
| 15K0201-1-8C |
Straight |
NPT Male |
1/16 - 27 NPT |
NPT Female |
1/2 - 14 NPT |
| 15K0201-2-1C |
Straight |
NPT Male |
1/8 - 27 NPT |
NPT Female |
1/16 - 27 NPT |
| 15K0201-2-8C |
Straight |
NPT Male |
1/8 - 27 NPT |
NPT Female |
1/2 - 14 NPT |
| 15K0201-4-1C |
Straight |
NPT Male |
1/4 - 18 NPT |
NPT Female |
3/4 - 14 NPT |
| 15K0201-4-6C |
Straight |
NPT Female |
1/4 - 18 NPT |
NPT Male |
3/8" - 18 NPT |
| 15K0201-4-8C |
Straight |
NPT Male |
1/4 - 18 NPT |
NPT Female |
1/2 - 14 NPT |
| 15K0201-6-2C |
Straight |
NPT Male |
3/8 - 18 NPT |
NPT Female |
1/8 - 27 NPT |
| 15K0201-6-6C |
Straight |
NPT Male |
3/8 - 18 NPT |
NPT Female |
3/8 - 18 NPT |
| 15K0201-6-8C |
Straight |
NPT Male |
3/8 - 18 NPT |
NPT Female |
1/2 - 14 NPT |
| 15K0201-8-8C |
Straight |
NPT Female |
1/2 - 14 NP |
NPT Male |
1/2" - 14 NPT |
| 15K0202-2-2C |
Straight |
NPT Female |
1/8 - 27 NPT |
NPT Female |
1/8 - 27 NPT |
| 15K0202-4-1C |
Straight |
NPT Female |
1/4 - 18 NPT |
NPT Female |
1/16 - 27 NPT |
| 15K0202-4-4C |
Straight |
NPT Female |
1/4 - 18 NPT |
NPT Female |
1/4 - 18 NPT |
| 15K0202-6-2C |
Straight |
NPT Female |
3/8 - 18 NPT |
NPT Female |
1/8 - 27 NPT |
| 15K0202-6-6C |
Straight |
NPT Female |
3/8 - 18 NPT |
NPT Female |
3/8 - 18 NPT |
| 15K0202-8-1C |
Straight |
NPT Female |
1/2 - 14 NPT |
NPT Female |
1/16 - 27 NPT |
| 15K0202-8-2C |
Straight |
NPT Female |
1/2 - 14 NPT |
NPT Female |
1/8 - 27 NPT |
| 15K0202-8-6C |
Straight |
NPT Female |
1/2 - 14 NPT |
NPT Female |
3/8 - 18 NPT |
| 15K0202-8-8C |
Straight |
NPT Female |
1/2 - 14 NPT |
NPT Female |
1/2 - 14 NPT |
| 15KL02-12C-45 |
45 D. Elbow |
NPT |
3/4 - 14 NPT |
NPT |
n/a |
| 15KL02-4C |
90 D. Elbow |
NPT |
1/4 - 18 NPT |
NPT |
n/a |
| 15KL02-4C-45 |
45 D. Elbow |
NPT |
1/4 - 18 NPT |
NPT |
n/a |
| 15KL02-6C |
90 D. Elbow |
NPT |
3/8 - 18 NPT |
NPT |
n/a |
| 15KL02-6C-45 |
45 D. Elbow |
NPT |
3/8 - 18 NPT |
NPT |
n/a |
| 15KL02-8C |
90 D. Elbow |
NPT |
1/2 - 14 NPT |
NPT |
n/a |
| 15KL02-8C-45 |
45 D. Elbow |
NPT |
1/2 - 14 NPT |
NPT |
n/a |
| 15KT02-4C |
Tee |
NPT |
1/4 - 18 NPT |
NPT |
n/a |
| 15KT02-6C |
Tee |
NPT |
3/8 - 18 NPT |
NPT |
n/a |
| 15KT02-8C |
Tee |
NPT |
1/2 - 14 NPT |
NPT |
n/a |
| 15KX02-4C |
Cross |
NPT |
1/4 - 18 NPT |
NPT |
n/a |
| 15KX02-6C |
Cross |
NPT |
3/8 - 18 NPT |
NPT |
n/a |
| 15KX02-8C |
Cross |
NPT |
1/2 - 14 NPT |
NPT |
n/a |
| 5Y01-12-12C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Male |
3/4 - 14 NPT |
| 5Y01-12-16C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Male |
1 - 11-1/2 NPT |
| 5Y01-12-2C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Male |
1/8 - 27 NPT |
| 5Y01-12-4C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Male |
1/4 - 18 NPT |
| 5Y01-12-6C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Male |
3/8 - 18 NPT |
| 5Y01-12-8C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Male |
1/2 - 14 NPT |
| 5Y01-16-12C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Male |
3/4 - 14 NPT |
| 5Y01-16-16C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Male |
1 - 11-1/2 NPT |
| 5Y01-16-2C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Male |
1/8 - 27 NPT |
| 5Y01-16-4C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Male |
1/4 - 18 NPT |
| 5Y01-16-6C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Male |
3/8 - 18 NPT |
| 5Y01-16-8C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Male |
1/2 - 14 NPT |
| 5Y01-4-12C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Male |
3/4 - 14 NPT |
| 5Y01-4-16C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Male |
1 - 11-1/2 NPT |
| 5Y01-4-2C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Male |
1/8 - 27 NPT |
| 5Y01-4-4C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Male |
1/4 - 18 NPT |
| 5Y01-4-6C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Male |
3/8 - 18 NPT |
| 5Y01-4-8C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Male |
1/2 - 14 NPT |
| 5Y01-6-12C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Male |
3/4 - 14 NPT |
| 5Y01-6-16C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Male |
1 - 11-1/2 NPT |
| 5Y01-6-2C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Male |
1/8 - 27 NPT |
| 5Y01-6-4C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Male |
1/4 - 18 NPT |
| 5Y01-6-6C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Male |
3/8 - 18 NPT |
| 5Y01-6-8C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Male |
1/2 - 14 NPT |
| 5Y01-9-12C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Male |
3/4 - 14 NPT |
| 5Y01-9-16C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Male |
1 - 11-1/2 NPT |
| 5Y01-9-2C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Male |
1/8 - 27 NPT |
| 5Y01-9-4C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Male |
1/4 - 18 NPT |
| 5Y01-9-6C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Male |
3/8 - 18 NPT |
| 5Y01-9-8C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Male |
1/2 - 14 NPT |
| 5Y02-12-12C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Female Coupling |
3/4 - 14 NPT |
| 5Y02-12-16C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Female Coupling |
1 - 11-1/2 NPT |
| 5Y02-12-2C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Female Coupling |
1/8 - 27 NPT |
| 5Y02-12-4C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Female Coupling |
1/4 - 18 NPT |
| 5Y02-12-6C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Female Coupling |
3/8 - 18 NPT |
| 5Y02-12-8C |
Straight |
Medium Pressure Female |
3/4 - 14 NPSM |
NPT Female Coupling |
1/2 - 14 NPT |
| 5Y02-16-12C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Female Coupling |
3/4 - 14 NPT |
| 5Y02-16-16C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Female Coupling |
1 - 11-1/2 NPT |
| 5Y02-16-2C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Female Coupling |
1/8 - 27 NPT |
| 5Y02-16-4C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Female Coupling |
1/4 - 18 NPT |
| 5Y02-16-6C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Female Coupling |
3/8 - 18 NPT |
| 5Y02-16-8C |
Straight |
Medium Pressure Female |
1-3/8 - 12 UNF |
NPT Female Coupling |
1/2 - 14 NPT |
| 5Y02-4-12C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Female Coupling |
3/4 - 14 NPT |
| 5Y02-4-16C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Female Coupling |
1 - 11-1/2 NPT |
| 5Y02-4-2C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Female Coupling |
1/8 - 27 NPT |
| 5Y02-4-4C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Female Coupling |
1/4 - 18 NPT |
| 5Y02-4-6C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Female Coupling |
3/8 - 18 NPT |
| 5Y02-4-8C |
Straight |
Medium Pressure Female |
7/16 - 20 UNF |
NPT Female Coupling |
1/2 - 14 NPT |
| 5Y02-6-12C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Female Coupling |
3/4 - 14 NPT |
| 5Y02-6-16C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Female Coupling |
1 - 11-1/2 NPT |
| 5Y02-6-2C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Female Coupling |
1/8 - 27 NPT |
| 5Y02-6-4C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Female Coupling |
1/4 - 18 NPT |
| 5Y02-6-6C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Female Coupling |
3/8 - 18 NPT |
| 5Y02-6-8C |
Straight |
Medium Pressure Female |
9/16 - 18 UNF |
NPT Female Coupling |
1/2 - 14 NPT |
| 5Y02-9-12C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Female Coupling |
3/4 - 14 NPT |
| 5Y02-9-16C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Female Coupling |
1 - 11-1/2 NPT |
| 5Y02-9-2C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Female Coupling |
1/8 - 27 NPT |
| 5Y02-9-4C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Female Coupling |
1/4 - 18 NPT |
| 5Y02-9-6C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Female Coupling |
3/8 - 18 NPT |
| 5Y02-9-8C |
Straight |
Medium Pressure Female |
13/16 - 16 UNF |
NPT Female Coupling |
1/2 - 14 NPT |
| 6Y01-4-12C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Male |
3/4 - 14 NPT |
| 6Y01-4-16C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Male |
1 - 11-1/2 NPT |
| 6Y01-4-2C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Male |
1/8 - 27 NPT |
| 6Y01-4-4C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Male |
1/4 - 18 NPT |
| 6Y01-4-6C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Male |
3/8 - 18 NPT |
| 6Y01-4-8C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Male |
1/2 - 14 NPT |
| 6Y01-6-12C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Male |
3/4 - 14 NPT |
| 6Y01-6-16C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Male |
1 - 11-1/2 NPT |
| 6Y01-6-1C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Male |
1/16 - 27 NPT |
| 6Y01-6-2C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Male |
1/8 - 27 NPT |
| 6Y01-6-4C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Male |
1/4 - 18 NPT |
| 6Y01-6-6C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Male |
3/8 - 18 NPT |
| 6Y01-6-8C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Male |
1/2 - 14 NPT |
| 6Y01-9-12C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Male |
3/4 - 14 NPT |
| 6Y01-9-16C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Male |
1 - 11-1/2 NPT |
| 6Y01-9-2C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Male |
1/8 - 27 NPT |
| 6Y01-9-4C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Male |
1/4 - 18 NPT |
| 6Y01-9-6C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Male |
3/8 - 18 NPT |
| 6Y01-9-8C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Male |
1/2 - 14 NPT |
| 6Y02-4-12C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Female |
3/4 - 14 NPT |
| 6Y02-4-16C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Female |
1 - 11-1/2 NPT |
| 6Y02-4-2C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Female |
1/8 - 27 NPT |
| 6Y02-4-4C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Female |
1/4 - 18 NPT |
| 6Y02-4-6C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Female |
3/8 - 18 NPT |
| 6Y02-4-8C |
Straight |
High Pressure Female |
9/16 - 18 UNF |
NPT Female |
1/2 - 14 NPT |
| 6Y02-6-12C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Female |
3/4 - 14 NPT |
| 6Y02-6-16C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Female |
1 - 11-1/2 NPT |
| 6Y02-6-2C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Female |
1/8 - 27 NPT |
| 6Y02-6-4C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Female |
1/4 - 18 NPT |
| 6Y02-6-6C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Female |
3/8 - 18 NPT |
| 6Y02-6-8C |
Straight |
High Pressure Female |
3/4 - 16 UNF |
NPT Female |
1/2 - 14 NPT |
| 6Y02-9-12C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Female |
3/4 - 14 NPT |
| 6Y02-9-16C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Female |
1 - 11-1/2 NPT |
| 6Y02-9-2C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Female |
1/8 - 27 NPT |
| 6Y02-9-4C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Female |
1/4 - 18 NPT |
| 6Y02-9-6C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Female |
3/8 - 18 NPT |
| 6Y02-9-8C |
Straight |
High Pressure Female |
1-1/8 - 12 UNF |
NPT Female |
1/2 - 14 NPT |
| 7K0201-16-32C |
Straight |
NPT Male |
1 - 11-1/2 NPT |
NPT Female |
2 - 11-1/2 NPT |
| Y501-12-12C |
Straight |
Medium Pressure Male |
3/4 - 14 NPSM |
NPT Male |
3/4 - 14 NPT |
| Y501-12-16C |
Straight |
Medium Pressure Male |
3/4 - 14 NPSM |
NPT Male |
1 - 11-1/2 NPT |
| Y501-12-2C |
Straight |
Medium Pressure Male |
3/4 - 14 NPSM |
NPT Male |
1/8 - 27 NPT |
| Y501-12-4C |
Straight |
Medium Pressure Male |
3/4 - 14 NPSM |
NPT Male |
1/4 - 18 NPT |
| Y501-12-6C |
Straight |
Medium Pressure Male |
3/4 - 14 NPSM |
NPT Male |
3/8 - 18 NPT |
| Y501-12-8C |
Straight |
Medium Pressure Male |
3/4 - 14 NPSM |
NPT Male |
1/2 - 14 NPT |
| Y501-16-12C |
Straight |
Medium Pressure Male |
1 - 14 UNS LH |
NPT Male |
3/4 - 14 NPT |
| Y501-16-16C |
Straight |
Medium Pressure Male |
1 - 14 UNS LH |
NPT Male |
1 - 11-1/2 NPT |
| Y501-16-2C |
Straight |
Medium Pressure Male |
1-3/8 - 12 UNF |
NPT Male |
1/8 - 27 NPT |
| Y501-16-4C |
Straight |
Medium Pressure Male |
1 - 14 UNS LH |
NPT Male |
1/4 - 18 NPT |
| Y501-16-6C |
Straight |
Medium Pressure Male |
1 - 14 UNS LH |
NPT Male |
3/8 - 18 NPT |
| Y501-16-8C |
Straight |
Medium Pressure Male |
1 - 14 UNS LH |
NPT Male |
1/2 - 14 NPT |
| Y501-4-4C |
Straight |
Medium Pressure Male |
7/16 - 20 UNF |
NPT Male |
1/4 - 18 NPT |
| Y501-4-8C |
Straight |
Medium Pressure Male |
7/16 - 20 UNF |
NPT Male |
1/2 - 14 NPT |
| Y501-6-4C |
Straight |
Medium Pressure Male |
9/16 - 18 UNF |
NPT Male |
1/4 - 18 NPT |
| Y501-6-6C |
Straight |
Medium Pressure Male |
9/16 - 18 UNF |
NPT Male |
3/8 - 18 NPT |
| Y501-6-8C |
Straight |
Medium Pressure Male |
9/16 - 18 UNF |
NPT Male |
1/2 - 14 NPT |
| Y501-9-12C |
Straight |
Medium Pressure Male |
13/16 - 16 UNF |
NPT Male |
3/4 - 14 NPT |
| Y501-9-16C |
Straight |
Medium Pressure Male |
13/16 - 16 UNF |
NPT Male |
1 - 11-1/2 NPT |
| Y501-9-2C |
Straight |
Medium Pressure Male |
13/16 - 16 UNF |
NPT Male |
1/8 - 27 NPT |
| Y501-9-4C |
Straight |
Medium Pressure Male |
13/16 - 16 UNF |
NPT Male |
1/4 - 18 NPT |
| Y501-9-6C |
Straight |
Medium Pressure Male |
13/16 - 16 UNF |
NPT Male |
3/8 - 18 NPT |
| Y501-9-8C |
Straight |
Medium Pressure Male |
13/16 - 16 UNF |
NPT Male |
1/2 - 14 NPT |
| Y601-4-12C |
Straight |
High Pressure Male |
9/16 - 18 UNF |
NPT Male |
3/4 - 14 NPT |
| Y601-4-2C |
Straight |
High Pressure Male |
9/16 - 18 UNF |
NPT Male |
1/8 - 27 NPT |
| Y601-4-4C |
Straight |
High Pressure Male |
9/16 - 18 UNF |
NPT Male |
1/4 - 18 NPT |
| Y601-4-6C |
Straight |
High Pressure Male |
9/16 - 18 UNF |
NPT Male |
3/8 - 18 NPT |
| Y601-4-8C |
Straight |
High Pressure Male |
9/16 - 18 UNF |
NPT Male |
1/2 - 14 NPT |
| Y601-6-4C |
Straight |
High Pressure Male |
3/4 - 16 UNF |
NPT Male |
1/4 - 18 NPT |
| Y601-6-6C |
Straight |
High Pressure Male |
3/4 - 16 UNF |
NPT Male |
3/8 - 18 NPT |
| Y601-6-8C |
Straight |
High Pressure Male |
3/4 - 16 UNF |
NPT Male |
1/2 - 14 NPT |
| Y601-9-12C |
Straight |
High Pressure Male |
1-1/8 - 12 UNF |
NPT Male |
3/4 - 14 NPT |
| Y601-9-16C |
Straight |
High Pressure Male |
1-1/8 - 12 UNF |
NPT Male |
1 - 11-1/2 NPT |
| Y601-9-4C |
Straight |
High Pressure Male |
1-1/8 - 12 UNF |
NPT Male |
1/4 - 18 NPT |
| Y601-9-6C |
Straight |
High Pressure Male |
1-1/8 - 12 UNF |
NPT Male |
3/8 - 18 NPT |
| Y601-9-8C |
Straight |
High Pressure Male |
1-1/8 - 12 UNF |
NPT Male |
1/2 - 14 NPT |
| YA01-11-12C |
Straight |
Type "M" Male |
1 - 12 UNF |
NPT Male |
3/4 - 14 NPT |
| YA01-11-16C |
Straight |
Type "M" Male |
1 - 12 UNF |
NPT Male |
1 - 11-1/2 NPT |
| YA01-11-20C |
Straight |
Type "M" Male |
1 - 12 UNF |
NPT Male |
1-1/4 - 11-1/2 NPT |
| YA01-11-6C |
Straight |
Type "M" Male |
1 - 12 UNF |
NPT Male |
3/8 - 18 NPT |
| YA01-11-8C |
Straight |
Type "M" Male |
1 - 12 UNF |
NPT Male |
1/2 - 14 NPT |
| YA01-16-12C |
Straight |
Type "M" Male |
1-5/16 - 12 UNF |
NPT Male |
3/4 - 14 NPT |
| YA01-16-16C |
Straight |
Type "M" Male |
1-5/16 - 12 UNF |
NPT Male |
1 - 11-1/2 NPT |
| YA01-16-20C |
Straight |
Type "M" Male |
1-5/16 - 12 UNF |
NPT Male |
1-1/4 - 11-1/2 NPT |
| YA01-16-24C |
Straight |
Type "M" Male |
1-5/16 - 12 UNF |
NPT Male |
1-1/2 - 11-1/2 NPT |
| YA01-16-32C |
Straight |
Type "M" Male |
1-5/16 - 12 UNF |
NPT Male |
2 - 11-1/2 NPT |
| YA01-16-8C |
Straight |
Type "M" Male |
1-5/16 - 12 UNF |
NPT Male |
1/2 - 14 NPT |
| YA01-6-12C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Male |
3/4 - 14 NPT |
| YA01-6-16C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Male |
1 - 11-1/2 NPT |
| YA01-6-2C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Male |
1/8 - 27 NPT |
| YA01-6-4C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Male |
1/4 - 18 NPT |
| YA01-6-6C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Male |
3/8 - 18 NPT |
| YA01-6-8C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Male |
1/2 - 14 NPT |
| YA01-8-12C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Male |
3/4 - 14 NPT |
| YA01-8-16C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Male |
1 - 11-1/2 NPT |
| YA01-8-4C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Male |
1/4 - 18 NPT |
| YA01-8-6C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Male |
3/8 - 18 NPT |
| YA01-8-8C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Male |
1/2 - 14 NPT |
| YA02-11-12C |
Straight |
Type "M" Male |
1 - 12 UNF |
NPT Female |
3/4 - 14 NPT |
| YA02-11-8C |
Straight |
Type "M" Male |
1 - 12 UNF |
NPT Female |
1/2 - 14 NPT |
| YA02-16-16C |
Straight |
Type "M" Male |
1-5/16 - 12 UNF |
NPT Female |
1 - 11-1/2 NPT |
| YA02-6-16C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Female |
1 - 11-1/2 NPT |
| YA02-6-4C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Female |
1/4 - 18 NPT |
| YA02-6-8C |
Straight |
Type "M" Male |
9/16 - 18 UNF |
NPT Female |
1/2 - 14 NPT |
| YA02-8-12C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Female |
3/4 - 14 NPT |
| YA02-8-4C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Female |
1/4 - 18 NPT |
| YA02-8-6C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Female |
3/8 -18 NPT |
| YA02-8-8C |
Straight |
Type "M" Male |
3/4 - 16 UNF |
NPT Female |
1/2 - 14 NPT |
|
fcg.cnmec@parkerdistribution.com.cn
