MiniButtweld Ultra-High Purity Tube Buttweld Fitting
MiniButtweld 超純凈微型焊接接頭

MiniButtweld 微型焊接接頭的加工和表面強化處理防止泄漏,抑制腐蝕,并能安裝軌道TIG（鎢/惰性氣體）焊接設備.優化使用軌道焊接系統,設計用于超高壓管道系統. 作為儀器儀表流體控制系統技術的行業先行者，派克漢尼汾Veriflo工廠的MiniButtweld? 微型焊接接頭是為超高純度應用而設計的，這些行業嚴格要求焊接管道系統的性能和穩定性。微型焊接接頭的加工和表面強化處理以免泄漏，抑制腐蝕，并能夠安裝軌道TIG（鎢/惰性氣體）焊接設備。因此，MiniButtweld? 微型焊接接頭是快速焊接、簡便地制造氣體分配系統的理想選擇。

MiniButtweld微型焊接接頭的尺寸范圍從1/8英寸到1/2英寸可選，并可在各種結構本體配置中選擇用于任何場景（直通接頭、三通接頭、90°彎通接頭、四通接頭）。它們是用Veriflo的Vericlean 316L不銹鋼經過內部電拋光表面光潔度加工5微米英寸Ra的100級潔凈室中清洗和制造的，它們提供具有高耐腐蝕性和高清潔度的MiniButtweld?接頭，超過了嚴格的半切削加工要求的要求。

MiniButtweld 微型焊接接頭的尺寸的孔直徑匹配，從而有效大幅減少湍流、死區和顆粒包封的風險。創建平滑、防腐蝕的流道實現氣體分配系統的理想性能。

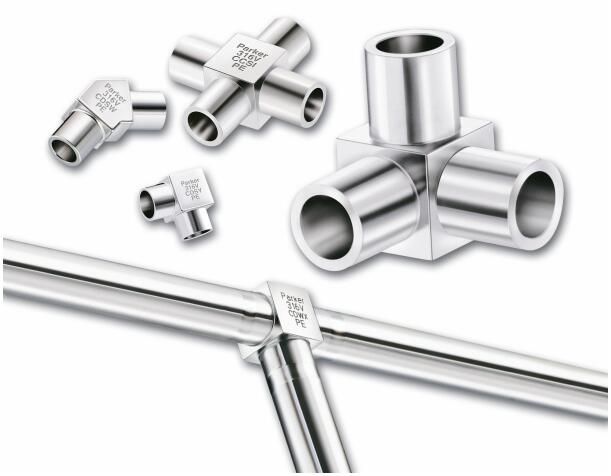

MiniButtweld Ultra-High Purity Tube Buttweld Fitting MiniButtweld 超純凈微型焊接接頭

市場應用：

- 半導體生產
- 半導體設備集成工廠
- 分析實驗室
- 藥物分析，生產
- 生物危害
- 航空航天
- 工業生產

典型應用：

- 腐蝕性和特殊性氣體
- 半導體實驗室氣體分配系統
- 半導體設備
- 半導體設備二次配管
- 氣體控制柜
- 閥門分配箱系統（VMB）
- 油管系統

特點/優勢：

- 表面增強工藝，以免泄漏，抑制腐蝕，并允許與軌道焊接系統一起使用
- 平滑過渡到內徑，更小截流區域
- 用Veriflo的Vericlean? 低硫316L不銹鋼在潔凈室中清洗和制造的
- 高度緊湊的設計允許在緊密空間中彎曲和連接。
- 5 Ra內部電拋光表面光潔度
- 熱代碼標記；可追溯到原裝機檢驗證書
- 各種結構本體配置可選擇

Markets:
- Semiconductor
- Tool Fab
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Applications:
- Corrosive and specialty gases
- Semiconductor Fab Gas Distribution Systems
- Semiconductor Tools
- Tool Hook-ups
- Gas Cabinets
- Valve Manifold Boxes (VMB)
- Tubing Systems

Features/Benefits:
- Unique surface enhancement that prevents outgassing, inhibits corrosion, and allows for use with orbital welding systems
- Smooth transition into the internal diameter minimizes entrapment areas
- Fabricated in Class 100 cleanroom from low sulfur Vericlean 316L stainless steel
- Highly compact design allows for bending and coupling in tight spaces
- 5 Ra internal electropolish surface finish
- Permanently heat code marked; traceable to original mill certificate of test
- Available in a variety of body configurations

Technical Specifications

Configuration:	Straights, Elbows, Tribows, Tees, Crosses, reducers, adapters
Body Material:	316L VIM/VAR Stainless Steel
Connection Size:	1/8 to 1/2 in., 6mm
Operating Temperature:	up to 482 °F / 250 °C
Pressure Rating:	up to 8,500 / 580 bar

MiniButtweld Ultra-High Purity Tube Buttweld Fitting 型號

Part	Configuration	Body Material	Connection Size (inch)	Connection Size (mm)	Connection 2 Size (inch)	Connection 2 Size (mm)	Connection 3 Size (inch)	Connection 3 Size (mm)	Connection 4 Size (inch)
2 MKM-SSV .028	Union Cross	316L VIM/VAR	1/8 in.	NA	1/8 in.	NA	1/8 in.	NA	1/8 in.
2 MKM-SSV .028-PE	Union Cross	316L VIM/VAR	1/8 in.	NA	1/8 in.	NA	1/8 in.	NA	1/8 in.
2-2 MEM-SSV .028	90° Union Elbow	316L VIM/VAR	1/8 in.	NA	1/8 in.	NA	NA	NA	NA
2-2 MEM-SSV .028-PE	90° Union Elbow	316L VIM/VAR	1/8 in.	NA	1/8 in.	NA	NA	NA	NA
2-2-2 MJM-SSV .028	Union Tee	316L VIM/VAR	1/8 in.	NA	1/8 in.	NA	1/8 in.	NA	NA
2-2-2 MJM-SSV .028-PE	Union Tee	316L VIM/VAR	1/8 in.	NA	1/8 in.	NA	1/8 in.	NA	NA
4 MKM-SSV .035	Union Cross	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	1/4 in.
4 MKM-SSV .035-PE	Union Cross	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	1/4 in.
4-2 MHM-SSV .035 .028	Reducing Union	316L VIM/VAR	1/4 in.	NA	1/8 in.	NA	NA	NA	NA
4-2 MHM-SSV .035 .028-PE	Reducing Union	316L VIM/VAR	1/4 in.	NA	1/8 in.	NA	NA	NA	NA
4-4 M1EM1-SSV .035	Extended Leg 90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 M1EM1-SSV .035-PE	Extended Leg 90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 M2EM2-SSV .035	Extended Leg 90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 M2EM2-SSV .035-PE	Extended Leg 90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 MEM-SSV .035	90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 MEM-SSV .035-PE	90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 MEM1-SSV .035	Extended Leg 90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 MEM1-SSV .035-PE	Extended Leg 90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 MEM2-SSV .035	Extended Leg 90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 MEM2-SSV .035-PE	Extended Leg 90° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 MVM-SSV .035	45° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4 MVM-SSV .035-PE	45° Union Elbow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	NA	NA	NA
4-4-4 M3JM-SSV .035	Extended Leg Union Tee	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	NA
4-4-4 M3JM-SSV .035-PE	Extended Leg Union Tee	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	NA
4-4-4 MJM-SSV .035	Union Tee	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	NA
4-4-4 MJM-SSV .035-PE	Union Tee	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	NA
4-4-4 MJM1-SSV .035	Extended Leg Union Tee	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	NA
4-4-4 MJM1-SSV .035-PE	Extended Leg Union Tee	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	NA
4-4-4 MOJM-SSV .035	Union Tribow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	NA
4-4-4 MOJM-SSV .035-PE	Union Tribow	316L VIM/VAR	1/4 in.	NA	1/4 in.	NA	1/4 in.	NA	NA
6 MKM-SSV .035	Union Cross	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	3/8 in.	NA	3/8 in.
6 MKM-SSV .035-PE	Union Cross	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	3/8 in.	NA	3/8 in.
6-4 MEM-SSV .035	Reducing Elbow	316L VIM/VAR	3/8 in.	NA	1/4 in.	NA	NA	NA	NA
6-4 MEM-SSV .035-PE	Reducing Elbow	316L VIM/VAR	3/8 in.	NA	1/4 in.	NA	NA	NA	NA
6-4 MHM-SSV .035	Reducing Union	316L VIM/VAR	3/8 in.	NA	1/4 in.	NA	NA	NA	NA
6-4 MHM-SSV .035-PE	Reducing Union	316L VIM/VAR	3/8 in.	NA	1/4 in.	NA	NA	NA	NA
6-6 MEM-SSV .035	90° Union Elbow	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	NA	NA	NA
6-6 MEM-SSV .035-PE	90° Union Elbow	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	NA	NA	NA
6-6 MVM-SSV .035	45° Union Elbow	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	NA	NA	NA
6-6 MVM-SSV .035-PE	45° Union Elbow	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	NA	NA	NA
6-6-4 MJM-SSV .035	Reducing Tee	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	1/4 in.	NA	NA
6-6-4 MJM-SSV .035-PE	Reducing Tee	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	1/4 in.	NA	NA
6-6-6 MJM-SSV .035	Union Tee	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	3/8 in.	NA	NA
6-6-6 MJM-SSV .035-PE	Union Tee	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	3/8 in.	NA	NA
6-6-6 MOJM-SSV .035	Union Tribow	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	3/8 in.	NA	NA
6-6-6 MOJM-SSV .035-PE	Union Tribow	316L VIM/VAR	3/8 in.	NA	3/8 in.	NA	3/8 in.	NA	NA
6M MKM-SSV .028	Union Cross	316L VIM/VAR	NA	6mm	NA	6mm	NA	6mm	NA
6M MKM-SSV .028-PE	Union Cross	316L VIM/VAR	NA	6mm	NA	6mm	NA	6mm	NA
6M-6M-6M MJM-SSV	Union Tee	316L VIM/VAR	NA	6mm	NA	6mm	NA	6mm	NA
6M-6M-6M MJM-SSV-PE	Union Tee	316L VIM/VAR	NA	6mm	NA	6mm	NA	6mm	NA
6M-6M-MEM-SSV	90° Union Elbow	316L VIM/VAR	NA	6mm	NA	6mm	NA	NA	NA
6M-6M-MEM-SSV-PE	90° Union Elbow	316L VIM/VAR	NA	6mm	NA	6mm	NA	NA	NA
8 MKM-SSV .049	Union Cross	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	1/2 in.	NA	1/2 in.
8 MKM-SSV .049-PE	Union Cross	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	1/2 in.	NA	1/2 in.
8-4 MEM-SSV .049 .035	Reducing Elbow	316L VIM/VAR	1/2 in.	NA	1/4 in.	NA	NA	NA	NA
8-4 MEM-SSV .049 .035-PE	Reducing Elbow	316L VIM/VAR	1/2 in.	NA	1/4 in.	NA	NA	NA	NA
8-4 MHM-SSV .049 .035	Reducing Union	316L VIM/VAR	1/2 in.	NA	1/4 in.	NA	NA	NA	NA
8-4 MHM-SSV .049 .035-PE	Reducing Union	316L VIM/VAR	1/2 in.	NA	1/4 in.	NA	NA	NA	NA
8-6 MEM-SSV .049 .035	Reducing Elbow	316L VIM/VAR	1/2 in.	NA	3/8 in.	NA	NA	NA	NA
8-6 MEM-SSV .049 .035-PE	Reducing Elbow	316L VIM/VAR	1/2 in.	NA	3/8 in.	NA	NA	NA	NA
8-6 MHM-SSV .049 .035	Reducing Union	316L VIM/VAR	1/2 in.	NA	3/8 in.	NA	NA	NA	NA
8-6 MHM-SSV .049 .035-PE	Reducing Union	316L VIM/VAR	1/2 in.	NA	3/8 in.	NA	NA	NA	NA
8-8 MEM-SSV .049	90° Union Elbow	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	NA	NA	NA
8-8 MEM-SSV .049-PE	90° Union Elbow	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	NA	NA	NA
8-8 MVM-SSV .049	45° Union Elbow	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	NA	NA	NA
8-8 MVM-SSV .049-PE	45° Union Elbow	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	NA	NA	NA
8-8-4 MJM-SSV049049035	Reducing Tee	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	1/4 in.	NA	NA
8-8-4 MJM-SSV049049035-PE	Reducing Tee	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	1/4 in.	NA	NA
8-8-6 MJM-SSV049049035	Reducing Tee	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	3/8 in.	NA	NA
8-8-6 MJM-SSV049049035-PE	Reducing Tee	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	3/8 in.	NA	NA
8-8-8 MJM-SSV .049	Union Tee	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	1/2 in.	NA	NA
8-8-8 MJM-SSV .049-PE	Union Tee	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	1/2 in.	NA	NA
8-8-8 MOJM-SSV .049	Union Tribow	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	1/2 in.	NA	NA
8-8-8 MOJM-SSV .049-PE	Union Tribow	316L VIM/VAR	1/2 in.	NA	1/2 in.	NA	1/2 in.	NA	NA
