Parker Fittings接頭 - Pneumatic Fittings

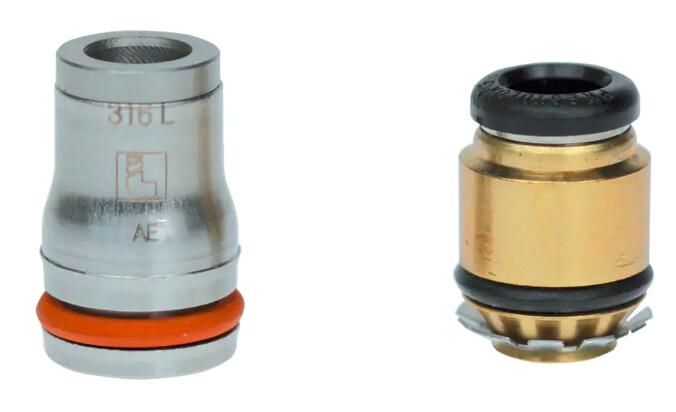

Metal Cartridges 金屬埋入式接頭

為了兼容多種流體和適應惡劣使用狀況(+150?C)，派克樂可利開發了兩類埋入式接頭。使用我們的金屬埋入式接頭可以優化安裝配置，對于FTL而言，接頭還可以拆卸。為了兼容多種流體和適應惡劣使用狀況(+150?C)，派克樂可利開發了兩類埋入式接頭。使用我們的金屬埋入式接頭可以優化安裝配置，對于TL而言，接頭還可以拆卸。

For full compatibility with many fluids and severe conditions, Parker Legris has developed two types of patented cartridges.Using our metal cartridges allows for optimisation of installation configurations and for the FTL, the possibility of removal. For full compatibility with many fluids and severe conditions (+150°C), Parker Legris has developed two types of patented cartridges. Using our metal cartridges allows for optimisation of installation configurations and for the FTL, the possibility of removal.

Features/Benefits:
特點/優點：

- LF埋入式接頭 LF 3600 LF 3800 LF 3900

- LF 3600、LF 3800和LF 3900接頭的優勢都適用于埋入式接頭技術
- 全金屬產品提供理想的機械強度和耐化學性
- 耐高溫性(+150?C)
- 可以安裝到塑料或金屬腔體

- TL埋入式接頭

- 相同的腔體適用于多種管徑的接頭
- 可視化保持和密封系統，可以使用專用工具拆卸

市場：

- 工廠自動化
- 車輛裝配設施
- 食物與飲料
- 半導體
- 包裝機械
- 制冷

應用：

- 氣動機械設備
- 低壓壓縮空氣輸送
- 適用于真空應用

技術：

- 耐化學性
- 機械強度
- 密封系統
- 金屬埋入式接頭
- 埋入式接頭技術
- 金屬埋入式接頭

技術特點：
LF 埋入式接頭
- 流體：壓縮空氣，油脂，潤滑劑，水...
- 材質：鍍鎳黃銅，FKM，不銹鋼303，不銹鋼316L
- 壓力：真空至30bar
- 溫度：-20°C至+ 150°C
FTL埋入式接頭
- 流體：壓縮空氣
- 材料：工程聚合物，黃銅，不銹鋼，NBR
- 壓力：真空至16bar
- 溫度：-25°C至+ 80°C

法規：

LF埋入式接頭
- DI:97/23/CE (PED)
- RG:21CFR (FDA)
- RG:1935/2004/CE (流量可小至 0.02 l/hr)
- DI:2011/65/CE (RoHS)
- USDA NSF H1: 潤滑脂
- ASTM B733-04:自催化鎳涂層
- DI:94/9/CE (ATEX)
FTL 埋入式接頭
- DI:97/23/CE (PED)
- DI:2011/65/CE (RoHS)

產品類型：

- 一體式埋入接頭
- 埋入式接頭
- 斷開工具

- LF Cartridges, LF 3600, LF 3800, LF 3900

- All the advantages of the LF 3600, LF 3800 and LF 3900 fittings applied to cartridge technology
- All-metal product to provide the greatest mechanical strength and chemical resistance
- Resistant at high temperatures (+150°C)
- Can be installed in either polymer or metal housings

- FTL Cartridge

- Possibility to have several tubing diameters in the same cavity
- Visible retention and sealing system, can be disassembled using the dedicated tool

Markets:

- Factory Automation
- Vehicle Assembly Facilities
- Food and Beverage
- Semiconductor
- Packaging Machinery
- Refrigeration

Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vacuum Applications

Technologies:

- Chemical resistance
- Mechanical strength
- Sealing system
- Metal cartridge
- Cartridge technology
- Metal cartridges

Technical Characteristics:

LF Cartridges
- Fluids: Compressed Air, grease, lubricant, water ...
- Materials: Nickel-plated brass, FKM, stainless steel 303, stainless steel 316L
- Pressure: Vacuum to 30 bar
- Temperature: -20°C to +150°C
FTL Cartridge
- Fluids: Compressed Air
- Materials: Technical polymer, brass, stainless steel, NBR
- Pressure: Vacuum to 16 bar
- Temperature: -25°C to +80°C

Regulations:

LF Cartridges
- DI: 97/23/CE (PED)
- RG: 21CFR (FDA)
- RG: 1935/2004/CE (minimum flow 0.02 l/hr)
- DI: 2011/65/CE (RoHS)
- USDA NSF H1: grease
- ASTM B733-04: self-catalytic nickel coating
- DI: 94/9/CE (ATEX)
FTL Cartridge
- DI: 97/23/CE (PED)
- DI: 2011/65/CE (RoHS)

Product Types:

- One-Piece Cartridge
- Cartridge
- Disconnection Tool

Technical Specifications
技術規格：

Metal Cartridges 型號
