Wellhead Grease Fittings, McEvoy Style Series
Parker PGI's McEvoy Style Compound and Grease Fittings are specifically designed for use with McEvoy gate valves.
Parker PGI's McEvoy Style Compound and Grease Fittings come in two types. Both types of McEvoy body cavity fittings are offered by Parker PGI. These styles include 3/4”-16 UNF straight threads, a pinned ball retainer and a 1” wrench hex.
The McEvoy Style Compound Fitting fits a standard 1”-14 UNS screw-on coupler thread.

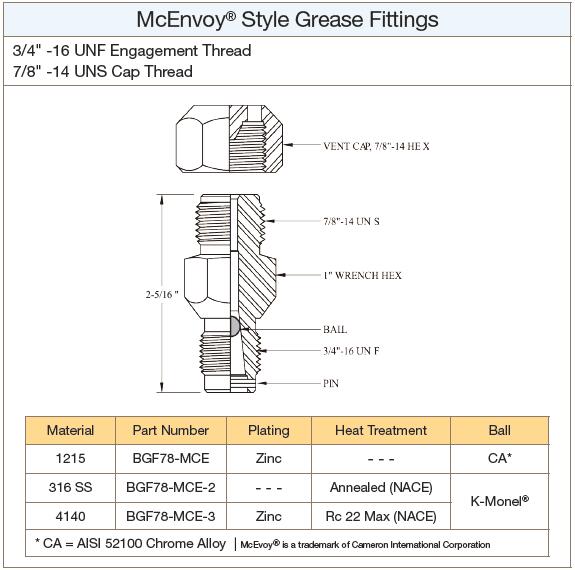

The McEvoy Style Grease Fitting fits a standard 7/8”-14 UNS screw-on coupler thread.
[McEvoy is a trademark of the Cameron International Corporation.]
Markets:
- Chemical
- Petrochemical
- Oil and Gas
Features/Benefits:
- Vent Cap
- Heat treated Ball for durability
- Floating ball-taper cavity
Applications:
- McEvoy Equipment Lube Systems
Technical Specifications
| Vent Type: |
Vent Cap, 1-1/4" Hex | Vent Cap, 7/8"-14 Hex |
| Thread Size: |
3/4"-16 UNF Engagement Thread with 1"-14 UNS Cap Thread | 3/4"-16 UNF Engagement Thread with 7/8"-14 UNS Cap Thread |
| Body Material: |
1215 | 316 SS | 4140 | Consult factory for additional materials |
| Plating Type: |
Zinc | N/A |
| Heat Treatment: |
Annealed (NACE) | Rc 22 Max (NACE) | N/A |
| Ball Material: |
AISI 52100 Chrome Alloy | K-Monel | Consult factory for additional materials |
