Parker Fittings接頭 - Pneumatic Fittings
LF 3000 Pneumatic Banjo Fittings 系列鉸接式接頭

LF3000系列鉸接式接頭

當只能從上方安裝并且需要配合管路方向時，該系列接頭是理想之選。該系列模塊化接頭包括單一配置和復式配置，可滿足更加靈活的設計。當只能從上方安裝并且需要配合管路方向時，該系列接頭是理想之選。該系列模塊化接頭包括單一配置和復式配置，可適應更加靈活的設計。

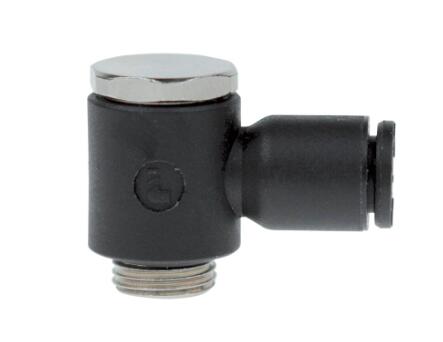

Pneumatic Banjo Fittings - LF 3000

This range of fittings is ideal when access is only possible from above and orientation of the tube is required. This range of modular fittings includes single and multiple configurations, allowing wide flexibility of design. This range of fittings is ideal when access is only possible from above and orientation of the tube is required. This range of modular fittings includes single and multiple configurations, allowing wide flexibility of design.

特點/優點：

- 緊湊

- 緊湊的設計，促使接頭之間的安裝空間更小
- 為實現更大流量而設計的鉸接式螺栓
- 便于檢修，即使接頭之間非常緊密
- 易于組裝和自動密封：
錐螺紋涂層密封
直螺紋集成O形圈密封
- 操作安全：正確保持管路的方向
- 完整防泄漏檢測
- 質量穩定和可追溯性的日期代碼

- 模塊化

- 可輕松堆疊鉸接式本體，構建2至6個出口
- 可定向(360?)，實現精確對準
- 模塊化：可實現不同管徑接頭的組合

市場：

- 工廠自動化
- 車輛裝配設施
- 食品和飲料
- 半導體
- 服裝
- 包裝機械

應用：

- 氣動機械設備
- 低壓壓縮空氣輸送
- 適用于真空應用

技術：

- 可調向接頭
- 萬向接頭
- 模塊化接頭
- 快插接頭
- 推動式連接接頭
- 氣動接頭
- 即時接頭
- 快速接頭
- 管連接接頭

技術特點：

- 流體：壓縮空氣，其他流體：請咨詢我們
- 材料：工程材料，鍍鎳黃銅，NBR
- 壓力：真空至20bar
- 溫度：-20°C to 80°C
- ? 公制：3mm to 12 mm

法規：

- ISO 14743:氣動流體動力，用于熱塑管的快插接頭
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- DI :1907/2006 (REACH)

產品類型：

- 鉸接接頭
- 模塊化鉸接接頭

Features/Benefits:

- Compact

- Compact design with minimum space between fittings
- Banjo bolt designed for maximum flow
- Easy access, even when fittings are close together
- Easy assembly and automatic sealing:
with pre-coating on taper threads
with an integral O-ring seal on parallel threads
- Safe operation: orientation of tube is ensured
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

- Modular

- Effortless stacking of banjo bodies to allow construction of 2 to 6 outlets
- Orientable (360°) for perfect alignment
- Modular: tube diameters may be different

Markets:

- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications

Technologies:

- Orientable Fittings
- Swivel Fittings
- Modular Fittings
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:

- Fluids: Compressed Air, Other fluids: please consult us
- Materials: Technical polymer, nickel-plated brass, NBR
- Pressure: Vacuum to 20 bar
- Temperature: -20°C to 80°C
- ? Metric: 3mm to 12 mm

Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- DI : 1907/2006 (REACH)

Product Types:

- Banjo Fittings
- Modular Banjo Fittings

Technical Specifications

技術規格：

• 連接1螺紋尺寸（公制）： R1/8
• 連接2管件外徑（毫米）： 6
• 連接1螺紋形式： BSPT
• 連接2管件外徑（英寸）： na
• 閥體材料： TECHNICAL POLYMER
• 產品類型： Banjo Fittings
• 形狀： Male stud single banjo thread
• O 型圈材料： 丁腈橡膠
• 夾持環材料： 不銹鋼
• 螺紋密封劑材料： 聚四氟乙烯
• 最大運行壓力： 20 barg
• 最低運行溫度： -20 °C
• 最高運行溫度： 80 °C
• 真空額定壓力： 755 mm-Hg
• 數量/箱： 10
• 重量：
• 應用： 機器人，汽車工藝，氣動，半導體，紡織，包裝
• 介質： 壓縮空氣，其他介質：請咨詢我們

Pneumatic Banjo Fittings - LF 3000 型號
