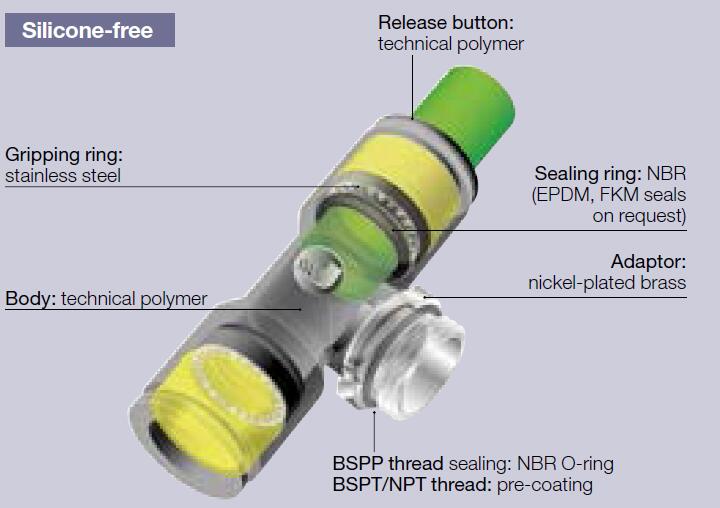

Parker Accessories for Push-In Fittings - LF 3000模塊化快插接頭
LF3000模塊化氣動快插接頭

這些連接接頭可在緊湊的空間內連接盡量多的管道。派克樂可利提供符合人體工程學的解決方案，以實現復雜的快速安裝連接。這些接頭可以在有限的空間內連接多個管路。派克樂可利提供了人體工程學解決方案，在復雜的安裝場合實現管路的快速連接。

Parker Accessories for Push-In Fittings - LF 3000模塊化快插接頭
LF3000模塊化氣動快插接頭

特點/優點：

- 面板安裝
- 安裝到機器或穿板式接頭的面板
- 降低不正確安裝的風險
- 可以實現串聯式安裝
- 使用加固的電鍍金屬并聯管夾
- 串聯
- 定位銷可有效減少不正確的組裝
- 保護蓋引導管路并保護連接
- 部件為鋁和工程塑料
- 可實現穿板式安裝
- 根據要求可定制多管路接頭
- DIN導軌
- 在電氣接頭旁邊使用
- 壓力指示
- 可以使用管夾并列固定到DIN導軌斷面“[” 或“O”
- 用于管識別標簽的通道或槽

市場：
- 工廠自動化
- 車輛裝配設施
- 食物與飲料
- 半導體
- 服裝
- 包裝機械

應用：
- 氣動機械設備
- 低壓壓縮空氣輸送
- 適用于真空應用

技術：
- 多管路接頭
- 模塊化快插式接頭
- 多管路接頭
- 快插接頭
- 推動式連接接頭
- 氣動接頭
- 即時接頭
- 快速接頭
- 連接件

技術特點：

- 流體：壓縮空氣，其他流體：請咨詢我們
- 材料：工程聚合物, NBR
- 壓力：真空至10bar
- 溫度：-20°C至+ 80°C
- ? 公制：4mm 至 8 mm

法規：

- ISO 14743:氣動流體動力，用于熱塑管的快插接頭
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- DI :1907/2006 (REACH)

產品類型：

- 模塊化快插接頭

Parker Legris has designed different accessories to improve safety and circuit identification. Those accessories are compatible with the LF 3000 Push-In Fittings , LIQUIfit ranges. Parker Legris has designed different accessories to protect operators and equipment, and prevent accidental disconnection of tubing. Colour-coding also allows for fluid circuit identification.

Features/Benefits:
- Safety
- Protection of operators and equipment
- Prevents accidental disconnection
- Disconnection only possible with tooling
- Resistance to grease and cleaning agents- Ergonomic
- Colour-coding for fluid circuit identification (6 colours)
- Setting and fixing of your circuits thanks to clips and release button covers
- Easy disconnection with tool where access is difficult
- Adapted to meet all installation configurations

Markets:
- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:
- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications

Technologies:
- Safety Accessories
- Safety Tools
- Circuit Identification
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors

Technical Characteristics:
- Compatible ranges: LF 3000, LIQUIfit- Materials: Technical polymer, nickel-plated brass
- Pressure: Vacuum to 20 bar- Temperature: -20°C to +95°C
- ? Metric: 4mm to 14 mm

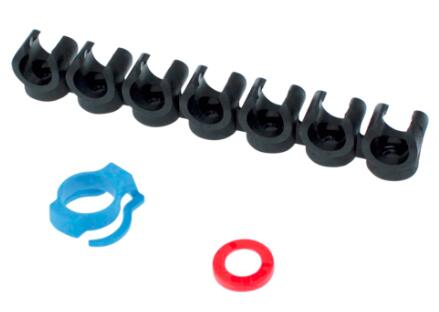

Product Types:
- Tamper-Proof Safety clips
- Clip Strip for Tubes and Fittings
- Disconnection Tool
- Coloured Release Button Covers
- Reducer
- Internal Hex plug

Technical Specifications

Accessories for Push-In Fittings - LF 3000 型號
