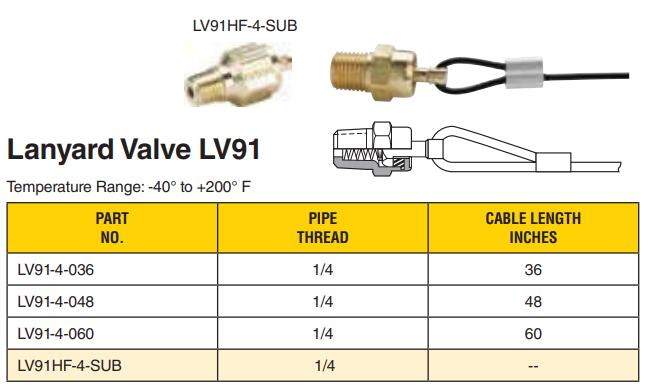

Lanyard Valves
Parker's lanyard valve compact design is ideally suited for releasing condensate from air tanks.
Parker's lanyard valve compact design is ideally suited for releasing condensate from air tanks. Removing condensate allows for more volume of air in the system reducing compressor load and extending compressor life. A pulling action exerted on the cable cocks the stem, allowing condensate to pass through the valve. Releasing the cable resets the stem which returns the valve to its closed position. Parker's lanyard valve is available in 36”, 48” and 60” cable lengths.
Markets:
- Heavy duty truck
- Mobile
Features/Benefits:
- Brass body
- Compact design
- Various cable lengths
Applications:
- Air tanks
Technical Specifications
| Application: |
Air tanks |
| Connection Type: |
Thread |
| Minimum Operating Temperature: |
-40, -30 °F, -40, -34 °C |
| Maximum Operating Temperature: |
200 °F, 93 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Materials of Construction: |
Brass |
Lanyard Valves 型號
|
