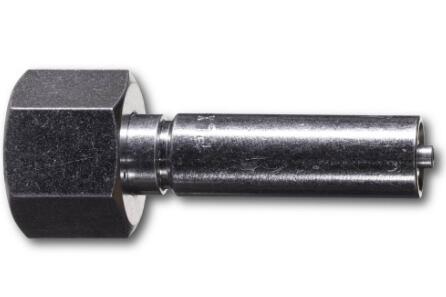

Crimped Thermoplastic UHP Hose Fittings, KX Series
Parker High Pressure KX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hose types with working pressure from 86 up to 110 MPa.
Parker Polyflex High Pressure KX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Crimped Thermoplastic UHP Hose Fittings, KX Series
Markets:
- Construction machinery
- Industrial
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Industrial cleaning
- High pressure service for construction and shipbuilding industries
- Suitable for hose types with working pressure from 86 up to 110 MPa (12.470 up to 15.950 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
DN10, 6, 8 |
| Hose I.D. (size): |
-6, -4, -5 |
| Hose Inside Diameter: |
3/8, 1/4, 5/16 inch |
| Connection Thread Size: |
3/8, 1/4, 3/4 - 16, 9/16 - 18, NA inch, NA, 22x1.5, 18x1.5, 24x1.5 mm |
| Connection Type: |
BSP, UNF, Metric |
| Length: |
72, 56, 64, 74, 61, 70, 79, 68, 77 mm, 2,8, 2,2, 2,5, 2,9, 2,4, 3,1, 2,7, 3 inch |
| Maximum Operating Pressure: |
12470, 15950, 14500 psi |
| Shape: |
Straight |
| Product Style: |
BSP female swivel (60° cone), Type ?M? female swivel, Metric female swivel heavy series with O-ring |
| Materials of Construction: |
Special materials, Carbon steel, zinc plated |
