Komatsu 30° Flare, Metric Thread Adapters
Parker Fittings接頭 - Parker Adapters

派克的 30° Flare Komatsu型軟管接頭，也稱為 Komatsu 型擴口接頭，是業內最常見的專業 OEM 移動設備接頭之一，符合所有 OEM 性能標準。派克的 30° Flare Komatsu? 型軟管接頭，也稱為 Komatsu 型擴口接頭，是業內最常見的專業 OEM 移動設備接頭之一，符合所有 OEM 性能標準。派克獨有的旋轉設計最大限度地減少了配合適配器的密封面損壞。

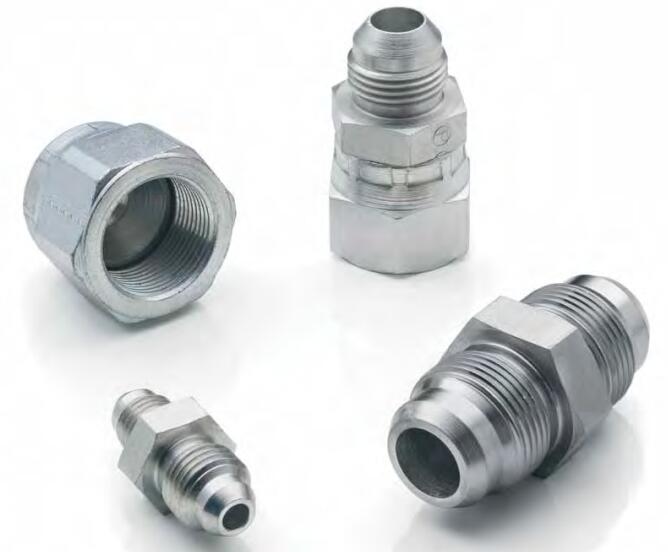

Parker's 30° Flare Komatsu style hose adapters, also known as the Komatsu style flare fittings, are one of the most common specialized OEM mobile equipment fittings in the industry, meeting all OEM performance standards. Parker's 30° Flare Komatsu style hose adapters, also known as the Komatsu style flare fittings, are one of the most common specialized OEM mobile equipment fittings in the industry, meeting all OEM performance standards. Parker's exclusive swivel design minimizes sealing surface damage of mating adapters.

Komatsu 30° Flare, Metric Thread Adapters

市場：
- 結構

特點/優點：
- 金屬對金屬連接可在接頭鼻部和軟管旋轉座之間提供有效密封。
- 轉換適配器是緊急情況、現場維修或“管道插入”液壓選項或附件的理想選擇。
- 派克的蓋子和塞子使技術人員能夠在測試、維修或工具安裝/拆卸過程中保護軟管和適配器免受損壞和污染。
- 具有用于更高裝配扭矩的重型壓接螺母。
- 派克的小松式軟管接頭系列與派克的軟管端 XU 和 MU 配合使用。
- 提供尺寸為 M14 x 1.5 至 M33 x 1.5 的鋼材質，工作壓力高達 4000 psi。

應用：
- 液壓流體處理連接

Markets:
- Construction

Features/Benefits:
- Metal-to-metal connection provides an effective seal between the fitting nose and the hose swivel seat.
- Conversion adapters are ideal for emergency situations, field repair or “plumbing in” hydraulic options or attachments.
- Parker's caps and plugs enable technicians to protect hoses and adapters from damage and contamination during testing, repair or implement installation/removal.
- Features a heavy-duty crimp nut for higher assembly torques.
- Parker's line of Komatsu style hose adapters mate with Parker's hose ends XU & MU.
- Available in steel in sizes M14 x 1.5 through M33 x 1.5 with working pressures up to 4000 psi.

Applications:
- Hydraulic fluid handling connections

Technical Specifications

Komatsu 30° Flare, Metric Thread Adapters型號
