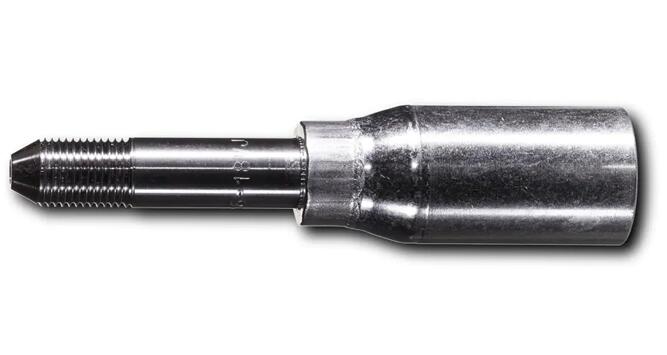

Crimped Thermoplastic UHP Hose Fittings, JX Series
Parker High Pressure JX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for hose types with working pressure up to 160 MPa.
Parker Polyflex High Pressure JX Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Crimped Thermoplastic UHP Hose Fittings, JX Series
Markets:
- Industrial
- Oil & Gas
- Construction machinery
- Marine
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Construction and shipbuilding industry
- Industrial cleaning
- Water jetting
- Hydrodemolition and removal accumulated dirt
- Media transfer (petroleum, synthetic hydraulic fluids, gas and chemical fluids)
- Suitable for hydraulic pre-tensioning equipment, test rigs, offshore
- Suitable for hose types with working pressure up to 160 MPa (23.200 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
12, 20, 25 mm |
| Hose I.D. (size): |
-8, -12, -16 |
| Hose Inside Diameter: |
1/2, 3/4, 1 inch |
| Connection Thread Size: |
1 - 12, 1 5/16-12, NA, 1 - 14 inch, NA, 24x1.5, 36x2, 42x2, 18x1.5, 20x1.5 mm |
| Connection Type: |
UNF, Metric, UNF-LH, Metric-LH |
| Length: |
86, 90, 96, 108, 121, 133, 146, 141 mm, 3,4, 3,5, 3,8, 4,3, 4,8, 5,2, 5,7, 5,6 inch |
| Maximum Operating Pressure: |
26100, 23200, 21750, 20000, 36250, 43500 psi |
| Shape: |
Straight |
| Product Style: |
Type ?M? female swivel, Metric female swivel heavy series with O-ring, Medium pressure tube nipple, High pressure tube nipple metric ? LH thread |
| Materials of Construction: |
Nipple: very high strength stainless steel |
| Shell and nut: high strength carbon steel, zinc plated, Nipple: very high strength stainless steel |
| Shell: stainless steel, Nipple: very high strength stainless steel |
| Shell: high strength carbon steel, zinc plated |
Crimped Thermoplastic UHP Hose Fittings, JX Series 型號
|
