日本工業標準 JIS 過渡接頭 Japanese Industrial Standard (JIS) Adapters
Parker 接頭 - Parker Adapters

派克日本工業標準(JIS)過渡接頭滿足特定市場的OEM以及接頭替換的需求，主要是為日本以及韓國設計生產的設備上的軟管接頭提供過渡連接。派克日本工業標準(JIS)過渡接頭符合特定市場的OEM以及接頭替換的需求，主要是為日本以及韓國設計或生產的設備上的軟管接頭提供過渡連接。JIS 接頭符合JIS B2351以及B8363標準要求。

Parker's Japanese Industrial Standard (JIS) adapters address market requirements for OEM and replacement fittings used as hose adapters on equipment designed and/or manufactured in Japan and Korea. Parker's Japanese Industrial Standard (JIS) adapters address market requirements for OEM and replacement fittings used as hose adapters on equipment designed and/or manufactured in Japan and Korea. JIS adapters meet JIS B2351 and B8363 standards.

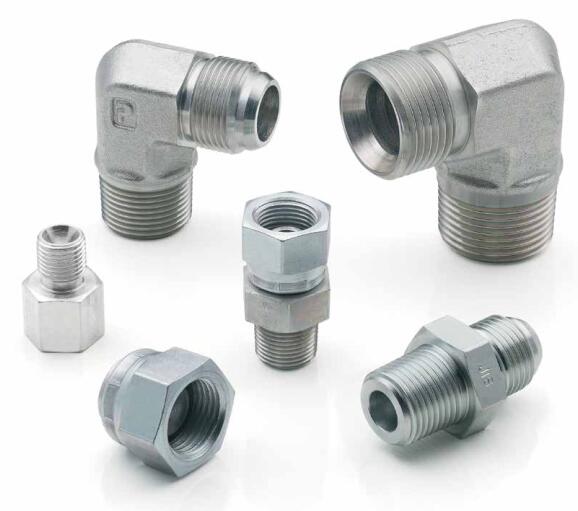

Japanese Industrial Standard (JIS) Adapters

市場：
- 建筑機械
- 工程機械

特征/優勢：
- 接頭油口螺紋有BSPP以及BSPT可選，與軟管接頭過渡連接有兩種形式：T4,30°錐BSPP螺紋， P4, 60° 錐BSPP螺紋。
- T4, 30°錐BSPP螺紋，以及P4, 60°錐螺紋， 配合派克常用的軟管接頭系列：UT, GU, G1, G2以及FU，為客戶提供了靈活的連接選擇。
- 供貨范圍：?”至 1”，碳鋼，工作壓力可達5000psi。

應用：
- 液壓連接

Markets:
- Construction
- Mobile Equipment

Features/Benefits:
- Designed with BSPP and BSPT port ends and two styles of hose ends: T4, 30° flare BSPP threads, and P4, 60° cone BSPP threads.
- The T4, 30° flare BSPP threads, and P4, 60° cone BSPP threads, interfaces provide end user flexibility of connecting to the most common Parker hose ends available: series UT, GU, G1, G2 and FU.
- Available in steel in sizes ?” through 1” with working pressures up to 5000 psi.

Applications:
- Hydraulic fluid handling connections

Technical Specifications

Japanese Industrial Standard (JIS) Adapters型號
