Parker派克SMU-1 系列UHP PTFE 在線靜態混合器（最大 1 英寸）

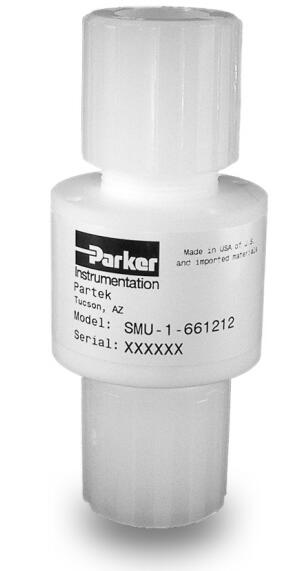

SMU-1 Series UHP PTFE Inline Static Mixer (up to 1 inch)
Parker Fittings接頭 Tube Fittings

SMU-1 系列在線靜態混合器專為 UHP 半導體流體、去離子水、腐蝕性化學品和 CMP 漿料介質應用而設計。其獨特的混合技術改善了混合并確保快速、一致地混合工藝液體。SMU-1 系列是一種含氟聚合物 (PTFE) 在線靜態混合器，設計用于超高純度 (UHP) 半導體流體、去離子水、腐蝕性化學品和 CMP 漿料介質應用。它采用新開發的、正在申請專利的混合技術，可提高徑向混合效率和一致性，并確保快速方便地混合工藝液體。SMU-1 系列組件完全由超純和惰性 PTFE 材料制成，為混合器提供高循環壽命、極強的耐腐蝕性以及與各種腐蝕性工藝介質的兼容性。混合器本身非常緊湊，可以直接集成到定制的歧管中，從而減少死體積區域和高效的內部流動路徑，以實現最佳混合。與其許多前代產品的 12 至 18 英寸尺寸相比，SMU-1 系列的占地面積更小，可在 OEM 系統中節省空間并允許在狹小區域內使用。總體而言，創新設計使混合器能夠實現與四到五倍于其尺寸的產品相媲美的混合/混合性能。 SMU-1 系列沒有活動部件，可最大限度地減少故障的可能性并延長產品壽命。它有 1/4、3/8、1/2、3/4 和 1 英寸端口尺寸和 Parflare 接頭。這些配件減少了組裝和安裝時間，同時確保了在清潔度至關重要的應用中的密封性能。在線靜態混合器的流量范圍為 0.10 至 4.09 Cv。

UHP PTFE Inline Static Mixer (up to 1 inch) – SMU-1 Series

The SMU-1 Series Inline Static Mixer is designed for UHP semiconductor fluid, DI water, aggressive chemical, and CMP slurry media applications. Its unique mixing technology improves blending and ensures quick and consistent mixing of process liquids. The SMU-1 Series is a fluoropolymer (PTFE) inline static mixer that's designed for use in ultra-high purity (UHP) semiconductor fluid, DI water, aggressive chemical, and CMP slurry media applications. It utilizes a newly developed, patent-pending mixing technology that improves radial mixing efficiency and consistency, and ensures quick and convenient blending of process liquids.

SMU-1 Series components are fabricated entirely from ultra-pure and inert PTFE material, which afford the mixer high cycle life, extreme resistance to corrosion, and compatibility with a wide range of aggressive process media. The mixer itself is highly compact and can be integrated directly into custom manifolds, thus allowing for less dead volume areas and highly efficient internal flow paths for optimal mixing. Compared to many of its predecessors' 12 to 18 inch dimensions, the SMU-1 Series has a smaller footprint, offering space savings in OEM systems and enabling use in tight areas. Overall, the innovative design enables the mixer to achieve blending/mixing performance comparable to that of products four to five times its size. The SMU-1 Series has no moving parts, which minimizes the likelihood of failure and extends product life. It is available in 1/4, 3/8, 1/2, 3/4, and 1 inch port sizes with Parflare fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical. Flow capacities of the inline static mixer range from 0.10 to 4.09 Cv.

市場：
- 半導體
- 分析實驗室
- 制藥
- 生物制藥
- 航空航天
- 工業

特性/優勢：
- 提供 1/4、3/8、1/2、3/4 和 1 英寸端口尺寸
- 正在申請專利的混合技術提高了徑向混合效率和一致性，可快速方便地混合工藝液體
- 與 12 英寸和 18 英寸競爭混合技術相比，整體尺寸緊湊，占地面積更小
- 100% 超高純度 PTFE 結構材料提供一種具有耐化學性的純凈惰性材料
- 無活動部件可減少故障模式并延長產品壽命
- 功能齊全，壓力
范圍為 0 至 120 psig - 工作溫度范圍取決于尺寸

應用：
- 腐蝕性和特殊化學品、酸、堿和漿料
- 半導體工具連接
- 濕工作臺
- 混合系統

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Available in 1/4, 3/8, 1/2, 3/4, and 1 inch port sizes
- Patent-pending mixing technology improves radial mixing efficiency and consistency for quick and convenient blending of process liquids
- Compact overall size and reduced footprint when compared to 12 inch and 18 inch competitive mixing technologies
- 100% ultra-high purity PTFE materials of construction provides a pure and inert material that is chemically resistant
- No moving parts yields fewer modes of failure and extended product life
- Fully functional from 0 to 120 psig
- Operating temperature range depends on size

Applications:
- Corrosive and specialty chemicals, acids, bases, and slurries
- Semiconductor tools hook-ups
- Wet benches
- Blending systems

Technical Specifications

UHP PTFE Inline Static Mixer (up to 1 inch) – SMU-1 Series 型號
