Pneumatic Fittings
Industrial Blow Guns
Parker's blow guns are available in controlled pressure, full pressure and impact resistant plastic. These blow guns conform to OSHA safety requirements 29 CFR 1910.242 Paragraph b.
Parker's blow guns offers ease of use, energy saving, adaptability and efficiency.
Controlled and full pressure blow guns
- Conform to OSHA requirements 29 CFR 1910.242 paragraph b
- Controlled pressure blow guns have a black epoxy coated zinc body and vented nozzles
- Maximum pressure of 150 psi
BG series blow guns
- Impact resistant plastic
- Easy to control variable flow pistol grip trigger
- Nozzles available that meet OSHA requirements
- Lightweight ergonomical design
Technical Specifications
| Maximum Operating Temperature: |
120 °F, 49 °C |
| Maximum Operating Pressure: |
150, 175 (BG Series ) psi, 10, 12 ( BG Series ) bar |
| Inlet Port Size: |
1/4 inch |
Industrial Blow Guns 型號
| Part |
Body Material |
Style |
Nozzle Style |
Industry Standards |
Outlet Port Size (inch) |
Control Method |
| 400-S-TIP |
Epoxy coated zinc |
Replacement Tip |
na |
OSHA |
na |
na |
| 410 |
Epoxy coated zinc |
Full Pressure |
na |
OSHA |
1/8 |
Lever |
| 410-N |
Epoxy coated zinc |
Full Pressure |
Brass |
OSHA |
na |
Lever |

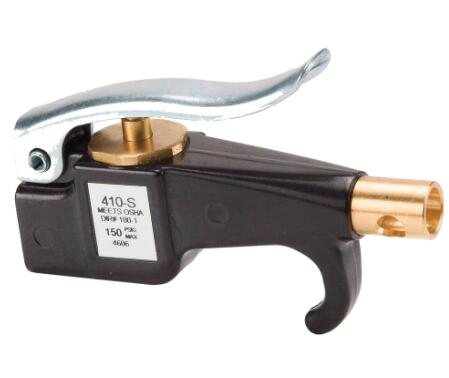

| 410-S |
Epoxy coated zinc |
Controlled Pressure |
Brass |
OSHA |
na |
Lever |
| 410-SV |
Epoxy coated zinc |
Controlled Pressure |
Venturi |
OSHA |
na |
Lever |
| 415-N |
Epoxy coated zinc |
Full Pressure |
Brass |
OSHA |
na |
Push Button |
| 415-S |
Epoxy coated zinc |
Controlled Pressure |
Brass |
OSHA |
na |
Push Button |
| BG441-NBL |
Plastic |
Pistol Grip |
Extended |
na |
na |
Trigger |
| BG442-SBL |
Plastic |
Pistol Grip |
Extended OSHA |
OSHA |
na |
Trigger |
| BG443-NBL |
Plastic |
Pistol Grip |
na |
na |
na |
Trigger |
| BG444-SBL |
Plastic |
Pistol Grip |
Short OSHA |
OSHA |
na |
Trigger |
|
