Parker Fittings接頭
Hose Fittings

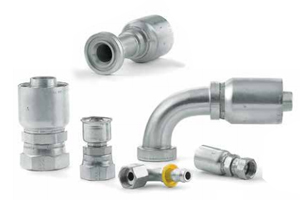

Crimp Style Hydraulic Hose Fitting – HY Series Fittings

Configure permanent hose assemblies quickly, easily, and cost-effectively with compression-style HY Series fittings for use with Parkrimp crimpers.

Parker's HY Series fittings are cost-effective, permanent, compression-style crimp hydraulic fittings made for easy and quick assembly with Parkrimp crimpers. When coupled with Parker's No-Skive hoses, HY Series fittings provide convenience and shorter assembly time. Compatible with hydraulic industry standard hoses such as Parker Hydraulic/Braided hoses, HY series fittings feature Chromium-6-free plating. Available in a wide variety of end configurations, HY Series fittings are offered in sizes ranging from ?” to 1?”.

Crimp Style Hydraulic Hose Fitting – HY Series Fittings

Markets:
- Transportation
- Military
- Construction
- Agriculture
- Grounds & Building Maintenance
- Forestry
- Utility Equipment
- Machine Tool
- Waste & Refuse
- Material Handling

Features/Benefits:
- Easy push on force
- Imperial HEX
- Stainless steel option available
- Wide range of end configurations
- One piece reduces complexity and leakage path
- No-Skive technology offers easy, efficient, and safe production processes

Applications:
- Petroleum base hydraulic fluids and lubricating oils

Compatible Hoses:
- AX
- BXX

Technical Specifications

Port Size:	1/8 - 2-1/16 inch
Connection Thread Size:	Varies by part, Varies by part mm
Shape:	Straight, 45° Elbow, and 90° Elbow
Application:	Hydraulic
Connection Type:	Various
Hose Inside Diameter:	6.35 - 31.75 mm, 1/4 - 1-1/4 inch
Hose I.D. (size):	-4 to -20
Maximum Operating Pressure:	Varies by part, Varies by part MPa, Varies by part psi
Maximum Operating Temperature:	Varies by part, Varies by part °F
Minimum Operating Temperature:	Varies by part, Varies by part °F
Product Style:	Multiple Styles Available
Materials of Construction:	Steel, Stainless Steel

Crimp Style Hydraulic Hose Fitting – HY Series Fittings 型號

Part	Port Connection (inch)	Hose I.D. (inch)	Connection Thread Size (inch)
101HY-12-12	3/4	3/4	3/4x14
101HY-12-12C	3/4	3/4	3/4x14
101HY-12-12C303
101HY-12-16	3/4	1	3/4x14
101HY-12-8	3/4	1/2	3/4x14
101HY-16-12	1	3/4	1x11-1/2
101HY-16-16	1	1	1x11-1/2
101HY-16-16C	1	1	1x11-1/2
101HY-16-16C303
101HY-2-4	1/8	1/4	1/8x27
101HY-20-20	1-1/4	1-1/4	1-1/4x11-1/2
101HY-4-4	1/4	1/4	1/4x18
101HY-4-5	1/4	5/16	1/4x18
101HY-4-6	1/4	3/8	1/4x18
101HY-6-4	3/8	1/4	3/8x18
101HY-6-5	3/8	5/16	3/8x18
101HY-6-6	3/8	3/8	3/8x18
101HY-6-6C	3/8	3/8	3/8x18
101HY-6-6C303
101HY-6-8	3/8	1/2	3/8x18
101HY-8-10	1/2	5/8	1/2x14
101HY-8-12	1/2	3/4	1/2x14
101HY-8-4	1/2	1/4	1/2x14
101HY-8-6	1/2	3/8	1/2x14
101HY-8-8	1/2	1/2	1/2x14
101HY-8-8C	1/2	1/2	1/2x14
101HY-8-8C303
102HY-12-12	3/4	3/4	3/4x14
102HY-16-16	1	1	1x11-1/2
102HY-2-4	1/8	1/4	1/8x27
102HY-4-4	1/4	1/4	1/4x18
102HY-4-6	1/4	3/8	1/4x18
102HY-6-6	3/8	3/8	3/8x18
102HY-8-6	1/2	3/8	1/2x14
102HY-8-8	1/2	1/2	1/2x14
103HY-10-10	5/8	5/8	7/8X14
103HY-10-6	5/8	3/8	7/8X14
103HY-10-8	5/8	1/2	7/8x14
103HY-12-10	3/4	5/8	1-1/16X12
103HY-12-12	3/4	3/4	1-1/16x12
103HY-12-8	3/4	1/2	1-1/16x12
103HY-14-12	7/8	3/4	1-3/16x12
103HY-16-12	1	3/4	1-5/16x12
103HY-16-16	1	1	1-5/16x12
103HY-4-4	1/4	1/4	7/16X20
103HY-5-4	5/16	1/4	1/2x20
103HY-6-4	3/8	1/4	9/16x18
103HY-6-5	3/8	5/16	9/16x18
103HY-6-6	3/8	3/8	9/16x18
103HY-8-6	1/2	3/8	3/4X16
103HY-8-8	1/2	1/2	3/4X16
105HY-10-10	5/8	5/8	7/8X14
105HY-10-8	5/8	1/2	7/8X14
105HY-12-12	3/4	3/4	1-1/16x12
105HY-12-8	3/4	1/2	1-1/16x12
105HY-16-12	1	3/4	1-5/16x12
105HY-16-16	1	1	1-5/16x12
105HY-4-4	1/4	1/4	7/16x20
105HY-6-4	3/8	1/4	9/16x18
105HY-6-6	3/8	3/8	9/16x18
105HY-8-6	1/2	3/8	3/4x16
105HY-8-8	1/2	1/2	3/4x16
106HY-10-10	5/8	5/8	7/8x14
106HY-10-12	5/8	3/4	7/8x14
106HY-10-6	5/8	3/8	7/8X14
106HY-10-8	5/8	1/2	7/8X14
106HY-12-10	3/4	5/8	1-1/16x12
106HY-12-12	3/4	3/4	1-1/16x12
106HY-12-12C	3/4	3/4	1-1/16x12
106HY-12-12C303
106HY-12-16	3/4	1	1-1/16X12
106HY-12-8	3/4	1/2	1-1/16x12
106HY-14-12	7/8	3/4	1-3/16x12
106HY-16-12	1	3/4	1-5/16x12
106HY-16-16	1	1	1-5/16x12
106HY-16-16C	1	1	1-5/16x12
106HY-16-16C303
106HY-20-16	1-1/4	1	1-5/8x12
106HY-20-20	1-1/4	1-1/4	1-5/8x12
106HY-3-4	3/16	1/4	3/8x24
106HY-4-4	1/4	1/4	7/16x20
106HY-4-4C	1/4	1/4	7/16x20
106HY-4-4C303
106HY-4-6	1/4	3/8	7/16x20
106HY-5-4	5/16	1/4	1/2x20
106HY-5-5	5/16	5/16	1/2x20
106HY-5-6	5/16	3/8	1/2x20
106HY-6-4	3/8	1/4	9/16x18
106HY-6-5	3/8	5/16	9/16x18
106HY-6-6	3/8	3/8	9/16x18
106HY-6-6C	3/8	3/8	9/16x18
106HY-6-6C303
106HY-8-10	1/2	5/8	3/4X16
106HY-8-12	1/2	3/4	3/4x16
106HY-8-6	1/2	3/8	3/4x16
106HY-8-8	1/2	1/2	3/4X16
106HY-8-8C	1/2	1/2	3/4x16
106HY-8-8C303
107HY-12-12	3/4	3/4	3/4x14
107HY-16-16	1	1	1x11-1/2
107HY-4-4	1/4	1/4	1/4x18
107HY-6-4	3/8	1/4	3/8x18
107HY-6-6	3/8	3/8	3/8x18
107HY-8-8	1/2	1/2	1/2x14
108HY-12-12	3/4	3/4	1-1/16x12
108HY-6-4	3/8	1/4	5/8x18
108HY-6-5	3/8	5/16	5/8x18
108HY-6-6	3/8	3/8	5/8x18
108HY-8-8	1/2	1/2	3/4X16
10GHY-10-8	5/8	1/2	7/8X14
10GHY-12-8	3/4	1/2	1-1/16x12
10GHY-16-16	1	1	1-5/16x12
10GHY-4-4	1/4	1/4	7/16X20
10GHY-6-6	3/8	3/8	9/16x18
10GHY-8-6	1/2	3/8	3/4X16
10GHY-8-8	1/2	1/2	3/4x16
10LHY-10-8	5/8	1/2	7/8X14
10LHY-12-12	3/4	3/4	1-1/16x12
10LHY-6-4	3/8	1/4	9/16x18
10LHY-6-6	3/8	3/8	9/16x18
10LHY-8-6	1/2	3/8	3/4X16
10LHY-8-8	1/2	1/2	3/4X16
111HY-10-8	5/8	1/2	7/8X14
111HY-12-12	3/4	3/4	1-1/16x12
111HY-4-4	1/4	1/4	7/16X20
111HY-6-6	3/8	3/8	9/16x18
111HY-8-6	1/2	3/8	3/4x16
111HY-8-8	1/2	1/2	3/4x16
113HY-12-12	3/4	3/4	3/4x14
113HY-16-16	1	1	1x11-1/2
113HY-2-4	1/8	1/4	1/8x27
113HY-4-4	1/4	1/4	1/4x18
113HY-4-6	1/4	3/8	1/4x18
113HY-6-4	3/8	1/4	3/8x18
113HY-6-6	3/8	3/8	3/8x18
113HY-6-8	3/8	1/2	3/8x18
113HY-8-6	1/2	3/8	1/2x14
113HY-8-8	1/2	1/2	1/2x14
11LHY-2-4	1/8	1/4	1/8x27
11LHY-4-4	1/4	1/4	1/4x18
11LHY-6-6	3/8	3/8	3/8x18
11LHY-8-6	1/2	3/8	1/2x14
11LHY-8-8	1/2	1/2	1/2x14
128HY-4-4	1/4	1/4	7/16x24
128HY-5-4	5/16	1/4	1/2x20
128HY-6-6	3/8	3/8	5/8x18
137HY-10-10	5/8	5/8	7/8X14
137HY-10-8	5/8	1/2	7/8X14
137HY-12-12	3/4	3/4	1-1/16X12
137HY-16-16	1	1	1-5/16x12
137HY-4-4	1/4	1/4	7/16x20
137HY-6-4	3/8	1/4	9/16x18
137HY-6-6	3/8	3/8	9/16x18
137HY-8-6	1/2	3/8	3/4x16
137HY-8-8	1/2	1/2	3/4x16
139HY-10-10	5/8	5/8	7/8X14
139HY-10-8	5/8	1/2	7/8X14
139HY-12-10	3/4	5/8	1-1/16X12
139HY-12-12	3/4	3/4	1-1/16x12
139HY-12-8	3/4	1/2	1-1/16X12
139HY-16-12	1	3/4	1-5/16x12
139HY-16-16	1	1	1-5/16x12
139HY-4-4	1/4	1/4	7/16X20
139HY-5-4	5/16	1/4	1/2X20
139HY-6-4	3/8	1/4	9/16x18
139HY-6-6	3/8	3/8	9/16x18
139HY-8-6	1/2	3/8	3/4X16
139HY-8-8	1/2	1/2	3/4x16
141HY-10-8	5/8	1/2	7/8X14
141HY-12-12	3/4	3/4	1-1/16x12
141HY-16-16	1	1	1-5/16x12
141HY-4-4	1/4	1/4	7/16X20
141HY-6-4	3/8	1/4	9/16x18
141HY-6-6	3/8	3/8	9/16x18
141HY-8-6	1/2	3/8	3/4X16
141HY-8-8	1/2	1/2	3/4x16
167HY-6-6	3/8	3/8	5/8x18
169HY-5-4	5/16	1/4	1/2x20
169HY-6-6	3/8	3/8	5/8x18
179HY-6-6	3/8	3/8	5/8x18
1D9HY-8-8	1/2	1/2	1/2x14
1GJHY-8-4	1/2	1/4	1/2x27
1GUHY-12-12	3/4	3/4	3/4x14
1GUHY-16-16	1	1	1x11
1GUHY-4-4	1/4	1/4	1/4x19
1GUHY-6-4	3/8	1/4	3/8x19
1GUHY-6-6	3/8	3/8	3/8x19
1GUHY-8-6	1/2	3/8	1/2x14
1GUHY-8-8	1/2	1/2	1/2x14
1J0HY-12-8	3/4	1/2	1-3/16x12
1J0HY-4-4	1/4	1/4	9/16x18
1J0HY-6-6	3/8	3/8	11/16x16
1J0HY-8-8	1/2	1/2	13/16x16
1J1HY-10-10	5/8	5/8	1x14
1J1HY-4-4	1/4	1/4	9/16x18
1J1HY-6-6	3/8	3/8	11/16x16
1J1HY-8-8	1/2	1/2	13/16x16
1J7HY-10-10	5/8	5/8	1x14
1J7HY-10-8	5/8	1/2	1x14
1J7HY-12-12	3/4	3/4	1-3/16x12
1J7HY-16-16	1	1	1-7/16x12
1J7HY-4-4	1/4	1/4	9/16x18
1J7HY-6-4	3/8	1/4	11/16x16
1J7HY-6-6	3/8	3/8	11/16x16
1J7HY-8-6	1/2	3/8	13/16x16
1J7HY-8-8	1/2	1/2	13/16x16
1J9HY-10-10	5/8	5/8	1x14
1J9HY-10-12	5/8	3/4	1x14
1J9HY-10-8	5/8	1/2	1x14
1J9HY-12-10	3/4	5/8	1-3/16x12
1J9HY-12-12	3/4	3/4	1-3/16x12
1J9HY-16-12	1	3/4	1-7/16x12
1J9HY-16-16	1	1	1-7/16x12
1J9HY-4-4	1/4	1/4	9/16x18
1J9HY-4-6	1/4	3/8	9/16x18
1J9HY-6-4	3/8	1/4	11/16x16
1J9HY-6-6	3/8	3/8	11/16x16
1J9HY-8-6	1/2	3/8	13/16x16
1J9HY-8-8	1/2	1/2	13/16x16
1JCHY-12-12	3/4	3/4	1-3/16x12
1JCHY-4-4	1/4	1/4	9/16x18
1JCHY-6-6	3/8	3/8	11/16x16
1JCHY-8-8	1/2	1/2	13/16x16
1JSHY-10-10	5/8	5/8	1x14
1JSHY-10-12	5/8	3/4	1x14
1JSHY-10-8	5/8	1/2	1x14
1JSHY-12-10	3/4	5/8	1-3/16x12
1JSHY-12-12	3/4	3/4	1-3/16x12
1JSHY-16-12	1	3/4	1-7/16x12
1JSHY-16-16	1	1	1-7/16x12
1JSHY-20-16	1-1/4	1	1-11/16x12
1JSHY-20-20	1-1/4	1-1/4	1-11/16x12
1JSHY-4-4	1/4	1/4	9/16x18
1JSHY-6-4	3/8	1/4	11/16x16
1JSHY-6-6	3/8	3/8	11/16x16
1JSHY-8-6	1/2	3/8	13/16x16
1JSHY-8-8	1/2	1/2	13/16x16
1XUHY-10-10	"M24x1,5"	5/8	M24x1,5 mm
1XUHY-12-12	"M30x1,5"	3/4	M30x1,5 mm
