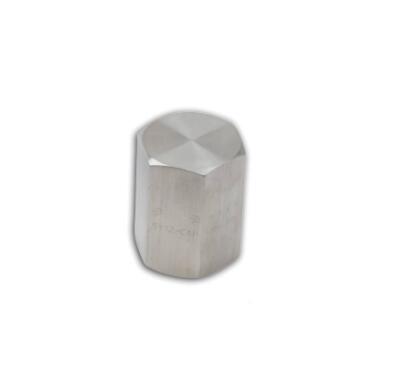

High Pressure Caps
High pressure caps are designed to be used with Polyflex high pressure fittings.
High pressure caps are designed to be used with Polyflex high pressure fittings.
Markets:
- Hydraulics
- Industrial
- Oil & Gas
Features:
- Keeps contaminants/dust from getting into the connection openings
- Protects connection ends from damage
- Easy to put on and remove

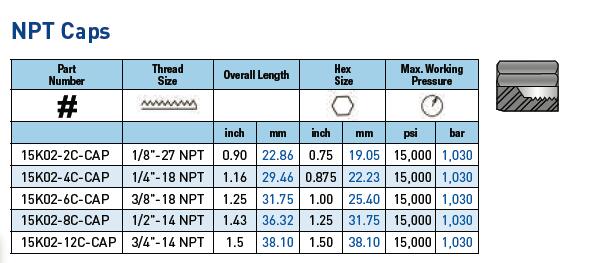

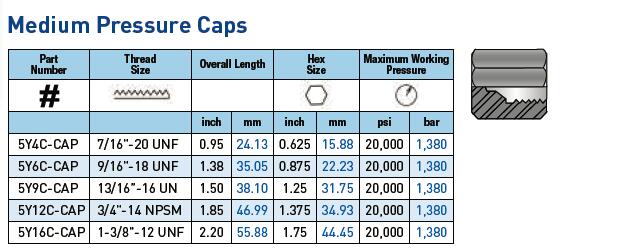

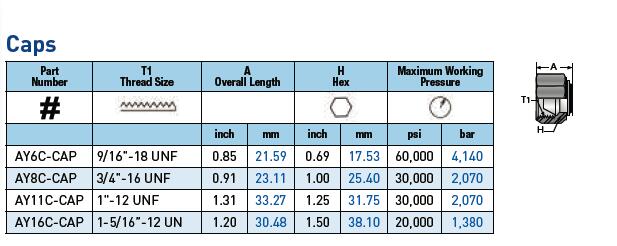

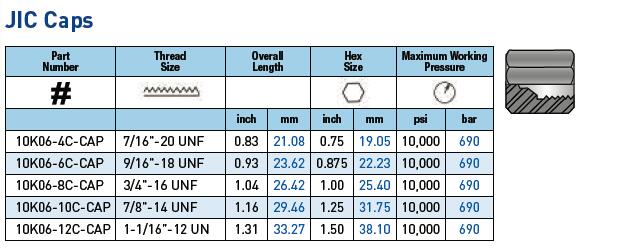

Technical Specifications
| Product Type: |
JIC , Type "M", Med. Pressure, High Pressure, NPT |
| Tube Outside Diameter: |
6 - 23 mm |
| Application: |
Oilfield, Marine |
| Connection Type: |
Field-Attachable |
| Hose Inside Diameter: |
1/8, 1/4, 3/8, 1/2, 9/16, 5/8, 3/4 inch, 3, 6, 10, 13, 14, 16, 19 mm |
| Maximum Operating Pressure: |
4140 bar, 414 MPa, 60,000 psi, 103, 69, 414, 207, 138 MPa |
| Shape: |
Straight |
| Connection 1 Thread Size: |
7/16" - 20 UNF, 9/16" - 18 UNF, 3/4" - 16 UNF, 7/8" - 14 UNF, 1-1/16" - 12 UNF, 1" - 12 UNF, 1-5/16" - 12 UNF, 13/16" - 16 UNF, 3/4" - 14 NPSM, 1-3/8" - 12 UNF, 1/4" H.P., 3/8" H.P., 9/16" H.P., 1/8" - 27 NPT, 1/4" - 18 NPT, 3/8" - 18 NPT, 1/2" - 14 NPT, inch |
| Overall Length: |
0.83, 0.93, 1.04, 1.16, 1.31, 0.85, 0.91, 1.2, 0.95, 1.38, 1.5, 1.85, 2.2, 1.07, 1.26, 0.9, 1.25, 1.43 inch, 21.08, 23.62, 26.42, 29.46, 33.27, 21.59, 23.11, 30.48, 24.13, 35.05, 38.1, 46.99, 55.88, 27.18, 32, 22.86, 31.75, 36.32 inch |
| Hex Size: |
0.75, 0.875, 1, 1.25, 1.5, 0.69, 0.625, 1.375, 1.75 inch, 19.05, 22.23, 25.4, 31.75, 38.1, 17.53, 15.88, 34.93, 44.45 mm |
| Materials of Construction: |
Stainless Steel |
High Pressure Caps 型號
|
