Parker High Flow, Compact Size Diaphragm Valve - NV70 Series
NV70 系列高流量緊湊型隔膜閥 | #54021227
High Flow, Compact Size Diaphragm Valve - NV70 Series | #54021227

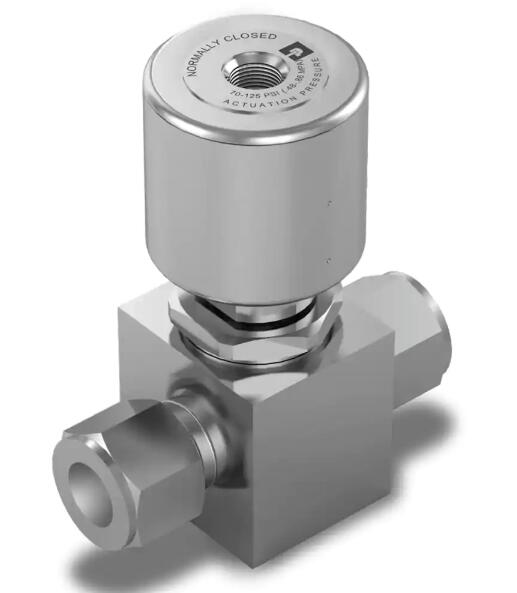

PARKE NV70 是一種經濟型、通用型、高流量隔膜閥，非常適用于流動大量腐蝕性和非腐蝕性流體。NV70 是一種經濟型、通用型、高流量隔膜閥，非常適用于流動大量腐蝕性和非腐蝕性流體。這種緊湊的 316L 不銹鋼閥門可確保通過手動或氣動驅動實現可靠且一致的關閉。NV70 使用高疲勞強度隔膜 (Elgiloy)，形成外部金屬密封，并提供可靠的大氣密封。內部無螺紋和無彈簧。高循環壽命。緊湊的尺寸。積極、一致的關閉。金屬對金屬密封到大氣。為 O2 服務清潔。高流量應用的理想選擇。從真空到 AOPLPNO / AOPLPNC 閥門的 150 psig 和手動閥門的 250 psig 功能齊全。The NV70 is an economical, general purpose, high flow diaphragm valve ideally suited when flowing large volumes of corrosive and non-corrosive fluids. This compact, 316L stainless steel valve ensures positive and consistent shut off with manual or air actuation. The NV70 uses a high fatigue strength diaphragm (Elgiloy?) that creates an external metal seal, and provides a reliable seal to atmosphere. Internally threadless and springless. High cycle life. Compact size. Positive, consistent shut off. Metal-to-metal seal to atmosphere. Cleaned for O2 service. Ideal for high flow applications. Fully functional from vacuum to 150 psig for AOPLPNO / AOPLPNC valves and 250 psig for manual valves.
High Flow, Compact Size Diaphragm Valve - NV70 Series
The NV70 is an economical, general purpose, high flow diaphragm valve ideally suited when flowing large volumes of corrosive and non-corrosive fluids. The NV70 is an economical, general purpose, high flow diaphragm valve ideally suited when flowing large volumes of corrosive and non-corrosive fluids. This compact, 316L stainless steel valve ensures positive and consistent shut off with manual or air actuation. The NV70 uses a high fatigue strength diaphragm (Elgiloy) that creates an external metal seal, and provides a reliable seal to atmosphere. Internally threadless and springless. High cycle life. Compact size. Positive, consistent shut off. Metal-to-metal seal to atmosphere. Cleaned for O2 service. Ideal for high flow applications. Fully functional from vacuum to 150 psig for AOPLPNO / AOPLPNC valves and 250 psig for manual valves.
技術規格
- 驅動： 氣動，低壓，常閉
- 聯系： 1/2" 內螺紋 NPT 輸入和輸出
- 機身材質： 316L不銹鋼
- 隔膜材料： Elgiloy，等效
- 座椅材質： PCTFE (std), 聚酰亞胺
- 帽材料： 不適用
- 螺母材料： 17-4 PH 不銹鋼
- 執行器外殼材料： 陽極氧化鋁
- 爆破壓力： 750 psig (52 barg)
- 證明壓力： 375 psig (26 barg)
- 流量： Cv .7（AOP 版本，指示器旋鈕，手輪）
- 內部泄漏率： 泡泡緊
- 外部泄漏率： 泡泡緊
- 體積： 4.90 立方厘米
- 重量： 1.2 磅，0.55 公斤
- 最大入口壓力額定值： 150 psig (10.3 barg) psi
- 最小入口壓力額定值： 真空壓力
- 驅動壓力： 70-125 psig
- 進氣口連接尺寸： 1/8" NPT
- 最高工作溫度： 66°C，150°F
- 最低工作溫度： -40°C，-40°F
Technical Specifications
| Body Material: |
316L Stainless Steel |
| Diaphragm Material: |
Elgiloy, Equivalent |
| Seat Material: |
PCTFE (std), Polyimide |
| Cap Material: |
17-4 PH Stainless Steel, N/A |
| Nut Material: |
17-4 PH Stainless Steel |
| Actuator Housing Material: |
N/A, Anodized Aluminum |
| Burst Pressure: |
750 psig (52 barg) |
| Proof Pressure: |
375 psig (26 barg) |
| Flow Rate: |
Cv .7 (AOP versions, Indicator Knob, Handwheel) |
| Internal Leak Rate: |
Bubble Tight |
| External Leak Rate: |
Bubble Tight |
| Volume: |
4.9 cm3 |
| Weight: |
1.2 lb, 0.55 kg |
| Maximum Inlet Pressure Rating: |
150, 250 psig / 10.3, 17.2 barg |
| Minimum Inlet Pressure Rating: |
Vacuum |
| Actuation Pressure: |
N/A, 70-125 psig |
| Air Inlet Connection Size: |
N/A, 1/8" NPT |
| Maximum Operating Temperature: |
66 °C, 150 °F |
| Minimum Operating Temperature: |
-40 °C, -40 °F |
High Flow, Compact Size Diaphragm Valve - NV70 Series 型號
| Part |
Actuation |
Connection |
| 54020848 |
Spin Handwheel |
1/2" Male NPT In & Out |
| 54020928 |
Spin Handwheel |
1/2" Compression In & Out |
| 54020929 |
Spin Handwheel |
1/2" Female NPT In & Out |
| 54021157 |
Air Operated, Low Pressure, Normally Closed |
1/2" Compression In & Out |
| 54021158 |
Indicator Knob |
1/2" Compression In & Out |
| 54021227 |
Air Operated, Low Pressure, Normally Closed |
1/2" Female NPT In & Out |
| 54021228 |
Indicator Knob |
1/2" Female NPT In & Out |
| 54021409 |
Air Operated, Low Pressure, Normally Closed |
1/2" Male NPT In & Out |
| 54021410 |
Indicator Knob |
1/2" Male NPT In & Out |
| 54022501 |
Air Operated, Low Pressure, Normally Open |
1/2" Compression In & Out |
|
