Parker Fittings接頭
Flareless and Bite Type Fittings
Ermeto high pressure hydraulic weld nipple

Ermeto SKA和SKA-ORB焊嘴類型可以安裝在任何EO管件中。輕型和重型系列的Ermeto焊嘴可提供6 – 38/42的所有尺寸。 Ermeto焊接嘴在沒有O形圈的情況下焊接到管端。請勿忘記事先按正確的尺寸和方向組裝固定螺母。特殊的準則和規定可能適用于管端的預處理，焊接程序，焊接人員資格，焊接后處理和測試以及文件記錄。

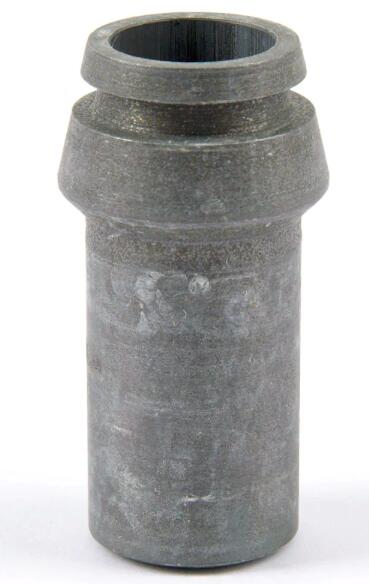

Ermeto high pressure hydraulic weld nipple

The wide Ermeto fitting range allows welded tube connections. Therefore, the weld nipple has to be welded onto the tube end. Using the standard Ermeto nut, this weld nipple can then be connected to the tube joint of any Ermeto tube fitting. Ermeto weld nipples, types SKA and SKA-ORB, can be assembled in any EO tube fitting, so that this fitting type has a broad range of applications. Ermeto weld nipples are available in all sizes from 6 – 38/42 in the light and heavy series. The Ermeto weld nipple is welded to the tube end without the O-ring. Assembling beforehand a retaining nut with the right size and orientation should not be forgotten. Special guidelines and regulations may apply to the pre-handling of the tube end, the welding procedure, welding personnel qualifications, post-processing and testing and documentation of the weld connection.

市場：
- 壓力機制造
- 重型機械制造
- 電站建筑
- 造船

應用：
- 適用于一般液壓應用。

特性/優點：
- Ermeto焊接接頭可與所有EO配件結合使用，因此該配件可用于廣泛的應用場合。
- 彈性密封件用作主要密封元件，使連接防漏。因此，維護和返工成本大大降低。
- 即使在極端條件下連續運行數年后，也不必重新擰緊軟密封焊嘴。這意味著連接器具有長壽命，并且顯著降低了維護和維護成本。
- 組裝不充分的Ermeto焊嘴在沒有警告的情況下不會分開。用戶可以盡早做出反應，因為連接器會通過泄漏來指示問題，并且可以重新擰緊。
- 可以撤消Ermeto焊嘴，然后重新組裝任意次。由此增加了連接器的壽命并節省了成本。

Markets:
- Press construction
- Heavy machinery building
- Power station construction
- Shipbuilding

Applications:
- Suitable for general hydraulic applications.

Features/ benefits:
- Ermeto weld nipples can be combined with all EO fittings, resulting in a very broad range of applications.
- The elastomeric seal acts as a primary sealing element, making the connection leak-proof. So maintenance and re-work costs are substantially reduced.
- Even after continuous operation for years under extreme conditions, the soft-seal Ermeto weld nipple connector does not have to be retightened. This means that the connector has a long life and maintenance and servicing costs are noticeably diminished.
- Insufficiently assembled Ermeto weld nipples do not come apart without warning. The user can react early enough because the connectors indicate the problem by leaking and they can be retightened.
- Ermeto weld nipples can be undone and then re-assembled any number of times. The longevity of the connector is thereby increased and costs saved.

Technical Specifications

Ermeto high pressure hydraulic weld nipple型號
