用于高壓液壓管接頭的 ERMETO DIN 接頭組件
Parker Fittings接頭
Flareless and Bite Type Fittings

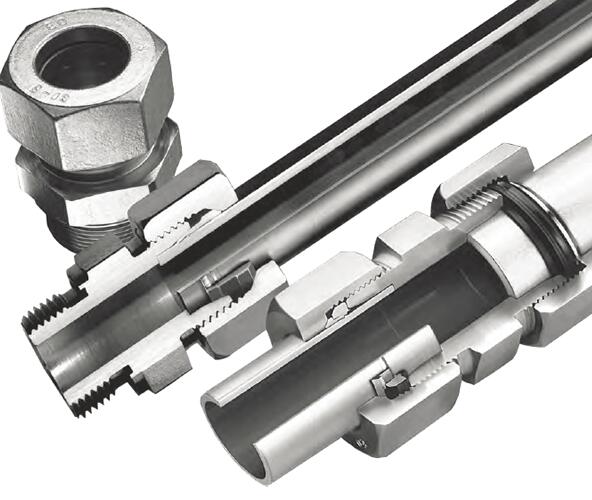

Ermeto DIN fitting components for high pressure hydraulic tube fittings
用于高壓液壓管接頭的 Ermeto DIN 接頭組件是構建完整接頭系列（EO-PSR、EO-2、EO2-FORM）不可或缺的項目。用于高壓液壓管接頭的 Ermeto DIN 接頭組件是構建完整接頭系列（EO-PSR、EO-2、EO2-FORM）不可或缺的項目。FM EO-2 功能螺母可提供密封 NBR 或密封 FKM。Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM). Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM). The FM EO-2 functional nut is available with sealing NBR or sealing FKM.
Ermeto DIN fitting components for high pressure hydraulic tube fittings
市場：
- 汽車
- 國防
- 能源
- 環境
- 工業
- 基礎設施
- 機床
- 材料處理
- 移動
- 石油和天然氣
- 發電
- 加工
- 運輸
- 水
應用：
- 適用于一般液壓應用。
特性/優點：
- 高耐腐蝕性：不含六價鉻的表面處理使白銹的平均耐腐蝕性能超過 500 小時。該屬性延長了配件的生命周期。
- 不銹鋼表面：用于高壓液壓管接頭的 Ermeto DIN 接頭組件，不銹鋼版本，對腐蝕性介質和環境影響具有高耐腐蝕性，并且比鋼具有更高的耐溫性。這些功能擴展了應用范圍。
- 根據具體要求，FM EO-2 功能螺母可與密封 NBR 或密封 FKM 一起交付。此功能增加了應用范圍。
Markets:
- Automotive
- Defense
- Energy
- Environment
- Industrial
- Infrastructure
- Machine Tools
- Materials Handling
- Mobile
- Oil and Gas
- Power Generation
- Process
- Transportation
- Water
Applications:
- Suitable for general hydraulic applications.
Features/ benefits:
- High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- Stainless steel surface: Ermeto DIN fitting components for high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
- Depending on the specific requirements, the FM EO-2 functional nut can be delivered with sealing NBR or sealing FKM. This feature increase the range of applications.
Technical Specifications
| Product Series: |
Very light, Light, Heavy |
| Size: |
na, M 08x1.0 to M42x2.0 |
| Materials of Construction: |
Steel/NBR, Steel/FKM, Stainless steel/FKM, Stainless steel/NBR, Steel/Stainless steel/NBR, Steel/Stainless steel/FKM, Steel, Stainless steel, Stainless steel SPH |
| Seal Material: |
na, NBR, FKM |
| Tube Outside Diameter: |
6-42 mm |
| Shape: |
EO2-Functional nut, EO2-FORM Set for steel and stainless steel tubes, EO2-FORM Set for stainless steel tubes, Nut EO 24° Cone end, Cutting ring, Progressive stop ring, Progressive ring, Sleeve screw for threaded ports acc. to DIN 3854 |
| Maximum Operating Temperature: |
+250 Steel, +400 Stainless Steel °C, +482 Steel, +752 Stainless Steel °F |
| Minimum Operating Temperature: |
-40 (Steel); -60 (Stainless Steel) °C, -40 Steel, -76 Stainless Steel °F |
| Application: |
Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation |
| Specifications Met: |
DIN ISO 8434 |
Ermeto DIN fitting components for high pressure hydraulic tube fittings型號
| Part |
Shape |
Series |
Seal Material |
Size |
Material |
Tube O.D. (mm) |
| D04LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
4 |
| D04LLX |
Cutting ring |
Very light |
na |
na |
Steel |
4 |
| D06LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
6 |
| D06LLX |
Cutting ring |
Very light |
na |
na |
Steel |
6 |
| D08LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
8 |
| D08LLX |
Cutting ring |
Very light |
na |
na |
Steel |
8 |
| D10LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
10 |
| D10LLX |
Cutting ring |
Very light |
na |
na |
Steel |
10 |
| D12LL71X |
Cutting ring |
Very light |
na |
na |
Stainless steel |
12 |
| D12LLX |
Cutting ring |
Very light |
na |
na |
Steel |
12 |
| DPR06L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
6 |
| DPR06LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
6 |
| DPR08L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
8 |
| DPR08LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
8 |
| DPR10L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
10 |
| DPR10LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
10 |
| DPR12L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
12 |
| DPR12LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
12 |
| DPR14S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
14 |
| DPR14SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
14 |
| DPR15L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
15 |
| DPR15LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
15 |
| DPR16S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
16 |
| DPR16SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
16 |
| DPR18L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
18 |
| DPR18LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
18 |
| DPR20S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
20 |
| DPR20SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
20 |
| DPR22L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
22 |
| DPR22LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
22 |
| DPR25S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
25 |
| DPR25SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
25 |
| DPR28L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
28 |
| DPR28LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
28 |
| DPR30S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
30 |
| DPR30SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
30 |
| DPR35L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
35 |
| DPR35LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
35 |
| DPR38S71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel |
38 |
| DPR38SSPH71X |
Progressive ring |
Heavy |
na |
na |
Stainless steel SPH |
38 |
| DPR42L71X |
Progressive ring |
Light |
na |
na |
Stainless steel |
42 |
| DPR42LSPH71X |
Progressive ring |
Light |
na |
na |
Stainless steel SPH |
42 |
| FM04LLCF |
EO2-Functional nut |
Very light |
NBR |
M 08x1.0 |
Steel, Chromium-6 Free |
4 |
| FM04LLSSA |
EO2-Functional nut |
Very light |
NBR |
M 08x1.0 |
Steel/Stainless steel |
4 |
| FM06L71 |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Stainless steel |
6 |
| FM06LCF |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06LLSSA |
EO2-Functional nut |
Very light |
NBR |
M 10x1.0 |
Steel/Stainless steel |
6 |
| FM06LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Stainless steel |
6 |
| FM06LSSA |
EO2-Functional nut |
Light |
NBR |
M 12x1.5 |
Steel/Stainless steel |
6 |
| FM06LVITCF |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 12x1.5 |
Steel/Stainless steel |
6 |
| FM06S71 |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Stainless steel |
6 |
| FM06SCF |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Stainless steel |
6 |
| FM06SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 14x1.5 |
Steel/Stainless steel |
6 |
| FM06SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FM06SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 14x1.5 |
Steel/Stainless steel |
6 |
| FM08L71 |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Stainless steel |
8 |
| FM08LCF |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Stainless steel |
8 |
| FM08LSSA |
EO2-Functional nut |
Light |
NBR |
M 14x1.5 |
Steel/Stainless steel |
8 |
| FM08LVITCF |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 14x1.5 |
Steel/Stainless steel |
8 |
| FM08S71 |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Stainless steel |
8 |
| FM08SCF |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Stainless steel |
8 |
| FM08SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 16x1.5 |
Steel/Stainless steel |
8 |
| FM08SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FM08SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 16x1.5 |
Steel/Stainless steel |
8 |
| FM10L71 |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Stainless steel |
10 |
| FM10LCF |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Stainless steel |
10 |
| FM10LSSA |
EO2-Functional nut |
Light |
NBR |
M 16x1.5 |
Steel/Stainless steel |
10 |
| FM10LVITCF |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 16x1.5 |
Steel/Stainless steel |
10 |
| FM10S71 |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Stainless steel |
10 |
| FM10SCF |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Stainless steel |
10 |
| FM10SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 18x1.5 |
Steel/Stainless steel |
10 |
| FM10SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FM10SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 18x1.5 |
Steel/Stainless steel |
10 |
| FM12L71 |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Stainless steel |
12 |
| FM12LCF |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Stainless steel |
12 |
| FM12LSSA |
EO2-Functional nut |
Light |
NBR |
M 18x1.5 |
Steel/Stainless steel |
12 |
| FM12LVITCF |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 18x1.5 |
Steel/Stainless steel |
12 |
| FM12S71 |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Stainless steel |
12 |
| FM12SCF |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Stainless steel |
12 |
| FM12SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 20x1.5 |
Steel/Stainless steel |
12 |
| FM12SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FM12SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 20x1.5 |
Steel/Stainless steel |
12 |
| FM14S71 |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Stainless steel |
14 |
| FM14SCF |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FM14SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Stainless steel |
14 |
| FM14SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 22x1.5 |
Steel/Stainless steel |
14 |
| FM14SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FM14SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 22x1.5 |
Steel/Stainless steel |
14 |
| FM15L71 |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Stainless steel |
15 |
| FM15LCF |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FM15LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Stainless steel |
15 |
| FM15LSSA |
EO2-Functional nut |
Light |
NBR |
M 22x1.5 |
Steel/Stainless steel |
15 |
| FM15LVITCF |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FM15LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 22x1.5 |
Steel/Stainless steel |
15 |
| FM16S71 |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Stainless steel |
16 |
| FM16SCF |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FM16SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Stainless steel |
16 |
| FM16SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 24x1.5 |
Steel/Stainless steel |
16 |
| FM16SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FM16SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 24x1.5 |
Steel/Stainless steel |
16 |
| FM18L71 |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Stainless steel |
18 |
| FM18LCF |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FM18LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Stainless steel |
18 |
| FM18LSSA |
EO2-Functional nut |
Light |
NBR |
M 26x1.5 |
Steel/Stainless steel |
18 |
| FM18LVITCF |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FM18LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 26x1.5 |
Steel/Stainless steel |
18 |
| FM20S71 |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Stainless steel |
20 |
| FM20SCF |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FM20SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Stainless steel |
20 |
| FM20SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 30x2.0 |
Steel/Stainless steel |
20 |
| FM20SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FM20SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 30x2.0 |
Steel/Stainless steel |
20 |
| FM22L71 |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Stainless steel |
22 |
| FM22LCF |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FM22LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Stainless steel |
22 |
| FM22LSSA |
EO2-Functional nut |
Light |
NBR |
M 30x2.0 |
Steel/Stainless steel |
22 |
| FM22LVITCF |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FM22LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 30x2.0 |
Steel/Stainless steel |
22 |
| FM25S71 |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Stainless steel |
25 |
| FM25SCF |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FM25SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Stainless steel |
25 |
| FM25SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 36x2.0 |
Steel/Stainless steel |
25 |
| FM25SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FM25SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 36x2.0 |
Steel/Stainless steel |
25 |
| FM28L71 |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Stainless steel |
28 |
| FM28LCF |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FM28LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Stainless steel |
28 |
| FM28LSSA |
EO2-Functional nut |
Light |
NBR |
M 36x2.0 |
Steel/Stainless steel |
28 |
| FM28LVITCF |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FM28LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 36x2.0 |
Steel/Stainless steel |
28 |
| FM30S71 |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Stainless steel |
30 |
| FM30SCF |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FM30SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Stainless steel |
30 |
| FM30SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 42x2.0 |
Steel/Stainless steel |
30 |
| FM30SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FM30SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 42x2.0 |
Steel/Stainless steel |
30 |
| FM35L71 |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Stainless steel |
35 |
| FM35LCF |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FM35LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Stainless steel |
35 |
| FM35LSSA |
EO2-Functional nut |
Light |
NBR |
M 45x2.0 |
Steel/Stainless steel |
35 |
| FM35LVITCF |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FM35LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 45x2.0 |
Steel/Stainless steel |
35 |
| FM38S71 |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Stainless steel |
38 |
| FM38SCF |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FM38SNBR71 |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Stainless steel |
38 |
| FM38SSSA |
EO2-Functional nut |
Heavy |
NBR |
M 52x2.0 |
Steel/Stainless steel |
38 |
| FM38SVITCF |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FM38SVITSSA |
EO2-Functional nut |
Heavy |
FKM |
M 52x2.0 |
Steel/Stainless steel |
38 |
| FM42L71 |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Stainless steel |
42 |
| FM42LCF |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FM42LNBR71 |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Stainless steel |
42 |
| FM42LSSA |
EO2-Functional nut |
Light |
NBR |
M 52x2.0 |
Steel/Stainless steel |
42 |
| FM42LVITCF |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FM42LVITSSA |
EO2-Functional nut |
Light |
FKM |
M 52x2.0 |
Steel/Stainless steel |
42 |
| FORM06L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 12x1.5 |
Stainless steel |
6 |
| FORM06LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 12x1.5 |
Stainless steel |
6 |
| FORM06LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 14x1.5 |
Stainless steel |
6 |
| FORM06SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM06SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 14x1.5 |
Stainless steel |
6 |
| FORM06SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| FORM08L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 14x1.5 |
Stainless steel |
8 |
| FORM08LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 14x1.5 |
Stainless steel |
8 |
| FORM08LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 16x1.5 |
Stainless steel |
8 |
| FORM08SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM08SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 16x1.5 |
Stainless steel |
8 |
| FORM08SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| FORM10L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 16x1.5 |
Stainless steel |
10 |
| FORM10LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 16x1.5 |
Stainless steel |
10 |
| FORM10LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 18x1.5 |
Stainless steel |
10 |
| FORM10SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM10SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 18x1.5 |
Stainless steel |
10 |
| FORM10SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| FORM12L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 18x1.5 |
Stainless steel |
12 |
| FORM12LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 18x1.5 |
Stainless steel |
12 |
| FORM12LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 20x1.5 |
Stainless steel |
12 |
| FORM12SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM12SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 20x1.5 |
Stainless steel |
12 |
| FORM12SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| FORM14S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 22x1.5 |
Stainless steel |
14 |
| FORM14SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FORM14SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 22x1.5 |
Stainless steel |
14 |
| FORM14SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| FORM15L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 22x1.5 |
Stainless steel |
15 |
| FORM15LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FORM15LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 22x1.5 |
Stainless steel |
15 |
| FORM15LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| FORM16S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 24x1.5 |
Stainless steel |
16 |
| FORM16SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FORM16SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 24x1.5 |
Stainless steel |
16 |
| FORM16SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| FORM18L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 26x1.5 |
Stainless steel |
18 |
| FORM18LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FORM18LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 26x1.5 |
Stainless steel |
18 |
| FORM18LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| FORM20S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 30x2.0 |
Stainless steel |
20 |
| FORM20SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FORM20SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 30x2.0 |
Stainless steel |
20 |
| FORM20SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| FORM22L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 30x2.0 |
Stainless steel |
22 |
| FORM22LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FORM22LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 30x2.0 |
Stainless steel |
22 |
| FORM22LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| FORM25S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 36x2.0 |
Stainless steel |
25 |
| FORM25SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FORM25SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 36x2.0 |
Stainless steel |
25 |
| FORM25SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| FORM28L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 36x2.0 |
Stainless steel |
28 |
| FORM28LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FORM28LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 36x2.0 |
Stainless steel |
28 |
| FORM28LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| FORM30S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 42x2.0 |
Stainless steel |
30 |
| FORM30SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FORM30SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 42x2.0 |
Stainless steel |
30 |
| FORM30SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| FORM35L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 45x2.0 |
Stainless steel |
35 |
| FORM35LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FORM35LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 45x2.0 |
Stainless steel |
35 |
| FORM35LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| FORM38S71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
FKM |
M 52x2.0 |
Stainless steel |
38 |
| FORM38SCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FORM38SNBR71 |
EO2-FORM Set for stainless steel tubes |
Heavy |
NBR |
M 52x2.0 |
Stainless steel |
38 |
| FORM38SVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Heavy |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| FORM42L71 |
EO2-FORM Set for stainless steel tubes |
Light |
FKM |
M 52x2.0 |
Stainless steel |
42 |
| FORM42LCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
NBR |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| FORM42LNBR71 |
EO2-FORM Set for stainless steel tubes |
Light |
NBR |
M 52x2.0 |
Stainless steel |
42 |
| FORM42LVITCF |
EO2-FORM Set for steel and stainless steel tubes |
Light |
FKM |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| M04LLCFX |
Nut 24° Cone end |
Very light |
na |
M 08x1.0 |
Steel, Chromium-6 Free |
4 |
| M04LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 08x1.0 |
Stainless steel |
4 |
| M06LCFX |
Nut 24° Cone end |
Light |
na |
M 12x1.5 |
Steel, Chromium-6 Free |
6 |
| M06LEODURX |
Nut 24° Cone end |
Light |
na |
M 12x1.5 |
Stainless steel |
6 |
| M06LLCFX |
Nut 24° Cone end |
Very light |
na |
M 10x1.0 |
Steel, Chromium-6 Free |
6 |
| M06LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 10x1.0 |
Stainless steel |
6 |
| M06SCFX |
Nut 24° Cone end |
Heavy |
na |
M 14x1.5 |
Steel, Chromium-6 Free |
6 |
| M06SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 14x1.5 |
Stainless steel |
6 |
| M08LCFX |
Nut 24° Cone end |
Light |
na |
M 14x1.5 |
Steel, Chromium-6 Free |
8 |
| M08LEODURX |
Nut 24° Cone end |
Light |
na |
M 14x1.5 |
Stainless steel |
8 |
| M08LLCFX |
Nut 24° Cone end |
Very light |
na |
M 12x1.0 |
Steel, Chromium-6 Free |
8 |
| M08LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 12x1.0 |
Stainless steel |
8 |
| M08SCFX |
Nut 24° Cone end |
Heavy |
na |
M 16x1.5 |
Steel, Chromium-6 Free |
8 |
| M08SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 16x1.5 |
Stainless steel |
8 |
| M10LCFX |
Nut 24° Cone end |
Light |
na |
M 16x1.5 |
Steel, Chromium-6 Free |
10 |
| M10LEODURX |
Nut 24° Cone end |
Light |
na |
M 16x1.5 |
Stainless steel |
10 |
| M10LLCFX |
Nut 24° Cone end |
Very light |
na |
M 14x1.0 |
Steel, Chromium-6 Free |
10 |
| M10LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 14x1.0 |
Stainless steel |
10 |
| M10SCFX |
Nut 24° Cone end |
Heavy |
na |
M 18x1.5 |
Steel, Chromium-6 Free |
10 |
| M10SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 18x1.5 |
Stainless steel |
10 |
| M12LCFX |
Nut 24° Cone end |
Light |
na |
M 18x1.5 |
Steel, Chromium-6 Free |
12 |
| M12LEODURX |
Nut 24° Cone end |
Light |
na |
M 18x1.5 |
Stainless steel |
12 |
| M12LLCFX |
Nut 24° Cone end |
Very light |
na |
M 16x1.0 |
Steel, Chromium-6 Free |
12 |
| M12LLEODURX |
Nut 24° Cone end |
Very light |
na |
M 16x1.0 |
Stainless steel |
12 |
| M12SCFX |
Nut 24° Cone end |
Heavy |
na |
M 20x1.5 |
Steel, Chromium-6 Free |
12 |
| M12SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 20x1.5 |
Stainless steel |
12 |
| M14SCFX |
Nut 24° Cone end |
Heavy |
na |
M 22x1.5 |
Steel, Chromium-6 Free |
14 |
| M14SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 22x1.5 |
Stainless steel |
14 |
| M15LCFX |
Nut 24° Cone end |
Light |
na |
M 22x1.5 |
Steel, Chromium-6 Free |
15 |
| M15LEODURX |
Nut 24° Cone end |
Light |
na |
M 22x1.5 |
Stainless steel |
15 |
| M16SCFX |
Nut 24° Cone end |
Heavy |
na |
M 24x1.5 |
Steel, Chromium-6 Free |
16 |
| M16SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 24x1.5 |
Stainless steel |
16 |
| M18LCFX |
Nut 24° Cone end |
Light |
na |
M 26x1.5 |
Steel, Chromium-6 Free |
18 |
| M18LEODURX |
Nut 24° Cone end |
Light |
na |
M 26x1.5 |
Stainless steel |
18 |
| M20SCFX |
Nut 24° Cone end |
Heavy |
na |
M 30x2.0 |
Steel, Chromium-6 Free |
20 |
| M20SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 30x2.0 |
Stainless steel |
20 |
| M22LCFX |
Nut 24° Cone end |
Light |
na |
M 30x2.0 |
Steel, Chromium-6 Free |
22 |
| M22LEODURX |
Nut 24° Cone end |
Light |
na |
M 30x2.0 |
Stainless steel |
22 |
| M25SCFX |
Nut 24° Cone end |
Heavy |
na |
M 36x2.0 |
Steel, Chromium-6 Free |
25 |
| M25SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 36x2.0 |
Stainless steel |
25 |
| M28LCFX |
Nut 24° Cone end |
Light |
na |
M 36x2.0 |
Steel, Chromium-6 Free |
28 |
| M28LEODURX |
Nut 24° Cone end |
Light |
na |
M 36x2.0 |
Stainless steel |
28 |
| M30SCFX |
Nut 24° Cone end |
Heavy |
na |
M 42x2.0 |
Steel, Chromium-6 Free |
30 |
| M30SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 42x2.0 |
Stainless steel |
30 |
| M35LCFX |
Nut 24° Cone end |
Light |
na |
M 45x2.0 |
Steel, Chromium-6 Free |
35 |
| M35LEODURX |
Nut 24° Cone end |
Light |
na |
M 45x2.0 |
Stainless steel |
35 |
| M38SCFX |
Nut 24° Cone end |
Heavy |
na |
M 52x2.0 |
Steel, Chromium-6 Free |
38 |
| M38SEODURX |
Nut 24° Cone end |
Heavy |
na |
M 52x2.0 |
Stainless steel |
38 |
| M42LCFX |
Nut 24° Cone end |
Light |
na |
M 52x2.0 |
Steel, Chromium-6 Free |
42 |
| M42LEODURX |
Nut 24° Cone end |
Light |
na |
M 52x2.0 |
Stainless steel |
42 |
| PSR06LX |
Progressive stop ring |
Light |
na |
na |
Steel |
6 |
| PSR08LX |
Progressive stop ring |
Light |
na |
na |
Steel |
8 |
| PSR10LX |
Progressive stop ring |
Light |
na |
na |
Steel |
10 |
| PSR12LX |
Progressive stop ring |
Light |
na |
na |
Steel |
12 |
| PSR14SX |
Progressive stop ring |
Light |
na |
na |
Steel |
14 |
| PSR15LX |
Progressive stop ring |
Light |
na |
na |
Steel |
15 |
| PSR16SX |
Progressive stop ring |
Light |
na |
na |
Steel |
16 |
| PSR18LX |
Progressive stop ring |
Light |
na |
na |
Steel |
18 |
| PSR20SX |
Progressive stop ring |
Light |
na |
na |
Steel |
20 |
| PSR22LX |
Progressive stop ring |
Light |
na |
na |
Steel |
22 |
| PSR25SX |
Progressive stop ring |
Light |
na |
na |
Steel |
25 |
| PSR28LX |
Progressive stop ring |
Light |
na |
na |
Steel |
28 |
| PSR30SX |
Progressive stop ring |
Light |
na |
na |
Steel |
30 |
| PSR35LX |
Progressive stop ring |
Light |
na |
na |
Steel |
35 |
| PSR38SX |
Progressive stop ring |
Light |
na |
na |
Steel |
38 |
| PSR42LX |
Progressive stop ring |
Light |
na |
na |
Steel |
42 |
| S04LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 08x1.0 |
Stainless steel |
4 |
| S04LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 08x1.0 |
Steel |
4 |
| S06L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 12x1.5 |
Stainless steel |
6 |
| S06LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 12x1.5 |
Steel |
6 |
| S06LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 10x1.0 |
Stainless steel |
6 |
| S06LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 10x1.0 |
Steel |
6 |
| S08L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 14x1.5 |
Stainless steel |
8 |
| S08LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 14x1.5 |
Steel |
8 |
| S08LL71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 12x1.0 |
Stainless steel |
8 |
| S08LLCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Very light |
na |
M 12x1.0 |
Steel |
8 |
| S10L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 16x1.5 |
Stainless steel |
10 |
| S10LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 16x1.5 |
Steel |
10 |
| S12L71X |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 18x1.5 |
Stainless steel |
12 |
| S12LCFX |
Sleeve screw for threaded ports acc. to DIN 3854 |
Light |
na |
M 18x1.5 |
Steel |
12 |
|
fcg.cnmec@parkerdistribution.com.cn
