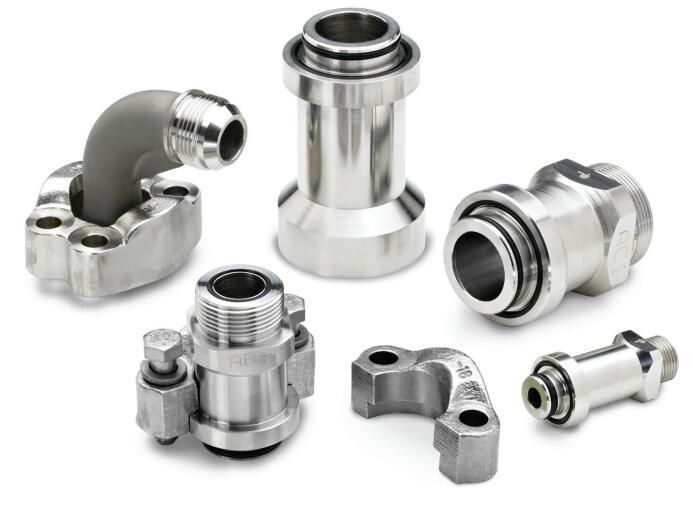

Dual Seal Subsea Flange Adapters 雙密封海底法蘭適配器
Parker Fittings接頭 Parker Adapters

派克的雙重密封法蘭適配器產品線為海底高振動和沖擊情況提供了解決方案。派克創新的雙密封法蘭適配器提高了關鍵石油和天然氣應用中高振動，高沖擊液壓四螺栓連接的可靠性。結合了徑向密封和端面密封技術，減少了由傳統法蘭端面密封連接的側面載荷引起的系統泄漏以及空氣或水進入的可能性。Parker's Dual Seal Flange Adapter product line provides a solution for subsea high-vibration and shock situations. Parker's innovative Dual Seal Flange Adapters improve the reliability of high-vibration, high-shock hydraulic four-bolt connections in critical oil and gas applications. Incorporating both radial and face seal technologies, which reduces the potential for system leakage and air or water ingression caused by side loading of traditional flange face seal connections.

Dual Seal Subsea Flange Adapters

市場：
- 油氣 Oil & Gas

特性/優點：
- 符合NACE（美國腐蝕工程師協會）MR0175，并經過100萬次脈沖周期測試，以證明其可靠性。
- 設計符合ISO 6162-2或SAE J518代碼62的螺栓螺紋和螺栓樣式尺寸。
- 提供超過28種端口配置：SAE直螺紋，三重，密封，管道，焊接插座和插頭。
- 提供316 / 316L不銹鋼，具有完全的熱代碼可追溯性，尺寸為?“，1”和1?“，工作壓力高達7500 psi和515 bar

應用：
- 海底 Subsea
- BOP Stacks

Markets:
- Oil & Gas

Features/Benefits:
- NACE (National Association for Corrosion Engineers) MR0175 Compliant, and tested to 1 million impulse cycles for proven reliability.
- Designed to conform to bolt thread and bolt pattern dimensions of ISO 6162-2 or SAE J518 Code 62.
- Over 28 port configurations available: SAE Straight Thread, Triple-Lok, Seal-Lok, Pipe, Weld Socket and Plugs.
- Available in 316/316L stainless steel with full heat code traceability in sizes ?”, 1” and 1 ?” with working pressures up to 7500 psi and 515 bar

Applications:
- Subsea
- BOP Stacks

Technical Specifications

Dual Seal Subsea Flange Adapters型號
