Parker 干式接頭 干式快速接頭和附件

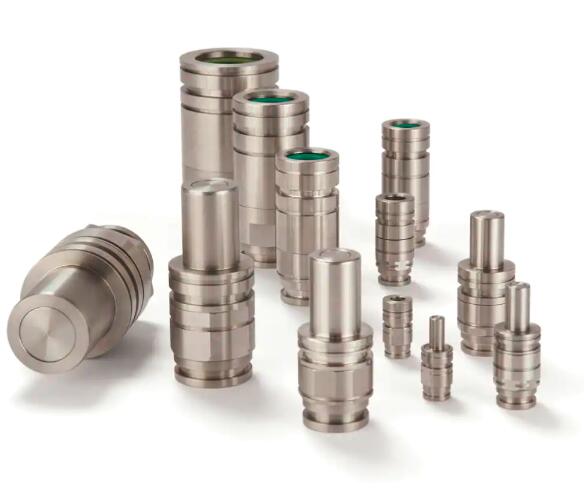

Parker 200KLEK Series Dry Break Quick Coupling
Parker Quick Couplings and Accessories - Parker Quick Couplings
光刻機計用快速接頭；算機電子冷卻機柜用快速接頭、激光冷卻用快速接頭

派克200KLEK系列快速接頭是一種干式斷裂快速接頭系統，適用于敏感環境中的塊/板組裝，例如分析技術，冷卻系統，運輸系統以及許多腐蝕性介質中的應用。在砌塊裝配的情況下，特殊的密封系統可確保最佳密封效果。極低的泄漏率和最小的死區體積。聯接時絕對沒有氣穴，分離時在閥體上幾乎看不見介質膜。200KLEK系列因其低耦合力而引人注目。閥體采用套環設計保護。

Parker 200KLEK Series Dry Break Quick Coupling with Parker Profile for Block/Plate Assembly
Dry Break Quick Coupling with Parker Profile for Block/Plate Assembly, Series 200KLEK
光刻機計用快速接頭；算機電子冷卻機柜用快速接頭、激光冷卻用快速接頭

Parker Coupling Series 200KLEK is a dry break coupling systems for block/plate assembly in sensitive environments, for example in analysis technology, in cooling systems, in transport systems and many applications with aggressive media. In the case of block assembly, a special sealing system ensures an optimum seal. Extremely low leakage rate and minimum dead space volume. There are absolutely no air pockets when coupling and a barely noticeable film of the medium being channelled on the valve bodies when uncoupling. Series 200KLEK stands out for its low coupling forces. The valve body is protected with collar design. Dry break quick coupling system with nominal diameter 3/4/6/9/12/19 for pneumatic and fluid handling applications in sensitive environments up to 15 bar. Available made of stainless steel.

市場：
-機床
-電子冷卻

功能/優點：
-干裂-無溢出，最小死區體積
-連接時無空氣
-安裝時可承受軸向?qū)��?zhǔn)的偏差

應用：
-電子機柜
-激光冷卻
-計算機冷卻
-光刻機

Electronic cooling Electronic cabinets Computer cooling Dry Break Quick Coupling
Laser cooling Dry Break Quick Coupling
Lithography machines Dry Break Quick Coupling

Markets:
- Machine tooling
- Electronic cooling

Features/Benefits:
- Dry break - no spillage and minimum dead space volume
- No air inclusion when connecting
- Tolerates deviations in axial alignment when installing

Applications:
- Electronic cabinets
- Laser cooling
- Computer cooling
- Lithography machines

Technical Specifications

Dry Break Quick Coupling with Parker Profile for Block/Plate Assembly,
Parker 200KLEK Series Dry Break Quick Coupling Series 200KLEK 型號
