Direct Install Connectors
A range of high performance connectors dedicated to direct install systems for FTTx to guarantee easy use and long service time.
A range of high performance connectors dedicated to direct install systems for FTTx* to guarantee easy use and long service time.
*FTTx: Fiber To The x = home, building, campus, etc
Features/Benefits:
- Optimised Installation
- Reliable technology of push-in connection
- Minimum distance between two tubes when connected, eliminating the risk of blockage during blowing
- 1 connector for 2 different wall thicknesses of the tubing (bridging possible between direct buried and direct install micro-tubing)
- Ultra compact design and intuitive installation
- Safety clip for preventing risk of accidental disconnection
- Longevity & Reliability
- Tried-and-tested connection technology to ensure capability to expand network
- Perfect sealing IP68: full protection against particle ingress
- UL94 V-2: flame resistance for indoor installations
- Date coding to guarantee quality and traceability
- 100% leak-tested in production
Markets:
- Telecommunication
- Information Technology
Applications:
- Connector for FTTX Applications
- Air and Water Conveying
- Direct Install Networks
- Air Blowing
- Aerial Ducting
- Sub-Ducts
Technologies:
- Tube to tube connectors
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Optic fibre connectors
Technical Characteristics:
- Compatible fluids: Air, water
- Materials: polycarbonate, stainless steel, technical polymer, NBR
- Pressure: 0 to 15 bar
- Temperature: -15°C to +45°C
- Storage temperature: -20°C to +80°C
Regulations:
- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- IP68: Seepage resistance to water and dust
- UL94 V-2: Flame resistance
- Patent family FR2924194 (safety clips)
Product Types:

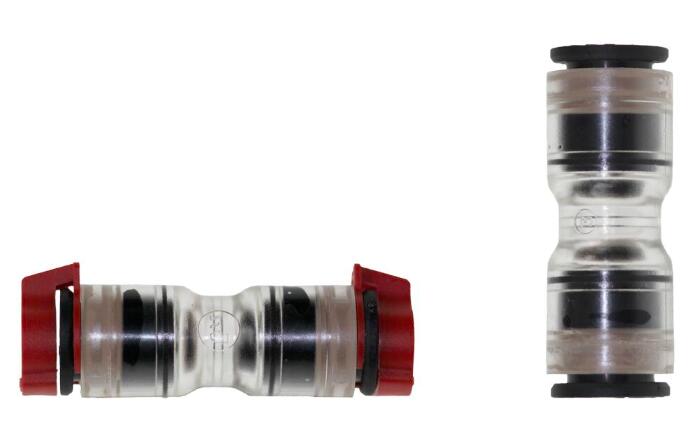

- Equal Tube-to-Tube Connector
- Equal Tube-to-Tube Connector with Red Tamper-Proof Safety Clips
- End Cap
- End Cap with Red Tamper-Proof Safety Clip
Technical Specifications
| Application: |
Fiber Optic, Vacuum |
| Minimum Operating Temperature: |
-15 °C, 5 °F |
| Maximum Operating Pressure: |
15 bar, 218 psi, 1,5 MPa |
| Maximum Operating Temperature: |
113 °F, 45 °C |
| Tube Outside Diameter: |
5 to 14 mm |
| Specifications Met: |
ISO 14743 - IP68 - UL94 V-2 - Patent family FR2924194 (safety clips), ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes, IP68: Seepage resistance to water and dust, UL94 V-2: Flame resistance, Patent family FR2924194 (safety clips) |
| Connection Type: |
Push-to-Connect |
| Shape: |
Straight |
| Materials of Construction: |
Technical Polymer, Rubber |
| O-Ring Material: |
NBR |
| Gripping Ring Material: |
Stainless steel |
| Vacuum Pressure Rating: |
755 mm-Hg |
| Quantity per Box: |
10 to 100 |
| Weight: |
0,002 to 0,025 kg |
| Media: |
Air, water |
