The new Parker Legris connectors were developed to optimise installation and provide long-term integrity for underground FTTx networks.
The new Parker Legris direct buried connectors were developed to optimise installation and provide long-term integrity for underground FTTx* networks.
*FTTx: Fiber To The x = home, building, campus, etc
Direct Buried Connectors
Features/Benefits:
- Optimised Installation
- Transparent: optic fibre ducts and correct tube connection can be seen and verified
- Patented ridged design for unsurpassed shock resistance
- No protection cap necessary
- 1 connector for 2 different wall thicknesses of the tubing (bridging possible between direct buried and direct install micro-tubing)
- Compact design and intuitive installation
- Pre-assembled safety clip to prevent risk of accidental disconnection
- High working pressure for increased blowing speed/distance
- Longevity & Reliability
- Tried-and-tested connection technology to ensure tensile strength and resistance to network expansion
- Perfect sealing IP68: full protection against particle ingress
- UL94: flame resistance for indoor installations
- Date coding to guarantee quality and traceability
- 100% leak-tested in production
Markets:
- Telecommunication
- Information Technology
Applications:
- Connector for FTTX Applications
- Air and Water Conveying
- Underground Networks
- Air Blowing
- Water Floating
- Heavy Duty Ducting
Technologies:
- Tube to tube connectors
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Optic fibre connectors
Technical Characteristics:
- Compatible fluids: Air, water
- Materials: HR polymer, stainless steel, technical polymer, NBR
- Pressure: 0 to 25 bar
- Temperature: -20°C to +80°C
Regulations:
- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- NF EN 50086-2-4 replaced by NF EN 61386-24: Standard relating to impact tests for buried systems
- UL94: Flame resistance
- IP68: Seepage resistance to water and dust
- Patent family FR2980999 (buried connectors)
- Patent family FR2924194 (safety clips)
Product Types:

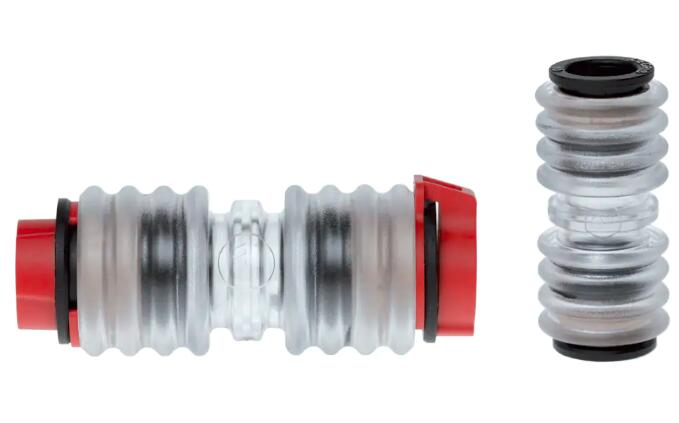

- Equal and Unequal Tube-to-Tube Connector
- Equal and Unequal Tube-to-Tube Connector with Red Tamper-Proof Safety Clips
- End Cap
- End Cap with Red Tamper-Proof Safety Clip
Technical Specifications
| Application: |
Fiber Optic |
| Minimum Operating Temperature: |
-20 °C, -4 °F |
| Maximum Operating Pressure: |
15 bar, 218 psi, 1,5 MPa, 25 bar |
| Maximum Operating Temperature: |
176 °F, 80 °C |
| Tube Outside Diameter: |
5 to 14 mm, 0,20 to 0,55 inch |
| Specifications Met: |
ISO 14743 - IP68 - UL94 V-2 - Patent family FR2924194 (safety clip), ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes, NF EN 50086-2-4 replaced by NF EN 61386-24: Standard relating to impact tests for buried systems, UL94: Flame resistance, IP68: Seepage resistance to water and dust, Patent fam |
| Connection Type: |
Push-to-Connect |
| Shape: |
Straight |
| Materials of Construction: |
Technical Polymer |
| O-Ring Material: |
NBR |
| Gripping Ring Material: |
Stainless Steel |
| Vacuum Pressure Rating: |
755 mm-Hg |
| Quantity per Box: |
25 to 100 |
| Weight: |
0,006 to 0,031 kg |
| Media: |
Air, water |
Direct Buried Connectors 型號
| Part |
Shape |
Connection 1 Tube O.D. (mm) |
Connection 2 Tube O.D. (mm) |
| 6270 07 00 |
Direct Buried Equal and Inequal |
7 |
7 |
| 6270 07 00 03 |
Direct Buried Equal and Inequal with Safety Clips |
7 |
7 |
| 6270 08 00 |
Direct Buried Equal and Inequal |
8 |
8 |
| 6270 08 00 03 |
Direct Buried Equal and Inequal with Safety Clips |
8 |
8 |
| 6270 10 00 |
Direct Buried Equal and Inequal |
10 |
10 |
| 6270 10 00 03 |
Direct Buried Equal and Inequal with Safety Clips |
10 |
10 |
| 6270 10 12 |
Direct Buried Equal and Inequal |
10 |
12 |
| 6270 10 12 03 |
Direct Buried Equal and Inequal with Safety Clips |
10 |
12 |
| 6270 12 00 |
Direct Buried Equal and Inequal |
12 |
12 |
| 6270 12 00 03 |
Direct Buried Equal and Inequal with Safety Clips |
12 |
12 |
| 6270 12 14 |
Direct Buried Equal and Inequal |
12 |
14 |
| 6270 12 14 03 |
Direct Buried Equal and Inequal with Safety Clips |
12 |
14 |
| 6270 14 00 |
Direct Buried Equal and Inequal |
14 |
14 |
| 6270 14 00 03 |
Direct Buried Equal and Inequal with Safety Clips |
14 |
14 |
| 6273 07 00 |
Direct Buried End Cap |
7 |
na |
| 6273 07 00 03 |
Direct Buried End Cap with Safety Clips |
7 |
na |
| 6273 08 00 |
Direct Buried End Cap |
8 |
na |
| 6273 08 00 03 |
Direct Buried End Cap with Safety Clips |
8 |
na |
| 6273 10 00 |
Direct Buried End Cap |
10 |
na |
| 6273 10 00 03 |
Direct Buried End Cap with Safety Clips |
10 |
na |
| 6273 12 00 |
Direct Buried End Cap |
12 |
na |
| 6273 12 00 03 |
Direct Buried End Cap with Safety Clips |
12 |
na |
| 6273 14 00 |
Direct Buried End Cap |
14 |
na |
| 6273 14 00 03 |
Direct Buried End Cap with Safety Clips |
14 |
na |
|
