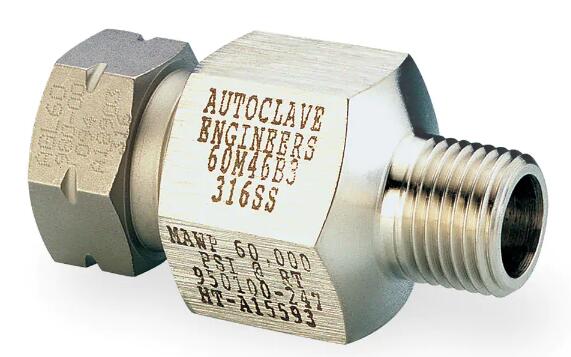

Parker Autoclave 的錐螺紋接頭和接頭 Cone and Thread Adapters and Couplings
Parker Fittings接頭 - Tube Fittings

Parker Autoclave 的錐螺紋接頭和接頭設計用于與 Parker Autoclave 中壓和高壓管一起使用。這些適配器和接頭的額定壓力從 15,000 PSI (1035 BAR) 到 150,000 PSI (10342 BAR)。公/母適配器旨在使母連接適應另一種尺寸和/或類型的連接，而無需額外的接頭。在選擇涉及兩種不同尺寸連接的適配器時，較大的連接應該在公端，這樣可以最大限度地提高適配器的機械強度。

接頭的制造允許將標準尺寸的管子或管子和標準管子與母對母接頭的任何組合連接起來。Parker Autoclave 接頭的壓力等級基于使用的較低額定連接。

注意：NPT 螺紋必須使用高質量的 PTFE 膠帶和/或 PTFE 膏產品密封。有關如何使用螺紋密封劑，請參閱螺紋密封劑制造商的說明。密封性能可能因許多因素而異，例如壓力、溫度、介質、螺紋質量、螺紋材料、正確的螺紋接合和螺紋密封劑的正確使用。客戶應限制 NPT 接頭的組裝和拆卸次數，因為組裝過程中的螺紋變形會 隨著時間的推移導致密封質量下降。僅使用 PTFE 膠帶時，請考慮使用螺紋潤滑以防止配合零件磨損。

Parker Autoclave 的錐螺紋接頭和接頭 - Cone and Thread Adapters and Couplings

Parker Autoclave's Medium and High pressure line of Adapters and Couplings provide system flexibility by providing a one piece fitting with two different end connections. The installer minimizes the number of overall connections. Parker Autoclave's Cone and Thread Adapters and Couplings are designed for use with Parker Autoclave medium and high pressure tubing. These Adapters and Couplings are rated up from 15,000 PSI (1035 BAR) up to 150,000 PSI (10342 BAR). The male /female Adapters are designed to adapt a female connec?tion to another size and/or type of connection without the need for additional couplings. In selecting an adapter involving two different sized connections, the larger connection should be on the male end where it is possible to maximize the mechani?cal strength of the adapter. The Couplings are manufactured to permit the joining of any combina?tion of standard size tubing or tubing and standard pipe with female-to-female couplings. The pressure rating of Parker Autoclave Couplings is based on the lower rated connection used. NOTE: NPT threads must be sealed using a high quality PTFE tape and/or PTFE paste product. Refer to thread sealant manufacturer's instructions on how to apply thread sealant. Sealing performance may vary based on many factors such as pressure, temperature, media, thread quality, thread material, proper thread engagement and proper use of thread sealant. Customer should limit the number of times an NPT fitting is assembled and disassembled because thread deformation during assembly will result in deteriorating seal quality over time. When using only PTFE tape, consider using thread lubrication to prevent galling of mating parts

市場：

- 石油和天然氣
- 石化
- 研究
- 化學
- 電源

特點：

- 工作壓力達 150,000 psi (10342 bar)
- 管道尺寸為 1/8"、1/4"、3/8"、5/16"、9/16"、3/4" 和 1-1/2 "
- 連接包括 Speed Bite、C&T 中高壓和 NPT
- 用于安全和泄漏檢測的泄水孔
- 由冷加工 316 不銹鋼制成的配件
- 可提供特殊材料

應用：

- 測試面板
- 海上防滑面板
- 化學品注入
- 特種高壓氣體系統
- 研究系統

Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical
- Power


Features:
- Working pressures to 150,000 psi (10342 bar)
- Tubing sizes are 1/8”, 1/4", 3/8", 5/16”, 9/16", 3/4", and 1-1/2"
- Connections include Speed Bite, C&T Medium and High Pressure , and NPT
- Weep holes for safety and leak detection
- Fittings manufactured from cold worked 316 stainless steel
- Available in special materials

Applications:
- Test Panels
- Offshore Skid Panels
- Chemical Injection
- Specialty High Pressure Gas Systems
- Research Systems

Technical Specifications

Cone and Thread Adapters and Couplings 型號
