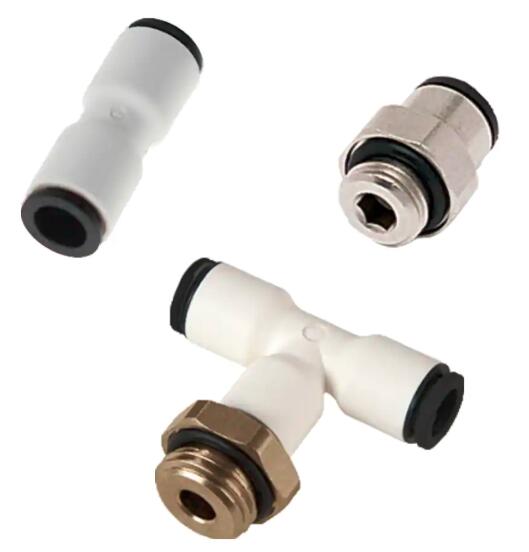

CleanFit Push-In Fittings for Life Sciences and Clean Rooms
Parker Fittings接頭 - Pneumatic Fittings

用于生命科學和潔凈室的 CleanFit 快插接頭 | #6801 06 10

這種“生態設計”的 CleanFit 系列驅動高科技設備在清潔度、可靠性和安全性方面超越當前的連接限制。它確保與大多數氣體完美兼容，并符合苛刻的應用和標準。這種“生態設計”的 CleanFit 系列適用于生命科學和潔凈室，在清潔度、可靠性和安全性方面使高科技設備超越了當前的連接限制。

這種超潔凈系列可確保與大多數氣體完美兼容，因此符合苛刻的應用和標準。

CleanFit Push-In Fittings for Life Sciences and Clean Rooms

This "eco-designed" CleanFit range drives high-tech equipment beyond current connection limits in terms of cleanliness, reliability and safety. It ensures perfect compatibility with most gases, and complies with demanding applications and standards. This "eco-designed" CleanFit range for Life Sciences and Clean Rooms drives high-tech equipment beyond current connection limits in terms of cleanliness, reliability and safety. This ultra-clean range ensures perfect compatibility with most gases, and therefore complies with demanding applications and standards.

特點/優點：

- 易于使用

- 符合人體工程學和美觀的設計
- 完全適用于便攜式設備的緊湊型產品
- 防靜電和氣密包裝以防止污染

- 純度和安全性

- 推薦用于氧氣應用和純氣體
- 高清潔度，符合 ASTM G93 : B 級和粒徑 300 級
- 生產中 100% 泄漏測試
- 日期編碼以保證質量和可追溯性

- 符合健康法規的高科技材料

- 生物源聚合物，化學鍍鎳黃銅
- 與推薦用于去污過程的清潔劑兼容
- 優異的化學和機械耐受性，即使在高溫下
- 可消毒使用標準的化學和輻射程序

清潔包裝
所有配件都包裝在一個防靜電密封袋中，保證無可挑剔的清潔度，安全和易于使用。

應用：

- 呼吸
- 生物流體管理
- 潔凈室
- 制藥過程
- 實驗室
- O2 電路

市場：

- 實驗室/診斷
- 醫療
- 制藥

技術：

- 推入式連接和斷開
- 推入式接頭
- 聚合物推入式接頭
- 推入式接頭
- 氣動接頭
- 即時接頭
- 快速接頭
- 連接器

技術特性：

- 流體：呼吸，中性和純醫用氣體。其他流體：請咨詢我們
- 材料：生物基聚合物、技術聚合物、不銹鋼、EPDM、鍍鎳黃銅
- 壓力：真空至 15 巴。工作壓力因溫度而異
- 溫度：-10°C 至 +95°C

法規：

- DI：2002/95/EC (RoHS)、2011/65/EC
- DI：1907/2006 (REACH)
- ASTM G93-03.B-300
- ISO 15001 < 30 bar
- BAM（潤滑脂認證殘留物）
- CGA G4.1
- EN 12021 < 0,1 mg/m3
- VDI 2083-8（進行中）

產品類型：

- 堵頭
- 科T恤，男BSPT螺紋
- 端蓋
- 和不等彎頭
- 和不等插件彎頭
- 和不等管對管接頭
- 等于隔板連接
- 等于單?件
- 等徑三通
- 路徑插件倒鉤式連接器
- 插入式等徑三通
- 插入式等徑三通
- 插入式異徑管
- 止口三通，BSPT 外螺紋
- 螺栓分岔三通，BSPP 外螺紋和公制螺紋
- 螺栓分岔三通，BSPT 外螺紋
- 螺柱彎頭，BSPP 外螺紋和公制螺紋
- 螺柱彎頭，BSPT 外螺紋
- 螺柱接頭，BSPP 內螺紋
- 螺柱接頭，BSPP 外螺紋和公制螺紋
- 螺柱接頭，BSPT 外螺紋
- 螺柱三通，BSPP 外螺紋和公制螺紋
- 螺柱運行三通，BSPT 外螺紋
- 螺柱立管，BSPT 外螺紋

Features/Benefits:

- Ease of Use

- Ergonomic and aesthetic design
- Compact product fully adapted to portable devices
- Antistatic and airtight packaging to prevent contamination

- Purity & Security

- Recommended for O2 applications and pure gases
- High cleanliness level, according to ASTM G93: level B and particle size level 300
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

- Hi-Tech Materials Complying with Health Regulations

- Bio-sourced polymer, chemical nickel-plated brass
- Compatible with cleaning agents recommended for decontamination processes
- Excellent chemical and mechanical resistance, even at high temperatures
- Sterilisable using standard chemical and radiation procedures

Clean Packaging
All fittings are packed in an antistatic and airtight bag, guaranteeing impeccable cleanliness for safe and easy use.


Applications:

- Respiratory
- Bio-Fluid Management
- Clean Rooms
- Pharmaceutical Process
- Laboratory
- O2 Circuits


Markets:

- Lab/Diagnostic
- Medical
- Pharma


Technologies:

- Push-In Connection and Disconnection
- Push-In Fittings
- Polymer Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors


Technical Characteristics:

- Fluids: Breathing, neutral & pure medical gases. Other fluids: please consult us
- Materials: Bio-based polymer, technical polymer, stainless steel, EPDM, nickel-plated brass
- Pressure: Vacuum to 15 bar. Working pressure varies according to temperature
- Temperature: -10°C to +95°C


Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 1907/2006 (REACH)
- ASTM G93-03.B-300
- ISO 15001 < 30 bar
- BAM (grease certification residue)
- CGA G4.1
- EN 12021 < 0,1 mg/m3
- VDI 2083-8 (in progress)


Product Types:

- Blanking Plug
- Branch Tee, Male BSPT Thread
- End Cap
- Equal and Unequal Elbow
- Equal and Unequal Plug-In Elbow
- Equal and Unequal Tube-to-Tube Connector
- Equal Bulkhead Connector
- Equal Single Y Piece
- Equal Tee
- Plug-In Barb Connector
- Plug-In Equal Branch Tee
- Plug-In Equal Run Tee
- Plug-In Reducer
- Run Tee, Male BSPT Thread
- Stud Branch Tee, Male BSPP and Metric Thread
- Stud Branch Tee, Male BSPT Thread
- Stud Elbow, Male BSPP and Metric Thread
- Stud Elbow, Male BSPT Thread
- Stud Fitting, Female BSPP Thread
- Stud Fitting, Male BSPP and Metric Thread
- Stud Fitting, Male BSPT Thread
- Stud Run Tee, Male BSPP and Metric Thread
- Stud Run Tee, Male BSPT Thread
- Stud Standpipe, Male BSPT Thread
