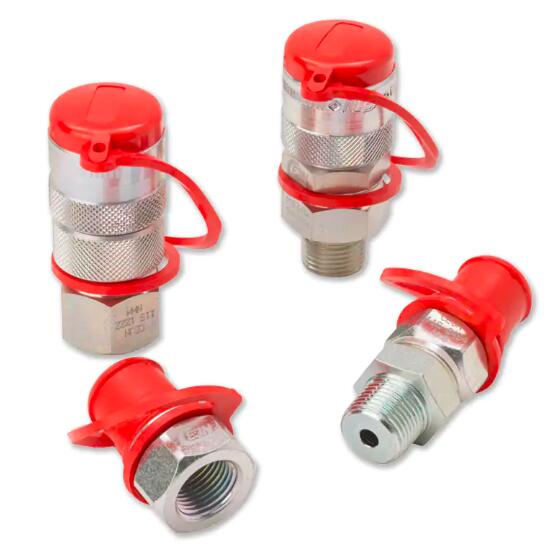

Ultra High Pressure Hydraulic Quick Coupling - C Series
Parker's C Series Quick Couplings are available with NPT, BSP and "High Pressure" thread styles with working pressures ranging from 14,500 psi to 29,000 psi.
Parker's C Series Quick Couplings provide non-drip valving for clean, safe, trouble-free performance and minimal air inclusion. Protective dust caps are included to prevent damage and fluid contamination. These quick couplings are available in a variety of thread styles (NPT, BSP and "High Pressure") with working pressures ranging from 14,500 psi to 29,000 psi. Applications include hydraulic tools and rescue equipment, hydrostatic testing and Blow-out Preventers.
Ultra High Pressure Hydraulic Quick Coupling - C Series
Markets:
- High pressure hydraulics
- Oil & Gas
Features / Benefits:
- Quick couplings offer ease of connection to high pressure hoses and fixed ports
- Built-in safety locking device to prevent accidental disconnect
- Protective dust caps are included to prevent damage and fluid contamination in disconnected position
- Rugged design and construction for long life in demanding applications
Applications:
- Hydraulic tools and rescue equipment
- Hydrostatic testing
- Blow-out Preventers
Technical Specifications
| Connection 1 Thread Size: |
1/4" Male BSP w/120° external cone, 120° internal cone or 60° internal cone, 1/4" NPT Male |
| Media: |
Hydraulic Fluid, Lubricants, Chemical Fluids |
| Valve Type: |
Check Valve |
| Application: |
Oilfield |
| Brand: |
Parker |
| Coupling Half: |
Female, Male |
| Diameter: |
10 nom |
| Fitting Connection Type: |
BSPP, NPT / NPTF, Face Seal, Female Thread, Male Thread, Pipe Thread |
| Maximum Operating Pressure: |
2,000 bar, 29,000 psi, 100 or 200 MPa |
| Seal Material: |
Buna-N |
| Connection 2 Thread Size: |
1/4" High Pressure Male, 1/4" Male BSP w/ 120° external cone, 1/4" Male BSP w/ 60° internal cone or 9/16" - 18 UNF w/ 60° external cone |
| Overall Length: |
0.08 to 1.76 inch, 2.03 to 45.72 mm |
| Hex Size: |
0.08 to 0.94 inch, 2.03 to 23.88 mm |
| Materials of Construction: |
Steel, Zinc Plated |
Ultra High Pressure Hydraulic Quick Coupling - C Series型號
| Part |
Connection Style |
Connection 1 Thread Style |
Connection 2 Thread Style |
| C09-125-1680 |
Quick Coupling Adapter |
1/4" Male BSP w/ 120° external cone |
1/4" High Pressure Male |
| C10-115-1202 |
115 Coupler |
1/4" BSP Female (thru type) |
n/a |
| C10-115-1222 |
115 Coupler |
1/4" BSP Female (with built-in locking device) |
n/a |
| C10-115-1401 |
115 Coupler |
1/8" NPT Female |
n/a |
| C10-115-1402 |
115 Coupler |
1/4" NPT Female |
n/a |
| C10-115-1404 |
115 Coupler |
3/8" NPT Female |
n/a |
| C10-115-1422 |
115 Coupler |
1/4" NPT Female (with built-in locking device) |
n/a |
| C10-115-1452 |
115 Coupler |
1/4" NPT Male |
n/a |
| C10-115-1454 |
115 Coupler |
3/8" NPT Male |
n/a |
| C10-115-6202 |
115 Nipple |
1/4 BSP Female |
n/a |
| C10-115-6204 |
115 Nipple |
3/8 BSP Female |
n/a |
| C10-115-6401 |
115 Nipple |
1/8 NPT Female |
n/a |
| C10-115-6402 |
115 Nipple |
1/4 NPT Female |
n/a |
| C10-115-6404 |
115 Nipple |
3/8 NPT Female |
n/a |
| C10-115-6452 |
115 Nipple |
1/4 NPT Male |
n/a |
| C10-115-6454 |
115 Nipple |
3/8 NPT Male |
n/a |
| C10-116-1202 |
116 Coupler |
1/4" BSP Female |
n/a |
| C10-116-1222 |
116 Coupler |
1/4" BSP Female (with built-in locking device) |
n/a |
| C10-116-1402 |
116 Coupler |
1/4" NPT Female |
n/a |
| C10-116-1422 |
116 Coupler |
1/4" NPT Female (with built-in locking device) |
n/a |
| C10-116-5202 |
116 Nipple |
1/4 BSP Female (thru type) |
n/a |
| C10-116-6202 |
116 Nipple |
1/4 BSP Female |
n/a |
| C10-116-6402 |
116 Nipple |
1/4 NPT Female |
n/a |
| C10-125-1202 |
125 Coupler |
1/4 BSP Female |
n/a |
| C10-125-5202 |
125 Nipple |
1/4 BSP Female (thru type) |
n/a |
| C10-125-6202 |
125 Nipple |
1/4 BSP Female |
n/a |
| C19-950-0029 |
Quick Coupling Adapter |
1/4" Male BSP w/ 120° external cone |
9/16" - 18 UNF w/ 60° external cone |
| C19-950-0062 |
Rubber Metal Seal |
1/4" Parallel male thread |
n/a |
| C19-950-0064 |
Rubber Metal Seal |
3/8" Parallel male thread |
n/a |
| C19-950-1600 |
Plug |
1/4" Male BSP w/ 120° external cone |
n/a |
| C19-950-1601 |
Quick Coupling Adapter |
1/4" Male BSP w/ 120° external cone |
1/4" Male BSP w/ 120° external cone |
| C19-950-1602 |
Quick Coupling Adapter |
1/4" Male BSP w/ 120° external cone |
1/4" Male BSP w/ 60° internal cone |
| C19-950-1622 |
Quick Coupling Adapter |
1/4" Male BSP w/ 60° internal cone |
1/4" Male BSP w/ 60° internal cone |
| C19-950-1623 |
Quick Coupling Adapter |
1/4" NPT Male |
1/4" Male BSP w/ 60° internal cone |
| C19-950-1680 |
Porting Block |
1/4" BSP w/ 120° internal cone |
n/a |
| HAHM4BMH |
Quick Coupling Adapter |
1/4" Male BSP w/ 60° internal cone |
1/4" High Pressure Male |
|
