Grease Fittings

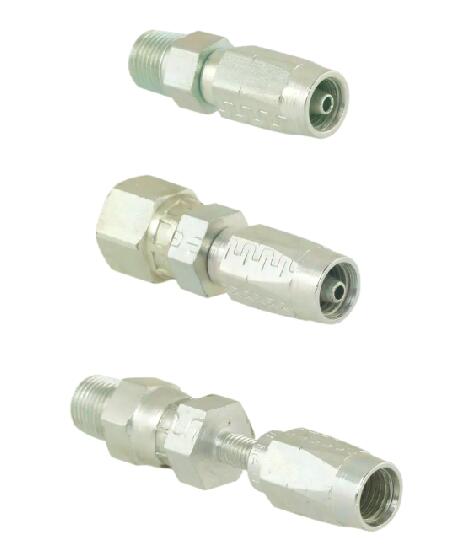

Field Attachable Fittings for HLB Hose – BU Series
Parker's BU Series Fittings are field-attachable steel fittings qualified for use with the Parflex HLB Lubrication Hose.
Parker's BU Series fittings are qualified for use with thermoplastic HLB Lubrication hose, making them suitable for a wide range of applications, such as grease and lubrication lines, agriculture, construction, mobile equipment, and many more. BU Series are field-attachable, permanent, steel fittings that are able to withstand temperatures as high as 120°F. These fittings allow for minor movement to relieve stress and strain on the hose, but they are not recommended for continued or extensive swiveling. In addition, BU Series fittings are not recommended for use in CNG applications.
Markets:
- Industrial
- Agriculture
- Construction
- Mobile Equipment
- Transportation
Features/Benefits:
- Able to withstand temperatures as high as 120°F
- Allow for minor movement to relieve stress and strain on the hose
Applications:
- Grease and lubrication lines
Technical Specifications:
- Not intended for use on hose that has previously been in service
Field Attachable Fittings for HLB Hose – BU Series
Technical Specifications
| Port Size: |
0.125 - 0.250 inch |
| Shape: |
Straight |
| Application: |
Various |
| Connection Type: |
Field-Attachable, Pipe, NPTF, 37° Flare |
| Hose Inside Diameter: |
3, 5 mm, 1/8, 3/16 inch |
| Materials of Construction: |
Steel |
| Connection Thread Size: |
1/8-27, 3/8-24, 7/16-20 inch |
| Length: |
1.50 - 2.07 inch |
| Product Style: |
Crimp (Permanent) |
Field Attachable Fittings for HLB Hose – BU Series型號(hào)
| Part |
Port Connection (inch) |
Hose I.D. (inch) |
Style |
Length (inch) |
| 201BU-2-2 |
0.125 |
0.125 |
Male NPTF Pipe - Rigid - Straight |
1.5 |
| 206BU-3-2 |
0.188 |
0.125 |
Female JIC 37°/SAE 45° Dual Flare - Swivel - Straight |
1.72 |
| 206BU-4-2 |
0.25 |
0.125 |
Female JIC 37°/SAE 45° Dual Flare - Swivel - Straight |
1.77 |
| 206BU-4-3 |
0.25 |
0.188 |
Female JIC 37°/SAE 45° Dual Flare - Swivel - Straight |
1.89 |
| 213BU-2-2 |
0.125 |
0.125 |
Male NPTF Pipe - Swivel - Straight |
2.07 |
|
