Parker Fittings接頭
Barbed Fittings

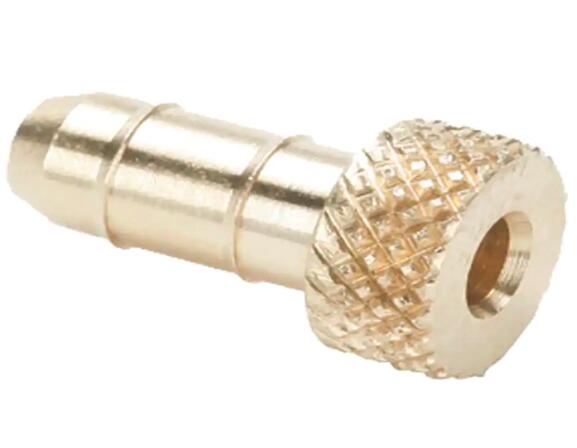

Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.
Parker's economical, one piece, Dubl-Barb? fittings are designed for quick assembly with polyethylene tubing without the use of a clamp. Because of the many available variations in qualities of polyethylene tubing, Dubl-Barb? fittings are recommended for use with Parker Parflex? polyethylene tubing (or an equal grade). Parker Parflex? tubing is highly resistant to environmental stress cracking which is necessary for long life when coupled with Dubl-Barb fittings. Assembly is simple, just cut tube squarely and push tube over the two barbs.
Use with Parker Parflex Division polyethylene tubing.
Markets:
- Pneumatic
- Environmental control
Features/Benefits
- All brass construction
- One piece
- Compact
- Excellent vibration resistance
- No clamp required
Applications:
- Climate control circuits
- Pneumatic systems
- Humidifiers
- Filters
- Test apparatus
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Connection Type: |
Barb, Compression and Thread |
| Shape: |
Various |
| Minimum Operating Temperature: |
-65 °F, -53 °C |
| Maximum Operating Temperature: |
90 °F, 32 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Tube Material: |
Polyethylene |
| Application: |
Industrial Controls |
| Materials of Construction: |
Brass |
Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb型號(hào)
| Part |
Shape |
Style |
Connection 1 Tube O.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Style |
Connection 3 Thread Size (inch) |
Connection 3 Style |
| 20-4 |
Plug |
Tube |
1/4 |
Barb |
na |
na |
na |
na |
na |
| 20-4-5/32 |
Plug |
Tube |
1/4 |
Barb |
na |
5/32 |
Barb |
na |
na |
| 20-6 |
Plug |
Tube |
3/8 |
Barb |
na |
na |
na |
na |
na |
| 20-8 |
Plug |
Tube |
1/2 |
Barb |
na |
na |
na |
na |
na |
| 22-4 |
Union |
Tube to Tube |
1/4 |
Barb |
na |
1/4 |
Barb |
na |
na |
| 22-4-5/32 |
Union |
Tube to Tube |
1/4 |
Barb |
na |
5/32 |
Barb |
na |
na |
| 22-4-6 |
Union |
Tube to Tube |
1/4 |
Barb |
na |
3/8 |
Barb |
na |
na |
| 22-4-8 |
Union |
Tube to Tube |
1/4 |
Barb |
na |
1/2 |
Barb |
na |
na |
| 22-5/32 |
Union |
Tube to Tube |
5/32 |
Barb |
na |
5/32 |
Barb |
na |
na |
| 22-6 |
Union |
Tube to Tube |
3/8 |
Barb |
na |
3/8 |
Barb |
na |
na |
| 22-6-8 |
Union |
Tube to Tube |
3/8 |
Barb |
na |
1/2 |
Barb |
na |
na |
| 22-8 |
Union |
Tube to Tube |
1/2 |
Barb |
na |
1/2 |
Barb |
na |
na |
| 220-4-2 |
Adapter Tee |
Tube to Female Pipe |
1/4 |
Barb |
na |
1/4 |
Barb |
1/8 |
Female Pipe |
| 224-4 |
Tee |
Tube to Tube |
1/4 |
Barb |
na |
1/4 |
Barb |
na |
na |
| 224-4-4-5/32 |
Tee |
Tube to Tube |
1/4 |
Barb |
na |
5/32 |
Barb |
na |
na |
| 224-5/32 |
Tee |
Tube to Tube |
5/32 |
Barb |
na |
5/32 |
Barb |
na |
na |
| 224-6 |
Tee |
Tube to Tube |
3/8 |
Barb |
na |
3/8 |
Barb |
na |
na |
| 224-6-6-4 |
Tee |
Tube to Tube |
3/8 |
Barb |
na |
1/4 |
Barb |
na |
na |
| 224-6-6-5/32 |
Tee |
Tube to Tube |
3/8 |
Barb |
na |
5/32 |
Barb |
na |
na |
| 224-8 |
Tee |
Tube to Tube |
1/2 |
Barb |
na |
1/2 |
Barb |
na |
na |
| 224-8-8-4 |
Tee |
Tube to Tube |
1/2 |
Barb |
na |
1/4 |
Barb |
na |
na |
| 224-8-8-6 |
Tee |
Tube to Tube |
1/2 |
Barb |
na |
3/8 |
Barb |
na |
na |
| 225-4-4 |
90° Elbow |
Tube to Tube |
1/4 |
Barb |
na |
1/4 |
Barb |
na |
na |
| 225-4-5/32 |
90° Elbow |
Tube to Tube |
1/4 |
Barb |
na |
5/32 |
Barb |
na |
na |
| 225-5/32 |
90° Elbow |
Tube to Tube |
5/32 |
Barb |
na |
5/32 |
Barb |
na |
na |
| 225-6-6 |
90° Elbow |
Tube to Tube |
3/8 |
Barb |
na |
3/8 |
Barb |
na |
na |
| 225-8-8 |
90° Elbow |
Tube to Tube |
1/2 |
Barb |
na |
1/2 |
Barb |
na |
na |
| 228-4-2 |
Gauge Tee |
Tube to Pipe |
1/4 |
Barb |
1/8 |
na |
Male Pipe |
1/8 |
Male Pipe |
| 229-4-1 |
90° Elbow |
Tube to Pipe |
1/4 |
Barb |
1/16 |
na |
Male Pipe |
na |
na |
| 229-4-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 229-4-4 |
90° Elbow |
Tube to Pipe |
1/4 |
Barb |
1/4 |
na |
Male Pipe |
na |
na |
| 229-4-5/32-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Barb |
na |
5/32 |
Barb |
1/8 |
Male Pipe |
| 229-5/32-2 |
90° Elbow |
Tube to Pipe |
5/32 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 229-6-2 |
90° Elbow |
Tube to Pipe |
3/8 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 229-6-4 |
90° Elbow |
Tube to Pipe |
3/8 |
Barb |
1/4 |
na |
Male Pipe |
na |
na |
| 229-8-4 |
90° Elbow |
Tube to Pipe |
1/2 |
Barb |
1/4 |
na |
Male Pipe |
na |
na |
| 229-8-6 |
90° Elbow |
Tube to Pipe |
1/2 |
Barb |
3/8 |
na |
Male Pipe |
na |
na |
| 22BH-4-4 |
Bulkhead |
Tube to Tube |
1/4 |
Barb |
na |
1/4 |
Barb |
na |
na |
| 22BH-6-6 |
Bulkhead |
Tube to Tube |
3/8 |
Barb |
na |
3/8 |
Barb |
na |
na |
| 22CA-4-4 |
Union |
Tube to Compression |
1/4 |
Barb |
na |
1/4 |
Compression |
na |
na |
| 22CABH-4-4 |
Bulkhead |
Tube to Compression |
1/4 |
Barb |
na |
1/4 |
Compression |
na |
na |
| 22CABH-6-6 |
Bulkhead |
Tube to Compression |
3/8 |
Barb |
na |
3/8 |
Compression |
na |
na |
| 230-4-2 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Barb |
1/8 |
na |
Female Pipe |
na |
na |
| 230-6-4 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Barb |
1/4 |
na |
Female Pipe |
na |
na |
| 231-4-2 |
Run Tee |
Tube to Pipe |
1/4 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 231-6-2 |
Run Tee |
Tube to Pipe |
3/8 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 231-6-4 |
Run Tee |
Tube to Pipe |
3/8 |
Barb |
1/4 |
na |
Male Pipe |
na |
na |
| 232-4-1 |
Branch Tee |
Tube to Pipe |
1/4 |
Barb |
1/16 |
na |
Male Pipe |
na |
na |
| 232-4-2 |
Branch Tee |
Tube to Pipe |
1/4 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 232-6-2 |
Branch Tee |
Tube to Pipe |
3/8 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 232-6-4 |
Branch Tee |
Tube to Pipe |
3/8 |
Barb |
1/4 |
na |
Male Pipe |
na |
na |
| 233-4-4-4 |
Tee |
Compression to Tube |
1/4 |
Compression |
na |
1/4 |
Barb |
na |
na |
| 233-6-6-4 |
Tee |
Compression to Tube |
3/8 |
Compression |
na |
1/4 |
Barb |
na |
na |
| 237-4-2 |
Female Branch Tee |
Tube to Female Pipe |
1/4 |
Barb |
1/8 |
na |
Female Pipe |
na |
na |
| 237-5/32-2 |
Female Branch Tee |
Tube to Female Pipe |
5/32 |
Barb |
1/8 |
na |
Female Pipe |
na |
na |
| 238-4-4 |
Connector |
Tube to Solder |
1/4 |
Barb |
na |
1/4 |
Solder |
na |
na |
| 26-4-2 |
Connector |
Tube to Female Pipe |
1/4 |
Barb |
1/8 |
na |
Female Pipe |
na |
na |
| 26-5/32-2 |
Connector |
Tube to Female Pipe |
5/32 |
Barb |
1/8 |
na |
Female Pipe |
na |
na |
| 26-6-2 |
Connector |
Tube to Female Pipe |
3/8 |
Barb |
1/8 |
na |
Female Pipe |
na |
na |
| 26-6-4 |
Connector |
Tube to Female Pipe |
3/8 |
Barb |
1/4 |
na |
Female Pipe |
na |
na |
| 27-1 |
Barbed Male Connector |
Tube to Pipe |
1/8 |
Barb |
10-32 |
na |
UNF |
na |
na |
| 27-2 |
Barbed Male Connector |
Tube to Pipe |
1/4 |
Barb |
10-32 |
na |
UNF |
na |
na |
| 28-4-1 |
Connector |
Tube to Pipe |
1/4 |
Barb |
1/16 |
na |
Male Pipe |
na |
na |
| 28-4-10X32 |
Connector |
Tube to Pipe |
1/4 |
Barb |
10-32 |
na |
UNF |
na |
na |
| 28-4-2 |
Connector |
Tube to Pipe |
1/4 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 28-4-4 |
Connector |
Tube to Pipe |
1/4 |
Barb |
1/4 |
na |
Male Pipe |
na |
na |
| 28-4-5/32-2 |
Connector |
Tube to Pipe |
1/4 |
Barb |
na |
5/32 |
Male Pipe |
1/8 |
Male Pipe |
| 28-5/32-2 |
Connector |
Tube to Pipe |
5/32 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 28-6-2 |
Connector |
Tube to Pipe |
3/8 |
Barb |
1/8 |
na |
Male Pipe |
na |
na |
| 28-6-4 |
Connector |
Tube to Pipe |
3/8 |
Barb |
1/4 |
na |
Male Pipe |
na |
na |
| 28-8-4 |
Connector |
Tube to Pipe |
1/2 |
Barb |
1/4 |
na |
Male Pipe |
na |
na |
| 28-8-6 |
Connector |
Tube to Pipe |
1/2 |
Barb |
3/8 |
na |
Male Pipe |
na |
na |
| 28-8-8 |
Connector |
Tube to Pipe |
1/2 |
Barb |
1/2 |
na |
Male Pipe |
na |
na |
|
