Barbed Fittings

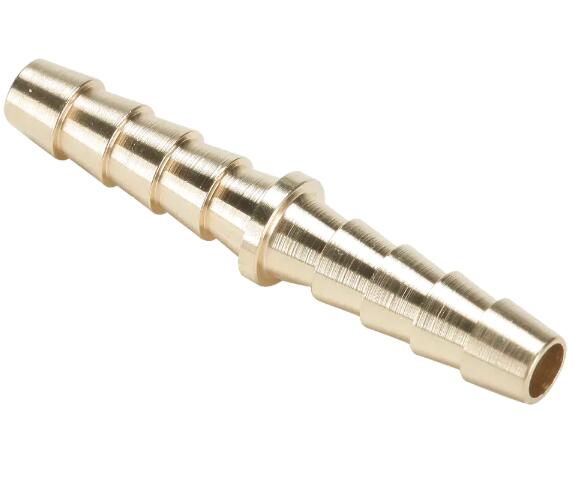

Brass Hose Barb Fittings
Parker's brass hose barb fittings are an economical choice for general purpose fluid handling and pneumatics, available in both tapered and beaded barb styles.
Parker's hose barb fittings are an economical choice for general purpose fluid handling and pneumatics. Manufactured in both tapered and beaded hose barb styles hose barbs are reusable and offer good vibration resistance. These hose barb fittings are intended for use with Parker's 97HC hose clamps, similar type clamps or a crimped ferrule. Parker's hose barb fittings are available for both inch and metric size hoses with NPTF, BSPT, SAE straight thread and metric threads.
Markets:
- Industrial
- Construction
- Heavy duty truck
- Mobile
Features/Benefits:
- Beaded Hose barb to straight thread port connections
- Up to 1” hose, -14 SAE and M33
- Eliminates system contamination from rust
- One piece forging
- Smaller than J1231 steel alternatives for use in confined areas
Applications:
- Compressed air lines
- Water lines
- Cooling lines
Technical Specifications
| Connection Type: |
Barb, Clamp and Thread |
| Shape: |
Various |
| Minimum Operating Temperature: |
-40 °F, -40 °C |
| Maximum Operating Temperature: |
160 °F, 71 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Tube Material: |
Rubber Hose, GPH Hose |
| Media: |
Water, Coolant, Compressed Air |
| Application: |
Air powered Tools, Coolant Lines, Fuel Lines |
| Specifications Met: |
Clamp or Crimped Ferrule must be used with fittings |
| Materials of Construction: |
Brass |
| O-Ring Material: |
Fluorocarbon |
Brass Hose Barb Fittings型號
| Part |
Shape |
Style |
Connection 1 Hose I.D. (inch) |
Connection 1 Style |
Connection 2 Hose I.D. (inch) |
Connection 2 Thread Size (inch) |
Connection 2 Thread Size (mm) |
Connection 2 Style |
| 122HB-3 |
Mender |
Barb to Barb |
3/16 |
Barb |
3/16 |
na |
na |
Barb |
| 122HBL-12 |
Mender |
Barb to Barb |
3/4 |
Barb |
3/4 |
na |
na |
Barb |
| 122HBL-4 |
Mender |
Barb to Barb |
1/4 |
Barb |
1/4 |
na |
na |
Barb |
| 122HBL-5 |
Mender |
Barb to Barb |
5/16 |
Barb |
5/16 |
na |
na |
Barb |
| 122HBL-6 |
Mender |
Barb to Barb |
3/8 |
Barb |
3/8 |
na |
na |
Barb |
| 122HBL-8 |
Mender |
Barb to Barb |
1/2 |
Barb |
1/2 |
na |
na |
Barb |
| 125HB-2-2 |
Connector |
Barb to Pipe |
1/8 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 125HB-3-2 |
Connector |
Barb to Pipe |
3/16 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 125HB-3-4 |
Connector |
Barb to Pipe |
3/16 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 125HBL-10-12 |
Connector |
Barb to Pipe |
5/8 |
Barb |
na |
3/4 |
na |
Male Pipe |
| 125HBL-10-6 |
Connector |
Barb to Pipe |
5/8 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 125HBL-10-8 |
Connector |
Barb to Pipe |
5/8 |
Barb |
na |
1/2 |
na |
Male Pipe |
| 125HBL-12-12 |
Connector |
Barb to Pipe |
3/4 |
Barb |
na |
3/4 |
na |
Male Pipe |
| 125HBL-12-8 |
Connector |
Barb to Pipe |
3/4 |
Barb |
na |
1/2 |
na |
Male Pipe |
| 125HBL-16-12 |
Connector |
Barb to Pipe |
1 |
Barb |
na |
3/4 |
na |
Male Pipe |
| 125HBL-16-16 |
Connector |
Barb to Pipe |
1 |
Barb |
na |
1 |
na |
Male Pipe |
| 125HBL-4-2 |
Connector |
Barb to Pipe |
1/4 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 125HBL-4-4 |
Connector |
Barb to Pipe |
1/4 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 125HBL-4-6 |
Connector |
Barb to Pipe |
1/4 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 125HBL-5-2 |
Connector |
Barb to Pipe |
5/16 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 125HBL-5-4 |
Connector |
Barb to Pipe |
5/16 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 125HBL-5-6 |
Connector |
Barb to Pipe |
5/16 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 125HBL-6-2 |
Connector |
Barb to Pipe |
3/8 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 125HBL-6-4 |
Connector |
Barb to Pipe |
3/8 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 125HBL-6-6 |
Connector |
Barb to Pipe |
3/8 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 125HBL-6-8 |
Connector |
Barb to Pipe |
3/8 |
Barb |
na |
1/2 |
na |
Male Pipe |
| 125HBL-8-12 |
Connector |
Barb to Pipe |
1/2 |
Barb |
na |
3/4 |
na |
Male Pipe |
| 125HBL-8-4 |
Connector |
Barb to Pipe |
1/2 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 125HBL-8-6 |
Connector |
Barb to Pipe |
1/2 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 125HBL-8-8 |
Connector |
Barb to Pipe |
1/2 |
Barb |
na |
1/2 |
na |
Male Pipe |
| 125HBLSV-4-4 |
Swivel Connector |
Barb to Pipe |
1/4 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 125HBLSV-6-4 |
Swivel Connector |
Barb to Pipe |
3/8 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 125HBLSV-6-6 |
Swivel Connector |
Barb to Pipe |
3/8 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 125HBLSV-8-8 |
Swivel Connector |
Barb to Pipe |
1/2 |
Barb |
na |
1/2 |
na |
Male Pipe |
| 126HBL-12-12 |
Connector |
Barb to Female Pipe |
3/4 |
Barb |
na |
3/4 |
na |
Female pipe |
| 126HBL-4-2 |
Connector |
Barb to Female Pipe |
1/4 |
Barb |
na |
1/8 |
na |
Female pipe |
| 126HBL-4-4 |
Connector |
Barb to Female Pipe |
1/4 |
Barb |
na |
1/4 |
na |
Female pipe |
| 126HBL-5-4 |
Connector |
Barb to Female Pipe |
5/16 |
Barb |
na |
1/4 |
na |
Female pipe |
| 126HBL-6-2 |
Connector |
Barb to Female Pipe |
3/8 |
Barb |
na |
1/8 |
na |
Female pipe |
| 126HBL-6-4 |
Connector |
Barb to Female Pipe |
3/8 |
Barb |
na |
1/4 |
na |
Female pipe |
| 126HBL-6-6 |
Connector |
Barb to Female Pipe |
3/8 |
Barb |
na |
3/8 |
na |
Female pipe |
| 126HBL-8-6 |
Connector |
Barb to Female Pipe |
1/2 |
Barb |
na |
3/8 |
na |
Female pipe |
| 126HBL-8-8 |
Connector |
Barb to Female Pipe |
1/2 |
Barb |
na |
1/2 |
na |
Female pipe |
| 127HB-4-2 |
Ball End Adapter |
Pipe to Pipe |
1/4 |
NPSM |
na |
1/8 |
na |
Male Pipe |
| 127HB-4-4 |
Ball End Adapter |
Pipe to Pipe |
1/4 |
NPSM |
na |
1/4 |
na |
Male Pipe |
| 127HB-6-4 |
Ball End Adapter |
Pipe to Pipe |
3/8 |
NPSM |
na |
1/4 |
na |
Male Pipe |
| 127HB-6-6 |
Ball End Adapter |
Pipe to Pipe |
3/8 |
NPSM |
na |
3/8 |
na |
Male Pipe |
| 127HB-8-6 |
Ball End Adapter |
Pipe to Pipe |
1/2 |
NPSM |
na |
3/8 |
na |
Male Pipe |
| 127HB-8-8 |
Ball End Adapter |
Pipe to Pipe |
1/2 |
NPSM |
na |
1/2 |
na |
Male Pipe |
| 128HBLSV-4-4 |
Swivel Female Ball-End |
Barb to Female Pipe |
1/4 |
Barb |
na |
1/4 |
na |
Female NPSM |
| 128HBLSV-5-4 |
Swivel Female Ball-End |
Barb to Female Pipe |
5/16 |
Barb |
na |
1/4 |
na |
Female NPSM |
| 128HBLSV-6-4 |
Swivel Female Ball-End |
Barb to Female Pipe |
3/8 |
Barb |
na |
1/4 |
na |
Female NPSM |
| 128HBLSV-6-6 |
Swivel Female Ball-End |
Barb to Female Pipe |
3/8 |
Barb |
na |
3/8 |
na |
Female NPSM |
| 128HBLSV-8-8 |
Swivel Female Ball-End |
Barb to Female Pipe |
1/2 |
Barb |
na |
1/2 |
na |
Female NPSM |
| 1295HB-6-6 |
90° Elbow |
Barb to Straight Thread |
3/8 |
Barb |
na |
9/16-18 |
na |
Straight Thread |
| 129HB-12-12 |
90° Elbow |
Barb to Pipe |
3/4 |
Barb |
na |
3/4 |
na |
Male Pipe |
| 129HB-3-2 |
90° Elbow |
Barb to Pipe |
3/16 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 129HB-4-2 |
90° Elbow |
Barb to Pipe |
1/4 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 129HB-4-4 |
90° Elbow |
Barb to Pipe |
1/4 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 129HB-4-6 |
90° Elbow |
Barb to Pipe |
1/4 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 129HB-5-2 |
90° Elbow |
Barb to Pipe |
5/16 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 129HB-5-4 |
90° Elbow |
Barb to Pipe |
5/16 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 129HB-5-6 |
90° Elbow |
Barb to Pipe |
5/16 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 129HB-6-2 |
90° Elbow |
Barb to Pipe |
3/8 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 129HB-6-4 |
90° Elbow |
Barb to Pipe |
3/8 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 129HB-6-6 |
90° Elbow |
Barb to Pipe |
3/8 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 129HB-6-8 |
90° Elbow |
Barb to Pipe |
3/8 |
Barb |
na |
1/2 |
na |
Male Pipe |
| 129HB-8-4 |
90° Elbow |
Barb to Pipe |
1/2 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 129HB-8-6 |
90° Elbow |
Barb to Pipe |
1/2 |
Barb |
na |
3/8 |
na |
Male Pipe |
| 129HB-8-8 |
90° Elbow |
Barb to Pipe |
1/2 |
Barb |
na |
1/2 |
na |
Male Pipe |
| 139HB-4-2 |
45° Elbow |
Barb to Pipe |
1/4 |
Barb |
na |
1/8 |
na |
Male Pipe |
| 139HB-4-4 |
45° Elbow |
Barb to Pipe |
1/4 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 139HB-6-4 |
45° Elbow |
Barb to Pipe |
3/8 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 146HBLFSV-4-4 |
Swivel Female Flare |
Barb to Female Flare |
1/4 |
Barb |
na |
1/4 |
na |
Female Flare |
| 146HBLFSV-4-6 |
Swivel Female Flare |
Barb to Female Flare |
1/4 |
Barb |
na |
3/8 |
na |
Female Flare |
| 146HBLFSV-6-6 |
Swivel Female Flare |
Barb to Female Flare |
3/8 |
Barb |
na |
3/8 |
na |
Female Flare |
| 164HB-6 |
Tee |
Barb to Barb |
3/8 |
Barb |
3/8 |
na |
na |
Barb |
| 1695HB-10-8 |
90° Beaded Barb Elbow |
Barb to Straight Thread |
5/8 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 1695HB-12-10 |
90° Beaded Barb Elbow |
Barb to Straight Thread |
3/4 |
Beaded Barb |
na |
7/8-14 |
na |
Straight Thread |
| 1695HB-12-12 |
90° Beaded Barb Elbow |
Barb to Straight Thread |
3/4 |
Beaded Barb |
na |
1 1/6-12 |
na |
Straight Thread |
| 1695HB-12-8 |
90° Beaded Barb Elbow |
Barb to Straight Thread |
3/4 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 1695HB-16-12 |
90° Beaded Barb Elbow |
Barb to Straight Thread |
1 |
Beaded Barb |
na |
1 1/6-12 |
na |
Straight Thread |
| 1695HB-6-4 |
90° Beaded Barb Elbow |
Barb to Straight Thread |
3/8 |
Beaded Barb |
na |
7/16-20 |
na |
Straight Thread |
| 1695HB-8-6 |
90° Beaded Barb Elbow |
Barb to Straight Thread |
1/2 |
Beaded Barb |
na |
9/16-18 |
na |
Straight Thread |
| 1695HB-8-8 |
90° Beaded Barb Elbow |
Barb to Straight Thread |
1/2 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 169HB-16-MI27 |
90° Beaded Barb Elbow |
Barb to Metric |
1 |
Beaded Barb |
na |
na |
M27x2.0 |
Metric |
| 169HB-16-MI33 |
90° Beaded Barb Elbow |
Barb to Metric |
1 |
Beaded Barb |
na |
na |
M33x2.0 |
Metric |
| 171HB-4-4 |
Run Tee |
Barb to Pipe |
1/4 |
Barb |
na |
1/4 |
na |
Male Pipe |
| 1725HB-6-6 |
Branch Tee |
Barb to Straight Thread |
3/8 |
Barb |
na |
9/16-18 |
na |
Straight Thread |
| 1795HB-10-8 |
45° Beaded Barb Elbow |
Barb to Straight Thread |
5/8 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 1795HB-12-12 |
45° Beaded Barb Elbow |
Barb to Straight Thread |
3/4 |
Beaded Barb |
na |
1 1/16-12 |
na |
Straight Thread |
| 1795HB-12-8 |
45° Beaded Barb Elbow |
Barb to Straight Thread |
3/4 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 1795HB-16-12 |
45° Beaded Barb Elbow |
Barb to Straight Thread |
1 |
Beaded Barb |
na |
1 1/16-12 |
na |
Straight Thread |
| 1795HB-16-14 |
45° Beaded Barb Elbow |
Barb to Straight Thread |
1 |
Beaded Barb |
na |
1 3/16-12 |
na |
Straight Thread |
| 1795HB-8-8 |
45° Beaded Barb Elbow |
Barb to Straight Thread |
1/2 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 179HB-10-8 |
45° Beaded Barb Elbow |
Barb to Pipe |
5/8 |
Beaded Barb |
na |
1/2 |
na |
Male Pipe |
| 179HB-12-8 |
45° Beaded Barb Elbow |
Barb to Pipe |
3/4 |
Beaded Barb |
na |
1/2 |
na |
Male Pipe |
| 179HB-6-4 |
45° Beaded Barb Elbow |
Barb to Pipe |
3/8 |
Beaded Barb |
na |
1/4 |
na |
Male Pipe |
| 179HB-6-6 |
45° Beaded Barb Elbow |
Barb to Pipe |
3/8 |
Beaded Barb |
na |
3/8 |
na |
Male Pipe |
| 269HB-10-4 |
90° Beaded Barb Elbow |
Barb to Pipe |
5/8 |
Beaded Barb |
na |
1/4 |
na |
Male Pipe |
| 269HB-10-6 |
90° Beaded Barb Elbow |
Barb to Pipe |
5/8 |
Beaded Barb |
na |
3/8 |
na |
Male Pipe |
| 269HB-10-8 |
90° Beaded Barb Elbow |
Barb to Pipe |
5/8 |
Beaded Barb |
na |
1/2 |
na |
Male Pipe |
| 269HB-12-12 |
90° Beaded Barb Elbow |
Barb to Pipe |
3/4 |
Beaded Barb |
na |
3/4 |
na |
Male Pipe |
| 269HB-12-8 |
90° Beaded Barb Elbow |
Barb to Pipe |
3/4 |
Beaded Barb |
na |
1/2 |
na |
Male Pipe |
| 269HB-6-6 |
90° Beaded Barb Elbow |
Barb to Pipe |
3/8 |
Beaded Barb |
na |
3/8 |
na |
Male Pipe |
| 269HB-8-4 |
90° Beaded Barb Elbow |
Barb to Pipe |
1/2 |
Beaded Barb |
na |
1/4 |
na |
Male Pipe |
| 269HB-8-6 |
90° Beaded Barb Elbow |
Barb to Pipe |
1/2 |
Beaded Barb |
na |
3/8 |
na |
Male Pipe |
| 269HB-8-8 |
90° Beaded Barb Elbow |
Barb to Pipe |
1/2 |
Beaded Barb |
na |
1/2 |
na |
Male Pipe |
| 279HB-16-12 |
45° Beaded Barb Elbow |
Barb to Pipe |
1 |
Beaded Barb |
na |
3/4 |
na |
Male Pipe |
| 685HB-10-8 |
Beaded Barb Connector |
Barb to Straight Thread |
5/8 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 685HB-12-12 |
Beaded Barb Connector |
Barb to Straight Thread |
3/4 |
Beaded Barb |
na |
1 1/16-12 |
na |
Straight Thread |
| 685HB-12-8 |
Beaded Barb Connector |
Barb to Straight Thread |
3/4 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 685HB-16-12 |
Beaded Barb Connector |
Barb to Straight Thread |
1 |
Beaded Barb |
na |
1 1/6-12 |
na |
Straight Thread |
| 685HB-16-8 |
Beaded Barb Connector |
Barb to Straight Thread |
1 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 685HB-4-4 |
Beaded Barb Connector |
Barb to Straight Thread |
1/4 |
Beaded Barb |
na |
7/16-20 |
na |
Straight Thread |
| 685HB-6-4 |
Beaded Barb Connector |
Barb to Straight Thread |
3/8 |
Beaded Barb |
na |
7/16-20 |
na |
Straight Thread |
| 685HB-8-8 |
Beaded Barb Connector |
Barb to Straight Thread |
1/2 |
Beaded Barb |
na |
3/4-16 |
na |
Straight Thread |
| 68HB-10-6 |
Beaded Barb Connector |
Barb to Pipe |
5/8 |
Beaded Barb |
na |
3/8 |
na |
Male Pipe |
| 68HB-10-8 |
Beaded Barb Connector |
Barb to Pipe |
5/8 |
Beaded Barb |
na |
1/2 |
na |
Male Pipe |
| 68HB-12-12 |
Beaded Barb Connector |
Barb to Pipe |
3/4 |
Beaded Barb |
na |
3/4 |
na |
Male Pipe |
| 68HB-12-8 |
Beaded Barb Connector |
Barb to Pipe |
3/4 |
Beaded Barb |
na |
1/2 |
na |
Male Pipe |
| 68HB-16-12 |
Beaded Barb Connector |
Barb to Pipe |
1 |
Beaded Barb |
na |
3/4 |
na |
Male Pipe |
| 68HB-16-16 |
Beaded Barb Connector |
Barb to Pipe |
1 |
Beaded Barb |
na |
1 |
na |
Male Pipe |
| 68HB-6-6 |
Beaded Barb Connector |
Barb to Pipe |
3/8 |
Beaded Barb |
na |
3/8 |
na |
Male Pipe |
| 68HB-8-4 |
Beaded Barb Connector |
Barb to Pipe |
1/2 |
Beaded Barb |
na |
1/4 |
na |
Male Pipe |
| 68HB-8-6 |
Beaded Barb Connector |
Barb to Pipe |
1/2 |
Beaded Barb |
na |
3/8 |
na |
Male Pipe |
| 68HB-8-8 |
Beaded Barb Connector |
Barb to Pipe |
1/2 |
Beaded Barb |
na |
1/2 |
na |
Male Pipe |
| 97HC-12 |
Worm Clamp |
Hose |
3/4 |
Clamp |
na |
na |
na |
na |
| 97HC-3 |
Worm Clamp |
Hose |
3/16 |
Clamp |
na |
na |
na |
na |
| 97HC-6 |
Worm Clamp |
Hose |
3/8 |
Clamp |
na |
na |
na |
na |
| 97HC-8 |
Worm Clamp |
Hose |
1/2 |
Clamp |
na |
na |
na |
na |
|
fcg.cnmec@parkerdistribution.com.cn
