Parker 的 Hi-Duty 接頭是一種預組裝的黃銅接頭 黃銅不擴口管接頭，Hi-Duty
Parker Fittings接頭 Flareless and Bite Type Fittings

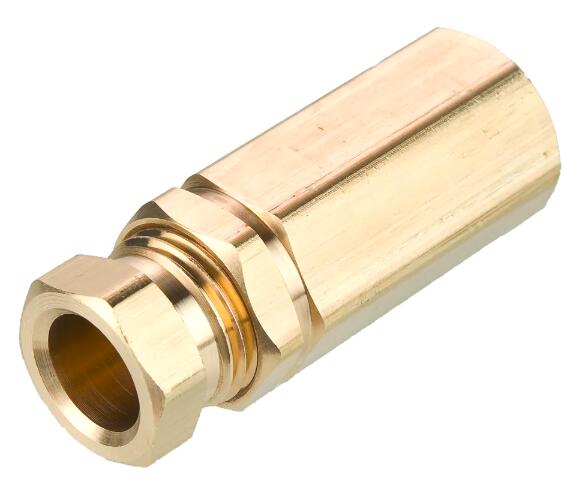

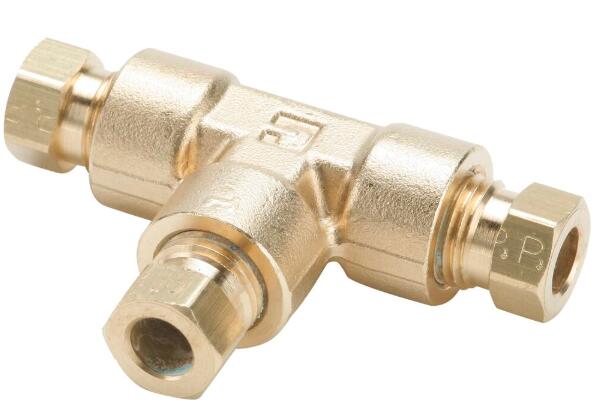

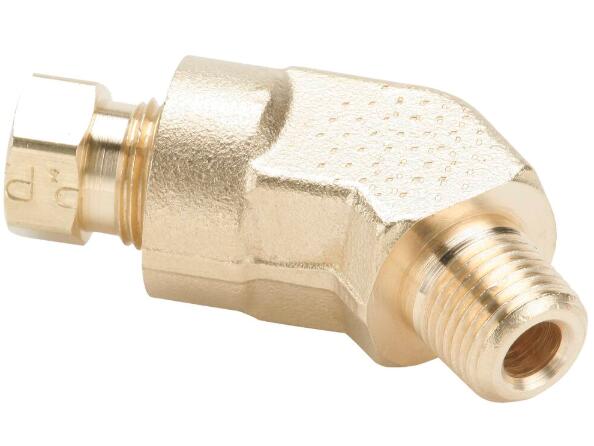

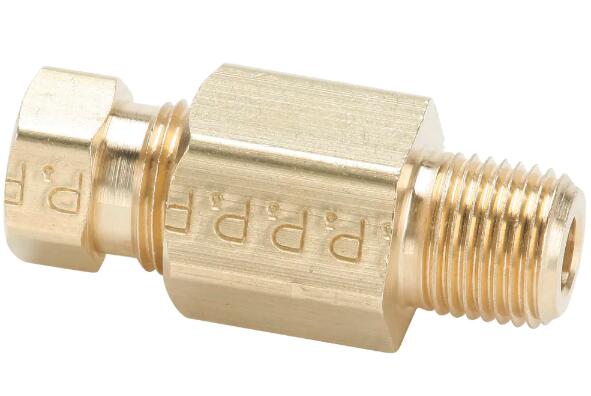

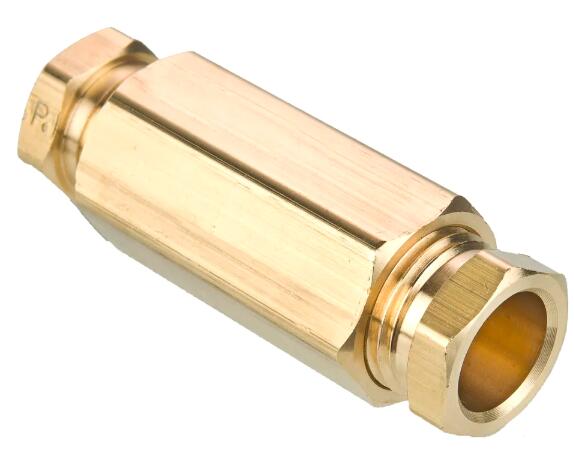

Brass flareless tube fitting, Hi-Duty

Parker 的 Hi-Duty 接頭是一種預組裝的黃銅接頭，在螺母上加工有一個套筒。這種獨特的設計形成了能夠承受最常用管道類型壓力的緊密接頭。Parker 的 Hi-Duty 接頭預先裝配了加工在螺母上的套筒。在組裝過程中，套管從螺母上脫離并密封在管子上。這種獨特的設計創造了能夠承受最常用管道類型壓力的緊密接頭，包括無縫鋼管、銅、黃銅和熱塑性管道。這種設計還提供了一種減振器，使關節能夠在中等振動下站立起來。Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing. Parker's Hi-Duty fittings are preassembled with the sleeve machined onto the nut. During assembly the sleeve breaks away from the nut and seals on the tubing. This unique design creates tight joints that withstand pressures of most commonly used types of tubing including seamless steel tubing, copper, brass and thermoplastic tubing. This design also provides a vibration dampener which enables joints to stand up under moderate vibration.

Brass flareless tube fitting, Hi-Duty

市場：
- 移動
- 工業
- 潤滑
- 農業

特性/優點：
- 全黃銅結構
- 無需擴口、焊接或其他管材準備
- 一體式螺母和套管可減少安裝時間
- 與銅、無縫鋼和熱塑性管材一起使用
- 鋼管必須按照標準冷拔和退火無縫低碳SAE J524 最大硬度為洛氏 B65

應用：
- 發動機
- 機油管路
- 潤滑管路
- 冷卻液管路
- 加工廠
- 實驗室設備

Markets:
- Mobile
- Industrial
- Lubrication
- Agriculture

Features/Benefits:
- All brass construction
- No flaring, soldering or other tube preparation
- One piece nut and sleeve reduces installation time
- Use with copper, seamless steel and thermoplastic tubing
- Steel tubing must be cold drawn and annealed seamless low-carbon per SAE J524 with a maximum hardness of Rockwell B65

Applications:
- Engines
- Oil lines
- Lubrication lines
- Coolant lines
- Process plants
- Laboratory equipment

Custom configurations and sizes are available upon request. Contact us for additional information.

Technical Specifications

Brass flareless tube fitting, Hi-Duty型號
