Parker Fittings接頭 - Flare Fittings

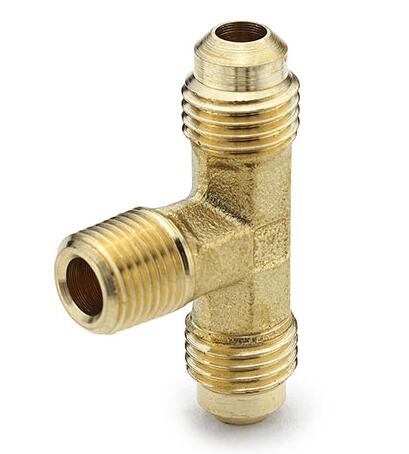

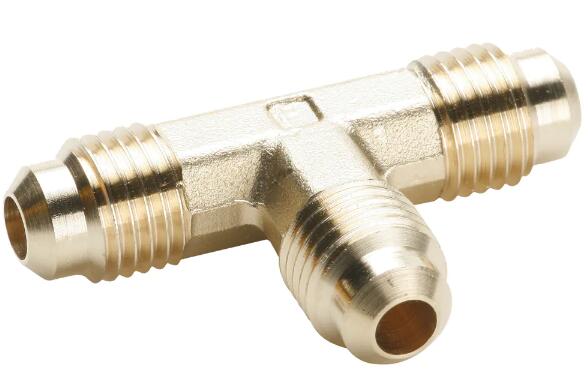

Brass 45° Flare Fittings Parker 派克黃銅 45° 擴口接頭
黃銅 45° 擴口配件 | #144F-10

抗機械拔出的全黃銅 45° 喇叭形接頭。符合 SAE J512 和 J513 的功能要求。Parker 的 45° 擴口接頭適用于金屬對金屬密封，經濟實惠，專為高壓服務而設計，具有出色的機械拉出阻力。與夾在螺母和閥體之間的管子上的喇叭口連接的積極性質使其具有極高的可靠性和安全性。對于不需要或不切實際使用明火的焊料接頭，擴口接頭是合適的替代品。配件可用于制冷應用的鍛件。配件滿足 SAE J512 和 J513 的功能要求。Parker 的 45° 擴口接頭易于調整，并為用戶提供連接到我們最受歡迎的軟管和管道產品的靈活性。派克的火炬接頭是金屬對金屬密封的經濟選擇，是制冷劑管線、丙烷、燃料、適配器和天然氣等應用的理想選擇。

Brass 45° Flare Fittings - Brass 45° Flare Fittings Parker 派克黃銅 45° 擴口接頭

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513. parker's 45° flare fittings are economical for a metal-to-metal seal that are designed for high pressure service and have exceptional resistance to mechanical pull out. The positive nature of the connection with the flare on the tube clamped between the nut and the body makes for extreme dependability and safety. Flare fittings are appropriate alternatives for solder type joints where an open flame is either not desired or impractical. Fittings are available in forgings for refrigeration applications. Fittings meet functional requirements of SAE J512 and J513.

市場：
- 制冷
- 重型卡車
- 移動
- 工業
- 供暖
- 空調

特性/優點：
- 全黃銅結構
- 用于制冷應用的鍛造螺母
- 用于振動的長螺母
- UL 列出的易燃液體
- SAE J512 和 SAE J513 的功能要求
- 經濟
- 金屬對金屬密封
- 與銅、黃銅、可擴口的鋁制和焊接鋼制液壓管

應用：
- 制冷劑管線
- 丙烷管線
- 燃料
- 天然氣
- 燃油燃燒器
- 適配器

可根據要求提供定制配置和尺寸。聯系我們獲取更多信息。

Markets:
- Refrigeration
- Heavy Duty Truck
- Mobile
- Industrial
- Heating
- Air conditioning

Features/Benefits:
- All brass construction
- Forged nuts for refrigeration applications
- Long nuts for vibration
- U.L. listed for flammable liquids
- Functional requirements of SAE J512 & SAE J513
- Economical
- Metal-to-metal seal
- Use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared.

Applications:
- Refrigerant lines
- Propane lines
- Fuels
- Natural Gas
- Oil burners
- Adapters

Custom configurations and sizes are available upon request. Contact us for additional information.

Technical Specifications

Brass 45° Flare Fittings型號
