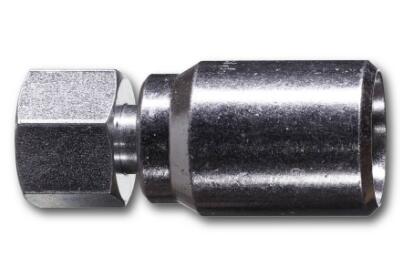

Crimped Thermoplastic UHP Hose Fittings, BL Series
Parker High Pressure BL Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards. Suitable for waterblast hose types with working pressure from 120 up to 160 MPa.
Parker Polyflex High Pressure BL Fittings are designed to perfectly match Parker High and Ultra High Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Crimped Thermoplastic UHP Hose Fittings, BL Series
Markets:
- Construction machinery
- Industrial
- Mining
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- High pressure service for construction and shipbuilding industries
- Industrial cleaning
- Hydraulic applications in mining environment
- Suitable for waterplast hose types with working pressure from 120 up to 160 MPa (17.400 up to 23.200 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
DN10, 12, 20 |
| Hose I.D. (size): |
-6, -8, -12 |
| Hose Inside Diameter: |
3/8, 1/2, 3/4 inch |
| Connection Type: |
NPT, BSP, UNF, Metric, ACME, ACME - 2G |
| Length: |
80, 90, 98, 68, 71, 82, 77, 84, 97, 267, 275, 250, 241, 290, 286, 265 mm, 3,1, 3,5, 3,9, 2,7, 2,8, 3,2, 3, 3,3, 3,8, 10,5, 10,8, 9,8, 9,5, 11,4, 11,3, 10,4 inch |
| Maximum Operating Pressure: |
23200, 20300, 17400, 10000, 15000 psi |
| Shape: |
Straight |
| Product Style: |
National Pipe Tapered (NPT) male, BSP female swivel (60° cone), Type ?M? female swivel, Metric female swivel heavy series with O-ring, NPT Male fitting, API flange, swivel, API Hub, 1502 Hammerlug union male, 1502 Hammerlug union male, segmented, 2202 Ham |
Crimped Thermoplastic UHP Hose Fittings, BL Series 型號
| Part |
Maximum Working Pressure (MPa) |
Hose I.D. (mm) |
Fitting Type |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Material |
| 101BL-12-12 |
120 |
19 |
1 |
3/4 |
NA |
Carbon steel, zinc plated |
| 101BL-32-32 |
69 |
NA |
1 |
2" |
NA |
Stainless steel |
| 101BL-6-06 |
160 |
9.5 |
1 |
3/8 |
NA |
Carbon steel, zinc plated |
| 101BL-6-06ZE |
160 |
9.5 |
1 |
3/8 |
NA |
Carbon steel, zinc plated; ZE: Carbon steel, special plating for high corrosion protection in mining applications |
| 101BL-8-08 |
140 |
12.7 |
1 |
1/2 |
NA |
Carbon steel, zinc plated |
| 101BL-8-08C |
140 |
12.7 |
1 |
1/2 |
NA |
Stainless steel |
| 101BL-8-08ZE |
140 |
12.7 |
1 |
1/2 |
NA |
Carbon steel, zinc plated; ZE: Carbon steel, special plating for high corrosion protection in mining applications |
| 18KBL-33-32-API17DSV-10K |
69 |
NA |
8K |
NA |
NA |
Stainless steel |
| 192BL-16-12 |
120 |
19 |
92 |
1 |
NA |
Carbon steel, zinc plated |
| 192BL-6-06 |
160 |
9.5 |
92 |
3/8 |
NA |
Carbon steel, zinc plated |
| 192BL-8-08 |
140 |
12.7 |
92 |
1/2 |
NA |
Carbon steel, zinc plated |
| 192BL-8-08C |
140 |
12.7 |
92 |
1/2 |
NA |
Stainless steel |
| 1AYBL-11-06 |
160 |
9.5 |
AY |
1-12 |
NA |
Carbon steel, zinc plated |
| 1AYBL-11-08 |
140 |
12.7 |
AY |
1-12 |
NA |
Carbon steel, zinc plated |
| 1AYBL-11-08C |
140 |
12.7 |
AY |
1-12 |
NA |
Stainless steel |
| 1C9BL-14-06 |
160 |
9.5 |
C9 |
NA |
22x1.5 |
Carbon steel, zinc plated |
| 1C9BL-14-08 |
140 |
12.7 |
C9 |
NA |
22x1.5 |
Carbon steel, zinc plated |
| 1C9BL-16-06 |
160 |
9.5 |
C9 |
NA |
24x1.5 |
Carbon steel, zinc plated |
| 1C9BL-16-08 |
140 |
12.7 |
C9 |
NA |
24x1.5 |
Carbon steel, zinc plated |
| 1C9BL-16-08C |
140 |
12.7 |
C9 |
NA |
24x1.5 |
Stainless steel |
| 1C9BL-25-12 |
120 |
19 |
C9 |
NA |
36x2.0 |
Carbon steel, zinc plated |
| 1HEBL-32-32-FLAT |
103.5 |
NA |
HE |
4 1/8?-3 |
NA |
Stainless steel |
| 1HEBL-32-32-SEG |
103.5 |
NA |
HE |
4 1/8" - 3 |
NA |
Stainless steel |
| 1HNBL-32-32 |
103.5 |
NA |
HN |
4 1/8?-3 |
NA |
Stainless steel |
|
