Ball Valves High Pressure Series

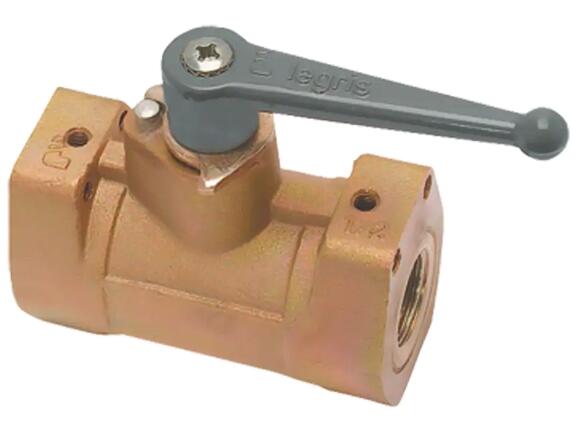

Ball Valves High Pressure Series | #4402 07 13
球閥高壓系列| #4402 07 13

這些閥門適用于壓力高達 300 bar 的應用。高性能材料和優質制造允許廣泛的操作壓力和溫度。這些閥門適用于壓力高達 300 bar 的應用。高性能材料和優質制造允許廣泛的操作壓力和溫度。

特性/優點：

- 高壓和安全

- 低壓和高壓下的良好密封
- 堅固的設計，具有安全、不可拆卸的入口和出口
- 鍛造黃銅在嚴苛的使用條件下提供出色的長期強度
- 100% 泄漏測試在生產中
- 日期編碼以保證質量和可追溯性

- 易于使用

- 用于穿隔板安裝的固定螺釘
- 杠桿可以重新定位或用手輪替換
- 低操作扭矩

市場：

- 車輛裝配設施
- 初級金屬精煉和加工
- 服裝
- 發電設備

應用：

- 允許/停止高壓應用的壓縮空氣循環
- 適用于真空應用
- 深海潛水

技術：

- 工業閥門
- 高壓閥門
- 高壓球閥
- 壓力調節閥
- 高壓設備
- 調節閥
- 氣動球閥
- 氣動閥

技術特性：

- 流體：壓縮空氣
- 材料：zamak、PTFE、處理鋼、拋光黃銅、NBR、重鉻酸鹽處理的鍍鋅黃銅、不銹鋼、無硅
- 壓力：真空至 300 巴
- 溫度：-15°C 至 +80°C

法規：

- DI：97/23/EC（模塊 PED A - 直徑大于 25 毫米）
- DI：2006/42/EC（機械指令）
- DI：2002/95/EC (RoHS)
- RG：1907/2006 (REACH)

產品類型：

- 2/2 直插式高壓球閥，BSPP 內螺紋

These valves are suitable for applications with pressures up to 300 bar. High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures. These valves are suitable for applications with pressures up to 300 bar. High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.

Features/Benefits:

- High Pressure & Safety

- Good sealing at low and high pressure
- Robust design with secure, non-removable inlet and outlet ports
- Forged brass providing excellent long-term strength under severe conditions of use
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

- Easy-to-Use

- Fixing screws for through-bulkhead mounting
- The lever may be repositioned or replaced with a handwheel
- Low operating torque

Markets:

- Vehicle Assembly Facilities
- Primary Metal Refining and Processing
- Wearing Apparel
- Power Generation Equipment

Applications:

- Allow/Stop Compressed Air Circulation for High Pressure Applications
- Suitable for Vacuum Applications
- Deep-Sea Diving

Technologies:

- Industrial valve
- High pressure valve
- High pressure ball valve
- Pressure regulator valve
- High pressure equipment
- Regulating valve
- Pneumatic ball valve
- Pneumatic valve

Technical Characteristics:

- Fluids: Compressed air
- Materials: zamak, PTFE, treated steel, polished brass, NBR, dichromate-treated zinc-plated brass, stainless steel, silicone free
- Pressure: Vacuum to 300 bar
- Temperature: -15°C to +80°C

Regulations:

- DI: 97/23/EC (module PED A - diameters greater than 25 mm)
- DI: 2006/42/EC (Machinery Directive)
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)

Product Types:

- 2/2 In-Line High Pressure Ball Valve, Female BSPP Thread

Technical Specifications
