Compression Fittings

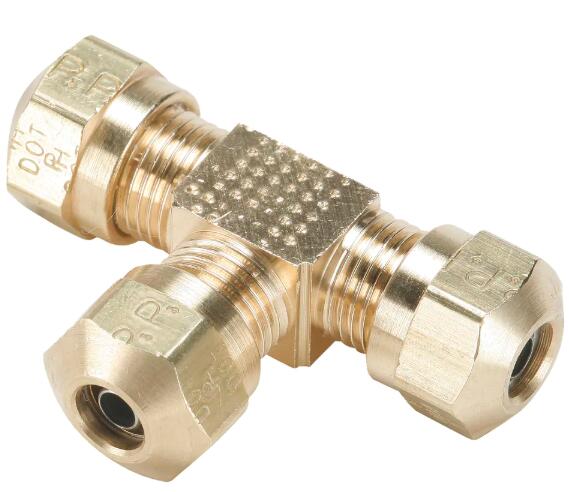

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
Being the world's leader in leak free technologies Parker's NTA fittings utilize a ribbed sleeve for compression and positive grip. NTA fittings meet SAE J246, SAE J1131 and D.O.T. FMVSS571.106 specifications. NTA fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
- 1120 Nylon Air Brake Tubing
- 1320 Quantum Elastomeric Air Brake Tubing
Markets:
- Heavy duty truck
- Trailer
- Mobile
Features/Benefits:
- D.O.T. compression style fittings for repairing truck and trailer air brake lines
- For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
- Ribbed sleeve for compression and positive grip
- Stainless Steel tube support
- Meets D.O.T. FMVSS 571.106, SAE J246 and SAE J1131
- Electroless nickel plated bodies can be used with bio-diesel
- All brass air brake fitting
- Use with J844 type A & B nylon tubing in air brake systems
- Pre-applied thread sealant
Applications:
- Air brakes
- Air tanks
- Air ride
- Sliders
- Tire inflation
- Primary & secondary air lines
- Cab controls
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Application: |
Air Brakes, Air Brake, Air Ride, Sliders, Tire Inflation, Primary/Secondary Air Lines and Cab Controls |
| Connection Type: |
Compression, Thread, Insert and Flare |
| Shape: |
Various |
| Minimum Operating Temperature: |
-40 °F, -40 °C |
| Maximum Operating Temperature: |
200 °F, 93 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Tube Material: |
SAE J844 Type A & B Nylon Tubing, Stainless Steel |
| Materials of Construction: |
Brass |
| Nut Material: |
Brass |
| Sleeve Material: |
Brass |
| Thread Sealant Material: |
Vibra-Seal 516 |
| Specifications Met: |
DOT FMVSS 571.106, SAE J1131, SAE J246 |
Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA型號
| Part |
Shape |
Style |
Connection 1 Tube O.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Style |
Connection 3 Thread Size (inch) |
Connection 3 Style |
| 264NTA-10 |
Tee |
Tube to Tube |
5/8 |
Compression |
na |
5/8 |
Compression |
na |
na |
| 264NTA-4 |
Tee |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
na |
na |
| 264NTA-6 |
Tee |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
na |
na |
| 264NTA-8 |
Tee |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
na |
na |
| 265NTA-10 |
90° Elbow |
Tube to Tube |
5/8 |
Compression |
na |
5/8 |
Compression |
na |
na |
| 265NTA-4 |
90° Elbow |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
na |
na |
| 265NTA-6 |
90° Elbow |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
na |
na |
| 265NTA-8 |
90° Elbow |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
na |
na |
| 270NTA-10-8 |
90° Elbow |
Tube to Female Pipe |
5/8 |
Compression |
1/2 |
na |
Female Pipe |
na |
na |
| 270NTA-3-2 |
90° Elbow |
Tube to Female Pipe |
3/16 |
Compression |
1/8 |
na |
Female Pipe |
na |
na |
| 270NTA-4-2 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Compression |
1/8 |
na |
Female Pipe |
na |
na |
| 270NTA-4-4 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Compression |
1/4 |
na |
Female Pipe |
na |
na |
| 270NTA-6-2 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Compression |
1/8 |
na |
Female Pipe |
na |
na |
| 270NTA-6-4 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Compression |
1/4 |
na |
Female Pipe |
na |
na |
| 270NTA-6-6 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Compression |
3/8 |
na |
Female Pipe |
na |
na |
| 270NTA-8-6 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Compression |
3/8 |
na |
Female Pipe |
na |
na |
| 270NTA-8-8 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Compression |
1/2 |
na |
Female Pipe |
na |
na |
| 60NTA-10 |
Sleeve |
Tube |
5/8 |
Compression |
na |
na |
na |
na |
na |
| 60NTA-12 |
Sleeve |
Tube |
3/4 |
Compression |
na |
na |
na |
na |
na |
| 60NTA-3 |
Sleeve |
Tube |
3/16 |
Compression |
na |
na |
na |
na |
na |
| 60NTA-4 |
Sleeve |
Tube |
1/4 |
Compression |
na |
na |
na |
na |
na |
| 60NTA-6 |
Sleeve |
Tube |
3/8 |
Compression |
na |
na |
na |
na |
na |
| 60NTA-8 |
Sleeve |
Tube |
1/2 |
Compression |
na |
na |
na |
na |
na |
| 61NTA-10 |
Nut |
Tube |
5/8 |
Compression |
na |
na |
na |
na |
na |
| 61NTA-12 |
Nut |
Tube |
3/4 |
Compression |
na |
na |
na |
na |
na |
| 61NTA-3 |
Nut |
Tube |
3/16 |
Compression |
na |
na |
na |
na |
na |
| 61NTA-4 |
Nut |
Tube |
1/4 |
Compression |
na |
na |
na |
na |
na |
| 61NTA-6 |
Nut |
Tube |
3/8 |
Compression |
na |
na |
na |
na |
na |
| 61NTA-8 |
Nut |
Tube |
1/2 |
Compression |
na |
na |
na |
na |
na |
| 62ANBH-4 |
Bulkhead |
NTA Tube to AB Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
na |
na |
| 62ANBH-6 |
Bulkhead |
NTA Tube to AB Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
na |
na |
| 62ANBH-8 |
Bulkhead |
NTA Tube to AB Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
na |
na |
| 62NBH-10 |
Bulkhead |
Tube to Tube |
5/8 |
Compression |
na |
5/8 |
Compression |
na |
na |
| 62NBH-3 |
Bulkhead |
Tube to Tube |
3/16 |
Compression |
na |
3/16 |
Compression |
na |
na |
| 62NBH-4 |
Bulkhead |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
na |
na |
| 62NBH-6 |
Bulkhead |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
na |
na |
| 62NBH-8 |
Bulkhead |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
na |
na |
| 62NFBH-10 |
Bulkhead |
Tube to Flare |
5/8 |
Compression |
na |
5/8 |
45 Flare |
na |
na |
| 62NFBH-10-8 |
Bulkhead |
Tube to Flare |
5/8 |
Compression |
na |
1/2 |
45 Flare |
na |
na |
| 62NFBH-4 |
Bulkhead |
Tube to Flare |
1/4 |
Compression |
na |
1/4 |
45 Flare |
na |
na |
| 62NFBH-6 |
Bulkhead |
Tube to Flare |
3/8 |
Compression |
na |
3/8 |
45 Flare |
na |
na |
| 62NFBH-8 |
Bulkhead |
Tube to Flare |
1/2 |
Compression |
na |
1/2 |
45 Flare |
na |
na |
| 62NTA-10 |
Union |
Tube to Tube |
5/8 |
Compression |
na |
5/8 |
Compression |
na |
na |
| 62NTA-12 |
Union |
Tube to Tube |
3/4 |
Compression |
na |
3/4 |
Compression |
na |
na |
| 62NTA-4 |
Union |
Tube to Tube |
1/4 |
Compression |
na |
1/4 |
Compression |
na |
na |
| 62NTA-6 |
Union |
Tube to Tube |
3/8 |
Compression |
na |
3/8 |
Compression |
na |
na |
| 62NTA-8 |
Union |
Tube to Tube |
1/2 |
Compression |
na |
1/2 |
Compression |
na |
na |
| 63NTA-10 |
Tube support |
Tube |
5/8 |
Insert |
na |
na |
na |
na |
na |
| 63NTA-12 |
Tube support |
Tube |
3/4 |
Insert |
na |
na |
na |
na |
na |
| 63NTA-4 |
Tube support |
Tube |
1/4 |
Insert |
na |
na |
na |
na |
na |
| 63NTA-6 |
Tube support |
Tube |
3/8 |
Insert |
na |
na |
na |
na |
na |
| 63NTA-8 |
Tube support |
Tube |
1/2 |
Insert |
na |
na |
na |
na |
na |
| 66NBH-8-6 |
Bulkhead |
Tube to Female Pipe |
1/2 |
Compression |
3/8 |
na |
Female Pipe |
na |
na |
| 66NTA-10-6 |
Connector |
Tube to Female Pipe |
5/8 |
Compression |
3/8 |
na |
Female Pipe |
na |
na |
| 66NTA-10-8 |
Connector |
Tube to Female Pipe |
5/8 |
Compression |
1/2 |
na |
Female Pipe |
na |
na |
| 66NTA-4-2 |
Connector |
Tube to Female Pipe |
1/4 |
Compression |
1/8 |
na |
Female Pipe |
na |
na |
| 66NTA-4-4 |
Connector |
Tube to Female Pipe |
1/4 |
Compression |
1/4 |
na |
Female Pipe |
na |
na |
| 66NTA-6-2 |
Connector |
Tube to Female Pipe |
3/8 |
Compression |
1/8 |
na |
Female Pipe |
na |
na |
| 66NTA-6-4 |
Connector |
Tube to Female Pipe |
3/8 |
Compression |
1/4 |
na |
Female Pipe |
na |
na |
| 66NTA-6-6 |
Connector |
Tube to Female Pipe |
3/8 |
Compression |
3/8 |
na |
Female Pipe |
na |
na |
| 66NTA-8-6 |
Connector |
Tube to Female Pipe |
1/2 |
Compression |
3/8 |
na |
Female Pipe |
na |
na |
| 66NTA-8-8 |
Connector |
Tube to Female Pipe |
1/2 |
Compression |
1/2 |
na |
Female Pipe |
na |
na |
| VS176NTA-4-2 |
Adapter Tee |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
1/8 |
Female Pipe |
| VS269NTA-10-12 |
90° Elbow |
Tube to Pipe |
5/8 |
Compression |
3/4 |
na |
Male Pipe |
na |
na |
| VS269NTA-10-6 |
90° Elbow |
Tube to Pipe |
5/8 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS269NTA-10-8 |
90° Elbow |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS269NTA-12-12 |
90° Elbow |
Tube to Pipe |
3/4 |
Compression |
3/4 |
na |
Male Pipe |
na |
na |
| VS269NTA-12-8 |
90° Elbow |
Tube to Pipe |
3/4 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS269NTA-3-2 |
90° Elbow |
Tube to Pipe |
3/16 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS269NTA-3-4 |
90° Elbow |
Tube to Pipe |
3/16 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS269NTA-4-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS269NTA-4-4 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS269NTA-4-6 |
90° Elbow |
Tube to Pipe |
1/4 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS269NTA-6-2 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS269NTA-6-4 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS269NTA-6-6 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS269NTA-6-8 |
90° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS269NTA-8-4 |
90° Elbow |
Tube to Pipe |
1/2 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS269NTA-8-6 |
90° Elbow |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS269NTA-8-8 |
90° Elbow |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS271NTA-10-8 |
Run Tee |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS271NTA-4-2 |
Run Tee |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS271NTA-4-4 |
Run Tee |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS271NTA-6-4 |
Run Tee |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS271NTA-6-6 |
Run Tee |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS271NTA-8-6 |
Run Tee |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS271NTA-8-8 |
Run Tee |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS272NTA-10-8 |
Branch Tee |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS272NTA-3-2 |
Branch Tee |
Tube to Pipe |
3/16 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS272NTA-4-2 |
Branch Tee |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS272NTA-4-4 |
Branch Tee |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS272NTA-6-2 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS272NTA-6-4 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS272NTA-6-4-4 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Compression |
1/4 |
Male Pipe |
| VS272NTA-6-6 |
Branch Tee |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS272NTA-8-4 |
Branch Tee |
Tube to Pipe |
1/2 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS272NTA-8-6 |
Branch Tee |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS272NTA-8-8 |
Branch Tee |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS279NTA-10-6 |
45° Elbow |
Tube to Pipe |
5/8 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS279NTA-10-8 |
45° Elbow |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS279NTA-12-8 |
45° Elbow |
Tube to Pipe |
3/4 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS279NTA-4-2 |
45° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS279NTA-4-4 |
45° Elbow |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS279NTA-6-2 |
45° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS279NTA-6-4 |
45° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS279NTA-6-6 |
45° Elbow |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS279NTA-6-8 |
45° Elbow |
Tube to Pipe |
3/8 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS279NTA-8-4 |
45° Elbow |
Tube to Pipe |
1/2 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS279NTA-8-6 |
45° Elbow |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS279NTA-8-8 |
45° Elbow |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS68NTA-10-6 |
Connector |
Tube to Pipe |
5/8 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS68NTA-10-8 |
Connector |
Tube to Pipe |
5/8 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS68NTA-12-12 |
Connector |
Tube to Pipe |
3/4 |
Compression |
3/4 |
na |
Male Pipe |
na |
na |
| VS68NTA-12-6 |
Connector |
Tube to Pipe |
3/4 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS68NTA-12-8 |
Connector |
Tube to Pipe |
3/4 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS68NTA-3-1 |
Connector |
Tube to Pipe |
3/16 |
Compression |
1/16 |
na |
Male Pipe |
na |
na |
| VS68NTA-3-2 |
Connector |
Tube to Pipe |
3/16 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS68NTA-3-4 |
Connector |
Tube to Pipe |
3/16 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS68NTA-4-2 |
Connector |
Tube to Pipe |
1/4 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS68NTA-4-4 |
Connector |
Tube to Pipe |
1/4 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS68NTA-4-6 |
Connector |
Tube to Pipe |
1/4 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS68NTA-6-2 |
Connector |
Tube to Pipe |
3/8 |
Compression |
1/8 |
na |
Male Pipe |
na |
na |
| VS68NTA-6-4 |
Connector |
Tube to Pipe |
3/8 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS68NTA-6-6 |
Connector |
Tube to Pipe |
3/8 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS68NTA-6-8 |
Connector |
Tube to Pipe |
3/8 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
| VS68NTA-8-4 |
Connector |
Tube to Pipe |
1/2 |
Compression |
1/4 |
na |
Male Pipe |
na |
na |
| VS68NTA-8-6 |
Connector |
Tube to Pipe |
1/2 |
Compression |
3/8 |
na |
Male Pipe |
na |
na |
| VS68NTA-8-8 |
Connector |
Tube to Pipe |
1/2 |
Compression |
1/2 |
na |
Male Pipe |
na |
na |
|
fcg.cnmec@parkerdistribution.com.cn
