派克PTC空氣制動DOT復合材料和黃銅按鈕連接件
Parker Fittings接頭 -
Pneumatic Fittings

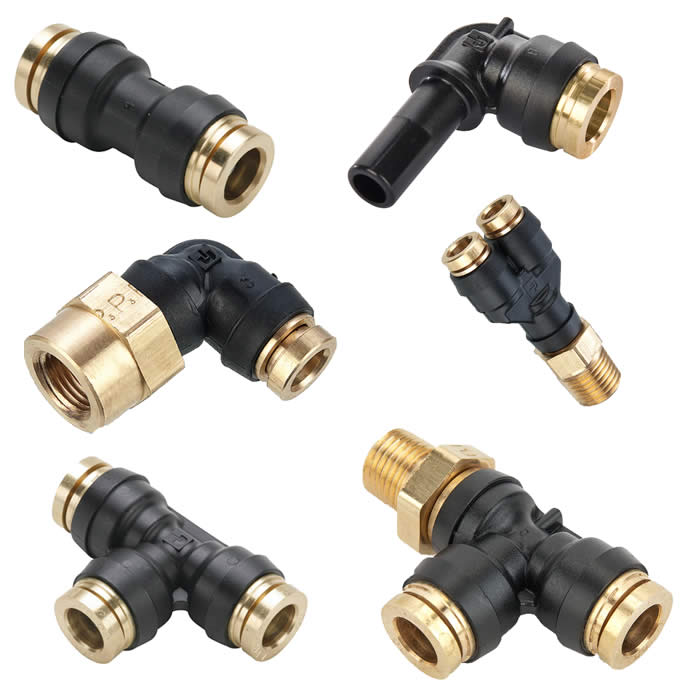

Air Brake D.O.T. composite push-to-connect fittings, PTC
派克的PTC接頭是一種即插即用的接頭，提供復合材料和黃銅兩種材料，符合DOT和SAE規范。推入式連接件與壓縮式連接件相比，減少了組裝時間。Parker's PTC fitting is a composite push-to-connect air brake fitting that meets D.O.T. and SAE specifications and reduces assembly time versus compression style fittings. Being the world's leader in leak-resistant connection technologies Parker's PTC D.O.T. fitting is a composite push-to-connect air brake fitting that meets SAE and D.O.T. specifications. Engineered to meet the demands of all truck/trailer, mobile and rail systems worldwide, Parker's quick connect push-in air fittings reduce assembly time versus compression style fittings by 90%. The composite body is strong, lightweight and impact resistant. The innovative collet design ensures positive grip on the tubing, and the rigid stainless-steel tube support stays in place for ease of proper assembly.
Air Brake D.O.T. composite push-to-connect fittings, PTC
Use with the following Parker Parflex Division tubing.
- SAE J844 Type A & B Tubing
Markets:
- Heavy duty truck
- Trailer
- Mobile
- Rail
Features and Benefits:
- D.O.T. quick connect push-in fittings for repairing truck and trailer air brake lines
- For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm machinery implements
- Use in secondary air applications such as pneumatic doors for rail, air seats, shock absorbers and in cab instruments
- Meets performance requirements of D.O.T. FMVSS 571.106, SAE J1131 and SAE J2494-3
- Stainless-steel tube support assures maximum flow and performance requirements of SAE J2494-3
- Composite body - strong, lightweight, compact and impact resistant
- Composite body can be rotated after assembly to align shaped fittings for proper orientation
- All threads per SAE J476
- PTC fittings reduce assembly time over compression style fittings by 90%
- Quick connect push-in fitting for leak-resistant proof tube connections
- D.O.T. approved air brake fitting for servicing nylon brake and secondary air lines
- Quick connecting push-in fittings for servicing work by fleets, repair shops and farm machinery implement dealers
Applications:
- Air brakes
- Air tanks
- Air ride
- Sliders
- Tire inflation
- Primary & secondary air lines
- Cab controls
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Application: |
Air Brakes, Air Brake, Air Ride, Sliders, Tire Inflation, Primary/Secondary Air Lines and Cab Controls |
| Connection Type: |
Push-to-Connect, Thread and Plug-In, NPTF |
| Shape: |
Various |
| Materials of Construction: |
Composite |
| Minimum Operating Temperature: |
-40 °F, -40 °C |
| Maximum Operating Temperature: |
200 °F, 93 °C |
| Maximum Operating Pressure: |
250 psi, 17 bar |
| Tube Material: |
J844 Type A & B Nylon Tubing, Stainless Steel |
| Collet Material: |
Brass |
| O-Ring Material: |
Buna N |
| Specifications Met: |
DOT FMVSS 571.106, SAE J1131, SAE J2494-3 |
Air Brake D.O.T. composite push-to-connect fittings, PTC 型號
| Part |
Shape |
Style |
Connection 1 Tube O.D. (inch) |
Connection 1 Style |
Connection 2 Tube O.D. (inch) |
Connection 2 Thread Size (inch) |
Connection 2 Thread Size (mm) |
Connection 2 Style |
Connection 3 Tube O.D. (inch) |
Connection 3 Style |
Sealant Option |
| 24M-4-4 |
Manifold |
Tube to Tube |
2020/1/4 |
Push-to-Connect |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 32PTC-10 |
Union |
Tube to Tube |
2020/5/8 |
Push-to-Connect |
5/8 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 32PTC-12 |
Union |
Tube to Tube |
2020/3/4 |
Push-to-Connect |
3/4 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 32PTC-4 |
Union |
Tube to Tube |
2020/1/4 |
Push-to-Connect |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 32PTC-6 |
Union |
Tube to Tube |
2020/3/8 |
Push-to-Connect |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 32PTC-8 |
Union |
Tube to Tube |
2020/1/2 |
Push-to-Connect |
1/2 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 362PTC-4 |
Union Y |
Tube to Tube |
2020/1/4 |
Push-to-Connect |
1/4 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 362PTC-6 |
Union Y |
Tube to Tube |
2020/3/8 |
Push-to-Connect |
3/8 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 362PTC-8 |
Union Y |
Tube to Tube |
2020/1/2 |
Push-to-Connect |
1/2 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 364PTC-10 |
Tee |
Tube to Tube |
2020/5/8 |
Push-to-Connect |
5/8 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 364PTC-4 |
Tee |
Tube to Tube |
1/4 |
Push-to-Connect |
2020/1/4 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 364PTC-6 |
Tee |
Tube to Tube |
3/8 |
Push-to-Connect |
2020/3/8 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 364PTC-6-6-4 |
Union Tee |
Tube to Tube |
2020/3/8 |
Push-to-Connect |
2020/3/8 |
na |
na |
Push-to-Connect |
1/4 |
Push-to-Connect |
None |
| 364PTC-8 |
Tee |
Tube to Tube |
2020/1/2 |
Push-to-Connect |
2020/1/2 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 365PTC-6 |
90° Elbow |
Tube to Tube |
2020/3/8 |
Push-to-Connect |
2020/3/8 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 365PTC-8 |
90° Elbow |
Tube to Tube |
2020/1/2 |
Push-to-Connect |
2020/1/2 |
na |
na |
Push-to-Connect |
na |
na |
None |
| 368PTC-4-2 |
Y Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 368PTC-4-4 |
Y Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 368PTC-6-4 |
Y Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-10-6 |
90° Elbow |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-10-8 |
90° Elbow |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-12-12 |
90° Elbow |
Tube to Pipe |
3/4 |
Push-to-Connect |
na |
3/4 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-12-8 |
90° Elbow |
Tube to Pipe |
3/4 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-4-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-4-4 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-4-6 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-6-2 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-6-4 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-6-6 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-6-8 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-8-4 |
90° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-8-6 |
90° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTC-8-8 |
90° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-10-6 |
90° Elbow |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-10-8 |
90° Elbow |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-12-8 |
90° Elbow |
Tube to Pipe |
3/4 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-4-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-4-4 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-4-6 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-6-2 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-6-4 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-6-6 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-6-8 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-8-4 |
90° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-8-6 |
90° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 369PTCR-8-8 |
90° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 369PTCSP-10-8 |
Plug-in 90° Elbow |
Tube to Plug-in Stem |
5/8 |
Push-to-Connect |
1/2 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 369PTCSP-4-4 |
Plug-in 90° Elbow |
Tube to Plug-in Stem |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 369PTCSP-4-6 |
Plug-in 90° Elbow |
Tube to Plug-in Stem |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 369PTCSP-6-4 |
Plug-in 90° Elbow |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 369PTCSP-6-6 |
Plug-in 90° Elbow |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 369PTCSP-6-8 |
Plug-in 90° Elbow |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
1/2 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 369PTCSP-8-4 |
Plug-in 90° Elbow |
Tube to Plug-in Stem |
1/2 |
Push-to-Connect |
1/4 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 369PTCSP-8-8 |
Plug-in 90° Elbow |
Tube to Plug-in Stem |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 370PTC-4-2 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Female Pipe |
na |
na |
None |
| 370PTC-4-4 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Female Pipe |
na |
na |
None |
| 370PTC-6-2 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
Female Pipe |
na |
na |
None |
| 370PTC-6-4 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Female Pipe |
na |
na |
None |
| 370PTC-6-6 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Female Pipe |
na |
na |
None |
| 370PTC-8-6 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Female Pipe |
na |
na |
None |
| 370PTC-8-8 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Female Pipe |
na |
na |
None |
| 370PTCR-4-2 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Female Pipe |
na |
na |
None |
| 370PTCR-4-4 |
90° Elbow |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Female Pipe |
na |
na |
None |
| 370PTCR-6-2 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
Female Pipe |
na |
na |
None |
| 370PTCR-6-4 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Female Pipe |
na |
na |
None |
| 370PTCR-6-6 |
90° Elbow |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Female Pipe |
na |
na |
None |
| 370PTCR-8-6 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Female Pipe |
na |
na |
None |
| 370PTCR-8-8 |
90° Elbow |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Female Pipe |
na |
na |
None |
| 371PTC-10-8 |
Run Tee |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 371PTC-4-2 |
Run Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 371PTC-4-4 |
Run Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 371PTC-4-6 |
Run Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 371PTC-6-4 |
Run Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 371PTC-6-4-4 |
Run Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Push-to-Connect |
1/4 |
Male Pipe |
None |
| 371PTC-6-6 |
Run Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 371PTC-8-4 |
Run Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 371PTC-8-6 |
Run Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 371PTC-8-8 |
Run Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 371PTCR-10-8 |
Run Tee |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 371PTCR-4-2 |
Run Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 371PTCR-4-4 |
Run Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 371PTCR-6-4 |
Run Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 371PTCR-6-6 |
Run Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 371PTCR-8-4 |
Run Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 371PTCR-8-6 |
Run Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 371PTCR-8-8 |
Run Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 371PTCSP-4-4 |
Plug-in Run Tee |
Tube to Plug-in Stem |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 371PTCSP-4-6 |
Plug-in Run Tee |
Tube to Plug-in Stem |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 371PTCSP-6-4 |
Plug-in Run Tee |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 371PTCSP-6-4-6 |
Plug-in Run Tee |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Push-to-Connect |
3/8 |
Plug-in Stem |
None |
| 371PTCSP-6-6 |
Plug-in Run Tee |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 371PTCSP-8-4-8 |
Plug-in Run Tee |
Tube to Plug-in Stem |
1/2 |
Push-to-Connect |
1/4 |
na |
na |
Push-to-Connect |
1/2 |
Plug-in Stem |
None |
| 372PTC-10-8 |
Branch Tee |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-4-2 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-4-4 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-4-6 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-6-2 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-6-4 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-6-6 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-8-4 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-8-4-8 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/4 |
na |
na |
Push-to-Connect |
1/2 |
Male Pipe |
None |
| 372PTC-8-6 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTC-8-8 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-10-8 |
Branch Tee |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-4-2 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-4-4 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-6-2 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-6-4 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-6-6 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-8-4 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-8-6 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 372PTCR-8-8 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 372PTCSP-4-4 |
Plug-in Branch Tee |
Tube to Plug-in Stem |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 372PTCSP-4-6 |
Plug-in Branch Tee |
Tube to Plug-in Stem |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 372PTCSP-6-4 |
Plug-in Branch Tee |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 372PTCSP-6-6 |
Plug-in Branch Tee |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 377PTC-4-4 |
Tee |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-10-6 |
45° Elbow |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-10-8 |
45° Elbow |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-12-12 |
45° Elbow |
Tube to Pipe |
3/4 |
Push-to-Connect |
na |
3/4 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-12-8 |
45° Elbow |
Tube to Pipe |
3/4 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-4-2 |
45° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-4-4 |
45° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-4-6 |
45° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-6-2 |
45° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-6-4 |
45° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-6-6 |
45° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-6-8 |
45° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-8-4 |
45° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-8-6 |
45° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTC-8-8 |
45° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-10-6 |
45° Elbow |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-10-8 |
45° Elbow |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-12-8 |
45° Elbow |
Tube to Pipe |
3/4 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-4-2 |
45° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-4-4 |
45° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-6-2 |
45° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-6-4 |
45° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-6-6 |
45° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-6-8 |
45° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-8-4 |
45° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-8-6 |
45° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
Male Pipe |
na |
na |
None |
| 379PTCR-8-8 |
45° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Male Pipe |
na |
na |
None |
| 37PTCSP-10-8 |
Plug-in Adapter |
Tube to Plug-in Stem |
5/8 |
Push-to-Connect |
1/2 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 37PTCSP-4-6 |
Plug-in Adapter |
Tube to Plug-in Stem |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 37PTCSP-6-4 |
Plug-in Adapter |
Tube to Plug-in Stem |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Plug-in Stem |
na |
na |
None |
| 62PTC-8 |
Union |
Tube to Tube |
1/2 |
Tube |
1/2 |
na |
na |
Tube |
na |
na |
None |
| 62PTCBH-8 |
Bulkhead |
Tube to Tube |
1/2 |
Push-to-Connect |
1/8 |
na |
na |
Push-to-Connect |
na |
na |
na |
| 62PTCBHR-8 |
Retaining Ring Bulkhead |
Tube to Tube |
1/2 |
Push-to-Connect |
1/8 |
na |
na |
Push-to-Connect |
na |
na |
na |
| 66PTC-4-2 |
Connector |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
NPTF |
na |
na |
None |
| 66PTC-4-4 |
Connector |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
NPTF |
na |
na |
None |
| 66PTC-6-2 |
Connector |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
NPTF |
na |
na |
None |
| 66PTC-6-4 |
Connector |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
NPTF |
na |
na |
None |
| 66PTC-6-6 |
Connector |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
NPTF |
na |
na |
None |
| 66PTC-8-4 |
Connector |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
NPTF |
na |
na |
None |
| 66PTC-8-6 |
Connector |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
NPTF |
na |
na |
None |
| 66PTC-8-8 |
Connector |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
NPTF |
na |
na |
None |
| 66PTCBH-4-4 |
Bulkhead |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
NPTF |
na |
na |
na |
| 66PTCBH-8-8 |
Bulkhead |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
NPTF |
na |
na |
na |
| 68PTC-10-6 |
Connector |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
3/8 |
na |
NPTF |
na |
na |
None |
| 68PTC-10-8 |
Connector |
Tube to Pipe |
5/8 |
Push-to-Connect |
na |
1/2 |
na |
NPTF |
na |
na |
None |
| 68PTC-12-8 |
Connector |
Tube to Pipe |
3/4 |
Push-to-Connect |
na |
1/2 |
na |
NPTF |
na |
na |
None |
| 68PTC-4-2 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
NPTF |
na |
na |
None |
| 68PTC-4-4 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
NPTF |
na |
na |
None |
| 68PTC-4-6 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
3/8 |
na |
NPTF |
na |
na |
None |
| 68PTC-4-M12 |
Connector |
Tube to Metric Thread |
1/4 |
Push-to-Connect |
n/a |
n/a |
M12x1.5 |
Metric |
n/a |
n/a |
na |
| 68PTC-4-M16 |
Connector |
Tube to Metric Thread |
1/4 |
Push-to-Connect |
n/a |
n/a |
M16x1.5 |
Metric |
n/a |
n/a |
n/a |
| 68PTC-6-2 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/8 |
na |
NPTF |
na |
na |
None |
| 68PTC-6-4 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
NPTF |
na |
na |
None |
| 68PTC-6-6 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
NPTF |
na |
na |
None |
| 68PTC-6-8 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/2 |
na |
NPTF |
na |
na |
None |
| 68PTC-8-4 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/4 |
na |
NPTF |
na |
na |
None |
| 68PTC-8-6 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
3/8 |
na |
NPTF |
na |
na |
None |
| 68PTC-8-8 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
NPTF |
na |
na |
None |
| 68PTC-8-M12 |
Connector |
Tube to Metric Thread |
1/2 |
Push-to-Connect |
n/a |
n/a |
M12x1.5 |
Metric |
n/a |
n/a |
na |
| 68PTC-8-M16 |
Connector |
Tube to Metric Thread |
1/2 |
Push-to-Connect |
n/a |
n/a |
M16x1.5 |
Metric |
n/a |
n/a |
n/a |
| 68PTC-8-M22 |
Connector |
Tube to Metric Thread |
1/2 |
Push-to-Connect |
n/a |
n/a |
M22x1.5 |
Metric |
n/a |
n/a |
n/a |
| 68PTCBH-8-8 |
Bulkhead Male |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
NPTF |
na |
na |
na |
| VS369PTCR-4-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
Vibra-Seal |
| VS369PTCR-4-4 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
Vibra-Seal |
| VS369PTCR-6-4 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
Vibra-Seal |
| VS379PTCR-4-2 |
45° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Male Pipe |
na |
na |
Vibra-Seal |
| VS379PTCR-4-4 |
45° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Male Pipe |
na |
na |
Vibra-Seal |
| VS68PTC-4-2 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
NPTF |
na |
na |
Vibra-Seal |
| VS68PTC-4-4 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
NPTF |
na |
na |
Vibra-Seal |
| VS68PTC-4-6 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
3/8 |
na |
NPTF |
na |
na |
Vibra-Seal |
|
fcg.cnmec@parkerdistribution.com.cn
