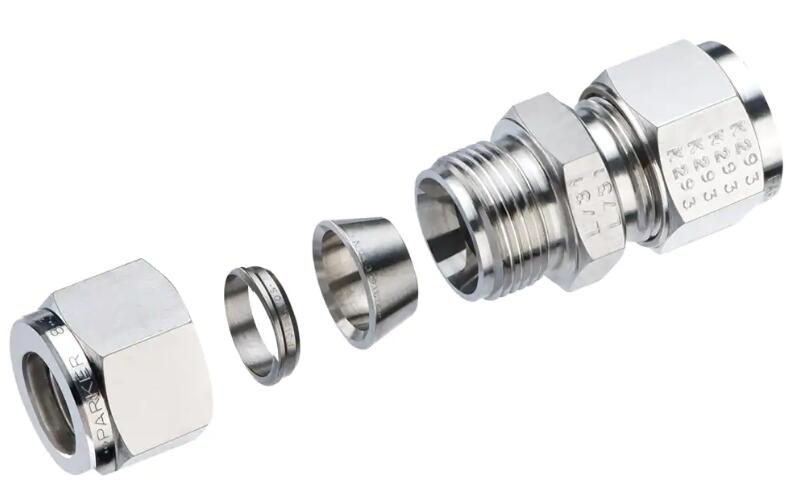

Parker派克A-LOK 系列雙卡套接頭
Parker A-LOK Series Two Ferrule Compression Fitting Tube Fitting
派克A-LOK 雙卡套接頭為過程儀表控制和工業應用等提供無泄漏的可靠連接。多種材質可選。派克的 A-LOK雙卡套接頭系列產品能夠?yàn)閮x器儀表，過程控制和分析行業等提供穩定的無泄漏密封連接。接頭嚴格按照更高質量標準制造，多種尺寸、耐腐蝕材料和結構可選。根據行業標準，派克的 A-LOK管接頭采用316不銹鋼制造，其它材質如：6Mo合金，825合金，625合金和C-276合金可選。直通接頭用冷加工工藝制造，而其他特殊形狀管件通過細晶粒鍛造工藝制成。該管接頭適用于不同規格的鋼管，英制管外徑從1/16” 到 2” ，公制管外徑從2mm到25mm。
Parker A-LOK Series Two Ferrule Compression Fitting Tube Fitting
Parker派克A-LOK 系列雙卡套接頭
美國派克Parker A-lok儀表卡套接頭特點：
- 符合行業設計標準, 適用于所有儀表級鋼管連接
- 螺母內壁經鍍銀處理, 減少咬死現象的發生
- 后卡套采用Suparcase 專利硬化技術處理, 可有效嵌入鋼管, 形成可靠的機械密封
- 雙卡套設計符合系統使用規范
市場：
- 半導體/微電子
- 化工
- 石化
- 電力
- 核能
- 油氣
- 科研機構
特征和優勢：
- 擁有廣泛的可選結構；
卡套管-外螺紋接頭
卡套管-內螺紋接頭
聯合接頭
卡套轉換接頭
37?擴口 (AN) 與 A-LOK 轉換接頭
O型圈密封管接頭
卡套管轉焊接接頭
色譜分析用接頭
軟管接頭
- 采用 Suparcase? 表面硬化處理工藝
- 硬化處理后的卡套能夠提供無泄漏連接
- 螺母內壁經鍍銀處理，減少螺紋咬死現象發生
應用：
- 蒸汽管線
- 海上井口控面板
- 傳感線路
- Parker派克A-LOK 系列雙卡套接頭
Parker A-LOK Series Two Ferrule Compression Fitting Tube Fitting
部件號 |
配件樣式 |
兼容管道尺寸 |
連接 3 螺紋尺寸（毫米） |
材料類型 |
管件尺寸 |
形狀 |
連接 1 尺寸 |
連接 2 尺寸 |
連接 3 螺紋尺寸（英寸） |
材料 |
形式 |
8BLP8-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8BLP8-825 |
|
|
|
|
1/2" |
Plug |
1/2" |
N/A |
N/A |
Alloy 825 |
Components |
8BLP8-NNR |
|
|
|
|
|
|
|
|
|
|
|
8ECR8-316 |
|
|
|
|
|
|
|
|
|
|
|
8EE8-316 |
|
|
|
|
1/2" |
Union Elbow |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
8EE8-625 |
|
|
|
|
1/2" |
Union Elbow |
1/2" |
1/2" |
N/A |
Alloy 625 |
Tube to Tube Unions |
8EE8-6MO |
|
|
|
|
1/2" |
Union Elbow |
1/2" |
1/2" |
N/A |
6Mo |
Tube to Tube Unions |
8EE8-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8EE8-825 |
|
|
|
|
1/2" |
Union Elbow |
1/2" |
1/2" |
N/A |
Alloy 825 |
Tube to Tube Unions |
8EE8-B |
|
|
|
|
1/2" |
Union Elbow |
1/2" |
1/2" |
N/A |
Brass |
Tube to Tube Unions |
8EE8-NNR |
|
|
|
|
|
|
|
|
|
|
|
8ET8-316 |
|
|
|
|
1/2" |
Union Tee |
1/2" |
1/2" |
1/2" |
316 Stainless Steel |
Tube to Tube Unions |
8ET8-625 |
|
|
|
|
1/2" |
Union Tee |
1/2" |
1/2" |
1/2" |
Alloy 625 |
Tube to Tube Unions |
8ET8-6MO |
|
|
|
|
1/2" |
Union Tee |
1/2" |
1/2" |
1/2" |
6Mo |
Tube to Tube Unions |
8ET8-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8ET8-6MONC |
|
|
|
|
|
|
|
|
|
|
|
8ET8-825 |
|
|
|
|
1/2" |
Union Tee |
1/2" |
1/2" |
1/2" |
Alloy 825 |
Tube to Tube Unions |
8ET8-B |
|
|
|
|
1/2" |
Union Tee |
1/2" |
1/2" |
1/2" |
Brass |
Tube to Tube Unions |
8ET8-NNR |
|
|
|
|
|
|
|
|
|
|
|
8FA4N-316 |
|
|
|
|
1/2" |
NPT Tube End Female Adapter |
1/2" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
8FA8N-316 |
|
|
|
|
|
|
|
|
|
|
|
8FBT8N-316 |
|
|
|
|
1/2" |
NPT Female Branch Tee |
1/2" |
1/2" |
1/2" |
316 Stainless Steel |
Tube to Female Pipe |
8FEL4N-316 |
|
|
|
|
1/2" |
NPT Female Elbow |
1/2" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
8FEL6N-316 |
|
|
|
|
|
|
|
|
|
|
|
8FEL8N-316 |
|
|
|
|
|
|
|
|
|
|
|
8FF8-316 |
|
|
|
|
1/2" |
Front Ferrule |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8FRT6N-316 |
|
|
|
|
1/2" |
NPT Female Run Tee |
1/2" |
1/2" |
3/8" |
316 Stainless Steel |
Tube to Female Pipe |
8FRT8N-316 |
|
|
|
|
1/2" |
Female Run Tee |
1/2" |
1/2" |
1/2" |
'316 Stainless Steel |
Tube to Female Pipe |
8FSC12N-316 |
|
|
|
|
1/2" |
Gauge Connector |
1/2" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
8FSC4N-316 |
|
|
|
|
|
|
|
|
|
|
|
8FSC6N-316 |
|
|
|
|
1/2" |
Gauge Connector |
1/2" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
8FSC8N-316 |
|
|
|
|
1/2" |
NPT Female Connector |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
8FSC8N-625 |
|
|
|
|
1/2" |
NPT Female Connector |
1/2" |
1/2" |
N/A |
Alloy 625 |
Tube to Female Pipe |
8FSC8N-6MO |
|
|
|
|
1/2" |
NPT Female Connector |
1/2" |
1/2" |
N/A |
6Mo |
Tube to Female Pipe |
8FSC8N-6MO-NC |
|
|
|
|
|
|
|
|
|
|
|
8FSC8N-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8FSC8N-825 |
|
|
|
|
1/2" |
NPT Female Connector |
1/2" |
1/2" |
N/A |
Alloy 825 |
Tube to Female Pipe |
8FSC8N-NNR |
|
|
|
|
|
|
|
|
|
|
|
8M1SC8-316 |
|
|
|
|
1/2" |
Tube Connector to SAE |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Port Connectors |
8M5SEL8-316 |
|
|
|
|
1/2" |
SAE Straight Thread Elbow |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to O-Ring Seal |
8MA4N-316 |
|
|
|
|
1/2" |
NPT Tube End Male Adapter |
1/2" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
8MA8N-316 |
|
|
|
|
1/2" |
NPT Tube End Male Adapter |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Port Connectors |
8MA8N-625 |
|
|
|
|
1/2" |
NPT Tube End Male Adapter |
1/2" |
1/2" |
N/A |
Alloy 625 |
Port Connectors |
8MA8N-6MO |
|
|
|
|
1/2" |
NPT Tube End Male Adapter |
1/2" |
1/2" |
N/A |
6Mo |
Port Connectors |
8MA8N-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8MA8N-825 |
|
|
|
|
1/2" |
NPT Tube End Male Adapter |
1/2" |
1/2" |
N/A |
Alloy 825 |
Port Connectors |
8MA8N-NNR |
|
|
|
|
|
|
|
|
|
|
|
8MBC8N-316 |
|
|
|
|
1/2" |
Male Bulkhead Connector |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MBT8N-316 |
|
|
|
|
1/2" |
NPT Male Branch Tee |
1/2" |
1/2" |
1/2" |
316 Stainless Steel |
Tube to Male Pipe |
8MBT8N-B |
|
|
|
|
1/2" |
NPT Male Branch Tee |
1/2" |
1/2" |
1/2" |
Brass |
Tube to Male Pipe |
-
部件號 |
配件樣式 |
兼容管道尺寸 |
連接 3 螺紋尺寸（毫米） |
材料類型 |
管件尺寸 |
形狀 |
連接 1 尺寸 |
連接 2 尺寸 |
連接 3 螺紋尺寸（英寸） |
材料 |
形式 |
8MRT8N-316 |
|
|
|
|
1/2" |
NPT Male Run Tee |
1/2" |
1/2" |
1/2" |
316 Stainless Steel |
Tube to Male Pipe |
8MRT8N-B |
|
|
|
|
1/2" |
NPT Male Run Tee |
1/2" |
1/2" |
1/2" |
Brass |
Tube to Male Pipe |
8MSC12N-316 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSC12N-625 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
3/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
8MSC12N-6MO |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
3/4" |
N/A |
6Mo |
Tube to Male Pipe |
8MSC12N-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8MSC12N-825 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
3/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
8MSC12N-NNR |
|
|
|
|
|
|
|
|
|
|
|
8MSC16N-316 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSC4N-316 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSC4N-625 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
8MSC4N-6MO |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
8MSC4N-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8MSC4N-6MONC |
|
|
|
|
|
|
|
|
|
|
|
8MSC4N-825 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
8MSC4N-B |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/4" |
N/A |
Brass |
Tube to Male Pipe |
8MSC4N-NNR |
|
|
|
|
|
|
|
|
|
|
|
8MSC6N-316 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSC6N-B |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
3/8" |
N/A |
Brass |
Tube to Male Pipe |
8MSC6N-S |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
3/8" |
N/A |
Steel |
Tube to Male Pipe |
8MSC8N-316 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSC8N-625 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/2" |
N/A |
Alloy 625 |
Tube to Male Pipe |
8MSC8N-6MO |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/2" |
N/A |
6Mo |
Tube to Male Pipe |
8MSC8N-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8MSC8N-6MONC |
|
|
|
|
|
|
|
|
|
|
|
8MSC8N-825 |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/2" |
N/A |
Alloy 825 |
Tube to Male Pipe |
8MSC8N-B |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/2" |
N/A |
Brass |
Tube to Male Pipe |
8MSC8N-NNR |
|
|
|
|
|
|
|
|
|
|
|
8MSC8N-S |
|
|
|
|
1/2" |
NPT Male Connector |
1/2" |
1/2" |
N/A |
Steel |
Tube to Male Pipe |
8MSEL12N-316 |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSEL4N-316 |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSEL4N-625 |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
8MSEL4N-6MO |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
8MSEL4N-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8MSEL4N-825 |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
8MSEL4N-NNR |
|
|
|
|
|
|
|
|
|
|
|
8MSEL6N-316 |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSEL6N-B |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
3/8" |
N/A |
Brass |
Tube to Male Pipe |
8MSEL8N-316 |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8MSEL8N-625 |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/2" |
N/A |
Alloy 625 |
Tube to Male Pipe |
8MSEL8N-6MO |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/2" |
N/A |
6Mo |
Tube to Male Pipe |
8MSEL8N-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8MSEL8N-825 |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/2" |
N/A |
Alloy 825 |
Tube to Male Pipe |
8MSEL8N-B |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/2" |
N/A |
Brass |
Tube to Male Pipe |
8MSEL8N-NNR |
|
|
|
|
|
|
|
|
|
|
|
8MSEL8N-S |
|
|
|
|
1/2" |
NPT Male Elbow |
1/2" |
1/2" |
N/A |
Steel |
Tube to Male Pipe |
8MTC8N-316 |
|
|
|
|
1/2" |
Thermocouple Connector |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
8NU8-316 |
|
|
|
|
1/2" |
Tube Nut |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8NU8-316-BP1000 |
|
|
|
|
|
|
|
|
|
|
|
8PC8-316 |
|
|
|
|
1/2" |
Port Connector |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Port Connectors |
-
部件號 |
配件樣式 |
兼容管道尺寸 |
連接 3 螺紋尺寸（毫米） |
材料類型 |
管件尺寸 |
形狀 |
連接 1 尺寸 |
連接 2 尺寸 |
連接 3 螺紋尺寸（英寸） |
材料 |
形式 |
8RU4-316 |
|
|
|
|
1/2" |
Reducing Union |
1/2" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
8RU6-316 |
|
|
|
|
1/2" |
Reducing Union |
1/2" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
8SC8-316 |
|
|
|
|
1/2" |
Union |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
8SC8-625 |
|
|
|
|
1/2" |
Union |
1/2" |
1/2" |
N/A |
Alloy 625 |
Tube to Tube Unions |
8SC8-6MO |
|
|
|
|
1/2" |
Union |
1/2" |
1/2" |
N/A |
6Mo |
Tube to Tube Unions |
8SC8-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
8SC8-6MONC |
|
|
|
|
|
|
|
|
|
|
|
8SC8-825 |
|
|
|
|
1/2" |
Union |
1/2" |
1/2" |
N/A |
Alloy 825 |
Tube to Tube Unions |
8SC8-B |
|
|
|
|
|
|
|
|
|
|
|
8SC8-NNR |
|
|
|
|
|
|
|
|
|
|
|
8TUR4-316 |
|
|
|
|
1/2" |
Tube End Reducer |
1/2" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
8TUR6-316 |
|
|
|
|
1/2" |
Tube End Reducer |
1/2" |
3/8" |
N/A |
316 Stainless Steel |
Port Connectors |
8XASC8-316 |
|
|
|
|
1/2" |
37 Flare to Compression |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
BCM10-316 |
|
|
|
|
10 mm |
Bulkhead Union |
10 mm |
10 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
BCM10-625 |
|
|
|
|
10 mm |
Bulkhead Union |
10 mm |
10 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
BCM10-6MO |
|
|
|
|
10 mm |
Bulkhead Union |
10 mm |
10 mm |
N/A |
6Mo |
Tube to Tube Unions |
BCM10-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
BCM10-825 |
|
|
|
|
10 mm |
Bulkhead Union |
10 mm |
10 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
BCM10-NNR |
|
|
|
|
|
|
|
|
|
|
|
BCM12-316 |
|
|
|
|
12 mm |
Bulkhead Union |
12 mm |
12 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
BCM12-625 |
|
|
|
|
12 mm |
Bulkhead Union |
12 mm |
12 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
BCM12-6MO |
|
|
|
|
12 mm |
Bulkhead Union |
12 mm |
12 mm |
N/A |
6Mo |
Tube to Tube Unions |
BCM12-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
BCM12-825 |
|
|
|
|
12 mm |
Bulkhead Union |
12 mm |
12 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
BCM12-NNR |
|
|
|
|
|
|
|
|
|
|
|
BCM6-316 |
|
|
|
|
6 mm |
Bulkhead Union |
6 mm |
6 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
BCM6-625 |
|
|
|
|
6 mm |
Bulkhead Union |
6 mm |
6 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
BCM6-6MO |
|
|
|
|
6 mm |
Bulkhead Union |
6 mm |
6 mm |
N/A |
6Mo |
Tube to Tube Unions |
BCM6-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
BCM6-825 |
|
|
|
|
6 mm |
Bulkhead Union |
6 mm |
6 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
BCM6-NNR |
|
|
|
|
|
|
|
|
|
|
|
EEM10-316 |
|
|
|
|
10 mm |
Union Elbow |
10 mm |
10 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
EEM10-625 |
|
|
|
|
10 mm |
Union Elbow |
10 mm |
10 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
EEM10-6MO |
|
|
|
|
10 mm |
Union Elbow |
10 mm |
10 mm |
N/A |
6Mo |
Tube to Tube Unions |
EEM10-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
EEM10-825 |
|
|
|
|
10 mm |
Union Elbow |
10 mm |
10 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
EEM10-NNR |
|
|
|
|
|
|
|
|
|
|
|
EEM12-316 |
|
|
|
|
12 mm |
Union Elbow |
12 mm |
12 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
EEM12-625 |
|
|
|
|
12 mm |
Union Elbow |
12 mm |
12 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
EEM12-6MO |
|
|
|
|
12 mm |
Union Elbow |
12 mm |
12 mm |
N/A |
6Mo |
Tube to Tube Unions |
EEM12-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
EEM12-825 |
|
|
|
|
12 mm |
Union Elbow |
12 mm |
12 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
EEM12-NNR |
|
|
|
|
|
|
|
|
|
|
|
EEM16-316 |
|
|
|
|
16 mm |
Union Elbow |
16 mm |
16 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
EEM16-625 |
|
|
|
|
16 mm |
Union Elbow |
16 mm |
16 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
EEM16-6MO |
|
|
|
|
16 mm |
Union Elbow |
16 mm |
16 mm |
N/A |
6Mo |
Tube to Tube Unions |
EEM16-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
EEM16-825 |
|
|
|
|
16 mm |
Union Elbow |
16 mm |
16 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
EEM16-NNR |
|
|
|
|
|
|
|
|
|
|
|
EEM20-316 |
|
|
|
|
20 mm |
Union Elbow |
20 mm |
20 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
-
部件號 |
配件樣式 |
兼容管道尺寸 |
連接 3 螺紋尺寸（毫米） |
材料類型 |
管件尺寸 |
形狀 |
連接 1 尺寸 |
連接 2 尺寸 |
連接 3 螺紋尺寸（英寸） |
材料 |
形式 |
EEM20-625 |
|
|
|
|
20 mm |
Union Elbow |
20 mm |
20 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
EEM20-6MO |
|
|
|
|
20 mm |
Union Elbow |
20 mm |
20 mm |
N/A |
6Mo |
Tube to Tube Unions |
EEM20-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
EEM20-825 |
|
|
|
|
20 mm |
Union Elbow |
20 mm |
20 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
EEM20-NNR |
|
|
|
|
|
|
|
|
|
|
|
EEM25-316 |
|
|
|
|
25 mm |
Union Elbow |
25 mm |
25 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
EEM25-625 |
|
|
|
|
25 mm |
Union Elbow |
25 mm |
25 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
EEM25-6MO |
|
|
|
|
25 mm |
Union Elbow |
25 mm |
25 mm |
N/A |
6Mo |
Tube to Tube Unions |
EEM25-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
EEM25-825 |
|
|
|
|
25 mm |
Union Elbow |
25 mm |
25 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
EEM25-NNR |
|
|
|
|
|
|
|
|
|
|
|
EEM28-316 |
Tube to Tube Union |
28 mm |
N/A |
316 Stainless Steel |
|
Elbow |
28 mm |
28 mm |
|
|
|
EEM30-316 |
Tube to Tube Union |
30 mm |
N/A |
316 Stainless Steel |
|
Elbow |
30 mm |
30 mm |
|
|
|
EEM32-316 |
Tube to Tube Union |
32 mm |
N/A |
316 Stainless Steel |
|
Elbow |
32 mm |
32 mm |
|
|
|
EEM6-316 |
|
|
|
|
6 mm |
Union Elbow |
6 mm |
6 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
EEM6-625 |
|
|
|
|
6 mm |
Union Elbow |
6 mm |
6 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
EEM6-6MO |
|
|
|
|
6 mm |
Union Elbow |
6 mm |
6 mm |
N/A |
6Mo |
Tube to Tube Unions |
EEM6-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
EEM6-825 |
|
|
|
|
6 mm |
Union Elbow |
6 mm |
6 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
EEM6-NNR |
|
|
|
|
|
|
|
|
|
|
|
ETM10-316 |
|
|
|
|
10 mm |
Union Tee |
10 mm |
10 mm |
10 mm |
316 Stainless Steel |
Tube to Tube Unions |
ETM10-625 |
|
|
|
|
10 mm |
Union Tee |
10 mm |
10 mm |
10 mm |
Alloy 625 |
Tube to Tube Unions |
ETM10-6MO |
|
|
|
|
10 mm |
Union Tee |
10 mm |
10 mm |
10 mm |
6Mo |
Tube to Tube Unions |
ETM10-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
ETM10-825 |
|
|
|
|
10 mm |
Union Tee |
10 mm |
10 mm |
10 mm |
Alloy 825 |
Tube to Tube Unions |
ETM10-NNR |
|
|
|
|
|
|
|
|
|
|
|
ETM12-316 |
|
|
|
|
12 mm |
Union Tee |
12 mm |
12 mm |
12 mm |
316 Stainless Steel |
Tube to Tube Unions |
ETM12-625 |
|
|
|
|
12 mm |
Union Tee |
12 mm |
12 mm |
12 mm |
Alloy 625 |
Tube to Tube Unions |
ETM12-6MO |
|
|
|
|
12 mm |
Union Tee |
12 mm |
12 mm |
12 mm |
6Mo |
Tube to Tube Unions |
ETM12-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
ETM12-825 |
|
|
|
|
12 mm |
Union Tee |
12 mm |
12 mm |
12 mm |
Alloy 825 |
Tube to Tube Unions |
ETM12-NNR |
|
|
|
|
|
|
|
|
|
|
|
ETM20-316 |
|
|
|
|
20 mm |
Union Tee |
20 mm |
20 mm |
20 mm |
316 Stainless Steel |
Tube to Tube Unions |
ETM20-625 |
|
|
|
|
20 mm |
Union Tee |
20 mm |
20 mm |
20 mm |
Alloy 625 |
Tube to Tube Unions |
ETM20-6MO |
|
|
|
|
20 mm |
Union Tee |
20 mm |
20 mm |
20 mm |
6Mo |
Tube to Tube Unions |
ETM20-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
ETM20-825 |
|
|
|
|
20 mm |
Union Tee |
20 mm |
20 mm |
20 mm |
Alloy 825 |
Tube to Tube Unions |
ETM20-NNR |
|
|
|
|
|
|
|
|
|
|
|
ETM25-316 |
|
|
|
|
25 mm |
Union Tee |
25 mm |
25 mm |
25 mm |
316 Stainless Steel |
Tube to Tube Unions |
ETM25-625 |
|
|
|
|
25 mm |
Union Tee |
25 mm |
25 mm |
25 mm |
Alloy 625 |
Tube to Tube Unions |
ETM25-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
ETM25-825 |
|
|
|
|
25 mm |
Union Tee |
25 mm |
25 mm |
25 mm |
Alloy 825 |
Tube to Tube Unions |
ETM25-NNR |
|
|
|
|
|
|
|
|
|
|
|
ETM28-316 |
Tube to Tube Union |
28 mm |
28 mm |
316 Stainless Steel |
|
Tee |
28 mm |
28 mm |
|
|
|
ETM30-316 |
Tube to Tube Union |
30 mm |
30 mm |
316 Stainless Steel |
|
Tee |
30 mm |
30 mm |
|
|
|
ETM32-316 |
Tube to Tube Union |
32 mm |
32 mm |
316 Stainless Steel |
|
Tee |
32 mm |
32 mm |
|
|
|
ETM6-316 |
|
|
|
|
6 mm |
Union Tee |
6 mm |
6 mm |
6 mm |
316 Stainless Steel |
Tube to Tube Unions |
ETM6-625 |
|
|
|
|
6 mm |
Union Tee |
6 mm |
6 mm |
6 mm |
Alloy 625 |
Tube to Tube Unions |
ETM6-6MO |
|
|
|
|
6 mm |
Union Tee |
6 mm |
6 mm |
6 mm |
6Mo |
Tube to Tube Unions |
ETM6-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
-
-
-
部件號 |
配件樣式 |
兼容管道尺寸 |
連接 3 螺紋尺寸（毫米） |
材料類型 |
管件尺寸 |
形狀 |
連接 1 尺寸 |
連接 2 尺寸 |
連接 3 螺紋尺寸（英寸） |
材料 |
形式 |
M8MSC1/4N-825 |
|
|
|
|
8 mm |
NPT Male Connector |
8 mm |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
M8MSC1/4N-NNR |
|
|
|
|
|
|
|
|
|
|
|
SCM10-316 |
|
|
|
|
10 mm |
Union |
10 mm |
10 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
SCM10-625 |
|
|
|
|
10 mm |
Union |
10 mm |
10 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
SCM10-6MO |
|
|
|
|
10 mm |
Union |
10 mm |
10 mm |
N/A |
6Mo |
Tube to Tube Unions |
SCM10-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
SCM10-825 |
|
|
|
|
10 mm |
Union |
10 mm |
10 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
SCM10-NNR |
|
|
|
|
|
|
|
|
|
|
|
SCM12-316 |
|
|
|
|
12 mm |
Union |
12 mm |
12 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
SCM12-625 |
|
|
|
|
12 mm |
Union |
12 mm |
12 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
SCM12-6MO |
|
|
|
|
12 mm |
Union |
12 mm |
12 mm |
N/A |
6Mo |
Tube to Tube Unions |
SCM12-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
SCM12-825 |
|
|
|
|
12 mm |
Union |
12 mm |
12 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
SCM12-NNR |
|
|
|
|
|
|
|
|
|
|
|
SCM20-316 |
|
|
|
|
20 mm |
Union |
20 mm |
20 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
SCM20-625 |
|
|
|
|
20 mm |
Union |
20 mm |
20 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
SCM20-6MO |
|
|
|
|
20 mm |
Union |
20 mm |
20 mm |
N/A |
6Mo |
Tube to Tube Unions |
SCM20-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
SCM20-825 |
|
|
|
|
20 mm |
Union |
20 mm |
20 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
SCM20-NNR |
|
|
|
|
|
|
|
|
|
|
|
SCM25-316 |
|
|
|
|
25 mm |
Union |
25 mm |
25 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
SCM25-625 |
|
|
|
|
25 mm |
Union |
25 mm |
25 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
SCM25-6MO |
|
|
|
|
25 mm |
Union |
25 mm |
25 mm |
N/A |
6Mo |
Tube to Tube Unions |
SCM25-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
SCM25-825 |
|
|
|
|
25 mm |
Union |
25 mm |
25 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
SCM25-NNR |
|
|
|
|
|
|
|
|
|
|
|
SCM28-316 |
Tube to Tube Union |
28 mm |
N/A |
316 Stainless Steel |
|
Straight |
28 mm |
28 mm |
|
|
|
SCM30-316 |
Tube to Tube Union |
30 mm |
N/A |
316 Stainless Steel |
|
Straight |
30 mm |
30 mm |
|
|
|
SCM32-316 |
Tube to Tube Union |
32 mm |
N/A |
316 Stainless Steel |
|
Straight |
32 mm |
32 mm |
|
|
|
SCM6-316 |
|
|
|
|
6 mm |
Union |
6 mm |
6 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
SCM6-625 |
|
|
|
|
6 mm |
Union |
6 mm |
6 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
SCM6-6MO |
|
|
|
|
6 mm |
Union |
6 mm |
6 mm |
N/A |
6Mo |
Tube to Tube Unions |
SCM6-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
SCM6-825 |
|
|
|
|
6 mm |
Union |
6 mm |
6 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
SCM6-NNR |
|
|
|
|
|
|
|
|
|
|
|
SCM8-316 |
|
|
|
|
8 mm |
Union |
8 mm |
8 mm |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
SCM8-625 |
|
|
|
|
8 mm |
Union |
8 mm |
8 mm |
N/A |
Alloy 625 |
Tube to Tube Unions |
SCM8-6MO |
|
|
|
|
8 mm |
Union |
8 mm |
8 mm |
N/A |
6Mo |
Tube to Tube Unions |
SCM8-6MO-NSK |
|
|
|
|
|
|
|
|
|
|
|
SCM8-825 |
|
|
|
|
8 mm |
Union |
8 mm |
8 mm |
N/A |
Alloy 825 |
Tube to Tube Unions |
SCM8-NNR |
|
|
|
|
|
|
|
|
|
|
|
|
fcg.cnmec@parkerdistribution.com.cn
