A-LOK系列雙卡套接頭
派克的A-LOK 兩個插芯壓縮管接頭設計用于為指定兩個插芯系統的儀器，過程和控制以及分析儀應用提供可靠的無泄漏連接。這些管件按最高質量標準制造，有各種尺寸，耐腐蝕材料和配置可供選擇。作為標準，Parker的A-LOK 管接頭由可熱編碼的316不銹鋼制成。其他材料包括6Mo，合金825，合金625和合金C-276。直配件由冷軋棒料加工而成，而成形體則由緊密的鍛件加工而成。該接頭可用于外徑為1/16英寸至外徑2英寸的英制管道，以及公制尺寸為2 mm至外徑25 mm的公制管道。派克的兩個套圈壓縮接頭A-LOK?管接頭設計用于過程儀表和工業應用中的無泄漏連接。它們提供多種材料，符合NORSOK M-650和EC79認證。Parker’s A-LOK two ferrule compression tube fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule system. Manufactured to the highest quality standards, these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.As standard, Parker’s A-LOK tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D.
Tube Fitting ,Two Ferrule Compression Fitting - A-LOK Series free pdf catalog
派克A-LOK系列雙卡套接頭 parker雙卡套接頭
雙卡套接頭-A-LOK 系列參數及介紹
雙卡套接頭-A-LOK系列
派克A-LOK雙卡套接頭為過程儀表控制和工業應用等提供無泄漏的可靠連接。多種材質可選。派克的A-LOK雙卡套接頭系列產品能夠為儀器儀表，過程控制和分析行業等提供可靠的無泄漏密封連接。接頭嚴格按照zui高質量標準制造，多種尺寸、耐腐蝕材料和結構可選。根據行業標準，派克的A-LOK管接頭采用316不銹鋼制造，其它材質如：6Mo合金，825合金，625合金和C-276合金可選。直通接頭用冷加工工藝制造，而其他特殊形狀管件通過細晶粒鍛造工藝制成。

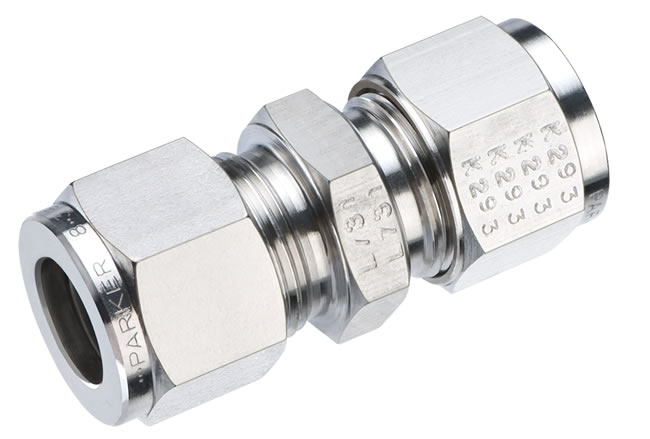

派克A-LOK系列雙卡套接頭
產品詳情
品牌：派克parke
型號：派克A-LOK系列雙卡套接頭
類型：A-LOK系列雙卡套接頭
材質：不銹鋼
連接形式：卡套式
雙卡套接頭-A-LOK系列
形狀:NPT外螺紋接頭，聯合接頭，三通聯合接頭，NPT外螺紋彎頭，直角管接頭，穿板接頭，NPT內螺紋接頭，NPT外螺紋管端接頭，BSPP外螺紋直通接頭，封口，37°擴口接頭，堵頭，BSPP表接頭，NPT直管外螺紋三通接頭，BSPP外螺紋直通接頭（帶ED密封）
連接1尺寸:3/4",1",1/8",3/8",1/2",3/8",1/16",1/4",6mm,12mm,1/2",10mm,5/8",3/4",1/4",20mm,8mm,5/16",25mm,16mm
連接2尺寸:3/4",1",1/8",3/8",1/2",3/8",N/A,1/4",1/2",10mm,12mm,6mm,1/4",5/8",3/4",1/16",5/16",20mm,25mm,8mm,16mm
連接3螺紋尺寸(in):N/A,3/8",1/2",1/4",3/4",1/4",3/4",1",3/8",1/2",10mm,12mm,20mm,25mm,6mm,8mm,5/8",5/16"
材料:316不銹鋼，6Mo合金，825合金，625合金，C-276合金
卡套管-外螺紋接頭，聯合接頭，接管接頭，卡套管-內螺紋接頭，卡套管轉換接頭，備件，37°擴口（AN）與A-LOK接頭，卡套管焊接接頭
派克雙卡套接頭parker儀表解決方案/美國派克儀表商
派克A-LOK?系列雙卡套接頭/parker雙卡套接頭
A-LOK?系列 - 雙金屬箍儀表管接頭（可達15000 psi）
簡介：
派克的A-LOK?雙金屬箍接頭為發電行業帶來優勢。派克A-LOK接頭可提供主動、可靠的連接，這已經通過全面性測試，并且憑借四十多年的制造經驗，派克使A-LOK 成為儀表級管道的行業標準。
現成的不銹鋼A-LOK 接頭上帶有加熱編碼，實現了可追蹤性，適用于核電站以及其他關鍵應用。
特點和優勢：
- 儀表級雙金屬箍管連接的工業標準
- 鍍銀螺紋減少磨損
- 使用Suparcase?的后金屬箍防止晶間腐蝕，實現出色的密封并延長保質期
- 適用于各種管材和管壁厚度
用途：
- 工廠儀表控制臺
- 連續排放監控(CEMS)
- 蒸汽排放管線
- 變送器連接
雙卡套接頭-A-LOK系列
市場：
- 半導體/微電子
- 化工
- 石油化工
- 運輸
- 電力
- 核能
- 石油和天然氣
- 研究實驗室
功能/優點：
- 多種多樣的配置樣式；
管對公管管
對母管管
對管接頭
端口接頭
37?喇叭形（AN）至A-LOK
管對O型圈密封
管對焊接 系統分析
配件
帶刺配件
- 多種耐腐蝕合金可選
- EC79批準用于氫氣服務
- 派克Suparcase?表面處理工藝可實現出色的材料硬化
- 硬化的密封墊圈提供無泄漏的連接
- 鍍銀螺母可在化妝時提供抗膽性
應用范圍：
- 儀表連接系統
- 分析裝置
- 天然氣/液化天然氣管線
- 氫氣服務
- 海上控制面板
- 傳感管線
- Tube Fitting ,Two Ferrule Compression Fitting - A-LOK Series
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
10EE10-316 |
5/8" |
Union Elbow |
5/8" |
5/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
10ET10-316 |
5/8" |
Union Tee |
5/8" |
5/8" |
5/8" |
316 Stainless Steel |
Tube to Tube Unions |
10FBT8N-316 |
5/8" |
NPT Female Branch Tee |
5/8" |
5/8" |
1/2" |
316 Stainless Steel |
Tube to Female Pipe |
10FSC8N-316 |
5/8 |
NPT Male Connector |
|
|
|
316 Stainless Steel |
Tube to Male Pipe |
10MSC12N-316 |
5/8" |
NPT Male Connector |
5/8" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
10MSC8N-316 |
5/8" |
NPT Male Connector |
5/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
10MSC8N-B |
5/8" |
NPT Male Connector |
5/8" |
1/2" |
N/A |
Brass |
Tube to Male Pipe |
10MSEL8N-316 |
|
|
|
|
|
|
|
10MSEL8N-B |
5/8" |
NPT Male Elbow |
5/8" |
1/2" |
N/A |
Brass |
Tube to Male Pipe |
10NU10-B |
5/8" |
Tube Nut |
5/8" |
N/A |
N/A |
Brass |
Components |
10SC10-316 |
5/8" |
Union |
5/8" |
5/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12-12-6 JLZ-SS |
3/4" |
Drop Size Tee |
3/4" |
3/4" |
3/8" |
316 Stainless Steel |
Tube to Tube Unions |
12-12-8 JLZ-SS |
3/4" |
Drop Size Tee |
3/4" |
3/4" |
1/2" |
316 Stainless Steel |
Tube to Tube Unions |
12BC12-316 |
3/4" |
Bulkhead Union |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12BLEN12-316 |
3/4" |
Cap |
3/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
12BLP12-316 |
|
|
|
|
|
|
|
12ECR12-316 |
3/4" |
Union Cross |
3/4" |
N/A |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12EE12-316 |
3/4" |
Union Elbow |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12EE12-625 |
3/4" |
Union Elbow |
3/4" |
3/4" |
N/A |
Alloy 625 |
Tube to Tube Unions |
12EE12-6MO |
3/4" |
Union Elbow |
3/4" |
3/4" |
N/A |
6Mo |
Tube to Tube Unions |
12EE12-6MO-NSK |
|
|
|
|
|
|
|
12EE12-825 |
3/4" |
Union Elbow |
3/4" |
3/4" |
N/A |
Alloy 825 |
Tube to Tube Unions |
12EE12-NNR |
|
|
|
|
|
|
|
12ET12-316 |
3/4" |
Union Tee |
3/4" |
3/4" |
3/4" |
316 Stainless Steel |
Tube to Tube Unions |
12ET12-625 |
3/4" |
Union Tee |
3/4" |
3/4" |
3/4" |
Alloy 625 |
Tube to Tube Unions |
12ET12-6MO |
3/4" |
Union Tee |
3/4" |
3/4" |
3/4" |
6Mo |
Tube to Tube Unions |
12ET12-6MO-NSK |
|
|
|
|
|
|
|
12ET12-825 |
3/4" |
Union Tee |
3/4" |
3/4" |
3/4" |
Alloy 825 |
Tube to Tube Unions |
12ET12-NNR |
|
|
|
|
|
|
|
12FBT12N-316 |
3/4" |
NPT Female Branch Tee |
3/4" |
3/4" |
3/4" |
316 Stainless Steel |
Tube to Female Pipe |
12FEL12N-316 |
3/4" |
NPT Female Elbow |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
12FEL8N-316 |
3/4" |
NPT Female Elbow |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
12FSC12N-316 |
3/4" |
Gauge Connector |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
12FSC8N-316 |
3/4" |
Gauge Connector |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
12M5SEL12-316 |
3/4" |
SAE Straight Thread Elbow |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to O-Ring Seal |
12MA12N-316 |
3/4" |
NPT Tube End Male Adapter |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Port Connectors |
12MRT12N-316 |
3/4" |
NPT Male Run Tee |
3/4" |
3/4" |
3/4" |
316 Stainless Steel |
Tube to Male Pipe |
12MSC12N-316 |
3/4" |
NPT Male Connector |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
12MSC12N-625 |
3/4" |
NPT Male Connector |
3/4" |
3/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
12MSC12N-6MO |
3/4" |
NPT Male Connector |
3/4" |
3/4" |
N/A |
6Mo |
Tube to Male Pipe |
12MSC12N-6MO-NSK |
|
|
|
|
|
|
|
12MSC12N-825 |
3/4" |
NPT Male Connector |
3/4" |
3/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
12MSC12N-NNR |
|
|
|
|
|
|
|
12MSC16N-316 |
3/4" |
NPT Male Connector |
3/4" |
1" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
12MSC8N-316 |
|
|
|
|
|
|
|
12MSEL12N-316 |
3/4" |
NPT Male Elbow |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
12MSEL8N-316 |
3/4" |
NPT Male Elbow |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
12NU12-316 |
3/4" |
Tube Nut |
3/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
12PC12-316 |
3/4" |
Port Connector |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Port Connectors |
12RU8-316 |
3/4" |
Reducing Union |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
12SC12-316 |
3/4" |
Union |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
12SC12-625 |
3/4" |
Union |
3/4" |
3/4" |
N/A |
Alloy 625 |
Tube to Tube Unions |
12SC12-6MO |
3/4" |
Union |
3/4" |
3/4" |
N/A |
6Mo |
Tube to Tube Unions |
12SC12-6MO-NSK |
|
|
|
|
|
|
|
12SC12-825 |
3/4" |
Union |
3/4" |
3/4" |
N/A |
Alloy 825 |
Tube to Tube Unions |
12SC12-NNR |
|
|
|
|
|
|
|
12TUR8-316 |
3/4" |
Tube End Reducer |
3/4" |
1/2" |
N/A |
316 Stainless Steel |
Port Connectors |
12XASC12-316 |
3/4" |
37 Flare to Compression |
3/4" |
3/4" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
16-1 ZHLW2-6MO |
1" |
Socket Weld Connector |
1" |
1" |
N/A |
6Mo |
Tube to Welded Systems |
16-1 ZHLW2-6MO-NSK |
|
|
|
|
|
|
|
16BC16-316 |
1" |
Bulkhead Union |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
16BLEN16-316 |
1" |
Cap |
1" |
N/A |
N/A |
316 Stainless Steel |
Components |
16EE16-316 |
1" |
Union Elbow |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
16EE16-625 |
1" |
Union Elbow |
1" |
1" |
N/A |
Alloy 625 |
Tube to Tube Unions |
16EE16-6MO |
1" |
Union Elbow |
1" |
1" |
N/A |
6Mo |
Tube to Tube Unions |
16EE16-6MO-NSK |
|
|
|
|
|
|
|
16EE16-825 |
1" |
Union Elbow |
1" |
1" |
N/A |
Alloy 825 |
Tube to Tube Unions |
16EE16-NNR |
|
|
|
|
|
|
|
16ET16-316 |
1" |
Union Tee |
1" |
1" |
1" |
316 Stainless Steel |
Tube to Tube Unions |
16ET16-625 |
1" |
Union Tee |
1" |
1" |
1" |
Alloy 625 |
Tube to Tube Unions |
16ET16-6MO |
1" |
Union Tee |
1" |
1" |
1" |
6Mo |
Tube to Tube Unions |
16ET16-6MO-NSK |
|
|
|
|
|
|
|
16ET16-825 |
1" |
Union Tee |
1" |
1" |
1" |
Alloy 825 |
Tube to Tube Unions |
16ET16-NNR |
|
|
|
|
|
|
|
16ET16-S |
1" |
Union Tee |
1" |
1" |
1" |
Steel |
Tube to Tube Unions |
16FSC16N-316 |
1" |
NPT Female Connector |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
16FSC16N-625 |
1" |
NPT Female Connector |
1" |
1" |
N/A |
Alloy 625 |
Tube to Female Pipe |
16FSC16N-6MO |
1" |
NPT Female Connector |
1" |
1" |
N/A |
6Mo |
Tube to Female Pipe |
16FSC16N-6MO-NSK |
|
|
|
|
|
|
|
16FSC16N-825 |
1" |
NPT Female Connector |
1" |
1" |
N/A |
Alloy 825 |
Tube to Female Pipe |
16FSC16N-NNR |
|
|
|
|
|
|
|
16M1SC16-316 |
1" |
Tube Connector to SAE |
1" |
1" |
N/A |
316 Stainless Steel |
Port Connectors |
16MA16N-316 |
1" |
NPT Tube End Male Adapter |
1" |
1" |
N/A |
316 Stainless Steel |
Port Connectors |
16MSC12N-316 |
1" |
NPT Male Connector |
1" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
16MSC16N-316 |
1" |
NPT Male Connector |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
16MSC16N-625 |
1" |
NPT Male Connector |
1" |
1" |
N/A |
Alloy 625 |
Tube to Male Pipe |
16MSC16N-6MO |
1" |
NPT Male Connector |
1" |
1" |
N/A |
6Mo |
Tube to Male Pipe |
16MSC16N-6MO-NSK |
|
|
|
|
|
|
|
16MSC16N-825 |
1" |
NPT Male Connector |
1" |
1" |
N/A |
Alloy 825 |
Tube to Male Pipe |
16MSC16N-NNR |
|
|
|
|
|
|
|
16MSC16N-S |
1" |
NPT Male Connector |
1" |
1" |
N/A |
Steel |
Tube to Male Pipe |
16MSEL16N-316 |
1" |
NPT Male Elbow |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
16MSEL16N-625 |
1" |
NPT Male Elbow |
1" |
1" |
N/A |
Alloy 625 |
Tube to Male Pipe |
16MSEL16N-6MO |
1" |
NPT Male Elbow |
1" |
1" |
N/A |
6Mo |
Tube to Male Pipe |
16MSEL16N-6MO-NSK |
|
|
|
|
|
|
|
16MSEL16N-825 |
1" |
NPT Male Elbow |
1" |
1" |
N/A |
Alloy 825 |
Tube to Male Pipe |
16MSEL16N-NNR |
|
|
|
|
|
|
|
16NU16-316 |
1" |
Tube Nut |
1" |
N/A |
N/A |
316 Stainless Steel |
Components |
16RU12-316 |
1" |
Reducing Union |
1" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
16RU8-316 |
1" |
Reducing Union |
1" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
16SC16-316 |
1" |
Union |
1" |
1" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
16SC16-625 |
1" |
Union |
1" |
1" |
N/A |
Alloy 625 |
Tube to Tube Unions |
16SC16-6MO |
1" |
Union |
1" |
1" |
N/A |
6Mo |
Tube to Tube Unions |
16SC16-6MO-NSK |
|
|
|
|
|
|
|
16SC16-825 |
1" |
Union |
1" |
1" |
N/A |
Alloy 825 |
Tube to Tube Unions |
16SC16-NNR |
|
|
|
|
|
|
|
16XASC16-316 |
1" |
37 Flare to Compression |
1" |
1" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
1BF1-316 |
1/16" |
Back Ferrule |
1/16" |
N/A |
N/A |
316 Stainless Steel |
Components |
1FF1-316 |
1/16" |
Front Ferrule |
1/16" |
N/A |
N/A |
316 Stainless Steel |
Components |
1MSC1N-316 |
1/16" |
NPT Male Connector |
1/16" |
1/16" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
1MSC2N-316 |
1/16" |
NPT Male Connector |
1/16" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
1SC1-316 |
1/16" |
Union |
1/16" |
1/16" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2BC2-316 |
1/8" |
Bulkhead Union |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2BF2-316 |
1/8" |
Back Ferrule |
1/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
2BLP2-316 |
|
|
|
|
|
|
|
2ECR2-316 |
1/8" |
Union Cross |
1/8" |
N/A |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2ET2-316 |
|
|
|
|
|
|
|
2FF2-316 |
1/8" |
Front Ferrule |
1/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
2FSC4N-316 |
1/8" |
Gauge Connector |
1/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
2MSC1N-316 |
1/8" |
NPT Male Connector |
1/8" |
1/16" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MSC2N-316 |
1/8" |
NPT Male Connector |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MSC2N-B |
1/8" |
NPT Male Connector |
1/8" |
1/8" |
N/A |
Brass |
Tube to Male Pipe |
2MSC4N-316 |
1/8" |
NPT Male Connector |
1/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MSEL2N-316 |
1/8" |
NPT Male Elbow |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MSEL4N-316 |
|
|
|
|
|
|
|
2MTC2N-316 |
1/8" |
Thermocouple Connector |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2MTC4N-316 |
1/8" |
Thermocouple Connector |
1/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
2NU2-316 |
1/8" |
Tube Nut |
1/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
2RU1-316 |
1/8" |
Reducing Union |
1/8" |
1/16" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2SC2-316 |
1/8" |
Union |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
2TUR1-316 |
1/8" |
Tube End Reducer |
1/8" |
1/16" |
N/A |
316 Stainless Steel |
Port Connectors |
2TUR4-316 |
1/8" |
Tube End Reducer |
1/8" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
2XASC2-316 |
1/8" |
37 Flare to Compression |
1/8" |
1/8" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
3MSC2N-316 |
|
|
|
|
|
|
|
4BC4-316 |
1/4" |
Bulkhead Union |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
4BC4-B |
1/4" |
Bulkhead Union |
1/4" |
1/4" |
N/A |
Brass |
Tube to Tube Unions |
4BF4-316 |
1/4" |
Back Ferrule |
1/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
4BLEN4-316 |
1/4" |
Cap |
1/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
4BLP4-316 |
|
|
|
|
|
|
|
4ECR4-316 |
|
|
|
|
|
|
|
4EE4-316 |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
4EE4-625 |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
Alloy 625 |
Tube to Tube Unions |
4EE4-6MO |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
6Mo |
Tube to Tube Unions |
4EE4-6MO-NSK |
|
|
|
|
|
|
|
4EE4-825 |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
Alloy 825 |
Tube to Tube Unions |
4EE4-B |
1/4" |
Union Elbow |
1/4" |
1/4" |
N/A |
Brass |
Tube to Tube Unions |
4EE4-NNR |
|
|
|
|
|
|
|
4ET4-316 |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Tube Unions |
4ET4-625 |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
Alloy 625 |
Tube to Tube Unions |
4ET4-6MO |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
6Mo |
Tube to Tube Unions |
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
4ET4-6MO-NSK |
|
|
|
|
|
|
|
4ET4-825 |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
Alloy 825 |
Tube to Tube Unions |
4ET4-B |
1/4" |
Union Tee |
1/4" |
1/4" |
1/4" |
Brass |
Tube to Tube Unions |
4ET4-NNR |
|
|
|
|
|
|
|
4FA4N-316 |
1/4" |
NPT Tube End Female Adapter |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
4FBC4N-316 |
1/4" |
Female Bulkhead Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FBT4N-316 |
1/4" |
NPT Female Branch Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Female Pipe |
4FEL2N-316 |
1/4" |
NPT Female Elbow |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FEL2N-B |
1/4" |
NPT Female Elbow |
1/4" |
1/8" |
N/A |
Brass |
Tube to Female Pipe |
4FEL4N-316 |
1/4" |
NPT Female Elbow |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FEL8N-316 |
1/4" |
NPT Female Elbow |
1/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FF4-316 |
1/4" |
Front Ferrule |
1/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
4FF4-B |
1/4" |
Front Ferrule |
1/4" |
N/A |
N/A |
Brass |
Components |
4FRT4N-316 |
1/4" |
NPT Female Run Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Female Pipe |
4FSC2N-316 |
1/4" |
NPT Female Connector |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FSC4N-316 |
|
|
|
|
|
|
|
4FSC6N-316 |
1/4" |
NPT Female Connector |
1/4" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4FSC6N-B |
1/4" |
NPT Female Connector |
1/4" |
3/8" |
N/A |
Brass |
Tube to Female Pipe |
4FSC8N-316 |
1/4" |
NPT Female Connector |
1/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
4M1SC4-316 |
1/4" |
Tube Connector to SAE |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
4M5SEL4-316 |
1/4" |
SAE Straight Thread Elbow |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to O-Ring Seal |
4MA2N-316 |
1/4" |
NPT Tube End Male Adapter |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Port Connectors |
4MA4N-316 |
1/4" |
NPT Tube End Male Adapter |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
4MBC2N-316 |
1/4" |
Male Bulkhead Connector |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MBC4N-316 |
1/4" |
Male Bulkhead Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MBT2N-316 |
|
|
|
|
|
|
|
4MBT4N-316 |
1/4" |
NPT Male Branch Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Male Pipe |
4MRT4N-316 |
1/4" |
NPT Male Run Tee |
1/4" |
1/4" |
1/4" |
316 Stainless Steel |
Tube to Male Pipe |
4MRT4N-625 |
1/4" |
NPT Male Run Tee |
1/4" |
1/4" |
1/4" |
Alloy 625 |
Tube to Male Pipe |
4MRT4N-6MO |
1/4" |
NPT Male Run Tee |
1/4" |
1/4" |
1/4" |
6Mo |
Tube to Male Pipe |
4MRT4N-6MO-NSK |
|
|
|
|
|
|
|
4MRT4N-825 |
1/4" |
NPT Male Run Tee |
1/4" |
1/4" |
1/4" |
Alloy 825 |
Tube to Male Pipe |
4MRT4N-NNR |
|
|
|
|
|
|
|
4MSC2N-316 |
1/4" |
NPT Male Connector |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSC2N-B |
1/4" |
NPT Male Connector |
1/4" |
1/8" |
N/A |
Brass |
Tube to Male Pipe |
4MSC4N-316 |
1/4" |
NPT Male Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSC4N-625 |
1/4" |
NPT Male Connector |
1/4" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
4MSC4N-6MO |
1/4" |
NPT Male Connector |
1/4" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
4MSC4N-6MO-NSK |
|
|
|
|
|
|
|
4MSC4N-825 |
1/4" |
NPT Male Connector |
1/4" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
4MSC4N-B |
|
|
|
|
|
|
|
4MSC4N-NNR |
|
|
|
|
|
|
|
4MSC6N-316 |
|
|
|
|
|
|
|
4MSC6N-B |
|
|
|
|
|
|
|
4MSC8N-316 |
1/4" |
NPT Male Connector |
1/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSC8N-625 |
1/4" |
NPT Male Connector |
1/4" |
1/2" |
N/A |
Alloy 625 |
Tube to Male Pipe |
4MSC8N-6MO |
1/4" |
NPT Male Connector |
1/4" |
1/2" |
N/A |
6Mo |
Tube to Male Pipe |
4MSC8N-6MO-NSK |
|
|
|
|
|
|
|
4MSC8N-825 |
1/4" |
NPT Male Connector |
1/4" |
1/2" |
N/A |
Alloy 825 |
Tube to Male Pipe |
4MSC8N-NNR |
|
|
|
|
|
|
|
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
4MSEL2N-316 |
|
|
|
|
|
|
|
4MSEL2N-B |
1/4" |
NPT Male Elbow |
1/4" |
1/8" |
N/A |
Brass |
Tube to Male Pipe |
4MSEL4N-316 |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSEL4N-625 |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
4MSEL4N-6MO |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
4MSEL4N-6MO-NSK |
|
|
|
|
|
|
|
4MSEL4N-825 |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
4MSEL4N-B |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
Brass |
Tube to Male Pipe |
4MSEL4N-NNR |
|
|
|
|
|
|
|
4MSEL4N-S |
1/4" |
NPT Male Elbow |
1/4" |
1/4" |
N/A |
Steel |
Tube to Male Pipe |
4MSEL6N-316 |
1/4" |
NPT Male Elbow |
1/4" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MSEL8N-316 |
1/4" |
NPT Male Elbow |
1/4" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4MTC8N-316 |
1/4" |
Thermocouple Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
4NU4-316 |
1/4" |
Tube Nut |
1/4" |
N/A |
N/A |
316 Stainless Steel |
Components |
4PC4-316 |
1/4" |
Port Connector |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
4RU2-316 |
1/4" |
Reducing Union |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
4SC4-316 |
1/4" |
Union |
1/4" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
4SC4-625 |
1/4" |
Union |
1/4" |
1/4" |
N/A |
Alloy 625 |
Tube to Tube Unions |
4SC4-6MO-NSK |
|
|
|
|
|
|
|
4SC4-825 |
1/4" |
Union |
1/4" |
1/4" |
N/A |
Alloy 825 |
Tube to Tube Unions |
4SC4-B |
1/4" |
Union |
1/4" |
1/4" |
N/A |
Brass |
Tube to Tube Unions |
4SC4-NNR |
|
|
|
|
|
|
|
4TUR2-316 |
1/4" |
Tube End Reducer |
1/4" |
1/8" |
N/A |
316 Stainless Steel |
Port Connectors |
5ET5-B |
5/16" |
Union Tee |
5/16" |
5/16" |
5/16" |
Brass |
Tube to Tube Unions |
5MSC4N-316 |
|
|
|
|
|
|
|
5MSEL4N-316 |
5/16" |
NPT Male Elbow |
5/16" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6-6-4 JLZ-SS |
3/8" |
Drop Size Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Tube Unions |
6BC6-316 |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6BC6-625 |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
Alloy 625 |
Tube to Tube Unions |
6BC6-6MO |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
6Mo |
Tube to Tube Unions |
6BC6-6MO-NSK |
|
|
|
|
|
|
|
6BC6-825 |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
Alloy 825 |
Tube to Tube Unions |
6BC6-B |
3/8" |
Bulkhead Union |
3/8" |
3/8" |
N/A |
Brass |
Tube to Tube Unions |
6BC6-NNR |
|
|
|
|
|
|
|
6BF6-316 |
3/8" |
Back Ferrule |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
6BLEN6-316 |
3/8" |
Cap |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
6BLP6-316 |
|
|
|
|
|
|
|
6ECR6-316 |
3/8" |
Union Cross |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6EE6-316 |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6EE6-625 |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
Alloy 625 |
Tube to Tube Unions |
6EE6-6MO |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
6Mo |
Tube to Tube Unions |
6EE6-6MO-NSK |
|
|
|
|
|
|
|
6EE6-825 |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
Alloy 825 |
Tube to Tube Unions |
6EE6-B |
3/8" |
Union Elbow |
3/8" |
3/8" |
N/A |
Brass |
Tube to Tube Unions |
6EE6-NNR |
|
|
|
|
|
|
|
6ET6-316 |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
316 Stainless Steel |
Tube to Tube |
6ET6-625 |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
Alloy 625 |
Tube to Tube |
6ET6-6MO |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
6Mo |
Tube to Tube |
6ET6-6MO-NSK |
|
|
|
|
|
|
|
6ET6-825 |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
Alloy 825 |
Tube to Tube |
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
6ET6-B |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
Brass |
Tube to Tube Unions |
6ET6-NNR |
|
|
|
|
|
|
|
6ET6-S |
3/8" |
Union Tee |
3/8" |
3/8" |
3/8" |
Steel |
Tube to Tube Unions |
6FBT4N-316 |
3/8" |
NPT Female Branch Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Female Pipe |
6FEL4N-316 |
3/8" |
NPT Female Elbow |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
6FEL8N-316 |
3/8" |
NPT Female Elbow |
3/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
6FF6-316 |
3/8" |
Front Ferrule |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
6FRT4N-316 |
3/8" |
NPT Female Run Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Female Pipe |
6FSC4N-316 |
|
|
|
|
|
|
|
6FSC6N-316 |
|
|
|
|
|
|
|
6FSC8N-316 |
3/8" |
Gauge Connector |
3/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Female Pipe |
6M1SC6-316 |
3/8" |
Tube Connector to SAE |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Port Connectors |
6M5SEL6-316 |
3/8" |
SAE Straight Thread Elbow |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to O-Ring Seal |
6MBT4N-316 |
3/8" |
NPT Male Branch Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Male Pipe |
6MBT6N-316 |
3/8" |
NPT Male Branch Tee |
3/8" |
3/8" |
3/8" |
316 Stainless Steel |
Tube to Male Pipe |
6MRT4N-316 |
3/8" |
NPT Male Run Tee |
3/8" |
3/8" |
1/4" |
316 Stainless Steel |
Tube to Male Pipe |
6MSC12N-316 |
3/8" |
NPT Male Connector |
3/8" |
3/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC2N-316 |
3/8" |
NPT Male Connector |
3/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC4N-316 |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC4N-625 |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSC4N-6MO |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
6MSC4N-6MO-NSK |
|
|
|
|
|
|
|
6MSC4N-825 |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSC4N-B |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
Brass |
Tube to Male Pipe |
6MSC4N-NNR |
|
|
|
|
|
|
|
6MSC4N-S |
3/8" |
NPT Male Connector |
3/8" |
1/4" |
N/A |
Steel |
Tube to Male Pipe |
6MSC6N-316 |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC6N-625 |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSC6N-6MO |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
6Mo |
Tube to Male Pipe |
6MSC6N-6MO-NSK |
|
|
|
|
|
|
|
6MSC6N-825 |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSC6N-B |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
Brass |
Tube to Male Pipe |
6MSC6N-NNR |
3/8" |
NPT Male Connector |
3/8" |
3/8" |
N/A |
Alloy C-276 |
Tube to Male Pipe |
6MSC8N-316 |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSC8N-625 |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSC8N-6MO |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
6Mo |
Tube to Male Pipe |
6MSC8N-6MO-NSK |
|
|
|
|
|
|
|
6MSC8N-825 |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSC8N-B |
3/8" |
NPT Male Connector |
3/8" |
1/2" |
N/A |
Brass |
Tube to Male Pipe |
6MSC8N-NNR |
|
|
|
|
|
|
|
6MSEL2N-316 |
3/8" |
NPT Male Elbow |
3/8" |
1/8" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSEL4N-316 |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSEL4N-625 |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSEL4N-6MO |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
6Mo |
Tube to Male Pipe |
6MSEL4N-6MO-NSK |
|
|
|
|
|
|
|
6MSEL4N-825 |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSEL4N-B |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
Brass |
Tube to Male Pipe |
6MSEL4N-NNR |
|
|
|
|
|
|
|
6MSEL4N-S |
3/8" |
NPT Male Elbow |
3/8" |
1/4" |
N/A |
Steel |
Tube to Male Pipe |
6MSEL6N-316 |
|
|
|
|
|
|
|
-
Part |
Tube Size |
Shape |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Material |
Style |
6MSEL6N-B |
3/8" |
NPT Male Elbow |
3/8" |
3/8" |
N/A |
Brass |
Tube to Male Pipe |
6MSEL6N-S |
3/8" |
NPT Male Elbow |
3/8" |
3/8" |
N/A |
Steel |
Tube to Male Pipe |
6MSEL8N-316 |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Male Pipe |
6MSEL8N-625 |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
Alloy 625 |
Tube to Male Pipe |
6MSEL8N-6MO |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
6Mo |
Tube to Male Pipe |
6MSEL8N-6MO-NSK |
|
|
|
|
|
|
|
6MSEL8N-825 |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
Alloy 825 |
Tube to Male Pipe |
6MSEL8N-NNR |
|
|
|
|
|
|
|
6MSEL8N-S |
3/8" |
NPT Male Elbow |
3/8" |
1/2" |
N/A |
Steel |
Tube to Male Pipe |
6NU6-316 |
3/8" |
Tube Nut |
3/8" |
N/A |
N/A |
316 Stainless Steel |
Components |
6P2TU6-316 |
3/8" |
Push Lok to Tube Adapter |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Port Connectors |
6PC6-316 |
3/8" |
Port Connector |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Port Connectors |
6RU4-316 |
3/8" |
Reducing Union |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6RU5-316 |
3/8" |
Reducing Union |
3/8" |
5/16" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6SC6-316 |
3/8" |
Union |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
6SC6-625 |
3/8" |
Union |
3/8" |
3/8" |
N/A |
Alloy 625 |
Tube to Tube Unions |
6SC6-6MO |
3/8" |
Union |
3/8" |
3/8" |
N/A |
6Mo |
Tube to Tube Unions |
6SC6-6MO-NSK |
|
|
|
|
|
|
|
6SC6-825 |
3/8" |
Union |
3/8" |
3/8" |
N/A |
Alloy 825 |
Tube to Tube Unions |
6SC6-B |
|
|
|
|
|
|
|
6SC6-NNR |
|
|
|
|
|
|
|
6SC6-S |
3/8" |
Union |
3/8" |
3/8" |
N/A |
Steel |
Tube to Tube Unions |
6TUR4-316 |
3/8" |
Tube End Reducer |
3/8" |
1/4" |
N/A |
316 Stainless Steel |
Port Connectors |
6XASC3/8MP-316 |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
6XASC3/8MP-625 |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
Alloy 625 |
37° Flare (AN) to A-LOK? |
6XASC3/8MP-6MO |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
6Mo |
37° Flare (AN) to A-LOK? |
6XASC3/8MP-6MO-NSK |
|
|
|
|
|
|
|
6XASC3/8MP-825 |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
Alloy 825 |
37° Flare (AN) to A-LOK? |
6XASC3/8MP-NNR |
|
|
|
|
|
|
|
6XASC6-316 |
3/8" |
37 Flare to Compression |
3/8" |
3/8" |
N/A |
316 Stainless Steel |
37° Flare (AN) to A-LOK? |
8 ALOK-316-SET |
1/2" |
Ferrule Set |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8-8-4 JLZ-SS |
1/2" |
Drop Size Tee |
1/2" |
1/2" |
1/4" |
316 Stainless Steel |
Tube to Tube Unions |
8-8-6 JLZ-SS |
1/2" |
Drop Size Tee |
1/2" |
1/2" |
3/8" |
316 Stainless Steel |
Tube to Tube Unions |
8BC8-316 |
1/2" |
Bulkhead Union |
1/2" |
1/2" |
N/A |
316 Stainless Steel |
Tube to Tube Unions |
8BC8-625 |
1/2" |
Bulkhead Union |
1/2" |
1/2" |
N/A |
Alloy 625 |
Tube to Tube Unions |
8BC8-6MO |
1/2" |
Bulkhead Union |
1/2" |
1/2" |
N/A |
6Mo |
Tube to Tube Unions |
8BC8-6MO-NSK |
|
|
|
|
|
|
|
8BC8-825 |
1/2" |
Bulkhead Union |
1/2" |
1/2" |
N/A |
Alloy 825 |
Tube to Tube Unions |
8BC8-NNR |
|
|
|
|
|
|
|
8BF8-316 |
1/2" |
Back Ferrule |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8BLEN8-316 |
1/2" |
Cap |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8BLEN8-625 |
1/2" |
Cap |
1/2" |
N/A |
N/A |
Alloy 625 |
Components |
8BLEN8-6MO |
1/2" |
Cap |
1/2" |
N/A |
N/A |
6Mo |
Components |
8BLEN8-6MO-NSK |
|
|
|
|
|
|
|
8BLEN8-6MONC |
|
|
|
|
|
|
|
8BLEN8-825 |
1/2" |
Cap |
1/2" |
N/A |
N/A |
Alloy 825 |
Components |
8BLEN8-NNR |
|
|
|
|
|
|
|
8BLP8-316 |
1/2" |
Plug |
1/2" |
N/A |
N/A |
316 Stainless Steel |
Components |
8BLP8-625 |
1/2" |
Plug |
1/2" |
N/A |
N/A |
Alloy 625 |
Components |
8BLP8-6MO |
1/2" |
Plug |
1/2" |
N/A |
N/A |
6Mo |
Components |
|
fcg.cnmec@parkerdistribution.com.cn
