Parker EO EO2 硬管連接的手動預裝設備
Manual assembly devices for EO/EO-2 tube connections

HVM-B 和 EO-Karrymat 手動預裝設備，操作簡單，實用可靠，適合于方便、快速、安全的進行 EO 接頭的預裝操作。HVM-B和EO-Karrymat手動預裝設備，操作簡單，且非常實用，適合于方便、快速、安全進行EO接頭預裝的操作。HVM-B: 這是一個非常簡單地，能快速安全地實現EO卡套預裝的設備。該設備手工操作，只需現場有一臺臺虎鉗便可以開始工作。該裝置適用于LL、L和S系列，鋼管外徑尺寸從4到15毫米的碳鋼鋼管和接頭。HVM-B的重量大約只有7公斤(不含工具)。其加工能力大約20個裝配/天。

The HVM-B pre-assembly tool and the EO-Karrymat are reliable devices for quickly, safely and conveniently assembling Ermeto Original fittings. The HVM-B pre-assembly tool and the EO-Karrymat are reliable devices for quickly, safely and conveniently assembling Ermeto Original fittings. HVM-B: This is a simple tool for quickly and safely pre-assembling the EO-Progressive Stop Ring/Progressive Ring. The tool is very handy and can be used at any site provided a vice is available. The device is suitable for LL, L and S series, tube sizes from 4 to 15 mm outside diameter and steel tube and fitting materials. The weight of the HVM-B is about 7 kg (without tools). The economic production quantity is maximum 20 assemblies/day.

性能特點

尺寸 : 6-42 mm
產品類型 在臺虎鉗上直接預裝設備，無預裝工具，整套預裝設備包含手動泵和包裝箱 管道材料 Steel, Stainless Steel
Product Type: Pre-assembly tool device for mount in vice, without tools., Assembly device complete device including handpump and carrying case.
Tube Material: Steel, Stainless Steel

HVM-B設備的市場:

- 車間

應用:
- 適合于一般液壓應用

特性/HVM-B設備的優點:
- HVM-B設備節省了裝配工作的時間和人工。

- 高質量的預裝效果和穩定性達成了接頭連接的穩定性能。

- 由于該設備重量輕，易操作以及設計簡單，使得該設備是小數量EO硬管加工的理想選擇。

- HVM-B由于設備輕便所以現場適用性強，能用于EOMAT設備不能適用的任何工作現場，以達成接頭裝配的安全穩定。

EO-KARRYMAT: 這也是一臺能安全高效用于接頭預裝的設備，它適合于在EOMAT設備不適用的硬管裝配現場，進行更大規格碳鋼和不銹鋼鋼管的預裝。
EO-Karrymat設備包含有液壓驅動裝置和手動泵，其裝配壓力可以通過壓力表輕易地觀察到。EO-KARRYMAT設備供貨時全部零部件都集成在一個包裝箱的底板上。
技術參數: 可以進行EO-PSR/DPR和EO-2接頭的預裝

- 預裝結果判定: EOPSR: 力矩激增點后螺母再旋轉1-1/2圈；EODPR: 力矩激增點后螺母再旋轉1圈；EO-2: 無間隙
- 鋼管外徑: 6到42毫米
- 最小U形彎距離: 66毫米
- 鋼管和接頭材料: 碳鋼和不銹鋼
- 預裝有效周期: 約30-60秒
- 重量: 約28公斤
- 加工能力: 不超過20個預裝/天

EO-KARRYMAT市場:
- 車間維修
- 移動維修服務

應用:
- 紙品生產、電廠、海工、工業等工廠維護和過程處理
- 管路系統的現場裝配

特性/EO-Karrymat優點:

- EO-KARRYMAT設備是便攜式的，不需要額外的電源，因此該設備非常適合于現場硬管裝配、維修和維護。

- EO-KARRYMAT設備經濟實用，其原因是操作者花費人工比手動預裝的人工少，但是能達到EOMAT設備的預裝效果。

- 由于不銹鋼鋼管與接頭的直接預裝可能發生失效，因此按照ISO8483/DIN3859標準規定，都需要按照生產商的操作說明書進行預裝，而EO-KARRYMAT設備完全符合這些要求。

- 預裝完成后，硬管的咬合在總裝前能輕而易舉地檢查到是否符合質量要求，因此使用該設備進行預裝操作可以忽略鋼管和接頭在手動預裝過程中強制執行的預裝流程部分，而達到安全穩定的預裝效果。

Markets for HVM-B device:
- Workshops
Applications:
- Suitable for general hydraulic applications.
Features/ Benefits of the HVM-B device:
- Using the HVM-B device reduces assembly time and effort.

- The high assembly quality and consistency assures reliable fitting performance.

- Due to their low weight, easy handling and simple but reliable design, EO assembly devices are the ideal tools for tube preparation for small quantities.

- The HVM-B is a flexible tool and can be used anywhere to assure safe fitting assembly –even at assembly sites where EOMAT technology is not available.

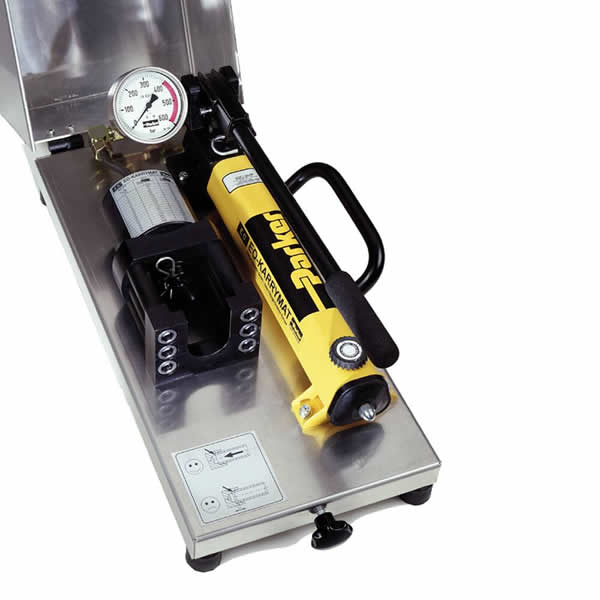

EO-KARRYMAT: This is a dependable device for safe and efficient bite-type pre-setting. It allows the pre-assembly even of large steel and stainless steel tubes at assembly sites where EOMAT technology is not available.
The EO-Karrymat consists of a hydraulic drive and hand-pump. The hydraulic assembly pressure can be read on a gauge. The EO-KARRYMAT comes as one unit with all components firmly attached to a practical carrying frame.
Specifications: For pre-assembly of EO-PSR/DPR and EO-2 fittings
- Pre-assembly equals: EO Progressive Stop Ring (PSR): 1 ? turns of nut EO Progressive Ring (DPR): 1 ? turns of nut; EO-2: Gap closed
- Tube O.D.: 6 to 42 mm
- Minimum U-bend: 66 mm
- Tube and fitting material: steel and stainless steel
- Total cycle time: approx. 30 - 60 seconds
- Weight: approx. 28 kg
- Economic production quantity: max. 20 assemblies/day
Markets for EO-KARRYMAT:
- Repair workshops
- Mobile repair service
Applications:
- Plant maintenance in process engineering, paper production, power plants, offshore exploration, industrial production
- On-site assembly of tubing systems
Features/ Benefits of the EO-Karrymat:
- The EO-KARRYMAT is portable and does not need a power supply. It is therefore the ideal tool for on-site tube assembly, repair and plant maintenance.

- The EO-KARRYMAT is an economic tool because assembly with it requires much less hard work than manual assembly but still achieves the assembly results of the Eomat machine.

- Because the direct assembly of stainless steel tubes into bite type fittings results in failure, a special pre-assembly process is mandatory according to ISO 8483/DIN 3859 and all manufacturers' instructions. The EO-KARRYMAT fulfills this requirement.

- After pre-assembly, the tube joint can be easily inspected before final assembly. So this mandatory step in fitting assembly is less likely to be forgotten and increases the safety of the entire system.

Manual assembly devices for EO/EO-2 tube connections
