Parker 56 Series Global Fittings

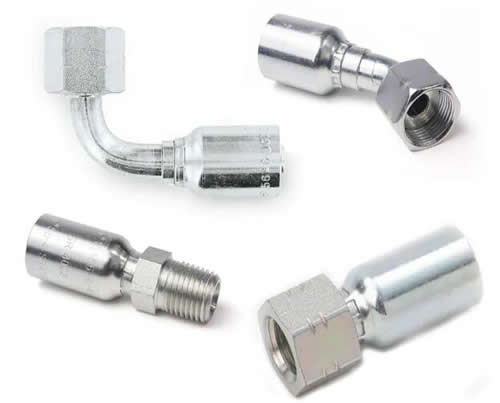

Global Fittings - 56 Series Inch
The new and improved Global 56 Series, which consolidates the 55 Series and the 58 Series into one. The 56 Series is shorter and more compact than the 55/58 Series Fittings, allowing for a system weight reduction of up to 20% and easier routing of assemblies during installation in tight, condensed spaces. In addition, the crimping process for the 56 Series is simpler, faster and safer since the sleeve is crimped at full length; therefore, no marking is necessary. Check crimpsource for the most up-to-date die and crimping recommendations. http://www.parker.com/crimpsource.
The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Hose Inside Diameter: 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 3/4, 1 inch, 3, 5, 6, 8, 10, 13, 19, 25 mm
Application: Various
Connection Type: Crimped
Materials of Construction: Steel, Stainless Steel
Port Size: 3/16 - 1-1/4 inch
Connection Thread Size: varies
Tube Outside Diameter: 1/4 - 1 inch, 6 - 25 mm
Shape: Straight, Elbow, Stub End
Markets:
- Industrial
- Mobile Equipment
- Transportation
Features/Benefits:
- Consolidation of two series into one (55 and 58 = 56), thus reducing the customer inventory
- Shorter and more compact than 55/58 Series for easier routing of assemblies in tight installation areas; short length may allow use of hose routing to replace current elbow fittings
- Full length crimp of the sleeve (no marking of crimp length needed); therefore easier, safer and faster crimping in comparison to 55 Series
- Weight reduction up to 20%
- Global part numbering with metric & inch hex and end connections to allow for global availability
- Current 55 Series dies are qualified and can be used with the 56
Applications:
- Medium pressure hydraulic applications
- Agricultural equipment
- Construction
- Lubricating oils
- Material Handling equipment
- Machine tools
- Waste and refuse trucks
- Utility equipment
Technical Specifications:
- Some styles are available with metric hex; contact Parflex Customer Service for assistance
Related Documents
Literature and Reference Materials
Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660
Selector Guides
Crimpsource Online
Compliance, Certifications, & Safety
Conflict Minerals Declaration
Manufacturers-Directive-Parflex
Parflex Division MSDS
Parflex Division REACH Compliance
Parflex Ravenna ISO Cert 16949
Parflex RoHS Certification/WEEE Certification Directive
Proposition 65 Warning Language--Required_Prop_65_Warning
Global Fittings - 56 Series - Inch
Part |
Hose I.D. (inch) |
Style |
Connection Thread Size (inch) |
Length (inch) |
Materials of Construction |
10156-12-10 |
0.625 |
Male NPTF Pipe - Rigid - Straight |
3/4-14 |
2.88 |
Steel |
10156-12-12 |
0.75 |
Male NPTF Pipe - Rigid - Straight |
3/4-14 |
2.97 |
Steel |
10156-12-12C |
0.75 |
Male NPTF Pipe - Rigid - Straight |
3/4-14 |
2.97 |
Stainless Steel |
10156-16-16 |
1 |
Male NPTF Pipe - Rigid - Straight |
1-11-1/2 |
3.76 |
Steel |
10156-2-2 |
0.125 |
Male NPTF Pipe - Rigid - Straight |
1/8-27 |
1.35 |
Steel |
10156-2-3 |
0.188 |
Male NPTF Pipe - Rigid - Straight |
1/8-27 |
1.6 |
Steel |
10156-2-4 |
0.25 |
Male NPTF Pipe - Rigid - Straight |
1/8-27 |
1.91 |
Steel |
10156-4-2 |
0.125 |
Male NPTF Pipe - Rigid - Straight |
1/4-18 |
1.56 |
Steel |
10156-4-3 |
0.188 |
Male NPTF Pipe - Rigid - Straight |
1/4-18 |
1.82 |
Steel |
10156-4-4 |
0.25 |
Male NPTF Pipe - Rigid - Straight |
1/4-18 |
2.09 |
Steel |
10156-4-4C |
0.25 |
Male NPTF Pipe - Rigid - Straight |
1/4-18 |
2.09 |
Stainless Steel |
10156-4-5 |
0.313 |
Male NPTF Pipe - Rigid - Straight |
1/4-18 |
2.16 |
Steel |
10156-4-6 |
0.375 |
Male NPTF Pipe - Rigid - Straight |
1/4-18 |
2.16 |
Steel |
10156-4-6C |
0.375 |
Male NPTF Pipe - Rigid - Straight |
1/4-18 |
2.16 |
Stainless Steel |
10156-6-4 |
0.250 |
Male NPTF Pipe - Rigid - Straight |
3/8-18 |
2.14 |
Steel |
10156-6-5 |
0.313 |
Male NPTF Pipe - Rigid - Straight |
3/8-18 |
2.23 |
Steel |
10156-6-6 |
0.375 |
Male NPTF Pipe - Rigid - Straight |
3/8-18 |
2.16 |
Steel |
10156-6-6C |
0.375 |
Male NPTF Pipe - Rigid - Straight |
3/8-18 |
2.16 |
Stainless Steel |
10156-6-8 |
0.500 |
Male NPTF Pipe - Rigid - Straight |
3/8-18 |
2.28 |
Steel |
10156-8-6 |
0.375 |
Male NPTF Pipe - Rigid - Straight |
1/2-14 |
2.44 |
Steel |
10156-8-8 |
0.5 |
Male NPTF Pipe - Rigid - Straight |
1/2-14 |
2.55 |
Steel |
10156-8-8C |
0.5 |
Male NPTF Pipe - Rigid - Straight |
1/2-14 |
2.55 |
Stainless Steel |
10256-4-4 |
0.25 |
Female NPTF Pipe - Rigid - Straight |
1/4-18 |
1.99 |
Steel |
10256-4-4C |
0.25 |
Female NPTF Pipe - Rigid - Straight |
1/4-18 |
1.99 |
Stainless Steel |
10256-6-6 |
0.375 |
Female NPTF Pipe - Rigid - Straight |
3/8-18 |
2.04 |
Steel |
10256-8-8 |
0.500 |
Female NPTF Pipe - Rigid - Straight |
1/2-14 |
2.42 |
Steel |
10356-10-8 |
0.5 |
Male JIC 37° - Rigid - Straight |
7/8-14 |
2.6 |
Steel |
10356-12-10 |
0.625 |
Male JIC 37° - Rigid - Straight |
1-1/16-12 |
2.97 |
Steel |
10356-12-12 |
0.75 |
Male JIC 37° - Rigid - Straight |
1-1/16-12 |
3.07 |
Steel |
10356-16-16 |
1 |
Male JIC 37° - Rigid - Straight |
1-5/16-12 |
3.66 |
Steel |
10356-4-2 |
0.125 |
Male JIC 37° - Rigid - Straight |
7/16-20 |
1.55 |
Steel |
10356-4-3 |
0.188 |
Male JIC 37° - Rigid - Straight |
7/16-20 |
1.83 |
Steel |
10356-4-4 |
0.25 |
Male JIC 37° - Rigid - Straight |
7/16-20 |
2.1 |
Steel |
10356-4-4C |
0.25 |
Male JIC 37° - Rigid - Straight |
7/16-20 |
2.10 |
Stainless Steel |
10356-5-4 |
0.25 |
Male JIC 37° - Rigid - Straight |
1/2-20 |
2.1 |
Steel |
10356-5-5 |
0.313 |
Male JIC 37° - Rigid - Straight |
1/2-20 |
2.13 |
Steel |
10356-5-6 |
0.375 |
Male JIC 37° - Rigid - Straight |
1/2-20 |
2.14 |
Steel |
10356-6-4 |
0.25 |
Male JIC 37° - Rigid - Straight |
9/16-18 |
2.14 |
Steel |
10356-6-5 |
0.313 |
Male JIC 37° - Rigid - Straight |
9/16-18 |
2.22 |
Steel |
10356-6-6 |
0.375 |
Male JIC 37° - Rigid - Straight |
9/16-18 |
2.15 |
Steel |
10356-6-6C |
0.375 |
Male JIC 37° - Rigid - Straight |
9/16-18 |
2.15 |
Stainless Steel |
10356-8-6 |
0.375 |
Male JIC 37° - Rigid - Straight |
3/4-16 |
2.25 |
Steel |
10356-8-8 |
0.5 |
Male JIC 37° - Rigid - Straight |
3/4-16 |
2.4 |
Steel |
10356-8-8C |
0.5 |
Male JIC 37° - Rigid - Straight |
3/4-16 |
2.4 |
Stainless Steel |
10456-12-12 |
0.75 |
Male SAE 45° - Rigid - Straight |
1-1/16-14 |
3.11 |
Steel |
10456-4-3 |
0.188 |
Male SAE 45° - Rigid - Straight |
7/16-20 |
1.71 |
Steel |
10456-5-4 |
0.25 |
Male SAE 45° - Rigid - Straight |
1/2-20 |
2.11 |
Steel |
10456-6-5 |
0.313 |
Male SAE 45° - Rigid - Straight |
5/8-18 |
2.18 |
Steel |
10456-6-6 |
0.5 |
Male SAE 45° - Rigid - Straight |
5/8-18 |
2.16 |
Steel |
10456-6-8 |
0.5 |
Male SAE 45° - Rigid - Straight |
5/8-18 |
2.37 |
Steel |
Part |
Hose I.D. (inch) |
Style |
Connection Thread Size (inch) |
Length (inch) |
Materials of Construction |
10456-8-8 |
0.5 |
Male SAE 45° - Rigid - Straight |
3/4-16 |
0.25 |
Steel |
10556-10-8 |
0.5 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
7/8-14 |
2.28 |
Steel |
10556-4-3 |
0.188 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
7/16-20 |
1.61 |
Steel |
10556-4-4 |
0.25 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
7/16-20 |
1.84 |
Steel |
10556-4-5 |
0.313 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
7/16-20 |
1.91 |
Steel |
10556-5-4 |
0.25 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
1/2-20 |
1.84 |
Steel |
10556-5-5 |
0.313 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
1/2-20 |
1.91 |
Steel |
10556-6-3 |
0.188 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
9/16-18 |
1.64 |
Steel |
10556-6-4 |
0.25 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
9/16-18 |
1.91 |
Steel |
10556-6-6 |
0.375 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
9/16-18 |
1.95 |
Steel |
10556-8-6 |
0.375 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
3/4-16 |
1.98 |
Steel |
10556-8-8 |
0.5 |
Male SAE Straight Thread with O-ring - Rigid - Straight |
3/4-16 |
2.21 |
Steel |
10656-10-10 |
0.625 |
Female JIC 37° - Swivel - Straight |
7/8-14 |
2.99 |
Steel |
10656-10-12 |
0.75 |
Female JIC 37° - Swivel - Straight |
7/8-14 |
2.88 |
Steel |
10656-10-8 |
0.5 |
Female JIC 37° - Swivel - Straight |
7/8-14 |
2.64 |
Steel |
10656-10-8C |
0.5 |
Female JIC 37° - Swivel - Straight |
7/8-14 |
2.64 |
Stainless Steel |
10656-12-10 |
0.625 |
Female JIC 37° - Swivel - Straight |
1-1/16-12 |
3.06 |
Steel |
10656-12-12 |
0.75 |
Female JIC 37° - Swivel - Straight |
1-1/16-12 |
3.06 |
Steel |
10656-12-12C |
0.75 |
Female JIC 37° - Swivel - Straight |
1-1/16-12 |
3.06 |
Stainless Steel |
10656-12-8 |
0.5 |
Female JIC 37° - Swivel - Straight |
1-1/16-12 |
2.72 |
Steel |
10656-16-12 |
0.75 |
Female JIC 37° - Swivel - Straight |
1-5/16-12 |
3.27 |
Steel |
10656-16-16 |
1 |
Female JIC 37° - Swivel - Straight |
1-5/16-12 |
3.81 |
Steel |
10656-16-16C |
1 |
Female JIC 37° - Swivel - Straight |
1-5/16-12 |
3.81 |
Stainless Steel |
10656-2-2 |
0.125 |
Female JIC 37° - Swivel - Straight |
5/16-24 |
1.63 |
Steel |
10656-2-4 |
0.25 |
Female JIC 37° - Swivel - Straight |
3/8-24 |
1.98 |
Steel |
10656-20-16 |
1 |
Female JIC 37° - Swivel - Straight |
1-5/8-12 |
3.96 |
Steel |
10656-3-2 |
0.125 |
Female JIC 37° - Swivel - Straight |
3/8-24 |
1.6 |
Steel |
10656-3-3 |
0.188 |
Female JIC 37° - Swivel - Straight |
3/8-24 |
1.91 |
Steel |
10656-4-2 |
0.125 |
Female JIC 37° - Swivel - Straight |
7/16-20 |
1.68 |
Steel |
10656-4-2C |
0.125 |
Female JIC 37° - Swivel - Straight |
7/16-20 |
1.68 |
Stainless Steel |
10656-4-3 |
0.188 |
Female JIC 37° - Swivel - Straight |
7/16-20 |
1.78 |
Steel |
10656-4-3C |
0.188 |
Female JIC 37° - Swivel - Straight |
7/16-20 |
1.78 |
Stainless Steel |
10656-4-4 |
0.25 |
Female JIC 37° - Swivel - Straight |
7/16-20 |
2.05 |
Steel |
10656-4-4C |
0.25 |
Female JIC 37° - Swivel - Straight |
7/16-20 |
2.05 |
Stainless Steel |
10656-4-5 |
0.313 |
Female JIC 37° - Swivel - Straight |
7/16-20 |
2.1 |
Steel |
10656-4-6 |
0.375 |
Female JIC 37° - Swivel - Straight |
7/16-20 |
2.09 |
Steel |
10656-5-3 |
0.188 |
Female JIC 37° - Swivel - Straight |
1/2-20 |
1.84 |
Steel |
10656-5-4 |
0.25 |
Female JIC 37° - Swivel - Straight |
1/2-20 |
2.12 |
Steel |
10656-5-4C |
0.25 |
Female JIC 37° - Swivel - Straight |
1/2-20 |
2.12 |
Stainless Steel |
10656-5-5 |
0.313 |
Female JIC 37° - Swivel - Straight |
1/2-20 |
2.21 |
Steel |
10656-5-6 |
0.375 |
Female JIC 37° - Swivel - Straight |
1/2-20 |
2.23 |
Steel |
10656-6-4 |
0.25 |
Female JIC 37° - Swivel - Straight |
9/16-18 |
2.14 |
Steel |
10656-6-4C |
0.25 |
Female JIC 37° - Swivel - Straight |
9/16-18 |
2.14 |
Stainless Steel |
10656-6-5 |
0.313 |
Female JIC 37° - Swivel - Straight |
9/16-18 |
2.23 |
Steel |
10656-6-5C |
0.313 |
Female JIC 37° - Swivel - Straight |
9/16-18 |
2.23 |
Stainless Steel |
10656-6-6 |
0.375 |
Female JIC 37° - Swivel - Straight |
9/16-18 |
2.22 |
Steel |
10656-6-6C |
0.375 |
Female JIC 37° - Swivel - Straight |
9/16-18 |
2.22 |
Stainless Steel |
10656-6-8 |
0.5 |
Female JIC 37° - Swivel - Straight |
9/16-18 |
2.42 |
Steel |
10656-8-10 |
0.625 |
Female JIC 37° - Swivel - Straight |
3/4-16 |
2.73 |
Steel |
10656-8-6 |
0.375 |
Female JIC 37° - Swivel - Straight |
3/4-16 |
2.37 |
Steel |
Part |
Hose I.D. (inch) |
Style |
Connection Thread Size (inch) |
Length (inch) |
Materials of Construction |
10656-8-6C |
0.375 |
Female JIC 37° - Swivel - Straight |
3/4-16 |
2.37 |
Stainless Steel |
10656-8-8 |
0.5 |
Female JIC 37° - Swivel - Straight |
3/4-16 |
2.54 |
Steel |
10656-8-8C |
0.5 |
Female JIC 37° - Swivel - Straight |
3/4-16 |
2.54 |
Stainless Steel |
10756-12-12 |
0.75 |
Female NPSM Pipe - Swivel - Straight (60° Cone) |
3/4-14 |
2.98 |
Steel |
10756-16-16 |
1 |
Female NPSM Pipe - Swivel - Straight (60° Cone) |
1-11 1/2 |
3.74 |
Steel |
10756-4-4 |
0.25 |
Female NPSM Pipe - Swivel - Straight (60° Cone) |
1/4-18 |
2.03 |
Steel |
10756-4-5 |
0.313 |
Female NPSM Pipe - Swivel - Straight (60° Cone) |
1/4-18 |
2.09 |
Steel |
10756-6-6 |
0.375 |
Female NPSM Pipe - Swivel - Straight (60° Cone) |
3/8-18 |
2.13 |
Steel |
10756-8-8 |
0.5 |
Female NPSM Pipe - Swivel - Straight (60° Cone) |
1/2-14 |
2.4 |
Steel |
10856-12-12 |
0.75 |
Female SAE 45° - Swivel - Straight |
1-1/16-14 |
3.06 |
Steel |
10856-6-4 |
0.25 |
Female SAE 45° - Swivel - Straight |
5/8-18 |
2.19 |
Steel |
10856-6-5 |
0.313 |
Female SAE 45° - Swivel - Straight |
5/8-18 |
2.28 |
Steel |
10856-6-6 |
0.375 |
Female SAE 45° - Swivel - Straight |
5/8-18 |
2.36 |
Steel |
11156-6-4 |
0.25 |
Male NPTF Pipe - Swivel - Straight |
9/16-18 |
1.99 |
Steel |
11356-12-12 |
0.75 |
Male NPTF Pipe - Swivel - Straight |
3/4-14 |
3.71 |
Steel |
11356-16-16 |
1 |
Male NPTF Pipe - Swivel - Straight |
1-11 1/2 |
4.64 |
Steel |
11356-2-2 |
0.125 |
Male NPTF Pipe - Swivel - Straight |
1/8-27 |
2.85 |
Steel |
11356-2-3 |
0.188 |
Male NPTF Pipe - Swivel - Straight |
1/8-27 |
2.85 |
Steel |
11356-4-3 |
0.188 |
Male NPTF Pipe - Swivel - Straight |
1/4-18 |
2.59 |
Steel |
11356-4-4 |
0.25 |
Male NPTF Pipe - Swivel - Straight |
1/4-18 |
2.95 |
Steel |
11356-4-4C |
0.25 |
Male NPTF Pipe - Swivel - Straight |
1/4-18 |
2.95 |
Stainless Steel |
11356-4-5 |
0.313 |
Male NPTF Pipe - Swivel - Straight |
1/4-18 |
2.95 |
Steel |
11356-6-6 |
0.375 |
Male NPTF Pipe - Swivel - Straight |
3/8-18 |
3.06 |
Steel |
11356-8-6 |
0.375 |
Male NPTF Pipe - Swivel - Straight |
1/2-14 |
3.24 |
Steel |
11356-8-8 |
0.5 |
Male NPTF Pipe - Swivel - Straight |
1/2-14 |
3.37 |
Steel |
11356-8-8C |
0.5 |
Male NPTF Pipe - Swivel - Straight |
1/2-14 |
3.37 |
Stainless Steel |
13756-10-10 |
0.625 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
7/8-14 |
3.23 |
Steel |
13756-10-8 |
0.5 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
7/8-14 |
2.87 |
Steel |
13756-12-10 |
0.625 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
1-1/16-12 |
3.74 |
Steel |
13756-12-12 |
0.75 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
1-1/16-12 |
3.86 |
Steel |
13756-16-16 |
1 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
1-5/16-12 |
4.72 |
Steel |
13756-4-2 |
0.125 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
7/16-20 |
1.98 |
Steel |
13756-4-3 |
0.188 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
7/16-20 |
1.93 |
Steel |
13756-4-4 |
0.25 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
7/16-20 |
2.19 |
Steel |
13756-5-4 |
0.25 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
1/2-20 |
2.46 |
Steel |
13756-6-4 |
0.25 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
9/16-18 |
2.24 |
Steel |
13756-6-5 |
0.313 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
9/16-18 |
2.53 |
Steel |
13756-6-6 |
0.375 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
9/16-18 |
2.57 |
Steel |
13756-8-6 |
0.375 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
3/4-16 |
2.76 |
Steel |
13756-8-8 |
0.5 |
Female JIC 37° - Swivel - 45° Elbow - Short Drop |
3/4-16 |
2.72 |
Steel |
13956-10-10 |
0.625 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
7/8-14 |
2.96 |
Steel |
13956-10-8 |
0.5 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
7/8-14 |
2.6 |
Steel |
13956-12-10 |
0.625 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
1-1/16-12 |
3.39 |
Steel |
13956-12-12 |
0.75 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
1-1/16-12 |
3.89 |
Steel |
13956-16-16 |
1 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
1-5/16-12 |
4.66 |
Steel |
13956-4-2 |
0.125 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
7/16-20 |
1.83 |
Steel |
13956-4-3 |
0.188 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
7/16-20 |
0.175 |
Steel |
13956-4-4 |
0.250 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
7/16-20 |
2.19 |
Steel |
13956-4-4C |
0.250 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
7/16-20 |
2.19 |
Stainless Steel |
13956-5-4 |
0.250 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
1/2-20 |
2.01 |
Steel |
Part |
Hose I.D. (inch) |
Style |
Connection Thread Size (inch) |
Length (inch) |
Materials of Construction |
13956-6-4 |
0.25 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
9/16-18 |
2.01 |
Steel |
13956-6-5 |
0.313 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
9/16-18 |
2.14 |
Steel |
13956-6-6 |
0.375 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
9/16-18 |
2.22 |
Steel |
13956-6-6C |
0.375 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
9/16-18 |
2.22 |
Stainless Steel |
13956-8-6 |
0.375 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
3/4-16 |
2.55 |
Steel |
13956-8-8 |
0.5 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
3/4-16 |
2.48 |
Steel |
13956-8-8C |
0.5 |
Female JIC 37° - Swivel - 90° Elbow - Short Drop |
3/4-16 |
2.48 |
Stainless Steel |
13E56-4-4 |
0.25 |
Male (JIC) 37° Long |
7/16-20 |
2.8 |
Steel |
13E56-6-5 |
0.313 |
Male (JIC) 37° Long |
9/16-18 |
2.97 |
Steel |
13E56-6-6 |
0.375 |
Male (JIC) 37° Long |
9/16-18 |
2.97 |
Steel |
13E56-8-8 |
0.5 |
Male (JIC) 37° Long |
3/4-16 |
3.24 |
Steel |
14156-10-8 |
0.5 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
7/8-14 |
2.48 |
Steel |
14156-12-12 |
0.75 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
1-1/16-12 |
3.59 |
Steel |
14156-16-16 |
1 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
1-5/16-12 |
4.36 |
Steel |
14156-4-3 |
0.188 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
7/16-20 |
1.73 |
Steel |
14156-4-4 |
0.25 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
7/16-20 |
2.01 |
Steel |
14156-5-4 |
0.25 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
1/2-20 |
2.01 |
Steel |
14156-6-4 |
0.25 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
9/16-18 |
2.01 |
Steel |
14156-6-5 |
0.313 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
9/16-18 |
2.14 |
Steel |
14156-6-6 |
0.375 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
9/16-18 |
2.22 |
Steel |
14156-8-6 |
0.375 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
3/4-16 |
2.22 |
Steel |
14156-8-8 |
0.5 |
Female JIC 37° - Swivel - 90° Elbow - Long Drop |
3/4-16 |
2.48 |
Steel |
1AL56-4-4 |
0.25 |
Female A-Lok? Compression |
7/16-20 |
1.91 |
Steel |
1AL56-4-4C |
0.25 |
Female A-Lok? Compression |
7/16-20 |
1.91 |
Stainless Steel |
1AL56-6-6 |
0.375 |
Female A-Lok? Compression |
9/16-20 |
2.09 |
Steel |
1AL56-6-6C |
0.375 |
Female A-Lok? Compression |
9/16-20 |
2.09 |
Stainless Steel |
1AL56-8-8 |
0.375 |
Female A-Lok? Compression |
3/4-20 |
2.21 |
Steel |
1FU56-12-12 |
3/4 |
(JIS)/BSP 30° Flare Female Swivel |
G 3/4-14 |
3.02 |
Steel |
1FU56-16-16 |
1 |
(JIS)/BSP 30° Flare Female Swivel |
G 1-11 |
3.76 |
Steel |
1FU56-4-4 |
1/4 |
(JIS)/BSP 30° Flare Female Swivel |
G 1/4-19 |
2.19 |
Steel |
1FU56-6-6 |
3/8 |
(JIS)/BSP 30° Flare Female Swivel |
G 3/8-19 |
2.36 |
Steel |
1FU56-8-8 |
1/2 |
(JIS)/BSP 30° Flare Female Swivel |
G 1/2-14 |
2.68 |
Steel |
1GU56-4-4 |
0.25 |
Female BSP Parallel Pipe - Swivel - Straight - 60° Cone |
1/4-19 |
2.19 |
Steel |
1GU56-6-6 |
0.375 |
Female BSP Parallel Pipe - Swivel - Straight - 60° Cone |
3/8-19 |
2.38 |
Steel |
1GU56-8-8 |
0.5 |
Female BSP Parallel Pipe - Swivel - Straight - 60° Cone |
1/2-19 |
2.73 |
Steel |
1J056-4-4 |
0.25 |
Male Seal-Lok - Rigid - Straight (with O-ring) |
9/16-18 |
1.93 |
Steel |
1J056-6-4 |
0.25 |
Male Seal-Lok - Rigid - Straight (with O-ring) |
11/16-16 |
2.01 |
Steel |
1J056-6-6 |
0.375 |
Male Seal-Lok - Rigid - Straight (with O-ring) |
11/16-16 |
1.98 |
Steel |
1J056-8-6 |
0.5 |
Male Seal-Lok - Rigid - Straight (with O-ring) |
13/16-16 |
2.16 |
Steel |
1J056-8-8 |
0.5 |
Male Seal-Lok - Rigid - Straight (with O-ring) |
13/16-16 |
2.18 |
Steel |
1J156-12-12 |
0.75 |
Female Seal-Lok - Swivel - 90° Elbow - Long Drop |
1-3/16-12 |
3.59 |
Steel |
1J156-16-16 |
1 |
Female Seal-Lok - Swivel - 90° Elbow - Long Drop |
1-7/16-12 |
4.36 |
Steel |
1J156-4-3 |
0.188 |
Female Seal-Lok - Swivel - 90° Elbow - Long Drop |
9/16-18 |
1.89 |
Steel |
1J156-4-4 |
0.25 |
Female Seal-Lok - Swivel - 90° Elbow - Long Drop |
9/16-18 |
2.09 |
Steel |
1J156-6-4 |
0.25 |
Female Seal-Lok - Swivel - 90° Elbow - Long Drop |
11/16-16 |
2.09 |
Steel |
1J156-6-6 |
0.375 |
Female Seal-Lok - Swivel - 90° Elbow - Long Drop |
11/16-16 |
2.22 |
Steel |
1J156-8-6 |
0.375 |
Female Seal-Lok - Swivel - 90° Elbow - Long Drop |
13/16-16 |
2.22 |
Steel |
1J156-8-8 |
0.5 |
Female Seal-Lok - Swivel - 90° Elbow - Long Drop |
13/16-16 |
2.48 |
Steel |
1J256-8-8 |
0.5 |
Female Seal-Lok - Swivel - 30° Elbow |
13/16-16 |
2.84 |
Steel |
1J556-6-6 |
0.375 |
Female Seal-Lok - Swivel - 90° Elbow - Medium Drop |
11/16-16 |
2.22 |
Steel |
Part |
Hose I.D. (inch) |
Style |
Connection Thread Size (inch) |
Length (inch) |
Materials of Construction |
1J756-10-10 |
0.625 |
Female Seal-Lok - Swivel - 45° Elbow |
1-14 |
3.27 |
Steel |
1J756-12-12 |
0.75 |
Female Seal-Lok - Swivel - 45° Elbow |
1-3/16-12 |
4.03 |
Steel |
1J756-16-16 |
1 |
Female Seal-Lok - Swivel - 45° Elbow |
1-7/16-12 |
4.73 |
Steel |
1J756-4-2 |
0.125 |
Female Seal-Lok - Swivel - 45° Elbow |
9/16-18 |
2.07 |
Steel |
1J756-4-3 |
0.188 |
Female Seal-Lok - Swivel - 45° Elbow |
9/16-18 |
2 |
Steel |
1J756-4-4 |
0.25 |
Female Seal-Lok - Swivel - 45° Elbow |
9/16-18 |
2.25 |
Steel |
1J756-4-6 |
0.375 |
Female Seal-Lok - Swivel - 45° Elbow |
9/16-18 |
2.25 |
Steel |
1J756-6-4 |
0.25 |
Female Seal-Lok - Swivel - 45° Elbow |
11/16-16 |
2.27 |
Steel |
1J756-6-5 |
0.313 |
Female Seal-Lok - Swivel - 45° Elbow |
11/16-16 |
2.32 |
Steel |
1J756-6-6 |
0.375 |
Female Seal-Lok - Swivel - 45° Elbow |
11/16-16 |
2.35 |
Steel |
1J756-8-6 |
0.375 |
Female Seal-Lok - Swivel - 45° Elbow |
13/16-16 |
2.54 |
Steel |
1J756-8-8 |
0.5 |
Female Seal-Lok - Swivel - 45° Elbow |
13/16-16 |
2.72 |
Steel |
1J956-10-10 |
0.625 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
1-14 |
3.14 |
Steel |
1J956-10-8 |
0.5 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
1-14 |
2.48 |
Steel |
1J956-12-12 |
0.75 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
1-3/16-12 |
3.89 |
Steel |
1J956-16-16 |
1 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
1-7/16-12 |
4.66 |
Steel |
1J956-4-2 |
0.125 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
9/16-18 |
2.04 |
Steel |
1J956-4-3 |
0.188 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
9/16-18 |
1.89 |
Steel |
1J956-4-4 |
0.25 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
9/16-18 |
2.14 |
Steel |
1J956-6-4 |
0.25 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
11/16-16 |
2.14 |
Steel |
1J956-6-5 |
0.313 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
11/16-16 |
2.28 |
Steel |
1J956-6-6 |
0.375 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
11/16-16 |
2.22 |
Steel |
1J956-6-6C |
0.375 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
11/16-16 |
2.22 |
Stainless Steel |
1J956-8-6 |
0.375 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
13/16-16 |
2.22 |
Steel |
1J956-8-8 |
0.5 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
13/16-16 |
2.48 |
Steel |
1J956-8-8C |
0.5 |
Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
13/16-16 |
2.48 |
Stainless Steel |
1JC56-10-10 |
0.625 |
Female Seal-Lok - Swivel - Straight - Short |
1-14 |
2.48 |
Steel |
1JC56-10-12 |
0.75 |
Female Seal-Lok - Swivel - Straight - Short |
1-14 |
2.5 |
Steel |
1JC56-10-8 |
0.5 |
Female Seal-Lok - Swivel - Straight - Short |
1-14 |
2.3 |
Steel |
1JC56-12-10 |
0.625 |
Female Seal-Lok - Swivel - Straight - Short |
1-3/16-12 |
2.61 |
Steel |
1JC56-12-12 |
0.75 |
Female Seal-Lok - Swivel - Straight - Short |
1-3/16-12 |
2.54 |
Steel |
1JC56-16-16 |
1 |
Female Seal-Lok - Swivel - Straight - Short |
1-7/16-12 |
3.21 |
Steel |
1JC56-4-2 |
0.125 |
Female Seal-Lok - Swivel - Straight - Short |
9/16-18 |
1.34 |
Steel |
1JC56-4-3 |
0.188 |
Female Seal-Lok - Swivel - Straight - Short |
9/16-18 |
1.58 |
Steel |
1JC56-4-4 |
0.25 |
Female Seal-Lok - Swivel - Straight - Short |
9/16-18 |
1.86 |
Steel |
1JC56-4-4C |
0.25 |
Female Seal-Lok - Swivel - Straight - Short |
9/16-18 |
1.86 |
Stainless Steel |
1JC56-4-5 |
0.313 |
Female Seal-Lok - Swivel - Straight - Short |
9/16-18 |
1.81 |
Steel |
1JC56-4-6 |
0.375 |
Female Seal-Lok - Swivel - Straight - Short |
9/16-18 |
1.91 |
Steel |
1JC56-6-4 |
0.25 |
Female Seal-Lok - Swivel - Straight - Short |
11/16-16 |
1.9 |
Steel |
1JC56-6-5 |
0.313 |
Female Seal-Lok - Swivel - Straight - Short |
11/16-16 |
1.95 |
Steel |
1JC56-6-6 |
0.375 |
Female Seal-Lok - Swivel - Straight - Short |
11/16-16 |
1.89 |
Steel |
1JC56-6-6C |
0.375 |
Female Seal-Lok - Swivel - Straight - Short |
11/16-16 |
1.89 |
Stainless Steel |
1JC56-8-6 |
0.375 |
Female Seal-Lok - Swivel - Straight - Short |
13/16-16 |
2 |
Steel |
1JC56-8-6C |
0.375 |
Female Seal-Lok - Swivel - Straight - Short |
13/16-16 |
2 |
Stainless Steel |
1JC56-8-8 |
0.5 |
Female Seal-Lok - Swivel - Straight - Short |
13/16-16 |
2.13 |
Steel |
1JC56-8-8C |
0.5 |
Female Seal-Lok - Swivel - Straight - Short |
13/16-16 |
2.13 |
Stainless Steel |
1JS56-10-10 |
0.625 |
Female Seal-Lok - Swivel - Straight - Long |
1-14 |
2.92 |
Steel |
1JS56-10-8 |
0.5 |
Female Seal-Lok - Swivel - Straight - Long |
1-14 |
2.68 |
Steel |
1JS56-12-12 |
0.75 |
Female Seal-Lok - Swivel - Straight - Long |
1-3/16-12 |
3.17 |
Steel |
1JS56-16-16 |
1 |
Female Seal-Lok - Swivel - Straight - Long |
1-7/16-12 |
3.76 |
Steel |
Part |
Hose I.D. (inch) |
Style |
Connection Thread Size (inch) |
Length (inch) |
Materials of Construction |
1JS56-4-3 |
0.188 |
Female Seal-Lok - Swivel - Straight - Long |
9/16-18 |
1.89 |
Steel |
1JS56-4-4 |
0.25 |
Female Seal-Lok - Swivel - Straight - Long |
9/16-18 |
2.17 |
Steel |
1JS56-6-4 |
0.25 |
Female Seal-Lok - Swivel - Straight - Long |
11/16-16 |
2.24 |
Steel |
1JS56-6-5 |
0.313 |
Female Seal-Lok - Swivel - Straight - Long |
11/16-16 |
2.29 |
Steel |
1JS56-6-6 |
0.375 |
Female Seal-Lok - Swivel - Straight - Long |
11/16-16 |
2.28 |
Steel |
1JS56-6-8 |
0.5 |
Female Seal-Lok - Swivel - Straight - Long |
11/16-16 |
2.4 |
Steel |
1JS56-8-6 |
0.375 |
Female Seal-Lok - Swivel - Straight - Long |
13/16-16 |
2.4 |
Steel |
1JS56-8-8 |
0.5 |
Female Seal-Lok - Swivel - Straight - Long |
13/16-16 |
2.52 |
Steel |
1L756-6-6 |
0.375 |
Female JIC 37° - Swivel - 45° Elbow - Medium Drop |
9/16-18 |
2.65 |
Steel |
1L956-10-8 |
0.5 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
7/8-14 |
2.48 |
Steel |
1L956-12-12 |
0.75 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
1-1/16-12 |
3.89 |
Steel |
1L956-16-16 |
1 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
1-5/16-12 |
4.66 |
Steel |
1L956-4-3 |
0.188 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
7/16-20 |
1.75 |
Steel |
1L956-4-4 |
0.25 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
7/16-20 |
2.01 |
Steel |
1L956-5-4 |
0.25 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
1/2-20 |
2.01 |
Steel |
1L956-6-5 |
0.313 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
9/16-18 |
2.14 |
Steel |
1L956-6-6 |
0.375 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
9/16-18 |
2.22 |
Steel |
1L956-8-6 |
0.375 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
3/4-16 |
2.22 |
Steel |
1L956-8-8 |
0.5 |
Female JIC 37° - Swivel - 90° Elbow - Medium Drop |
3/4-16 |
2.48 |
Steel |
1TU56-12-12 |
0.75 |
Universal Tube Stub |
na |
2.88 |
Steel |
1TU56-12-12C |
0.75 |
Universal Tube Stub |
na |
2.88 |
Stainless Steel |
1TU56-16-16 |
1 |
Universal Tube Stub |
na |
4.03 |
Steel |
1TU56-4-4 |
0.25 |
Universal Tube Stub |
na |
2.35 |
Steel |
1TU56-4-4C |
0.25 |
Universal Tube Stub |
na |
2.35 |
Stainless Steel |
1TU56-6-4 |
0.25 |
Universal Tube Stub |
na |
2.41 |
Steel |
1TU56-6-6 |
0.375 |
Universal Tube Stub |
na |
2.46 |
Steel |
1TU56-6-6C |
0.375 |
Universal Tube Stub |
na |
2.46 |
Stainless Steel |
1TU56-8-8 |
0.5 |
Universal Tube Stub |
na |
2.68 |
Steel |
1TU56-8-8C |
0.5 |
Universal Tube Stub |
na |
2.68 |
Stainless Steel |
|
fcg.cnmec@parkerdistribution.com.cn
