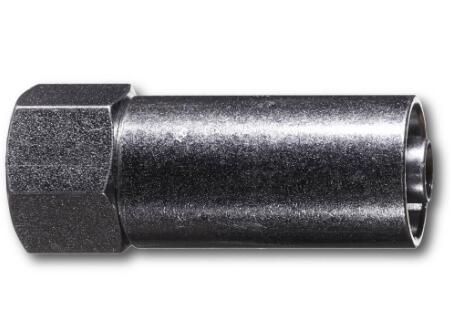

Crimped Thermoplastic Hydraulic Hose Fittings, 9X Series
Parker 9X Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose type 2370N.
Parker 9X Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.
Markets:
- Industrial
- Material handling
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Mobile hydraulics
- Industrial hydraulics
- Industrial gases
- Media transfer due to the polyamide core tube
- High pressure paint spray
- Suitable for 2370N hose type with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
DN10, 12 |
| Hose I.D. (size): |
-6, -8, 6 |
| Hose Inside Diameter: |
3/8, 1/2 inch |
| Tube Outside Diameter: |
NA, 14, 16, 12, 15 mm, NA |
| Length: |
59, 62, 81, 96, 75, 71, 85, 60, 63, 48, 51, 78, 74 mm, 2,3, 2,4, 3,2, 3,8, 3, 2,8, 3,3, 2,5, 1,9, 2, 3,1, 2,9 inch |
| Fitting Type: |
06, 0C, 1C, 92, C3, C9, D2 |
| Materials of Construction: |
Galvanised steel |
Crimped Thermoplastic Hydraulic Hose Fittings, 9X Series 型號(hào)
| Part |
Maximum Working Pressure (MPa) |
Style |
Hose I.D. (mm) |
Shape |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Thread Type |
| 1069X-10-08 |
34.5 |
SAE (JIC) 37° female swivel |
12.7 |
Straight |
7/8 - 14 |
NA |
UNF |
| 1069X-6-06 |
34.5 |
SAE (JIC) 37° female swivel |
9.5 |
Straight |
9/16 - 18 |
NA |
UNF |
| 1069X-8-06 |
34.5 |
SAE (JIC) 37° female swivel |
9.5 |
Straight |
3/4 - 16 |
NA |
UNF |
| 10C9X-14-06 |
63 |
Metric female swivel 24° with O-ring |
9.5 |
45° Elbow |
NA |
22x1.5 |
Metric |
| 10C9X-16-08 |
42 |
Metric female swivel 24° with O-ring |
12.7 |
45° Elbow |
NA |
24x1.5 |
Metric |
| 11C9X-12-06 |
63 |
Metric female swivel 24° with O-ring |
9.5 |
90° Elbow |
NA |
20x1,5 |
Metric |
| 11C9X-14-06 |
63 |
Metric female swivel 24° with O-ring |
9.5 |
90° Elbow |
NA |
22x1.5 |
Metric |
| 11C9X-16-08 |
42 |
Metric female swivel 24° with O-ring |
12.7 |
90° Elbow |
NA |
24x1.5 |
Metric |
| 1929X-6-06 |
55 |
BSP female swivel 60° cone |
9.5 |
Straight |
3/8 |
NA |
BSP |
| 1929X-8-08 |
43 |
BSP female swivel 60° cone |
12.7 |
Straight |
1/2 |
NA |
BSP |
| 1C39X-12-06 |
25 |
Metric female swivel 24°/60° |
9.5 |
Straight |
NA |
18x1.5 |
Metric |
| 1C39X-15-08 |
25 |
Metric female swivel 24°/60° |
12.7 |
Straight |
NA |
22x1.5 |
Metric |
| 1C99X-12-06 |
63 |
Metric female swivel 24° with O-ring |
9.5 |
Straight |
NA |
20x1.5 |
Metric |
| 1C99X-14-06 |
63 |
Metric female swivel 24° with O-ring |
9.5 |
Straight |
NA |
22x1.5 |
Metric |
| 1C99X-16-08 |
42 |
Metric female swivel 24° with O-ring |
12.7 |
Straight |
NA |
24x1.5 |
Metric |
| 1D29X-14-06 |
63 |
Metric male 24° |
9.5 |
Straight |
NA |
22x1.5 |
Metric |
| 1D29X-16-08 |
42 |
Metric male 24° |
12.7 |
Straight |
NA |
24x1.5 |
Metric |
|
