      派克91/91N扣壓式PTFE軟管接頭

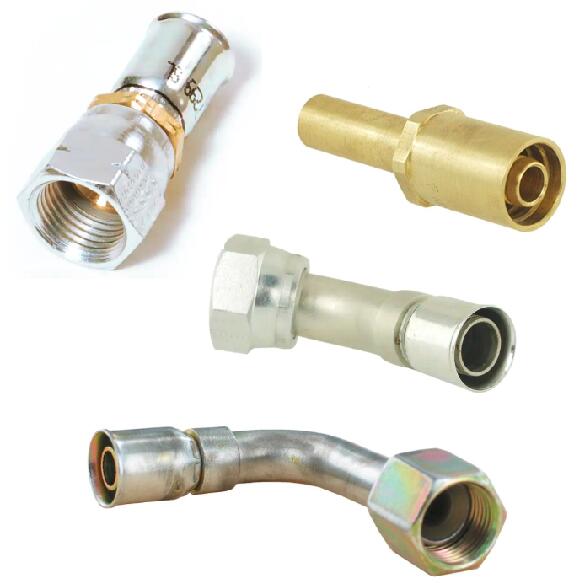

    Permanent Fittings for PTFE Hose - 91/91N






          派克91/91N系列接頭用于Parflex的PTFE軟管919/919B, 919J, 919U, 929/929B, 929BJ, S30/S30B 和 S40/S40B的扣壓.派克91/91N系列接頭，適用于Parflex的光滑芯管，中壓的PTFE軟管。以下這些但不只這些連接形式的PTFE軟管扣壓接頭，比如NPT, JIC和Seal-Lok，還提供不銹鋼材質的接頭以適應于多種防腐蝕的應用場合。該系列接頭套筒的引領式特性簡化了軟管的正確插入，并適用于多種Parkrimp扣壓機。扣壓機扣壓模具包括派克 Parkalign?系統,定位臺階的設計以確保每次扣壓時接頭均能被模具完美的扣壓。







      Permanent Fittings for PTFE Hose - 91/91N










      市場:

          - 工業

          - 空氣& 氣體壓縮機

          - 包裝機械

          - 打印及打標設備


      特性:

          - 引領式設計

          - 模具Parkalign系統


      應用:

          - 化學品傳輸線

          - 一般工業

          - 壓縮空氣/氣體

          - 雕刻設備

          - 冷卻管路





       Parker 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division. Parker's 91/91N Series fittings are used with smooth bore, medium pressure PTFE hoses from the Parflex division. Our wide selection of crimp fittings for PTFE hoses include, but are not limited to, NPT, JIC and Seal-Lok? designs with many fittings available in Stainless Steel for corrosive applications. The fittings have a lead-in feature at the base to simplify proper hose insertion and can be crimped with any of the Parkrimp machines. The dies for these crimpers include Parker's exclusive Parkalign? system, featuring a positive-stop design that positions the fitting in the die for a perfect crimp every time.






  Markets:

  - Industrial

  - Air & Gas compressors

  - Packaging machinery

  - Printing and marking equipment



  Features:

  - Lead-in design

  - Parkalign dies



  Applications:

  - Chemical transfer lines

  - General hydraulics

  - Compressed air/gases

  - Adhesive dispensing

  - Coolant lines










      Technical Specifications





              Materials of Construction:
              Brass, Steel, Stainless Steel




              Product Style:
              Crimp (Permanent)




              Hose Inside Diameter:
              3/16, 1/4, 5/16, 13/32, 1/2, 5/8, 7/8, 1-1/8 inch, 5, 6, 8, 10, 13, 16, 19, 22, 29 mm




              Application:
              Various




              Connection Type:
              Crimped, Pipe, NPTF and NPSM; Flare; Specialty; Seal-Lok; Metric, BSPP, UNF




              Connection Thread Size:
              Varies




              Tube Outside Diameter:
              Varies




              Shape:
              Straight, Elbow, Flange, Stub End










      Permanent Fittings for PTFE Hose - 91/91N型號






      Part


      Port Connection (inch)


      Hose I.D. (inch)


      Length (inch)


      Style


      Material





              10191-20-20
              1.25
              1
              3.05
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-12-12
              0.75
              0.625
              2.19
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-12-12C
              0.75
              0.625
              2.19
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-16-16
              1
              0.875
              2.46
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-16-16C
              1
              0.875
              2.46
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-2-4
              0.125
              0.1875
              1.27
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-2-4B
              0.125
              0.1875
              1.27
              Male NPTF Pipe - Rigid - Straight
              Brass




              10191N-2-4C
              0.125
              0.1875
              1.27
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-4-4
              0.25
              0.1875
              1.5
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-4-4C
              0.25
              0.1875
              1.5
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-4-5
              0.25
              0.25
              1.55
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-4-5C
              0.25
              0.25
              1.55
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-4-6
              0.25
              0.3125
              1.6
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-4-6C
              0.25
              0.3125
              1.6
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-6-6
              0.375
              0.3125
              1.65
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-6-6C
              0.375
              0.3125
              1.65
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-6-8
              0.375
              0.40625
              1.71
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-6-8C
              0.375
              0.40625
              1.71
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-8-10
              0.5
              0.5
              1.96
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-8-10C
              0.5
              0.5
              1.96
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10191N-8-12
              0.5
              0.625
              2.42
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-8-8
              0.5
              0.40625
              1.94
              Male NPTF Pipe - Rigid - Straight
              Brass nipple, steel shell




              10191N-8-8C
              0.5
              0.40625
              1.94
              Male NPTF Pipe - Rigid - Straight
              Stainless Steel




              10391N-10-10
              0.625
              0.5
              2.07
              Male JIC 37° - Rigid - Straight
              Steel




              10391N-12-12
              0.75
              0.625
              2.1
              Male JIC 37° - Rigid - Straight
              Steel




              10391N-16-16
              1
              0.875
              2.43
              Male JIC 37° - Rigid - Straight
              Steel




              10391N-4-4
              0.25
              0.1875
              1.37
              Male JIC 37° - Rigid - Straight
              Steel




              10391N-6-6
              0.375
              0.3125
              1.64
              Male JIC 37° - Rigid - Straight
              Steel




              10391N-8-6
              0.5
              0.3125
              1.73
              Male JIC 37° - Rigid - Straight
              Steel




              10391N-8-8
              0.5
              0.40625
              1.79
              Male JIC 37° - Rigid - Straight
              Steel




              10691-20-20
              1.25
              1
              2.98
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691-20-20C
              1.25
              1
              2.98
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-10-10
              0.625
              0.5
              2.03
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-10-10-RD
              0.625
              0.5
              1.91
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-10-10C
              0.625
              0.5
              2.03
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-10-10S
              0.625
              0.5
              2.03
              Female JIC 37° - Swivel - Straight
              Steel




              10691N-12-12
              0.75
              0.625
              2.15
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-12-12-RD
              0.75
              0.625
              2.09
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-12-12C
              0.75
              0.625
              2.15
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-12-12S
              0.75
              0.625
              2.15
              Female JIC 37° - Swivel - Straight
              Steel




              10691N-16-16
              1
              0.875
              2.45
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-16-16-RD
              1
              0.875
              2.27
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-16-16C
              1
              0.875
              2.45
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-16-16S
              1
              0.875
              2.45
              Female JIC 37° - Swivel - Straight
              Steel




              10691N-4-4
              0.25
              0.1875
              1.43
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-4-4-RD
              0.25
              0.1875
              1.34
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-4-4B
              0.25
              0.1875
              1.43
              Female JIC 37° - Swivel - Straight
              Brass




              10691N-4-4C
              0.25
              0.1875
              1.43
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-4-4S
              0.25
              0.1875
              1.43
              Female JIC 37° - Swivel - Straight
              Steel




              10691N-5-5
              0.313
              0.25
              1.56
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-5-5-RD
              0.313
              0.25
              1.51
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-5-5C
              0.313
              0.25
              1.56
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-5-5S
              0.313
              0.25
              1.56
              Female JIC 37° - Swivel - Straight
              Steel




              10691N-6-6
              0.375
              0.3125
              1.63
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-6-6-RD
              0.375
              0.3125
              1.6
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-6-6B
              0.375
              0.3125
              1.63
              Female JIC 37° - Swivel - Straight
              Brass




              10691N-6-6C
              0.375
              0.3125
              1.63
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-6-6S
              0.375
              0.3125
              1.63
              Female JIC 37° - Swivel - Straight
              Steel




              10691N-6-8
              0.375
              0.40625
              1.69
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-8-10
              0.5
              0.5
              1.86
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-8-10C
              0.5
              0.5
              1.86
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-8-8
              0.5
              0.40625
              1.89
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-8-8-RD
              0.5
              0.40625
              1.79
              Female JIC 37° - Swivel - Straight
              Brass nipple, steel nut and shell




              10691N-8-8C
              0.5
              0.40625
              1.89
              Female JIC 37° - Swivel - Straight
              Stainless Steel




              10691N-8-8S
              0.5
              0.40625
              1.89
              Female JIC 37° - Swivel - Straight
              Steel




              10791N-12-12
              0.75
              0.625
              2.26
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Brass nipple, steel nut and shell




              10791N-12-12C
              0.75
              0.625
              2.26
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Stainless Steel




              10791N-16-16
              1
              1
              2.26
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Brass nipple, steel nut and shell




              10791N-16-16C
              1
              1
              2.26
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Stainless Steel




              10791N-4-4
              0.25
              0.1875
              1.5
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Brass nipple, steel nut and shell




              10791N-4-4C
              0.25
              0.1875
              1.5
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Stainless Steel




              10791N-6-6
              0.375
              0.3125
              1.67
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Brass nipple, steel nut and shell




              10791N-6-6C
              0.375
              0.3125
              1.67
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Stainless Steel




              10791N-8-8
              0.5
              0.40625
              1.83
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Brass nipple, steel nut and shell




              10791N-8-8C
              0.5
              0.40625
              1.83
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Stainless Steel




              10891N-12-12
              0.75
              0.625
              2.15
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Brass nipple, steel nut and shell




              10891N-6-6
              0.375
              0.3125
              1.69
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Brass nipple, steel nut and shell




              12891N-10-10
              0.625
              0.5
              2.43
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Steel




              12891N-12-12
              0.75
              0.625
              2.5
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Steel




              12891N-4-4
              0.25
              0.1875
              2.09
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Steel




              12891N-5-5
              0.313
              0.25
              2.15
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Steel




              12891N-5-6
              0.313
              0.3125
              2.23
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Steel




              12891N-6-6
              0.375
              0.3125
              2.23
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Steel




              12891N-8-8
              0.5
              0.40625
              2.31
              Female NPSM Pipe - Swivel - Straight (60° Cone)
              Steel




              13491N-10-10
              0.625
              0.625
              2.96
              Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)
              Brass nipple, steel nut and shell




              13491N-12-12
              0.75
              0.75
              3.37
              Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)
              Brass nipple, steel nut and shell




              13491N-8-10
              0.5
              0.5
              2.81
              Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)
              Brass nipple, steel nut and shell




              13491N-8-8
              0.5
              0.5
              2.8
              Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)
              Brass nipple, steel nut and shell




              13791-20-20
              1.25
              1
              3.67
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Steel




              13791N-10-10
              0.625
              0.5
              2.42
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Steel




              13791N-10-10C
              0.625
              0.5
              2.42
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Stainless Steel




              13791N-12-12
              0.75
              0.625
              2.83
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Steel




              13791N-16-16
              1
              0.875
              3.18
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Steel




              13791N-4-4
              0.25
              0.1875
              1.74
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Steel




              13791N-4-4C
              0.25
              0.1875
              1.74
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Stainless Steel




              13791N-5-5
              0.313
              0.25
              1.87
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Steel




              13791N-6-6
              0.375
              0.3125
              1.94
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Steel




              13791N-6-6C
              0.375
              0.3125
              1.94
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Stainless Steel




              13791N-8-8
              0.5
              0.40625
              2.28
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Steel




              13791N-8-8C
              0.5
              0.40625
              2.28
              Female JIC 37° - Swivel - 45° Elbow - Short Drop
              Stainless Steel




              13991-20-20
              1.25
              1
              3.53
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Steel




              13991N-10-10
              0.625
              0.5
              2.27
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Steel




              13991N-10-10C
              0.625
              0.5
              2.27
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Stainless Steel




              13991N-12-12
              0.75
              0.625
              2.75
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Steel




              13991N-16-16
              1
              0.875
              3.15
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Steel




              13991N-4-4
              0.25
              0.1875
              1.62
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Steel




              13991N-4-4C
              0.25
              0.1875
              1.62
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Stainless Steel




              13991N-5-5
              0.313
              0.25
              1.71
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Steel




              13991N-6-6
              0.375
              0.3125
              1.91
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Steel




              13991N-8-8
              0.5
              0.40625
              2.03
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Steel




              13991N-8-8C
              0.5
              0.40625
              2.03
              Female JIC 37° - Swivel - 90° Elbow - Short Drop
              Stainless Steel




              14191-20-20
              1.25
              1
              4
              Female JIC 37° - Swivel - 90° Elbow - Long Drop
              Steel




              14191N-10-10
              0.625
              0.5
              2.34
              Female JIC 37° - Swivel - 90° Elbow - Long Drop
              Steel




              14191N-12-12
              0.75
              0.625
              2.63
              Female JIC 37° - Swivel - 90° Elbow - Long Drop
              Steel




              14191N-16-16
              1
              0.875
              3.15
              Female JIC 37° - Swivel - 90° Elbow - Long Drop
              Steel




              14191N-4-4
              0.25
              0.1875
              1.66
              Female JIC 37° - Swivel - 90° Elbow - Long Drop
              Steel




              14191N-5-5
              0.313
              0.25
              1.72
              Female JIC 37° - Swivel - 90° Elbow - Long Drop
              Steel




              14191N-6-6
              0.375
              0.3125
              1.93
              Female JIC 37° - Swivel - 90° Elbow - Long Drop
              Steel




              14191N-8-8
              0.5
              0.40625
              2.11
              Female JIC 37° - Swivel - 90° Elbow - Long Drop
              Steel




              16191N-10-10
              0.625
              0.5
              1.82
              Compression Air Brake
              Brass nipple, steel shell




              16191N-12-12
              0.75
              0.625
              1.93
              Compression Air Brake
              Brass nipple, steel shell




              16191N-8-10
              0.5
              0.5
              1.61
              Compression Air Brake
              Brass nipple, steel shell




              16191N-8-8
              0.5
              0.40625
              1.61
              Compression Air Brake
              Brass nipple, steel shell




              16791N-10-10
              0.625
              0.5
              3.3
              Male Inverted SAE 45° - Swivel - 45° Elbow
              Steel




              16791N-12-12
              0.75
              0.625
              3.64
              Male Inverted SAE 45° - Swivel - 45° Elbow
              Steel




              16791N-4-4
              0.25
              0.1875
              2.05
              Male Inverted SAE 45° - Swivel - 45° Elbow
              Steel




              16791N-5-5
              0.313
              0.25
              2.48
              Male Inverted SAE 45° - Swivel - 45° Elbow
              Steel




              16791N-6-6
              0.375
              0.3125
              2.6
              Male Inverted SAE 45° - Swivel - 45° Elbow
              Steel




              16791N-8-8
              0.5
              0.40625
              2.85
              Male Inverted SAE 45° - Swivel - 45° Elbow
              Steel




              16991N-10-10
              0.625
              0.5
              3.02
              Male Inverted SAE 45° - Swivel - 90° Elbow
              Steel




              16991N-12-12
              0.75
              0.625
              3.36
              Male Inverted SAE 45° - Swivel - 90° Elbow
              Steel




              16991N-4-4
              0.25
              0.1875
              1.72
              Male Inverted SAE 45° - Swivel - 90° Elbow
              Steel




              16991N-5-5
              0.313
              0.25
              1.98
              Male Inverted SAE 45° - Swivel - 90° Elbow
              Steel




              16991N-5-6
              0.3125
              0.3125
              2.03
              Male Inverted SAE 45° - Swivel - 90° Elbow
              Steel




              16991N-6-6
              0.375
              0.3125
              2.08
              Male Inverted SAE 45° - Swivel - 90° Elbow
              Steel




              16991N-8-8
              0.5
              0.40625
              2.18
              Male Inverted SAE 45° - Swivel - 90° Elbow
              Steel




              17791N-12-12
              0.75
              0.625
              3.07
              Female SAE 45 / Swivel - 45° Elbow
              Steel




              17791N-6-6
              0.375
              0.3125
              2.06
              Female SAE 45 / Swivel - 45° Elbow
              Steel




              17991N-12-12
              0.75
              0.625
              2.92
              Female SAE 45 / Swivel - 90° Elbow
              Steel




              17991N-6-6
              0.375
              0.3125
              2.06
              Female SAE 45 / Swivel - 90° Elbow
              Steel




              19291N-12-12
              0.75
              0.625
              2.35
              Female BSP Parallel Pipe - Swivel - Straight (60° Cone)
              Steel




              19291N-8-8
              0.5
              0.40625
              1.99
              Female BSP Parallel Pipe - Swivel - Straight (60° Cone)
              Steel




              1AL91N-12-12C
              0.75
              0.625
              1.86
              Female A-Lok? Compression
              Stainless Steel




              1AL91N-12-12NC
              0.75
              0.625
              1.86
              Female A-Lok? Compression w/o nut-ferrule
              Stainless Steel




              1AL91N-16-16C
              1
              0.875
              2.11
              Female A-Lok? Compression
              Stainless Steel




              1AL91N-4-4C
              0.25
              0.1875
              1.3
              Female A-Lok? Compression
              Stainless Steel




              1AL91N-4-4NC
              0.25
              0.1875
              1.3
              Female A-Lok? Compression w/o nut-ferrule
              Stainless Steel




              1AL91N-4-5C
              0.25
              0.25
              1.35
              Female A-Lok? Compression
              Stainless Steel




              1AL91N-6-6C
              0.375
              0.3125
              1.53
              Female A-Lok? Compression
              Stainless Steel




              1AL91N-6-6NC
              0.375
              0.3125
              1.53
              Female A-Lok? Compression w/o nut-ferrule
              Stainless Steel




              1AL91N-8-8C
              0.5
              0.40625
              1.61
              Female A-Lok? Compression
              Stainless Steel




              1AL91N-8-8NC
              0.5
              0.40625
              1.61
              Female A-Lok? Compression w/o nut-ferrule
              Stainless Steel




              1B291N-12-12
              0.75
              0.625
              2.93
              Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone)
              Steel




              1B291N-8-8
              0.5
              0.40625
              2.04
              Female BSP Parallel Pipe - Swivel - 90° Elbow (60° Cone)
              Steel




              1FN91N-16-16C
              1
              0.875
              1.96
              Sanitary Flange
              Stainless Steel




              1J191N-10-10
              0.625
              0.5
              1.25
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J191N-12-12
              0.75
              0.625
              2.65
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J191N-16-16
              1
              0.875
              3.15
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J191N-4-4
              0.25
              0.1875
              1.66
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J191N-4-5
              0.25
              0.25
              1.78
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J191N-6-5
              0.375
              0.25
              1.92
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J191N-6-6
              0.375
              0.3125
              1.92
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J191N-8-6
              0.5
              0.3125
              2
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J191N-8-8
              0.5
              0.40625
              2.15
              Female Seal-Lok - Swivel - 90° Elbow - Long Drop
              Steel




              1J791N-10-10
              0.625
              0.5
              2.47
              Female Seal-Lok - Swivel - 45° Elbow
              Steel




              1J791N-12-12
              0.75
              0.625
              2.74
              Female Seal-Lok - Swivel - 45° Elbow
              Steel




              1J791N-16-16
              1
              0.875
              3.5
              Female Seal-Lok - Swivel - 45° Elbow
              Steel




              1J791N-4-4
              0.25
              0.1875
              1.73
              Female Seal-Lok - Swivel - 45° Elbow
              Steel




              1J791N-4-6
              0.25
              0.3125
              1.91
              Female Seal-Lok - Swivel - 45° Elbow
              Steel




              1J791N-6-6
              0.375
              0.3125
              2.02
              Female Seal-Lok - Swivel - 45° Elbow
              Steel




              1J791N-8-10
              0.5
              0.406
              2.39
              Female Seal-Lok - Swivel - 45° Elbow
              Steel




              1J791N-8-8
              0.5
              0.40625
              2.18
              Female Seal-Lok - Swivel - 45° Elbow
              Steel




              1J991N-10-10
              0.625
              0.5
              2.18
              Female Seal-Lok - Swivel - 90° Elbow - Short Drop
              Steel




              1J991N-12-10
              0.75
              0.5
              2.39
              Female Seal-Lok - Swivel - 90° Elbow - Short Drop
              Steel




              1J991N-12-12
              0.75
              0.625
              2.39
              Female Seal-Lok - Swivel - 90° Elbow - Short Drop
              Steel




              1J991N-16-16
              1
              0.875
              2.47
              Female Seal-Lok - Swivel - 90° Elbow - Short Drop
              Steel




              1J991N-4-4
              0.25
              0.1875
              1.73
              Female Seal-Lok - Swivel - 90° Elbow - Short Drop
              Steel




              1J991N-6-6
              0.375
              0.3125
              1.91
              Female Seal-Lok - Swivel - 90° Elbow - Short Drop
              Steel




              1J991N-8-8
              0.5
              0.406
              2.02
              Female Seal-Lok - Swivel - 90° Elbow - Short Drop
              Steel




              1JC91-20-20
              1.25
              1
              2.68
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-10-10
              0.625
              0.5
              2.05
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-10-10C
              0.625
              0.5
              2.05
              Female Seal-Lok - Swivel - Straight - Short
              Stainless Steel




              1JC91N-12-10
              0.75
              0.5
              2.05
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-12-10C
              0.75
              0.5
              2.05
              Female Seal-Lok - Swivel - Straight - Short
              Stainless Steel




              1JC91N-12-12
              0.75
              0.625
              2.05
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-12-12C
              0.75
              0.625
              2.05
              Female Seal-Lok - Swivel - Straight - Short
              Stainless Steel




              1JC91N-16-16
              1
              0.875
              2.56
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-16-16C
              1
              0.875
              2.56
              Female Seal-Lok - Swivel - Straight - Short
              Stainless Steel




              1JC91N-20-16
              1.25
              0.875
              2.3
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-4-4
              0.25
              0.25
              1.46
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-4-4C
              0.25
              0.25
              1.46
              Female Seal-Lok - Swivel - Straight - Short
              Stainless Steel




              1JC91N-6-6
              0.375
              0.3125
              1.62
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-6-6C
              0.375
              0.3125
              1.62
              Female Seal-Lok - Swivel - Straight - Short
              Stainless Steel




              1JC91N-8-8
              0.5
              0.40625
              1.93
              Female Seal-Lok - Swivel - Straight - Short
              Steel




              1JC91N-8-8C
              0.5
              0.40625
              1.93
              Female Seal-Lok - Swivel - Straight - Short
              Stainless Steel




              1P691N-4-4C
              0.25
              0.1875
              1.3
              Compression CPI
              Stainless Steel




              1P691N-6-6C
              0.375
              0.3125
              1.53
              Compression CPI
              Stainless Steel




              1P691N-8-8C
              0.5
              0.40625
              1.61
              Compression CPI
              Stainless Steel




              1TU91N-10-10C
              0.625
              0.5
              2.14
              Universal Tube Stub
              Stainless Steel




              1TU91N-12-12C
              0.75
              0.625
              2.24
              Universal Tube Stub
              Stainless Steel




              1TU91N-16-16C
              1
              0.875
              2.73
              Universal Tube Stub
              Stainless Steel




              1TU91N-4-4C
              0.25
              0.1875
              1.63
              Universal Tube Stub
              Stainless Steel




              1TU91N-4-5C
              0.25
              0.25
              1.7
              Universal Tube Stub
              Stainless Steel




              1TU91N-6-6C
              0.375
              0.3125
              1.81
              Universal Tube Stub
              Stainless Steel




              1TU91N-8-10C
              0.5
              0.5
              2.14
              Universal Tube Stub
              Stainless Steel




              1TU91N-8-8C
              0.5
              0.40625
              2.72
              Universal Tube Stub
              Stainless Steel




              2GK-NUT
              na
              na
              0.188
              Bulkhead Nut
              Steel




              NA-6520
              na
              na
              0.54
              Grease Zerk Fitting























        Since 2007








        美國DMK Engineering Solutions公司

信德邁科技(北京)有限公司 CNMEC Technology



E-mail：sales@cnmec.biz   fcg.cnmec@parkerdistribution.com.cn

地址：北京市朝陽區望京街10號望京SOHO塔1C座2115室

郵編：100102

電話：010-8428 2935, 8428 3983

手機：139 1096 2635

Http：//www.0591w.com


傳真：010-8428 8762








          京ICP備08000876號-1

          京公網安備 11010502019740

          Since 2007 Strong Distribution & Powerful Partnerships
