泄壓閥，RVP 系列安全閥 - 75,000 PSI | #10RVP9072 Relief Valve, RVP Series - 75,000 PSI | #10RVP9072
Parker Autoclave RVP Series relief valves

派克 Autoclave 的 RVP 系列安全閥泄壓閥為設定壓力為 3,000 psi (206 bar) 至 75,000 psi (5171 bar) 的氣體提供可靠的排氣。該閥門的金屬閥座設計可按照商業標準關閉液體和氣體。派克 Autoclave 的 RVP 系列泄壓閥采用金屬閥座設計，可在 3,000 psi (206 bar) 至 75,000 psi (5171 bar) 的設定壓力下可靠地排放氣體。工作溫度范圍為 -423°F (-252°C) 至 400°F (204°C)。這些精密溢流閥設計用于流量不重要的高壓下的熱膨脹或小體積溢流應用。因此，這些型號的液體曲線未顯示在目錄中Parker Autoclave 可以根據特殊訂單提供各種入口和出口連接。RVP 型號還提供高溫選項，適用于 750°F (399°C) 的溫度。指定高溫選項：為 750°F (399°C) 高溫選項添加后綴“HT”。

警告：
1. AE 安全閥已預設并在工廠密封。如果客戶破壞密封，則保修無效。
2. 最大系統工作壓力不應超過安全閥設定壓力的 90%。

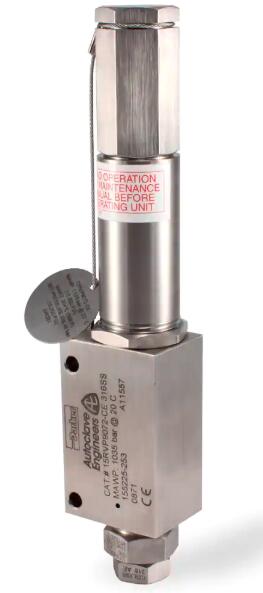

Parker Autoclave Relief Valve, RVP Series - 75,000 PSI

市場：

- 石油和天然氣
- 石化
- 化工
- 研究

特點/優勢：

- 標準型號的安全閥由 316 不銹鋼制成，精選部件由抗磨損不銹鋼材料制成，以實現最佳經濟性和堅固性。
- 設計有 3/8” 和 5/16” Parker Autoclave 高壓入口連接。所有型號的出口連接都是 3/4 英寸 NPT 內螺紋。雖然可以使用其他尺寸和連接類型的適配器，但它們的尺寸必須滿足特定的流量要求。
- 孔口直徑范圍從 .062 (1.57mm) 到 .312” (7.92mm)。
- 設計為隨著系統壓力增加而打開。正確的彈簧選擇可確保打開、全升程和流量以及復位壓力的可重復性。
- 材料工程和嚴格的質量控制程序相結合，以確保最高的質量、可靠性和使用壽命。每個閥門都經過預設和工廠密封，以確保閥門正常運行。
- 獨特的閥座結構加上噴嘴導向和正確選擇的材料允許標準設定壓力達到 75,000 psi。(5171 bar)
- 旨在提供氣密性的氣體關閉。
- RVS 閥門設計用于使用較少的基本組件，有助于最大限度地減少備件庫存并易于維護
- 可提供 CE 標志。可應要求提供 SOG 選項。

應用：

- 壓力氣體系統
- 低溫系統
- 蒸汽處理系統
- 中壓流體處理系統

Parker Autoclave's RVP Series relief valves provide reliable venting of gases for set pressures from 3,000 psi (206 bar) to 75,000 psi (5171 bar). The valve's metal seat design provides shut-off of liquids and gases to commercial standards.

Parker Autoclave's RVP Series relief valves are designed with a metal seat design for reliable venting of gases at set pressures from 3,000 psi (206 bar) to 75,000 psi (5171 bar). The operating temperature range is -423°F (-252°C) to 400°F (204°C).These precision relief valves are designed for thermal expansion or low volume relief applications at high pressures where flow is not critical. Thus, liquid curves for these models are not shown in the catalog

Parker Autoclave can supply various inlet and outlet connections on special order. A high temperature option is also available for temperatures to 750°F (399°C) for RVP models. To specify high temperature option: Add suffix “HT” for 750°F (399°C) high temperature option.

Caution:
1. AE relief valves are preset and factory sealed. Warranty is voided if seal is broken by customer.
2. Maximum system operating pressure should not exceed 90% of relief valve set pressure.

Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Research

Features/Benefits:
- Standard models of Relief Valves are constructed of 316 stainless steel with selected components made of anti-galling stainless steel material for optimum economy and ruggedness.
- Designed with 3/8” and 5/16” Parker Autoclave high pressure inlet connections. The outlet connection on all models is a female 3/4” NPT. While adapters to other sizes and connection types are available, they must be sized for specific flow requirements.
- Orifice diameters range from .062 (1.57mm) to .312” (7.92mm).
- Designed to open as a function of increasing system pressure. Proper spring selection assures repeatability of opening, full lift and flow, and reseat pressures.
- Materials engineering and stringent quality control procedures combine to assure the highest quality, reliability and service life. Each valve is preset and factory sealed to ensure proper valve operation.
- Unique seat construction plus over-the-nozzle guiding and proper selection of materials permits standard set pressures to 75,000 psi. (5171 bar)
- Designed to provide bubble tight shut off of gases.
- Engineered to perform with fewer basic components, RVS valves facilitate minimum stocking of spare parts and ease of maintenance
- Available with CE Mark. SOG option available upon request.


Applications:
- Pressure Gas Systems
- Cryogenic systems
- Steam Handling Systems
- Medium Pressure Fluid Handling Systems

Technical Specifications

Relief Valve, RVP Series - 75,000 PSI 型號
